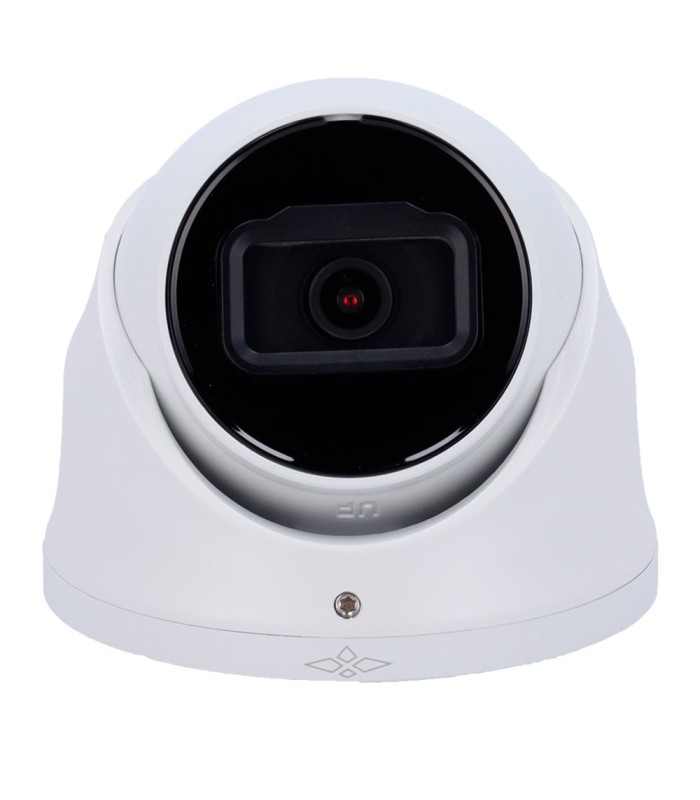

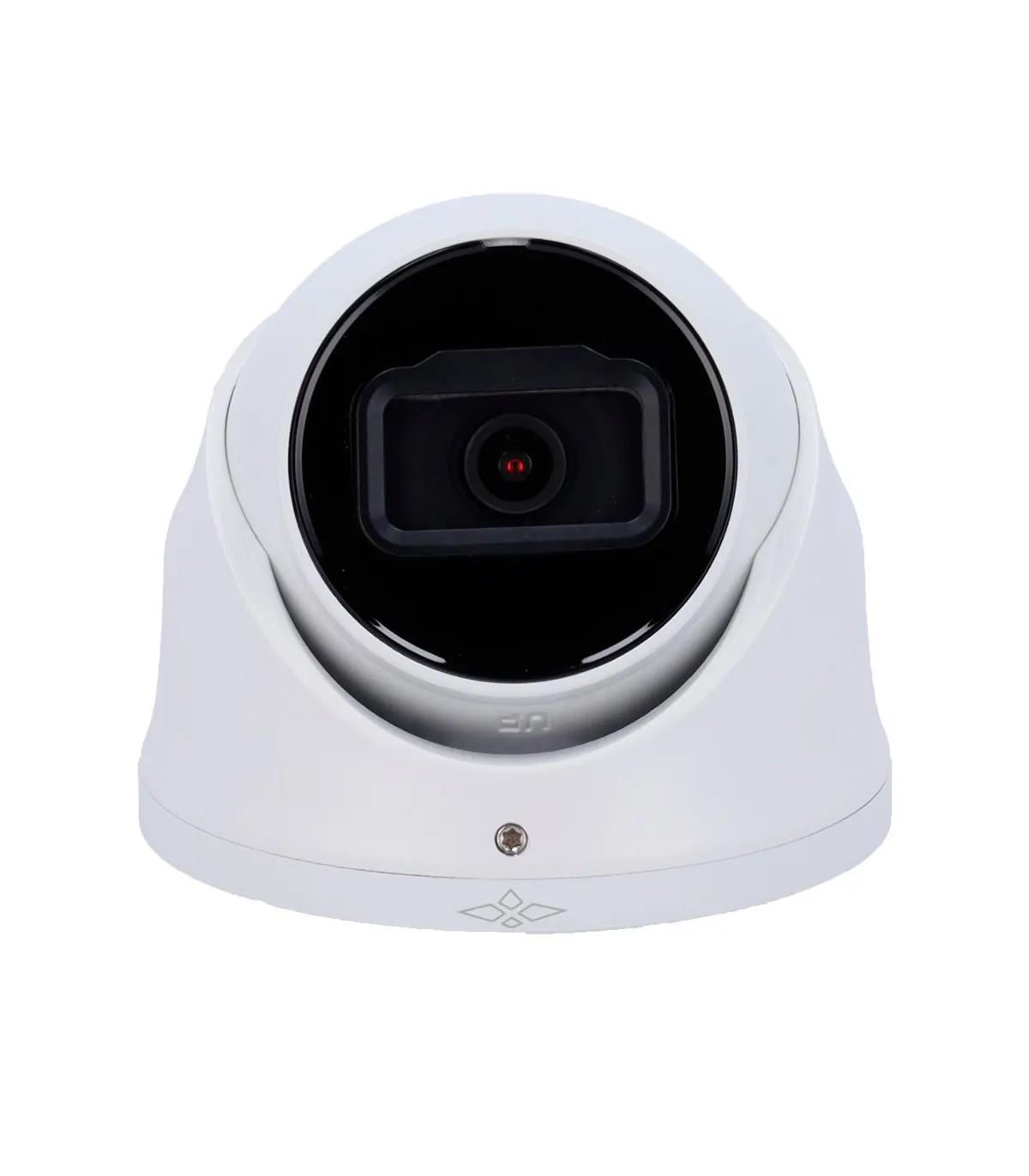

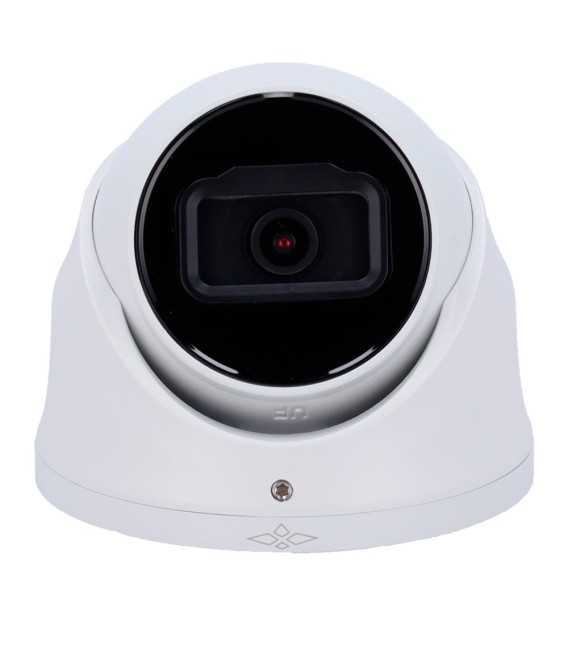

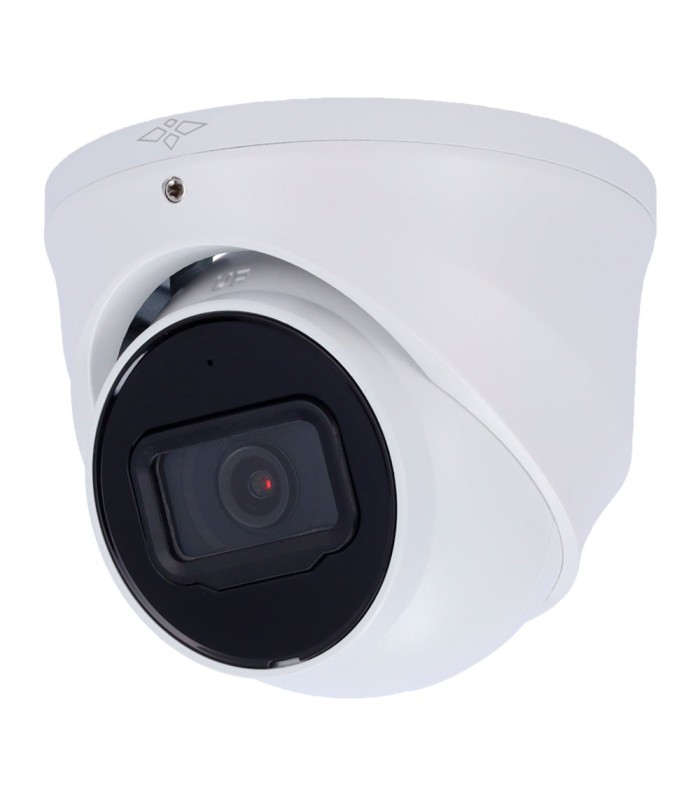

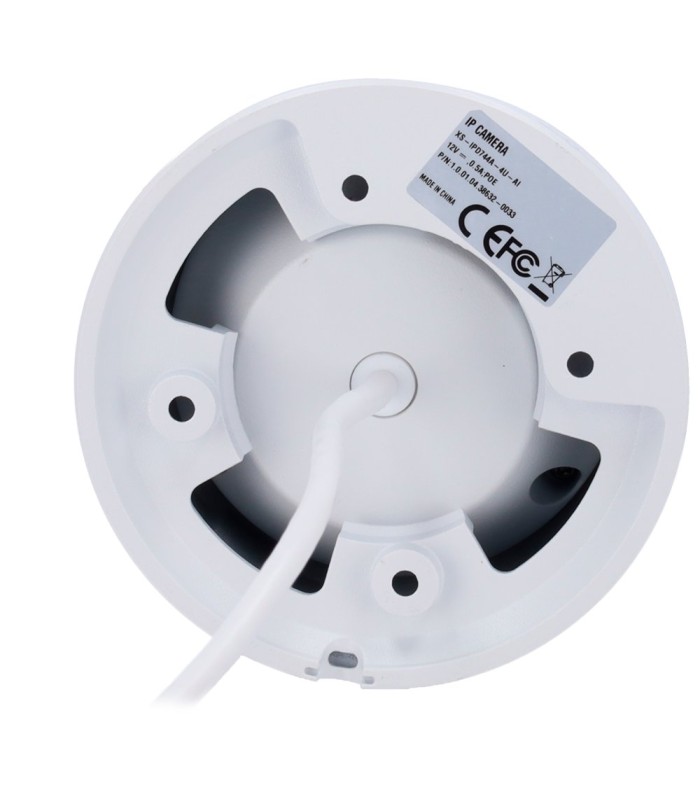

X-Security WizSense IP Dome Camera XS-IPD744WA-4U-AI
- X-Security WizSense IP Dome Camera
- 4 Megapixel (2688 × 1520)
- 2.8 mm Lens
- IR LED 50m | Built-in Microphone
- H.265+ | PoE
$144.36
Reference:
XS-IPD744WA-4U-AI
Brand:
X-Security WizSense XS-IPD744WA-4U-AI IP Dome Camera
- X-Security
- IP Turret Camera
- ULTRA Range
- WizSense
- 1/2.9" Progressive CMOS
- 4 Megapixel (2688 × 1520)
- 2.8 mm Lens
- 0.005 Lux
- IR LED Range 50 m
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- IP67 Waterproof
- Built-in Microphone
- IVS (Perimeter Protection)
- SMD Plus
- WDR (120 dB)
- IR CUT
- WEB Interface, CMS (DSS/ PSS), Smartphone, and NVR
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Image Sensor | 1/2.9” CMOS image sensor |
| Maximum Resolution | 4 Megapixel (2688 × 1520) |
| Lens | 2.8 mm (H: 102°; V: 54°; D: 121°) |
| IR Range | 50 m |
| DORI | 63.6 (D), 25.4 (O), 12.7 (R), 6.4 (I) |
| Main Stream Rate | 2688 × 1520 @ (1–25/30) fps |
| Extra Stream Rate | 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Minimum Illumination | 0.005 lux@F1.4 (color, 30 IRE) 0.0005 lux@F1.4 (black and white, 30 IRE) 0 lux (IR illuminator on) |
| Video Bitrate | H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Lens Positioning | 3 Axis |
| Image Enhancements | WDR (120 dB), BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support vehicle and person classification and accurate detection) |
| AI-Driven SSA | Yes |
| Weight | 500 g |

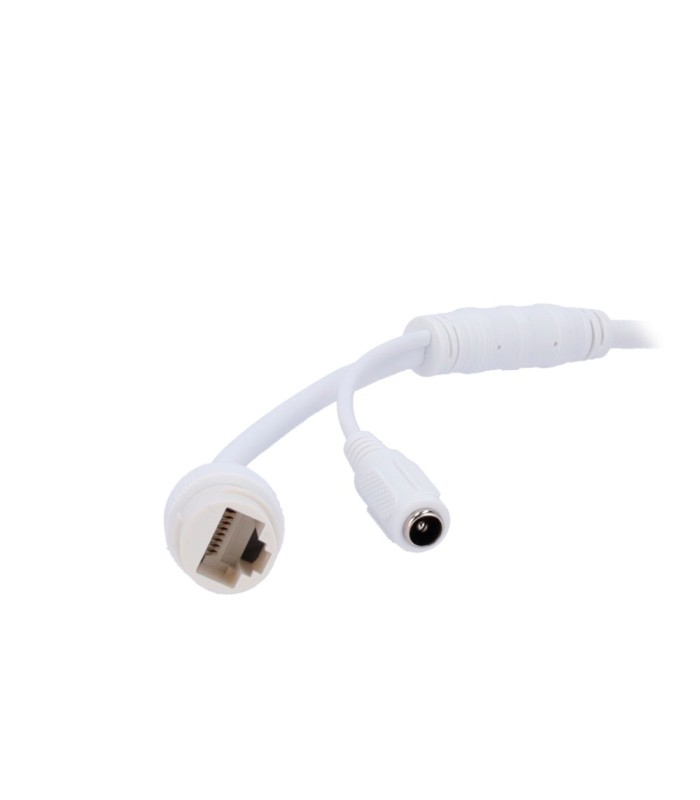

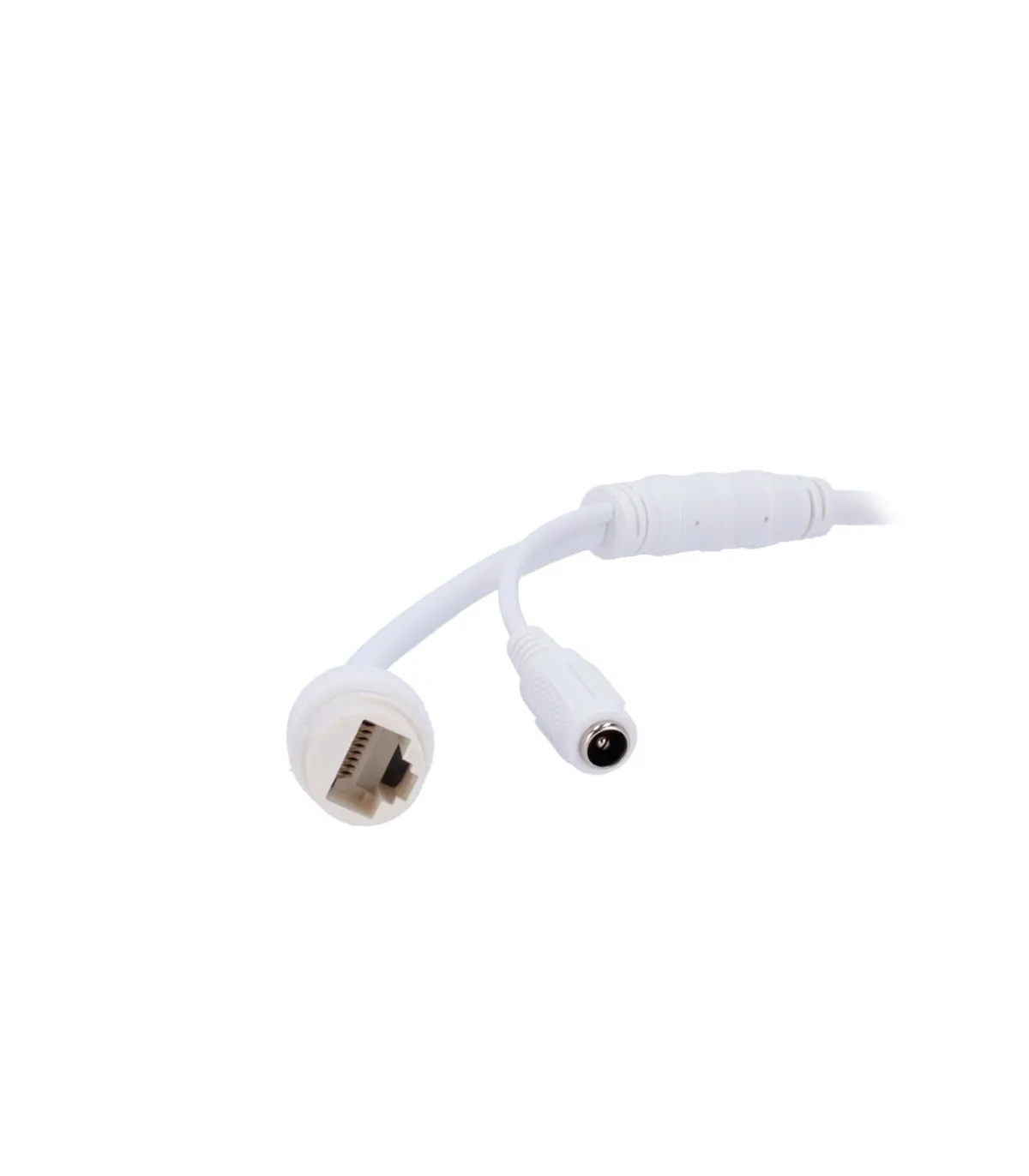

| Network Interface | Ethernet 10/100 BaseT |
| Audio | Built-in Microphone |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |

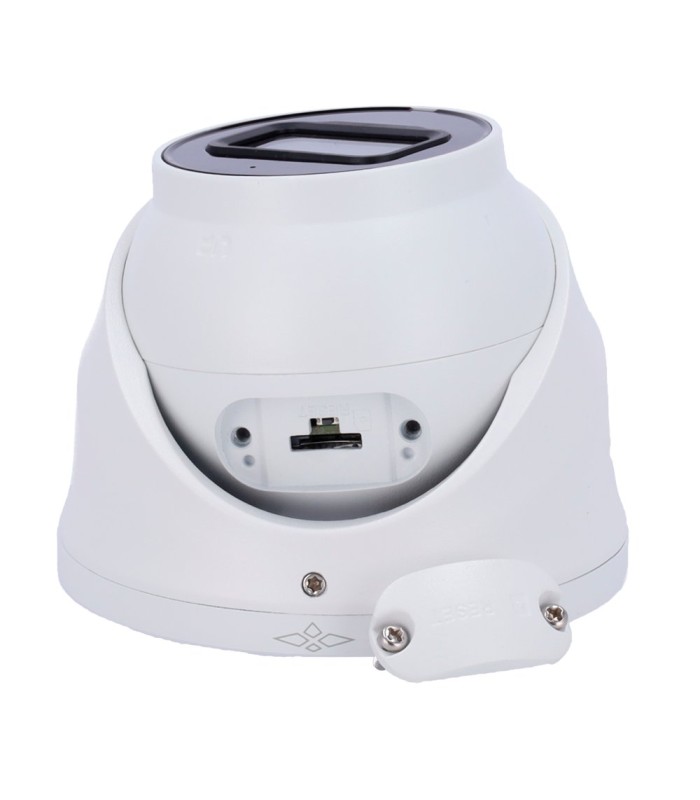

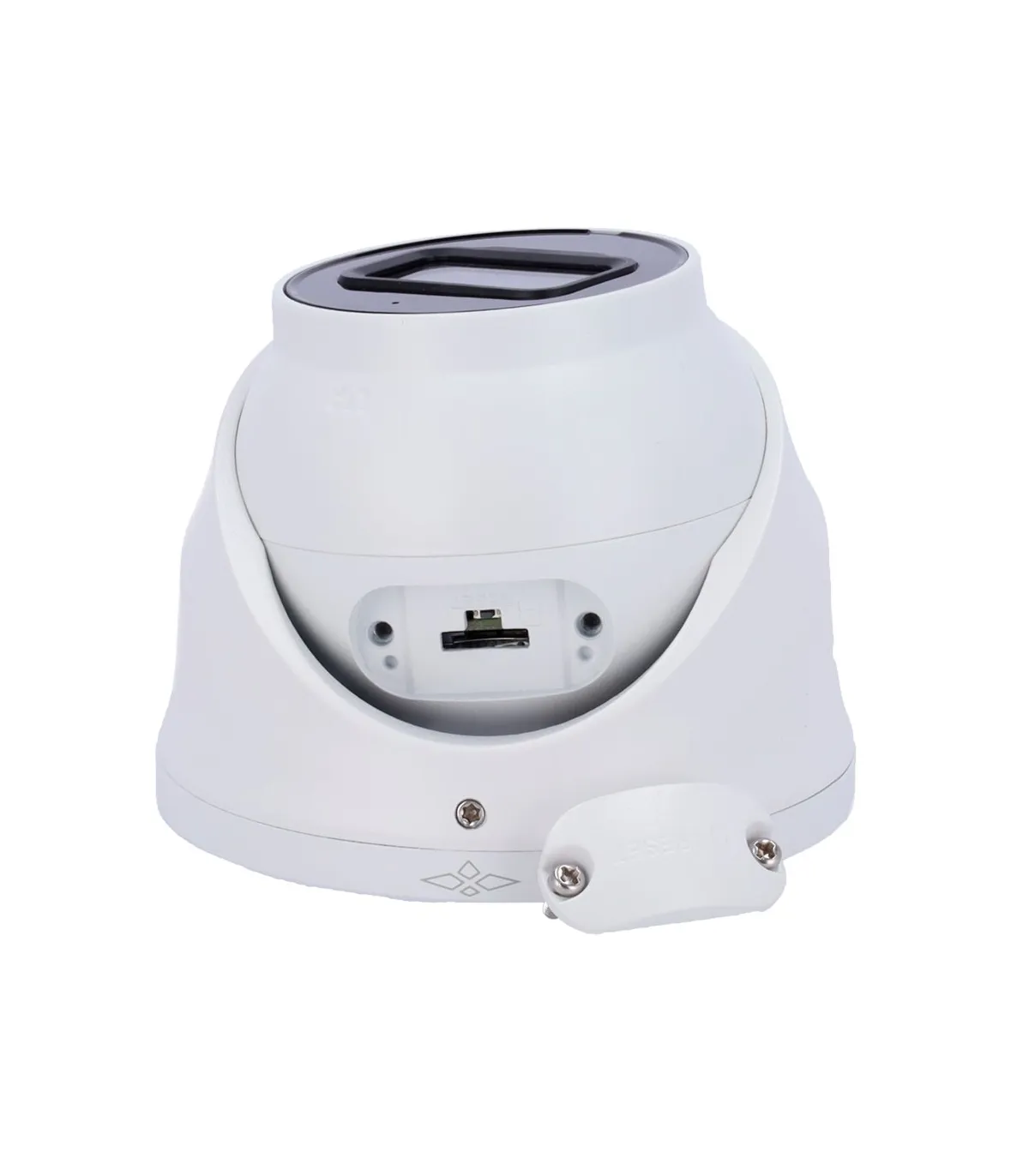

| External Storage | MicroSD card slot up to 256 GB |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Interoperability | ONVIF (Profile S/Profile G); .CGI; P2P |
| Power | DC 12 V / 4.2 W, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +60º C |
| Material | Metal |
| Protection Rating | IP67 Waterproof |
| Dimensions | 93.6 mm (D) x 106 mm (Ø) |
Content
- X-Security IP Camera
- Installation Materials
- User Manual
- CD with Software and Instructions
XS-IPD744WA-4U-AI
Data sheet
- Brand
- X-Security
- Type of camera
- Dome
- Resolution
- 4 MP
- Technology
- IP
- WDR
- Yes
- IR range
- IR 50m
- White light
- No
- Audio
- Micrófono
- SD Slot
- Yes
- IP Rating
- IP67
- IK Rating
- IK10
- Use
- Outdoor
- Series
- Ultra
- Functions
- Audio
- PoE
- Yes
- Product type
- Camera
- Connectivity
- Ethernet
Specific References
- EAN13
- 8435325474816
