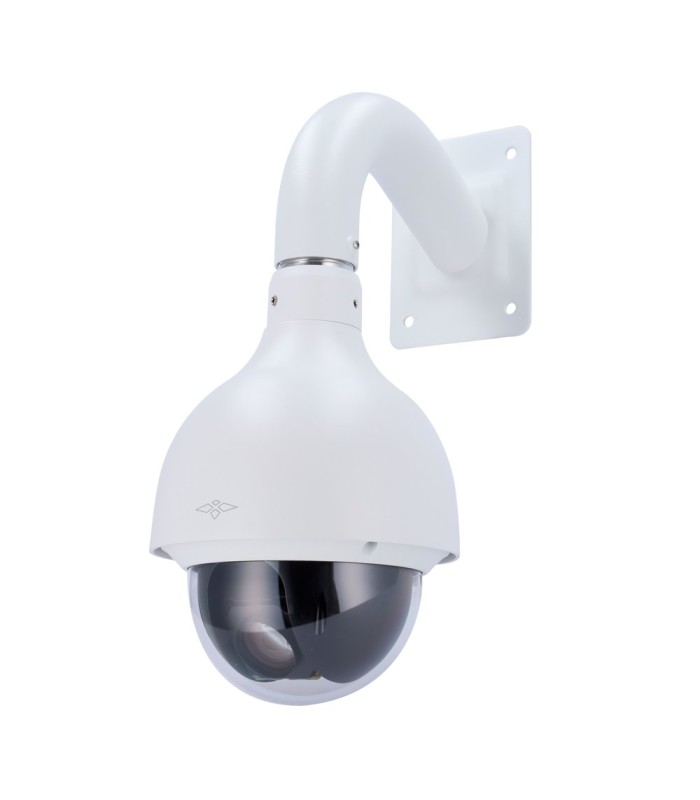

2 Megapixel PTZ IP Camera X-Security XS-IPSD5025A-2P-WIZ

Name: 2 Megapixel PTZ IP Camera X-Security XS-IPSD5025A-2P-WIZ
Brand: X-SECURITY
Price: 424.125 EUR
Availability: OutOfStock

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD5025ITA-4U-WIZ

Motorized IP camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P

Brand: X-SECURITY

SKU: XS-IPSD5025A-2P-WIZ

Condition: New product

X-Security
2 Megapixel PTZ IP Camera
1/2.8” Progressive Scan CMOS
H.265 / H.264 / MJPEG Compression
4.8-120 mm Varifocal Lens | Perimeter Protection | Facial Recognition

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

2 Megapixel X-Security XS-IPSD5025A-2P-WIZ PTZ IP Camera

X-Security
PTZ IP Camera
Startlight
Wizsense
25X Optical Zoom
1/2.8" Sony STARVIS CMOS
2 Megapixel (1920 × 1080)
Varifocal Lens 4.9~156 mm
0.005 Lux
H.265+/H.265/H.264+/H.264/MJPEG
WizSense, false alarm filter for vehicles and people
IVS (Perimeter Protection)
Facial Recognition
RJ-45 10/100 BaseT
PoE+ 802.3at
IP67 Waterproof, IK10
Alarms
SD Card Recording
ONVIF Compatible
Wall Mount Included

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8” Sony Starvis CMOS Starlight
Resolution	1080p(1920x1080), 720p(1280x720), 1.3Mpx (1280x960), D1(704x576), CIF(352x288)
Compression	H.265 / H264 / MJPEG (video), G711a / G771u / AAC (audio)
Main Stream Rate	1080p / 720p / 1.3 Mpx (1~50fps)
Extra Stream Rate	2nd: D1/CIF, 3rd: 1080p/720p/1.3Mpx/D1/CIF (1 ~ 25 FPS)
Bitrate	448 Kbps ~ 8 Mbps
Lens	Varifocal 4.8 ~ 120 mm (25X Optical Zoom) Auto Iris, Auto Focus
Digital Zoom	25X
Image Enhancements	WDR (120dB), 2D/3DNR, HLC, BLC, ATW, AGC, Privacy Mask
Minimum Illumination	0.005 Lux (color) / 0.0005 Lux (B/W)
Day/Night	Removable ICR mechanical filter
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB interface, CMS software, mobile app, and NVR
Memory	Micro SD card slot (Max 128 GB)
Pan/Tilt Range	Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180°
Manual Speed	Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s
Speed between Presets	Horizontal: 500° /s, Vertical: 500° /s
Pre-set Positions	300, 5 auto pattern, 8 auto tour, 5 auto scan
Auto Tracking	Single scene, multiple scene, panoramic scene
IVS Functions	Tripwire; intrusion; cross line detection; loitering detection; abandoned/missing object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification
Face Detection	Supports face detection, face bounding box, snapshot capture, and facial image enhancement. Face cropping is also offered, where you can crop one face at a time and customize the size to make it a one-inch photo. Supported methods for capturing snapshots are: real-time capture, and quality first.
SMD	Integrated
Communication	CGI; Dahua SDK; API; SDK; ONVIF (Profile S&G&T)
Alarms	2 inputs / 1 relay NO/NC
Audio	1 input (Line In) / 1 output (Line Out)
Power	24 VDC/2.5 A, PoE+(802.3at)
Protection Grade	P67, IK10, TVS 6000 V lightning-proof; surge protection; Voltage transient protection
Operating Temp	-40º C ~ +60º C
Dimensions	253 mm (H) x 186.2 mm (Ø)
Weight	2500 g
