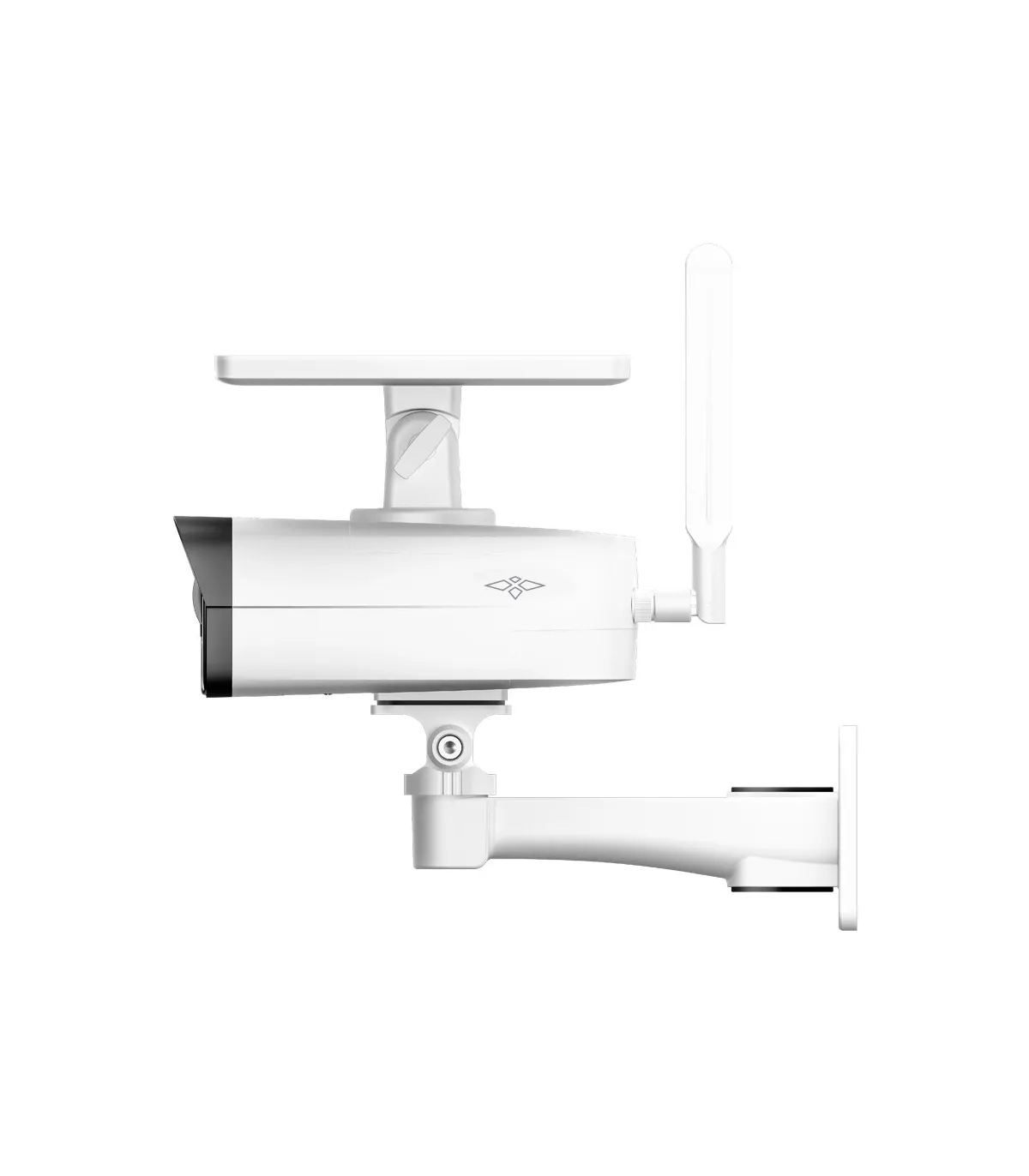

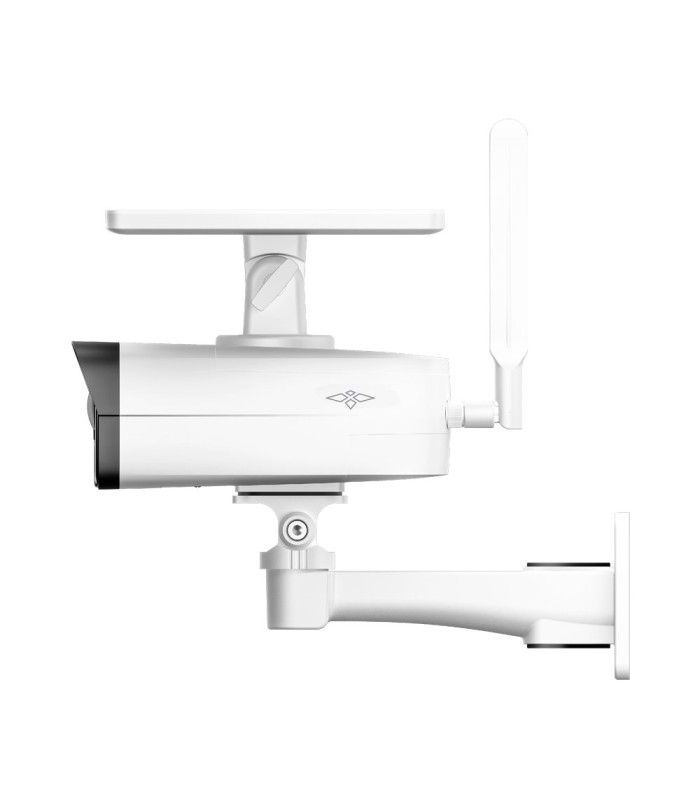

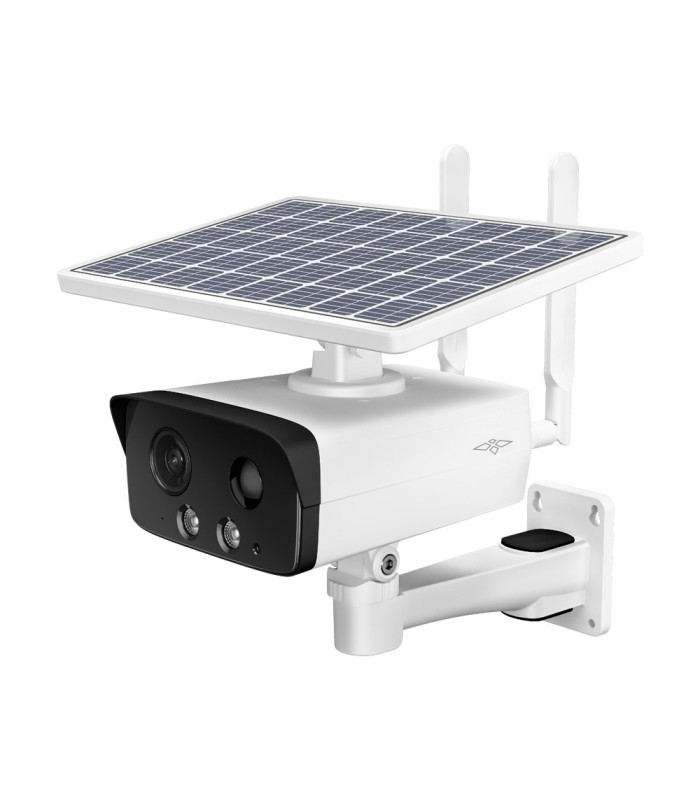

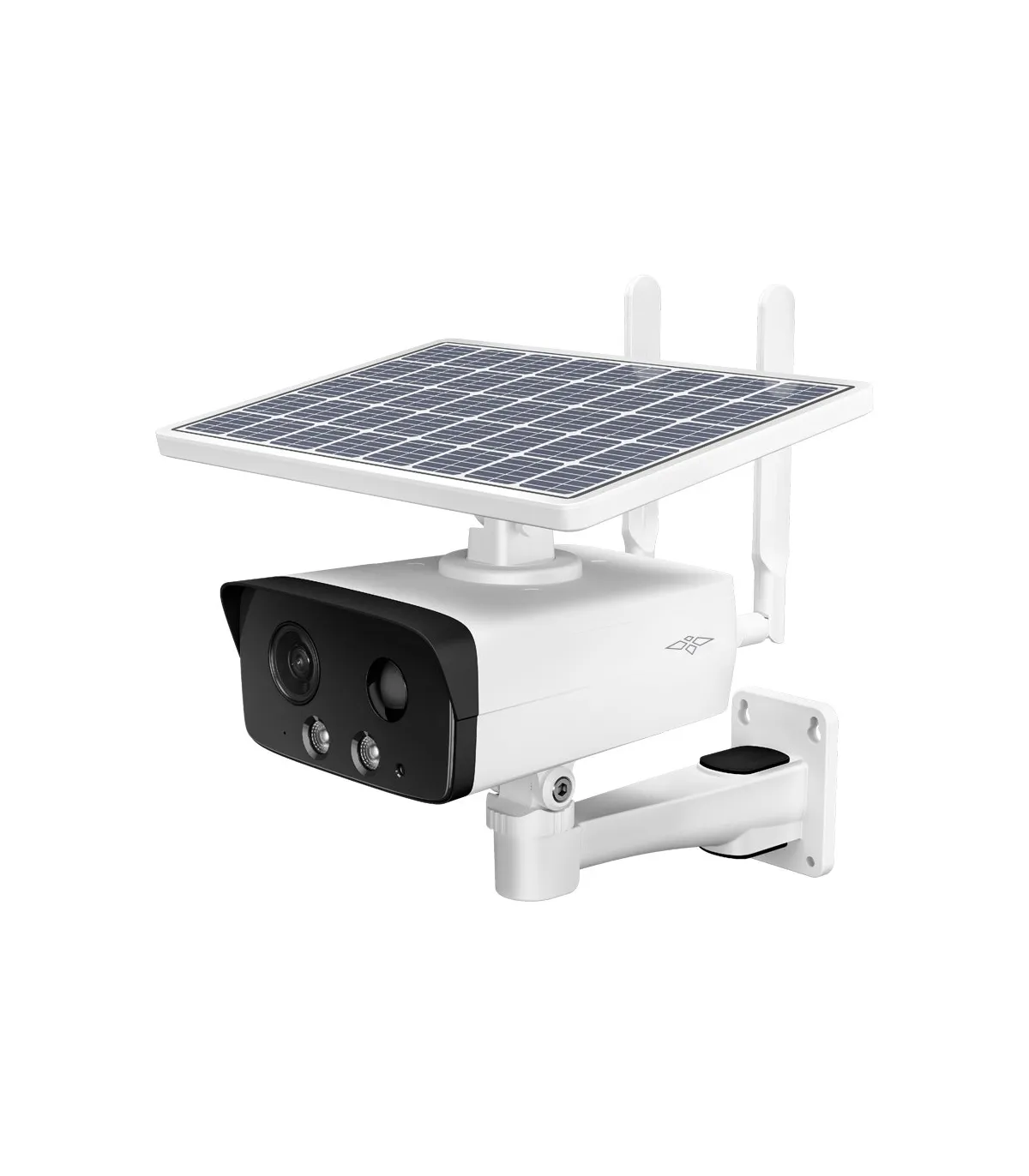

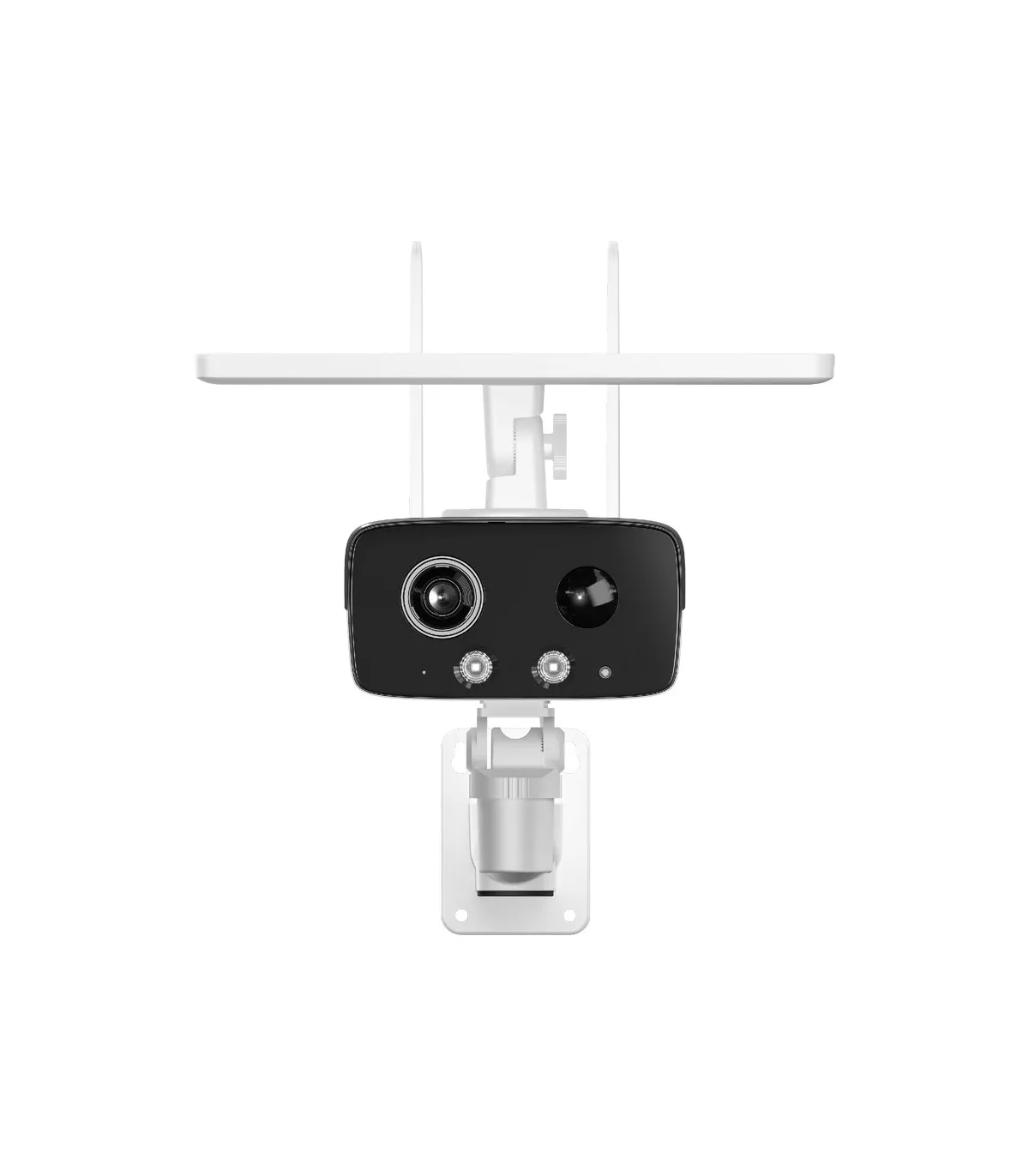

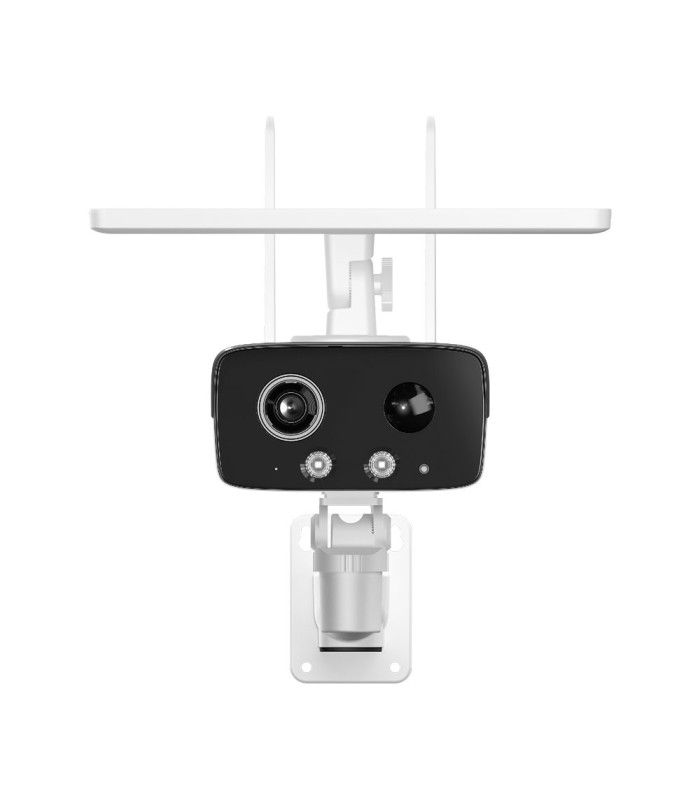

X-Security XS-IPB040A-4YWSOLARPIR-4G 4G Bullet Camera
Brand: X-SECURITY
- Bullet 4G Camera
- 1/3" 4MP progressive CMOS
- 2.8mm Lens / WDR
- Includes photovoltaic panel for autonomous use
- Includes rechargeable lithium battery
X-Security 4G Bullet Camera XS-IPB040A-4YWSOLARPIR-4G
- X-Security
- 1/3" 4 MP CMOS image sensor, low light and high-definition image
- Max output 4 MP (2688 × 1520) at 25/30 fps
- H.265 codec
- Warm light/IR LED built-in
- Light and sound alarm link
- Integrated 4G module
- Built-in PIR sensor
- 8 GB eMMC memory chip built-in
- Stand-alone with built-in solar panel and battery
- Anomaly detection
- Supports max. 256G Micro SD card
- Built-in microphone and speaker
- IP67 protection
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/3" 4MP progressive CMOS |
| Max Resolution | 4 Megapixel (2688x1520) |
| Minimum Illumination | 0.01 lux at F1.6 (color, 30 IRE) |
| Lens | 2.8 mm: H: 102°; V: 54°; D: 121° |
| Bitrate | H.265: 32 kbps–6144 kbps H.264: 32 kbps–6144 kbps |
| Main Stream Rate | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Compression | H.265 / H264 |
| Image Enhancements | WDR (120dB), BLC, 3D-DNR, MD, ROI |
| Alarm Events | Motion detection; video tampering; audio detection; security exception; PIR alarm; low battery alarm; light alarm; sound alarm |
| Day/Night | Removable ICR mechanical filter |
| Internal Storage | MicroSD card, Max 256 GB |
| Network Interface | Ethernet 10M / 100M 4G Micro SIM card (LTE-TDD/LTE-FDD/WCDMA/GSM) |
| Audio | Built-in Microphone |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power Consumption | Sleep mode: 0.03 W General mode: 2.1 W Max. (4G current pulling+IR+speaker+warning light): 4 W |
| Battery | Lithium 10Ah | Battery Voltage (3.0 V - 4.2 V) |
| Protection Grade | IP67 |
| Material | Metal + Plastic |
| Operating Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Base Dimensions | 238 mm × 181 mm × 296 mm (9.37" × 7.13" × 11.65") |
| Weight | 1250 g |
Contents
- X-Security IP Bullet Camera
- Installation materials
- User manual
- Includes wall mount
