| Brand | X-SECURITY |
| Image Sensor | 1/2.9” Progressive CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 2688 × 1520 @ (1–25/30) fps |
| Extra Stream Rate | 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | 2.7 ~ 13.5 mm (H: 104º-29º)(V:54º-16º)(D:125º-33º) |
| Minimum Illumination | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Image Enhancements | WDR 120dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter Protection) | Tripwire, intrusion (supports accurate classification and detection of vehicles and people) |
| AI SSA | Yes |
| Day/Night | Removable ICR mechanical filter |
| Network Interface | Ethernet 10/100 BaseT |
| Audio | Integrated microphone |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); .CGI; P2P; Milestone; Genetec |

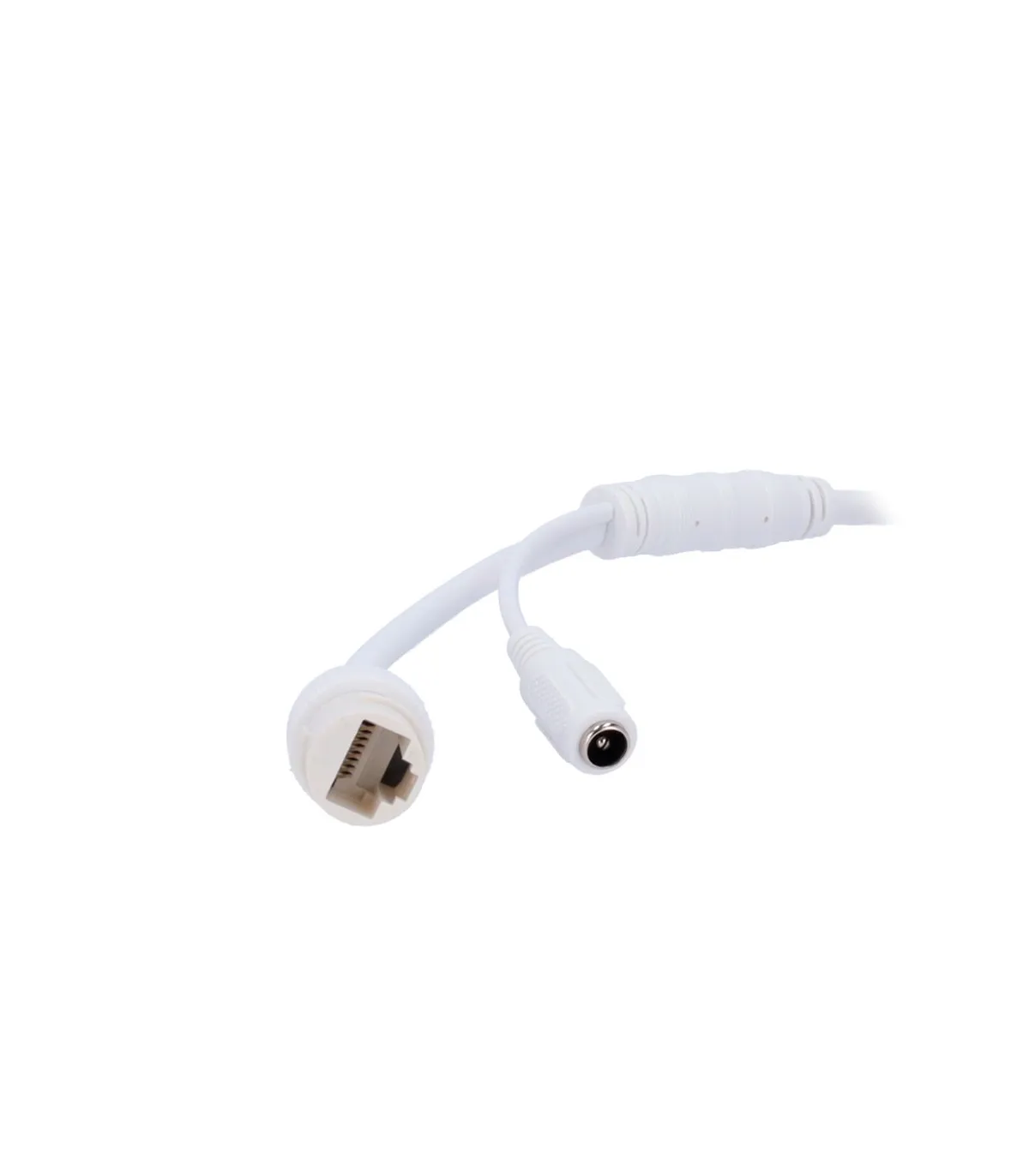

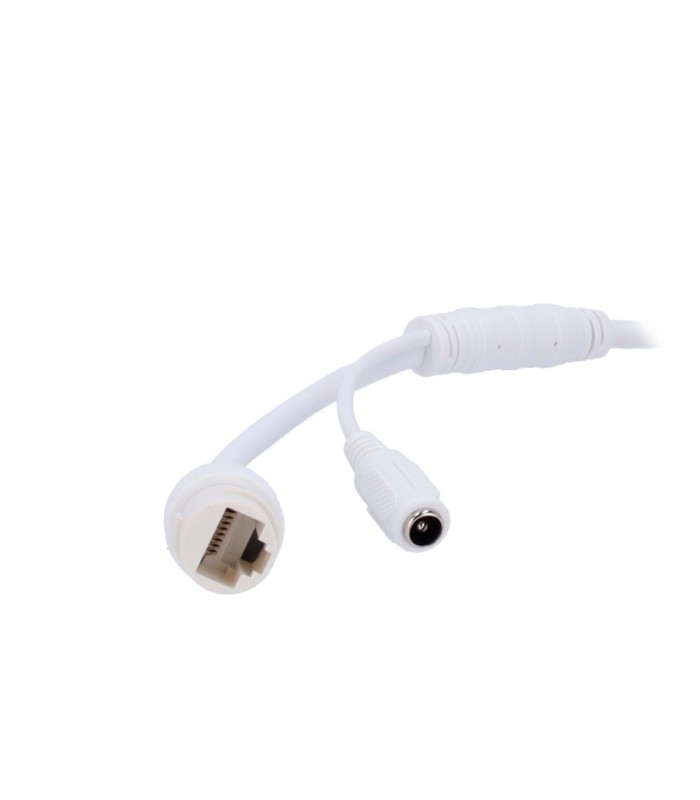

| Power | DC 12 V / 5.2W, PoE IEEE802.3af |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | Waterproof IP67 |
| Dimensions | 108.3 mm (D) x 122 (Ø) mm |
| Weight | 715 g |
