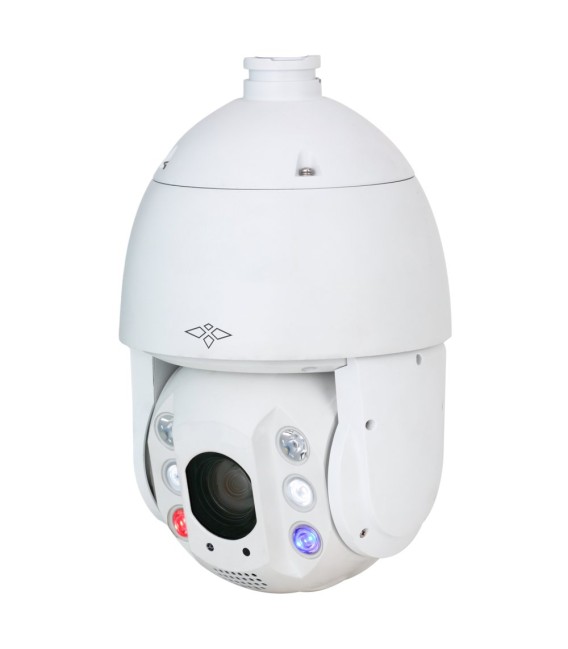

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6032ITA-4U-TIOC

Name: X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD6032ITA-4U-TIOC
Brand: X-SECURITY
Price: 792.135 EUR
Availability: InStock

X-Security 2 Mpx PTZ IP Camera Pro Range XS-IPSD6325SIA-2P-WIZ

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD5025ITA-4U-WIZ

Brand: X-SECURITY

SKU: XS-IPSD6032ITA-4U-TIOC

Condition: New product

PTZ X-Security 4 Mpx Pro Range IP Camera
Varifocal lens 4.8~154 mm (32x optical zoom)
Dual Light | IR 150 m | White light 50 m
IVS (Perimeter Protection) | SDM 4.0
Face detection | Auto Tracking | Starlight

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

X-Security 4 Mpx Pro Range PTZ IP Camera XS-IPSD6032ITA-4U-TIOC

X-Security
WizSense PTZ IP Camera
4 Megapixel (2560x1440)
Pro Range
1/2.8" Progressive Scan CMOS
Varifocal lens 4.8~154 mm
32X optical zoom
Full-Color Starlight
0 lux
Dual Light: IR and white light
IR range 150 m
White light range 50 m
Compression H.264H / H.264B / Smart H.265+ / H.265 / H.264 / MJPEG
IVS (Perimeter Protection)
Smart SMD 4.0 search
Face detection
Helmet and work uniform detection
Auto Tracking
Audio
Alarms
WDR (120 dB)
3D DNR
IR CUT
MicroSD card slot up to 512 GB
WEB interface, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone, and NVR
ONVIF compatible
RJ-45 10/100 BaseT
PoE+ (IEEE802.3at)
IP66 waterproof
6000 V surge protection
Wall mount bracket PFB305W included

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	4 Megapixel (2560x1440)
Lens	Varifocal 4.8~154 mm (32x optical zoom)
Field of View (FOV)	H: 55.8º~2.3º, V: 31.9º~1.3º, D: 63º~2.7º
DORI	2124 m (D), 839 m (O), 425 m (R), 212 m (I)
Focus	Auto; semi-auto; manual
Digital Zoom	16X
Electronic Shutter	1 s~1/30.000 s
Minimum Illumination	0.005 Lux @(F1.6, AGC ON) 0 lux with IR range 150 m
Supplementary Illumination	Dual light (IR + white light) IR range 150 m White light range 50 m
Day/Night	Removable mechanical ICR filter
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+
Main Stream Rate	4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps)
Extra Stream 1 Rate	D1/VGA/CIF @(1–25/30 fps)
Extra Stream 2 Rate	1080p/1.3Mpx/720p @(1–25/30 fps)
Bitrate	H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps
Image Enhancements	WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, 180º Rotation, Privacy masking
Motion Detection	Yes
EIS (Electronic Image Stabilization)	Yes
Video Metadata	Detects motorized and non-motorized vehicles, faces, and human bodies. Also performs tracking, takes snapshots, uploads high-quality face images, and optimizes images. Extracts motor vehicle attributes, detecting up to 10 attributes for them.
SMD (Smart Motion Detection)	SMD 4.0, advanced motion detection Dahua Smart Motion Detection technology works with intelligent algorithms to classify targets that trigger motion detection alarms. It filters out non-target objects, such as small and large animals, to prevent false alarms. With an AI NVR, Quick Pick technology is available, allowing you to easily search and select human and vehicle targets from SMD event videos, prioritizing the highest matches.
IVS (Perimeter Protection)	Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/lost object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification Automatically filters out false alarms caused by animals, moving leaves, bright lights, etc., and uses secondary recognition during target detection to improve alarm accuracy.
Face Detection	Supports face detection, face bounding box, snapshot capture, face snapshot upload, face image enhancement, and selection of a preferred image from a group of snapshots. Also supports attribute extraction, allowing detection of 6 attributes and 8 expressions. Attributes include gender, age, glasses, mask, mustache, and expressions. Expressions include anger, sadness, hatred, fear, surprise, calmness, happiness, and confusion. Also offers face cropping function, allowing cropping of one face at a time and customizing the size to be a one-inch photo. Supported methods for capturing snapshots are real-time capture, quality first, and selection of a preferred image from a group of snapshots.
Helmet and Work Uniform Detection	Detects 6 helmet colors: Red, orange, yellow, blue, white, and black. An alarm will be triggered when a person is not wearing a helmet or when the helmet color does not match the configured color. Also supports compliance detection for work uniforms. Up to 5 work uniform sample libraries can be uploaded, which together can contain up to 1,000 images (images must be 1080p and in JPG format). An alarm will be triggered when the similarity between the detected work uniform and the library samples is below the set threshold (i.e., below the minimum compliance standard for work uniforms). The system allows detection of work uniform attributes, such as uniform color and whether the person is wearing a mask and shoe covers. An alarm will be triggered when the target does not meet the established requirements. It also detects and triggers alarms when there is only one person on the site, and when there is no one in the detection area, such as when a worker leaves their post or leaves an area unattended.
Audio	1 input / 1 output
Audio Compression	PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
Alarms	2 inputs / 1 output
Internal Storage	MicroSD card slot up to 512 GB
Pan/Tilt Range	Horizontal: 0°~360° endless Vertical: -20°~90°, with auto flip 180°
Manual Speed	Horizontal: 0°~240°/s Vertical: 0°–120°/s
Speed between Presets	Horizontal: 240°/s Vertical: 120°/s
Pre-set Positions	300, 8 tours, 5 Patterns, 5 Scans
Auto Tracking	Yes
Communication	ONVIF (Profile S, G, T), CGI, SDK
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB interface, CMS (DSS/PSS), Smartphone, and NVR
Power	AC 24 V / 2.5 A, max. 23 W PoE+ (IEEE802.3at)
Operating Temperature	-40º C ~ +70º C
Protection Grade	IP66 waterproof 6000 V surge protection
Dimensions	325.3 mm (H) x 202 mm (Ø)
Weight	4.6 Kg
