X-Security Pinhole Camera Kit XS-IPMCKIT-4U-L1
Brand: X-SECURITY
- X-Security Pinhole Camera Kit
- 4 Megapixel (2688x1520) | 2.8 mm Lens
- WDR (120 dB) | 3D NR | Audio | Alarms
- Supports 3 streams
- Compression: H.265+/H.265/H.264+/H.264

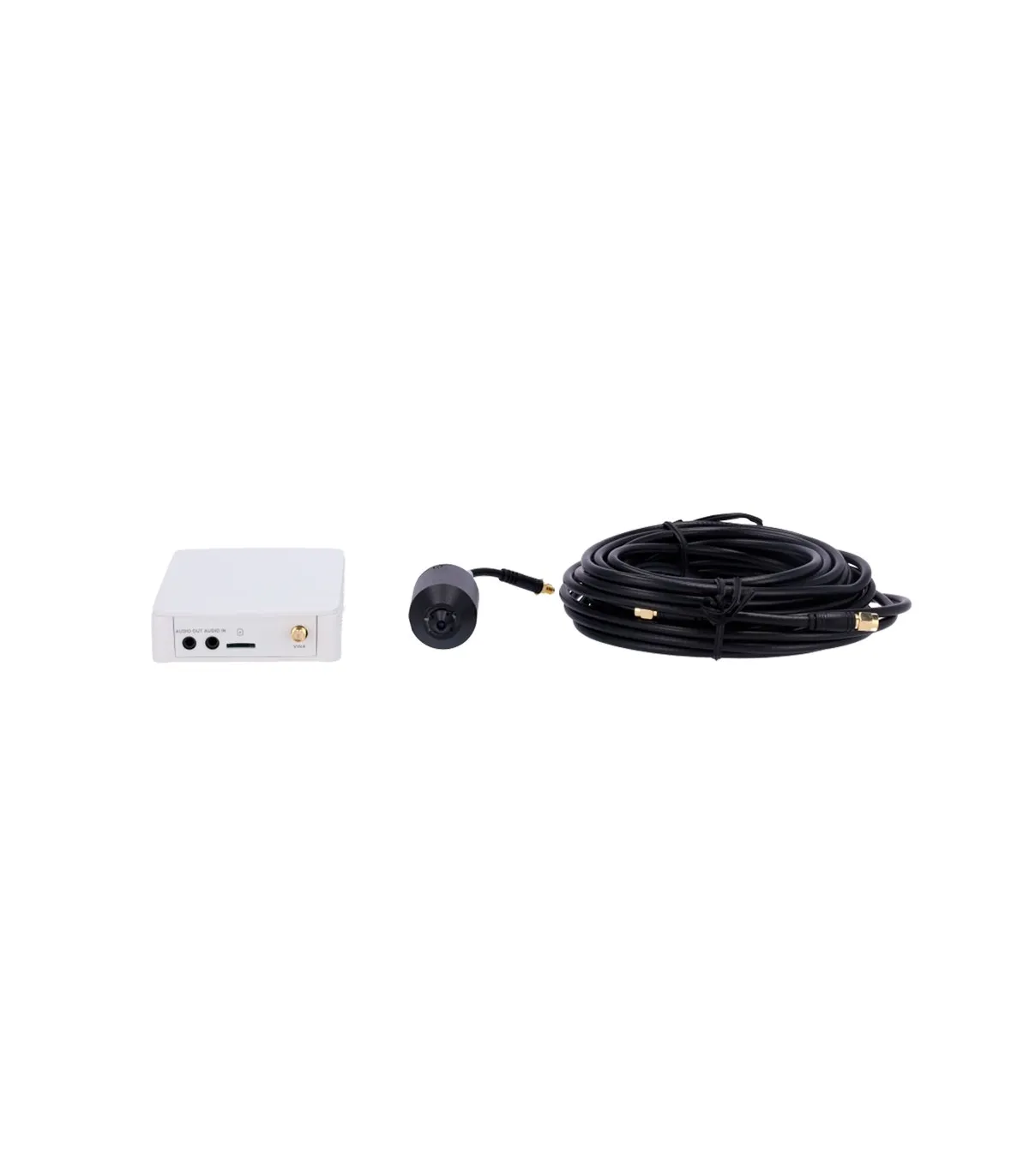

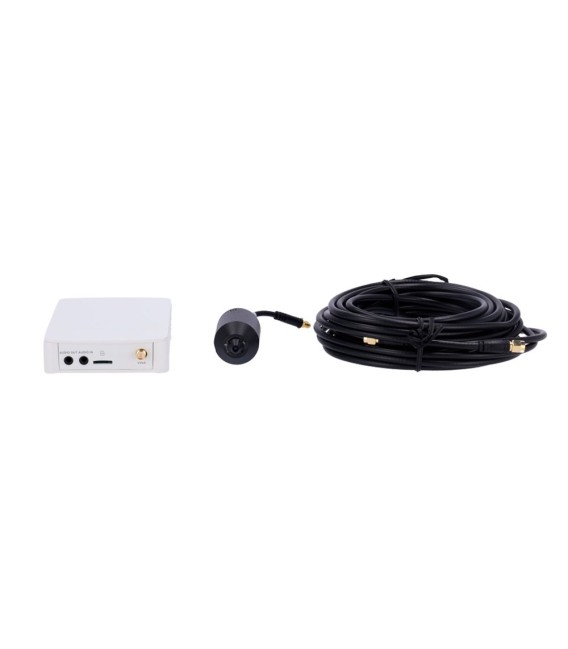

X-Security XS-IPMCKIT-4U-L1 Pinhole Camera Kit
- X-Security
- Pinhole IP Camera Kit (Main box + sensor)
- ULTRA Range
- 1/2.7" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Pinhole Lens
- M12 Lens Mount
- High sensitivity Starlight
- Color 0.005 Lux
- WDR
- 3DNR
- Capable of 3 streams
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Perimeter protection, false alarm filter for vehicles and people
- Face Capture: Compatible with facial recognition recorders
- PoE IEEE802.3af
- Audio
- Alarms
- Recording on SD card
- Intelligent detection: faces, line crossing, intrusion, scene changes
- WEB interface, CMS (DSS/PSS), Smartphone and NVR
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Lens | 2.8 mm (H: 109º) XS-IPMC-4U-L1 |
| Main Stream Rate | 2592×1944 (1–20 fps), 2688×1520 (1–25 fps ) |
| Extra Stream Rate | Sub stream: 704×576, 704×480 (1–25 fps) Third stream: 1920×1080 (1–25 fps) |
| Minimum Illumination | Color 0.005 Lux @ F2.0 B/W 0.0005 Lux @ F2.0 |
| Image Enhancements | WDR(120dB), ROI, AWB, 3DNR, MD, Mask, Mirror |
| Compression | H.265+/H.265/H.264+/H.264 |
| Image Enhancements | BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking |
| Day/Night | Automatic electronic filter |
| Intelligent Functions | Face detection, line crossing, intrusion, scene changes, and audio detection |
| Network Interface | Ethernet 10/100 BaseT |
| Internal Storage | SD Card Slot, Max 128 GB |
| Alarms | 2 Input / 2 Relay |
| Audio | 1 Input / 1 Output |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 5.1W mA, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ 60º C |
| Protection Rating | Indoor |
| Unit Dimensions | Module: 110 mm (H) x 83 (W) x 24 (D) mm Camera: 48.7 (H) x 30.5 (Ø) mm |
| Weight | 210 g |
Content
- Main Box X-SECURITY
- Camera XS-IPMC-4U-L1

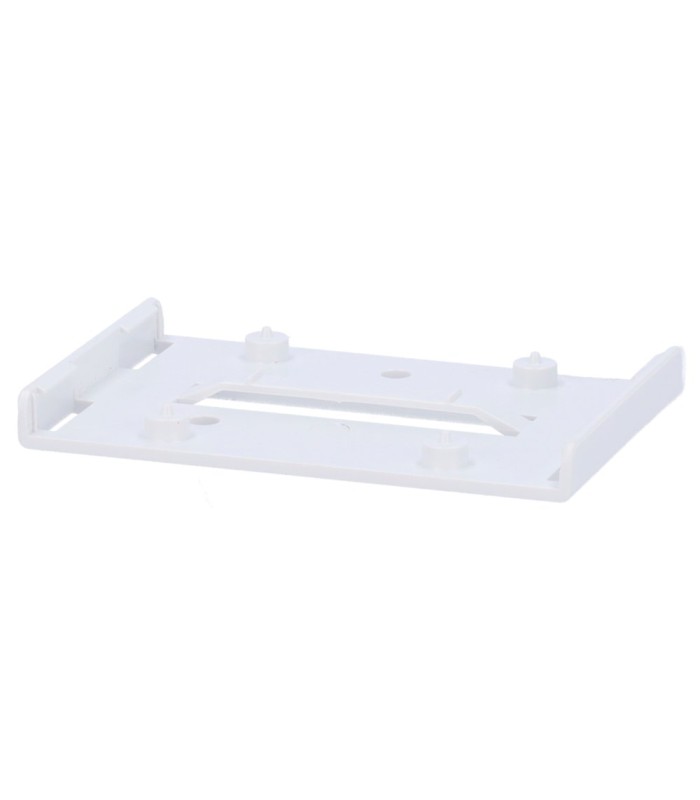

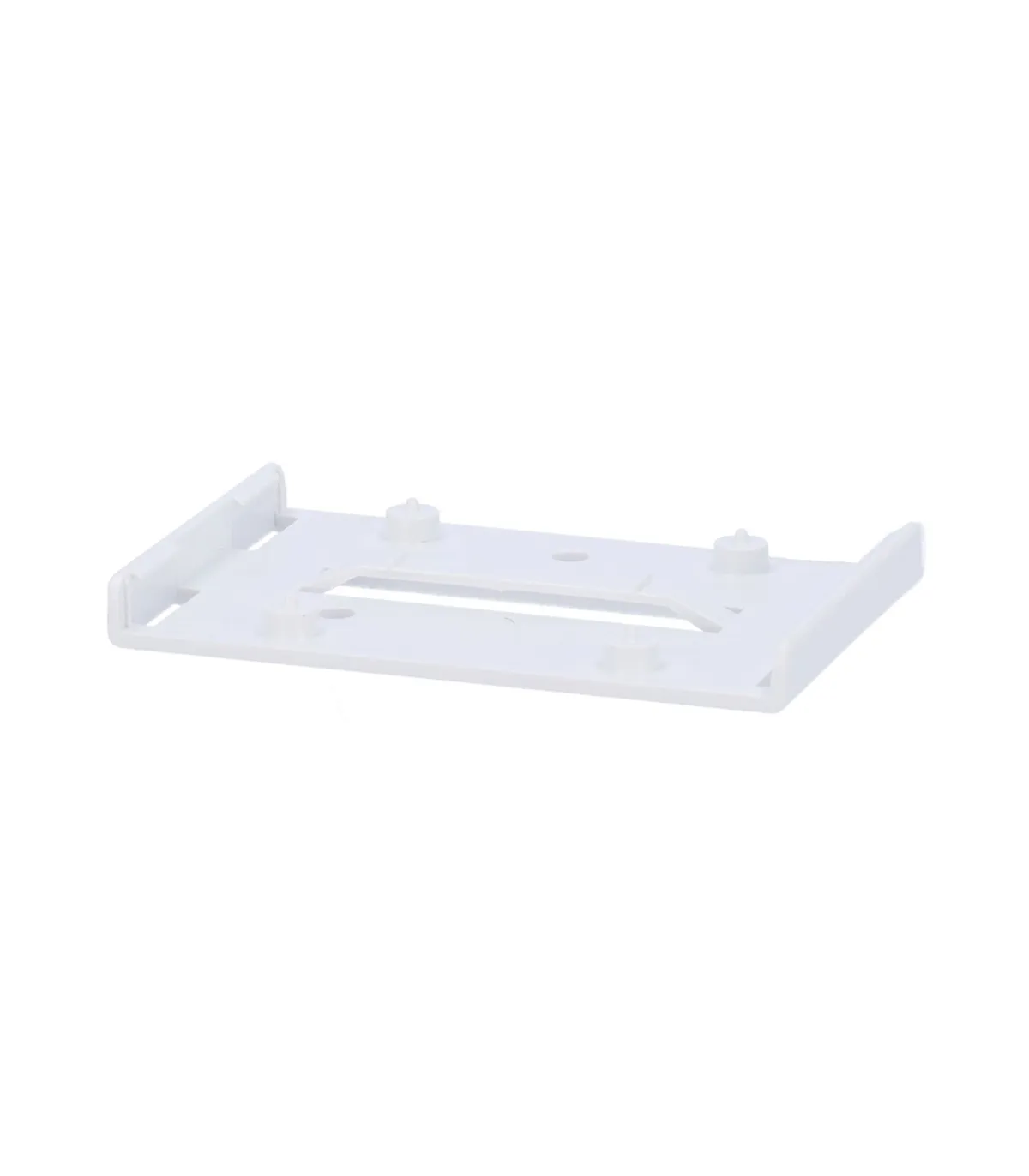

- Installation materials
- User instructions
