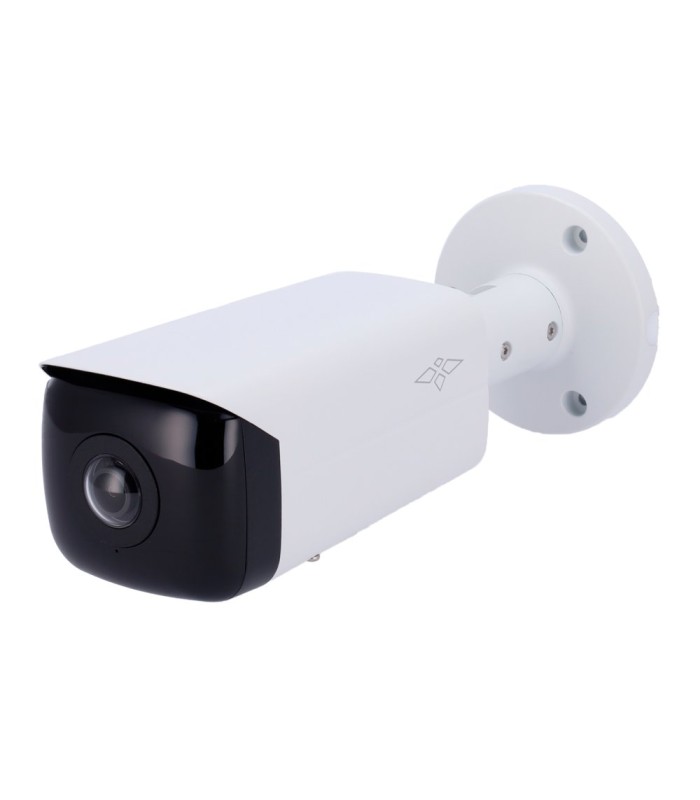

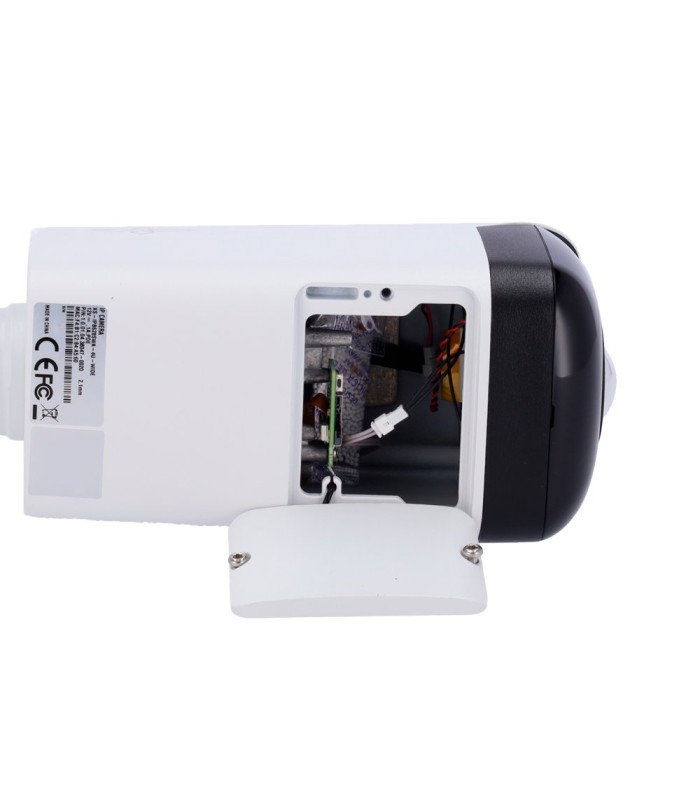

4 Megapixel IP Camera X-Security XS-IPB628SWA-4U-WIDE

4 Megapixel IP Camera X-Security XS-IPB628SWA-4U-WIDE

Name: 4 Megapixel IP Camera X-Security XS-IPB628SWA-4U-WIDE
Brand: X-SECURITY
Price: 179.5535 EUR
Availability: InStock

X-Security IP Bullet Camera XS-IPB829ZA-4P-DL-WIZ

Bullet IP Camera 4 Megapixel Ultra Range X-Security XS-IPB628SA-4U-AI

Brand: X-SECURITY

SKU: XS-IPB628SWA-4U-WIDE

Condition: New product

4 Megapixel IP Camera
1/2.1" 4MP Wide Angle
H.265+ / H.265 Compression
2.1mm Lens / WDR
MicroSD up to 256GB

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

4 Megapixel X-Security XS-IPB628SWA-4U-WIDE IP Camera

X-Security
IP Bullet Camera
ULTRA Range
1/2.7" 4MP CMOS Starlight-grade image sensor
4 Megapixel (2688x1520)
Wide Angle
2.1 mm Lens
WDR
Compression H.265+/H.264+
IR 20m
0.01 Lux
IVS (Perimeter Protection)
SMD 3.0
Integrated Microphone
RJ-45 10/100 BaseT
Compatible with ONVIF
Recording on Micro SD card
PoE IEEE802.3af
IP67 Waterproof

Technical Specifications

Brand	X-Security
Image Sensor	1/2.7" 4MP progressive CMOS
Maximum Resolution	4 Megapixel (2688x1520)
Minimum Illumination	0.01 lux@F2.0 (color,30 IRE) 0.001 lux@F2.0 (b/w,30 IRE) 0 lux (IR illuminator on)
Lens	2.1 mm
Field of View	LDC is off: Horizontal:180°; Vertical: 78°; Diagonal: 180° LDC is on (by default): Horizontal: 170°; Vertical: 75°; Diagonal: 175°
Main Stream Rate	2880 × 1620 @(1–20 fps)/2688 × 1520 @(1–25/30 fps)
Resolution	5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 2304 × 296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280×720); D1 (704× 576/704×480); VGA (640 × 480); CIF(352 × 288/352 × 240)
Compression	H.265; H.264; H.264B; MJPEG (substream only)
Image Enhancements	WDR, BLC, 3D-DNR, MD, ROI
SMD 3.0	Fewer false alarms, longer detection distance
IVS (Perimeter Protection)	Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people)
Smart Search	Work together with Smart NVR for refined smart search, event extraction, and event video merging
Day/Night	Removable ICR mechanical filter
Internal Storage	MicroSD card, Max 256 GB
Network Interface	Ethernet 10/100 BaseT
Audio	Built-in Microphone
Remote Access	NVR, Web Browser, Smartphone App, and PC Software Safire Control Center
Interoperability	ONVIF
Power	DC 12V / 5.3W, PoE IEEE802.3af
Protection Grade	IP67
Material	Metal
Operating Temperature	-40º C ~ +60º C
Dimensions	249.3 mm × 90.7 mm × 90.4 mm (L × W × H)
Weight	820 g
