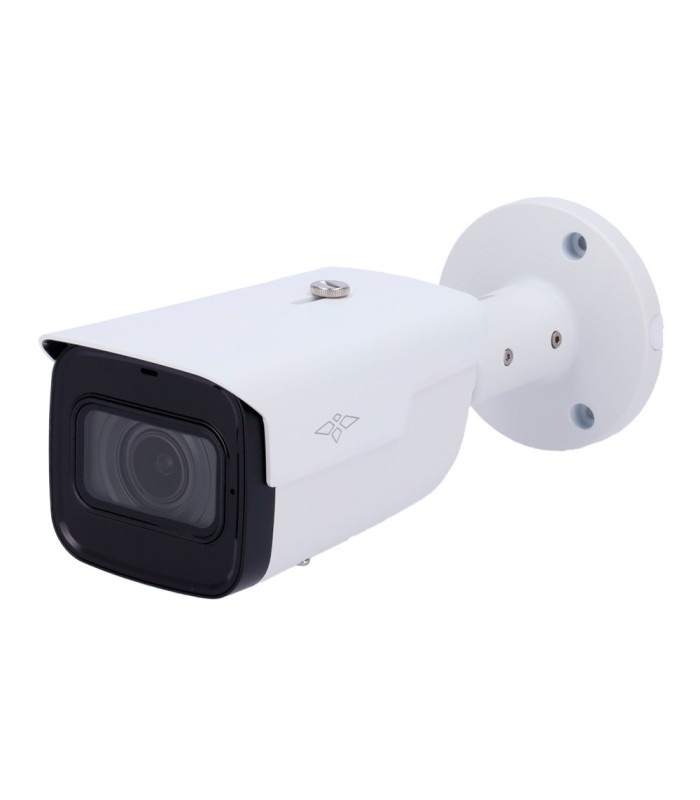

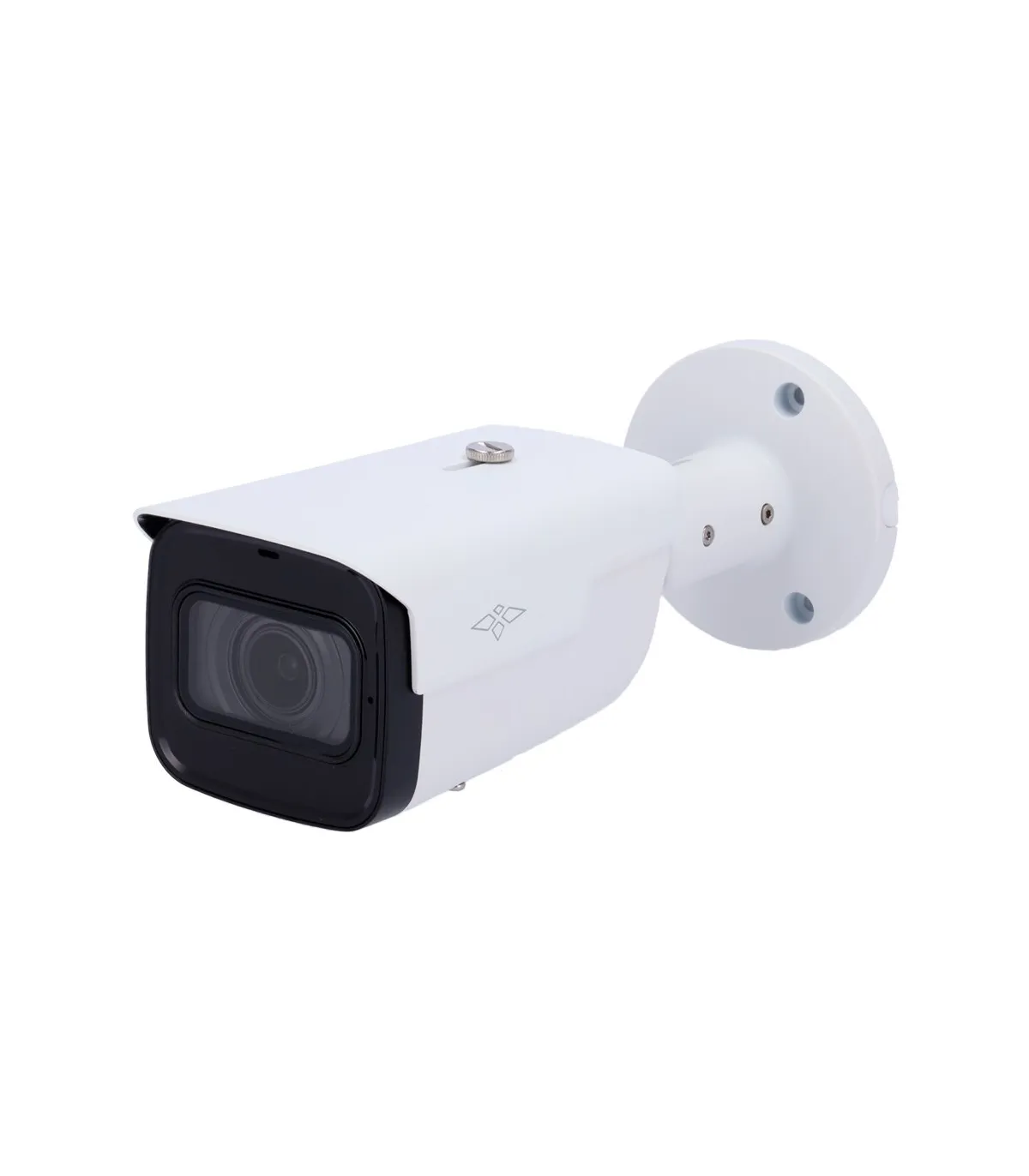

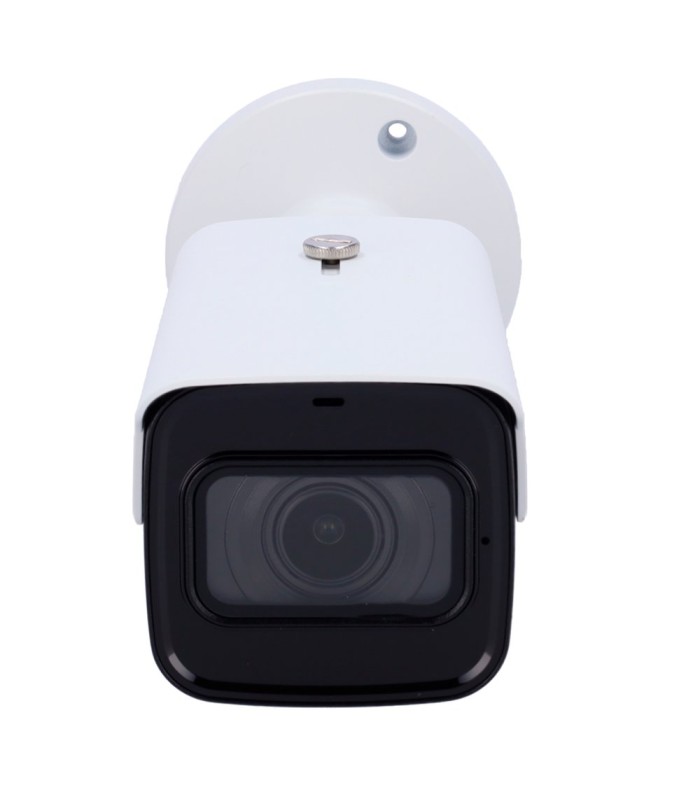

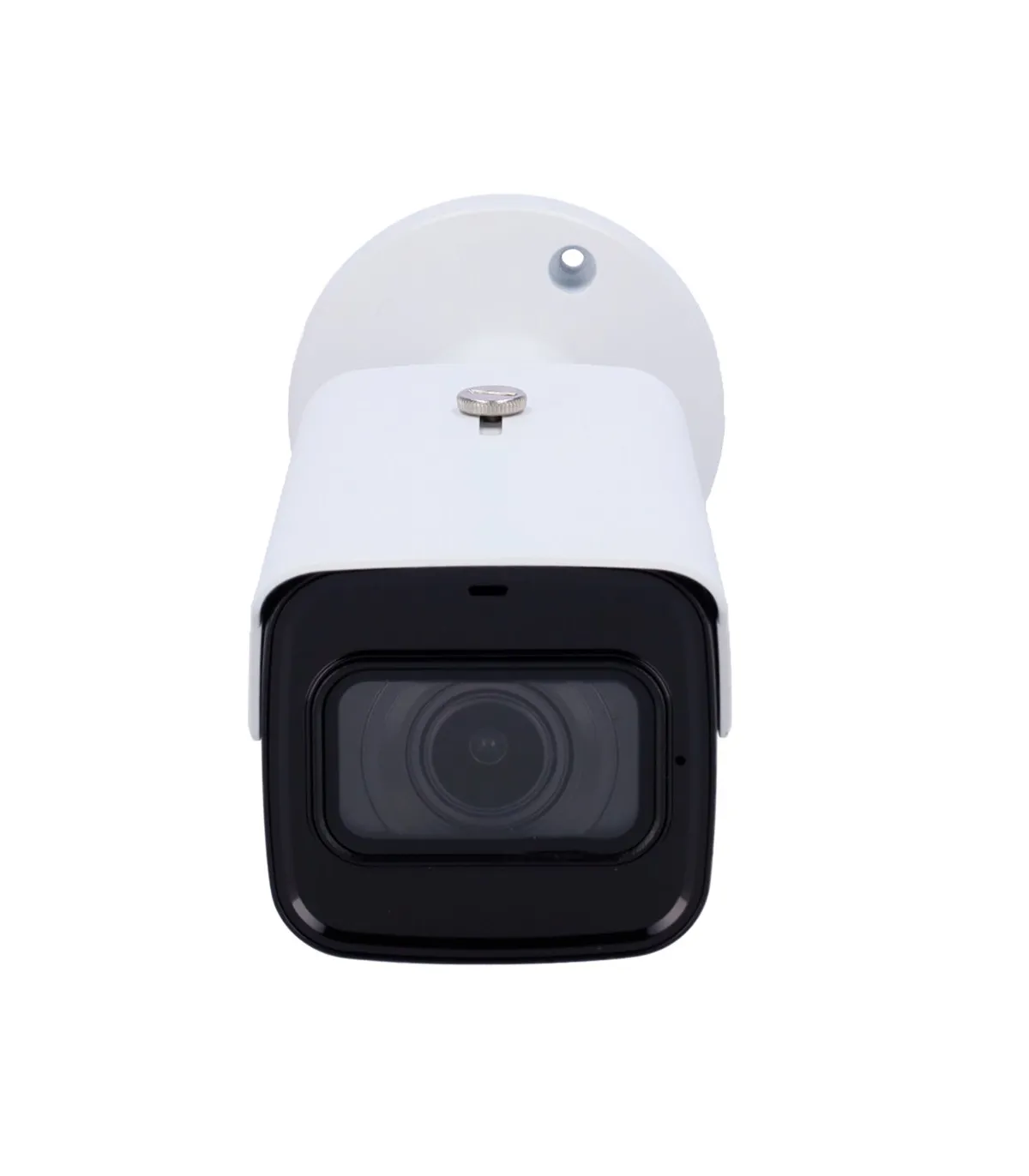

4Mpx ULTRA X-Security IP Camera XS-IPB830ZSWH-4U-AI
Brand: X-SECURITY
- 4MP ULTRA IP Camera
- 1/2.9” Progressive CMOS
- Compression: H.265+ / H.265 / H.264+ / H.264
- Motorized varifocal lens 2.7~13.5 mm | WDR
- Audio and Alarms | IR LEDs Range 60 m
4Mpx ULTRA X-Security XS-IPB830ZSWH-4U-AI IP Camera
- X-Security
- IP Bullet Camera
- ULTRA Range
- 1/2.9" CMOS
- 4 Megapixel (2688x1520)
- Motorized varifocal lens 2.7~13.5 mm Autofocus
- High sensitivity Starlight
- 0.005 Lux
- IR Array Range 60 m
- Compression H.265+/H.265/H.264+/H.264

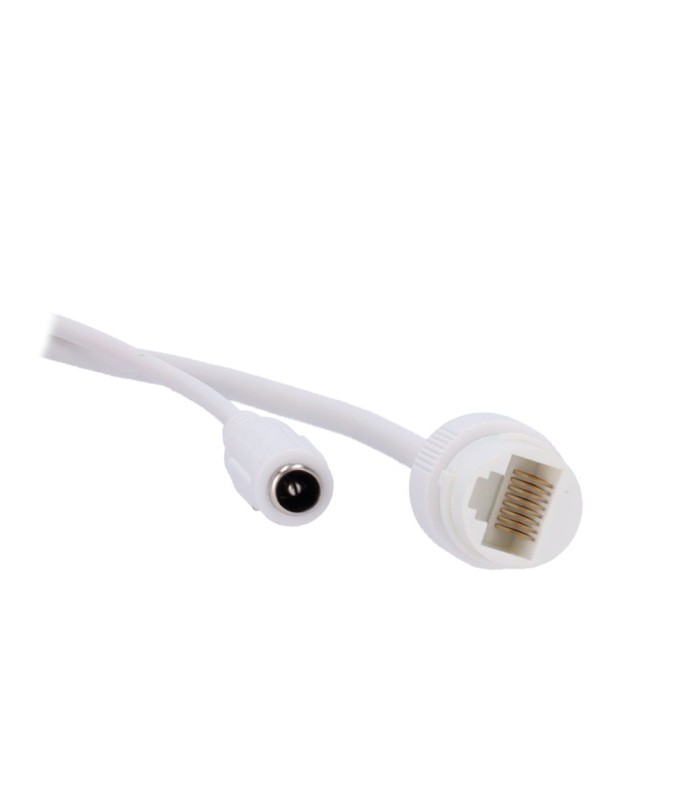

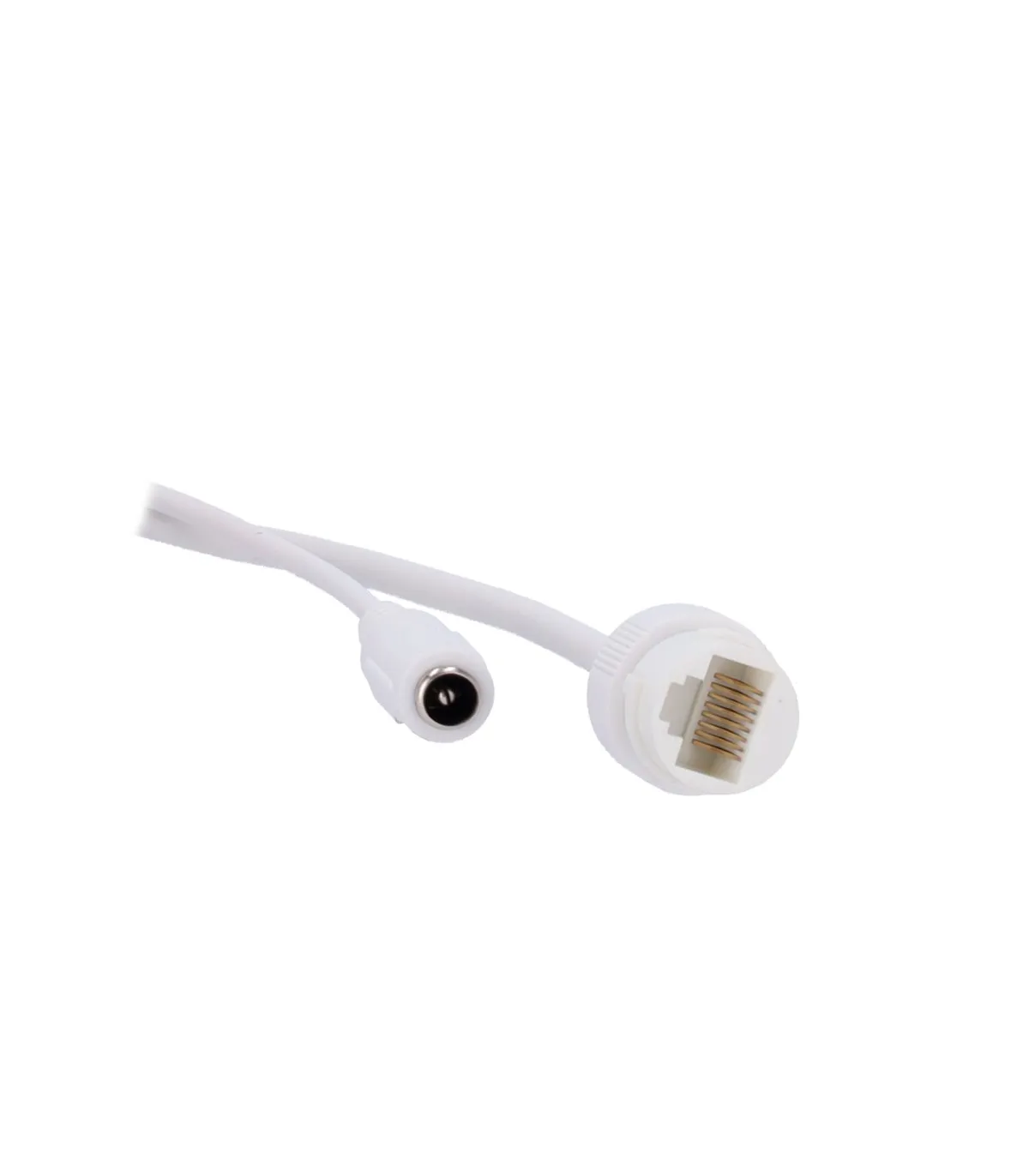

- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Waterproof IP67
- IVS
- SMD 4.0
- Smart search
- Audio and alarms
- Integrated microphone
- WDR
- IR CUT

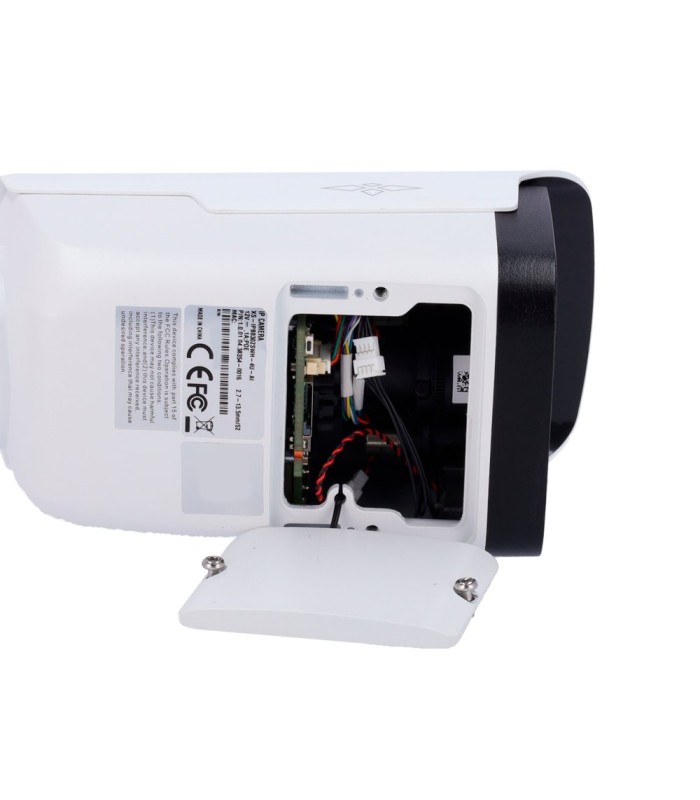

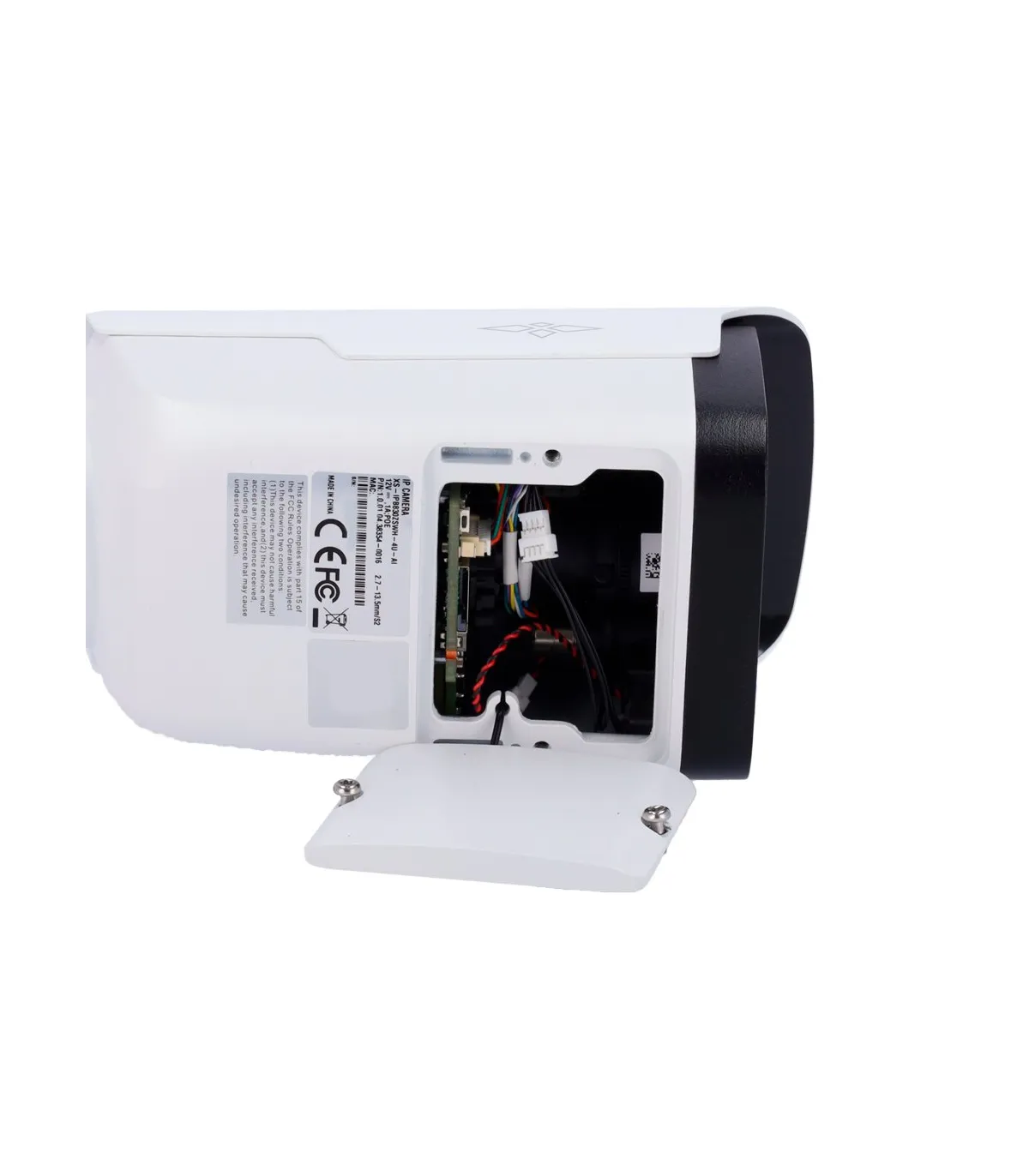

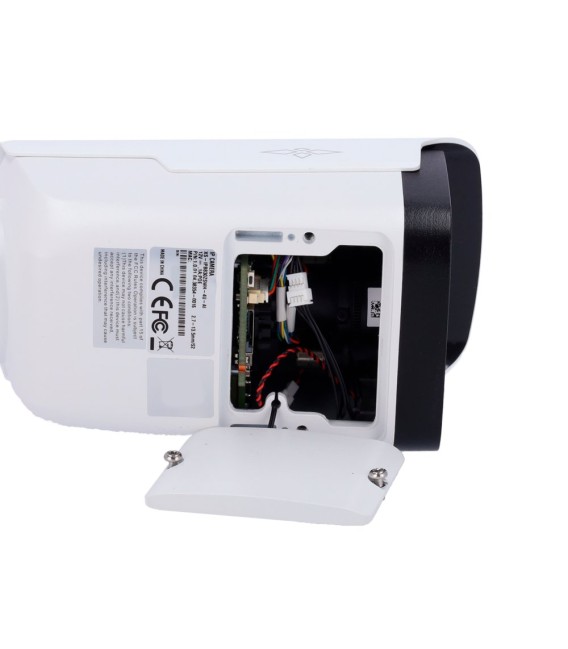

- Recording on SD card
- WEB interface, CMS (DSS/ PSS), Smartphone and NVR
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Image Sensor | 1/2.9” CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Lens | 2.7mm~13.5mm motorized AF |
| Main Stream Rate | 2688 × 1520 @ (1–25/30) fps |
| Extra Stream Rate | 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only compatible with substream) |
| Infrared Illumination | 0.005 lux@F1.5 (color, 30 IRE) 0.0005 lux@F1.5 (black and white, 30 IRE) 0 lux (illuminator on) |
| DORI | 64-210 (D), 25..6-84 (O), 12.8-42 (R), 6.4-21 (I) |
| Image Enhancements | WDR, BLC, HLC, AWB, AGC, 3D-DNR |
| IVS (Perimeter Protection) | Tripwire, intrusion (supports accurate classification and detection of vehicles and people) |
| Quick Selection | With AI NVR, quickly pick up human/vehicle targets of interest from SMD events |
| SMD Smart Search | Work together with Smart NVR to refine smart search, event extraction, and event video merging |
| AI SSA | Yes |
| Day/Night | Removable ICR mechanical filter |
| Audio | Integrated microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); .CGI; P2P; Milestone; Genetec |
| Power | DC 12 V / 3.6W, PoE IEEE802.3af |
| Operating Temperature | -30º C ~ +60º C |
| Internal Storage | Micro SD Max 256GB |
| Protection Grade | Waterproof IP67 |
| Dimensions | 244.1 mm (L) x 79 mm (H) x 75.9 mm (W) |
| Weight | 820 g |
Content
- X-Security IP Camera
- Installation material
- User manual
- CD with software and instructions
