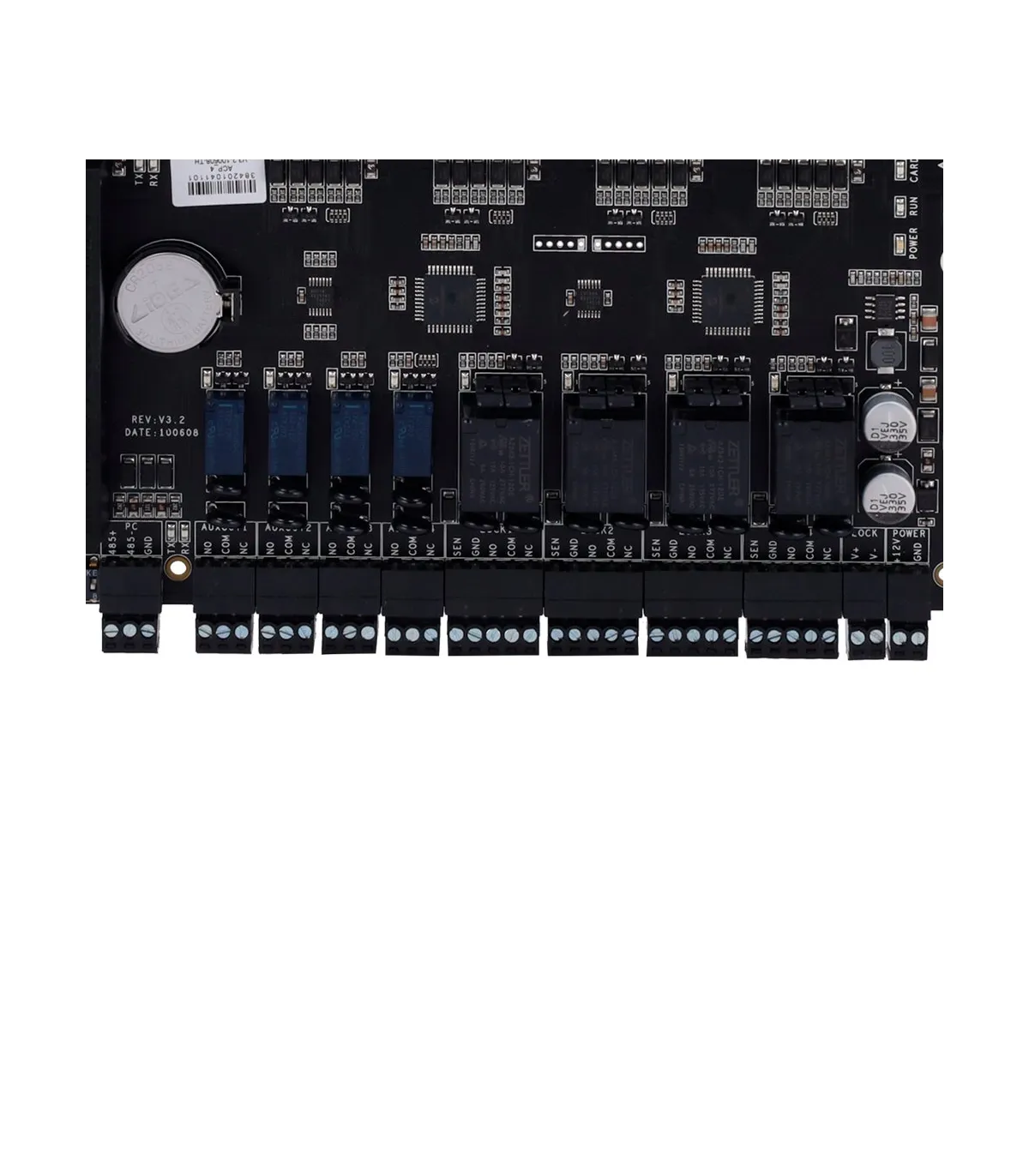

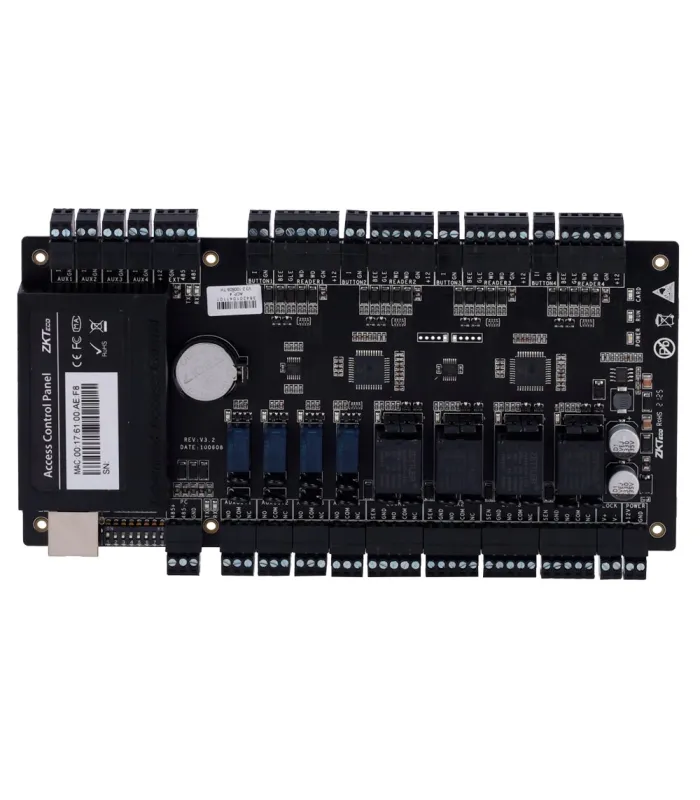

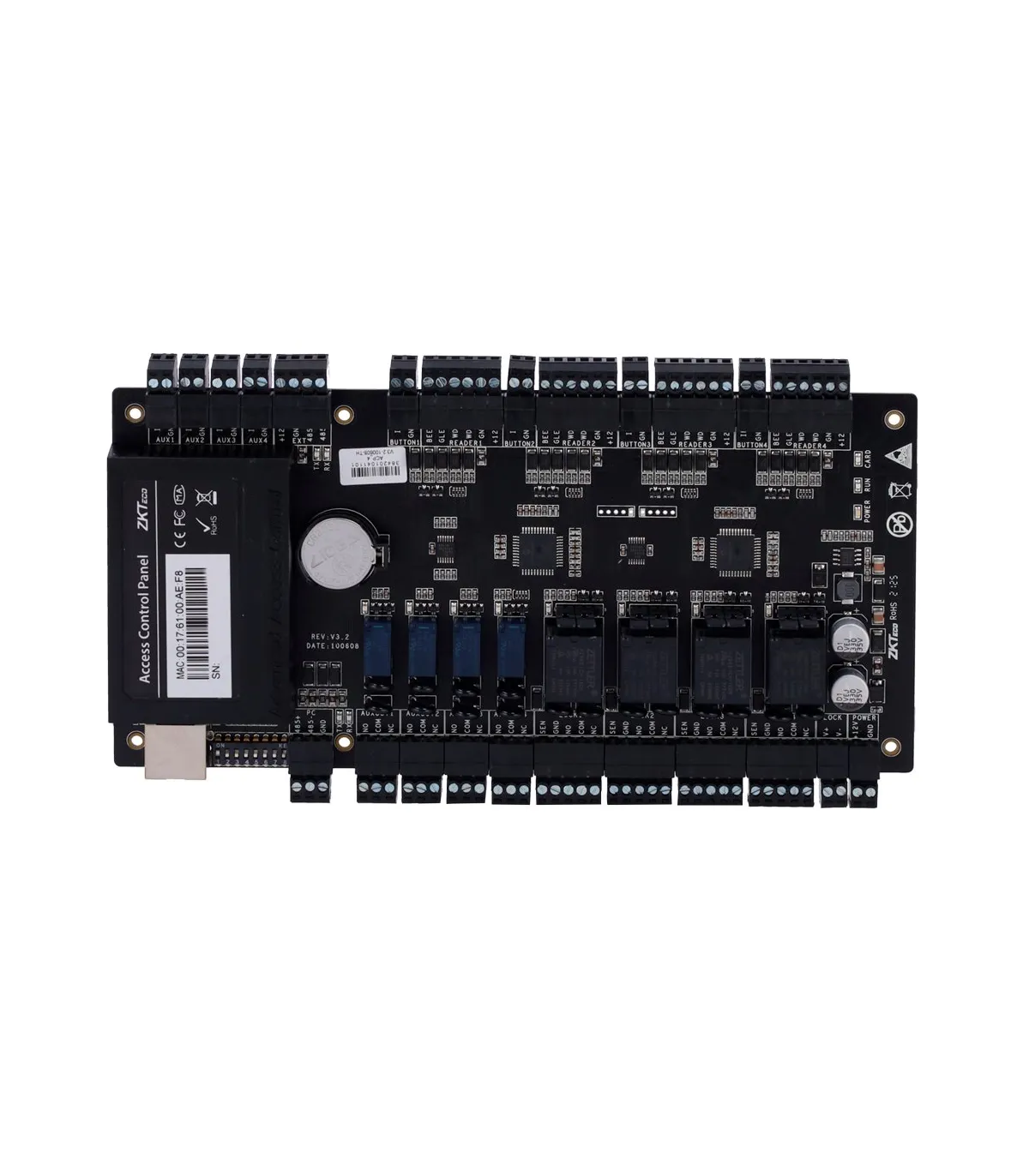

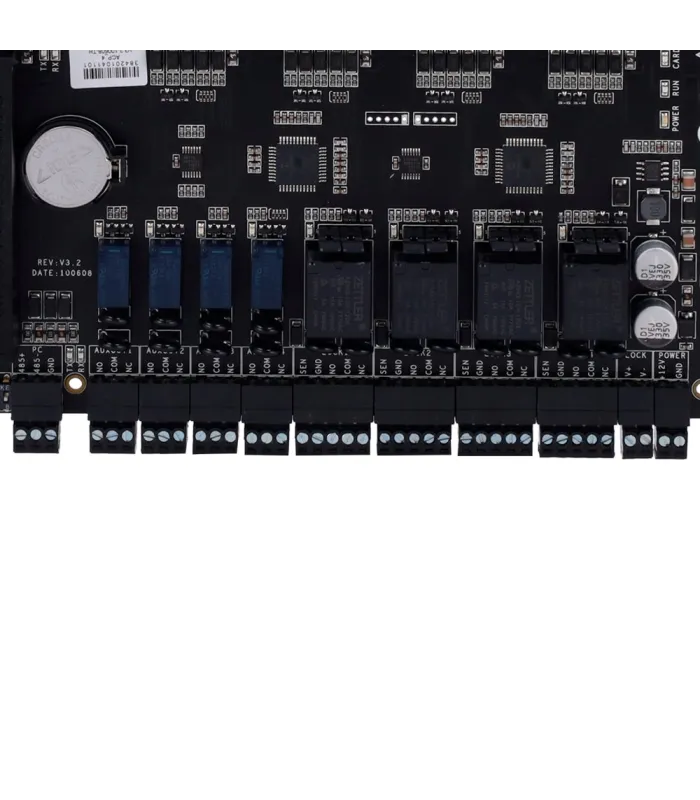

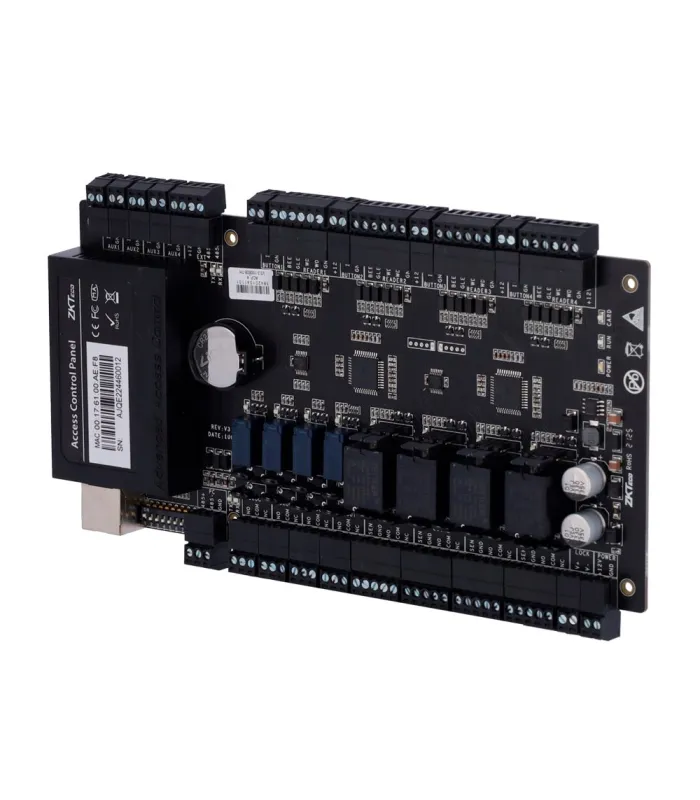

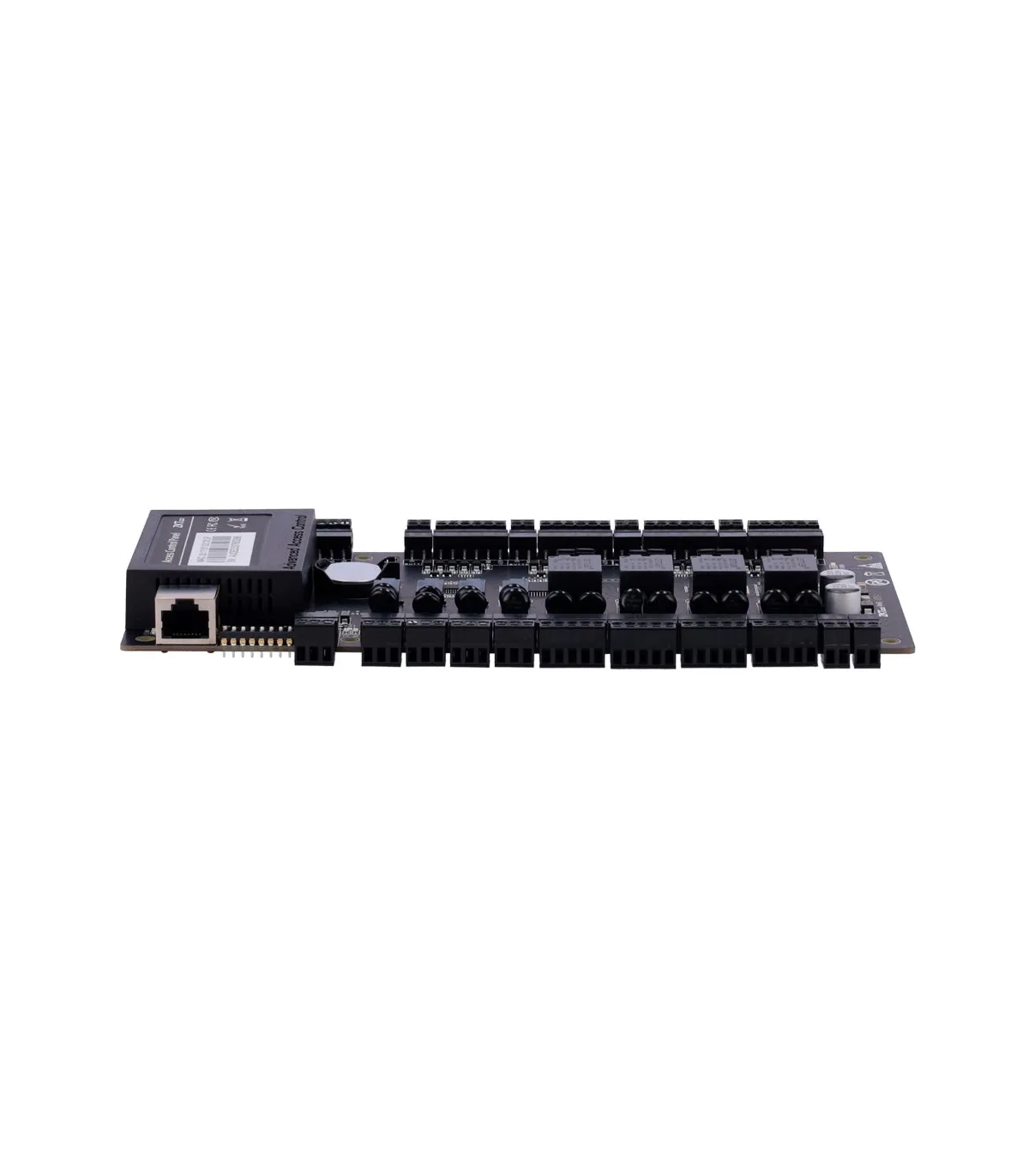

| Brand | ZKTeco |
| Model | GL-C3-PRO400 |
| Hardware CPU | 32bit MIPS CPU |
| Capacity | Up to 30,000 cards |
| Records | 100,000 records |
| Identification Modes | Card, QR, and/or password |
| Proximity Card | RFID EM 125 kHz and MF 13.56 MHz |
| PC Communication | TCP/IP and RS485 |
| Baud rate | 9,600 bps, 19,200 bps, 38,400 bps (recommended), and 57,600 bps |

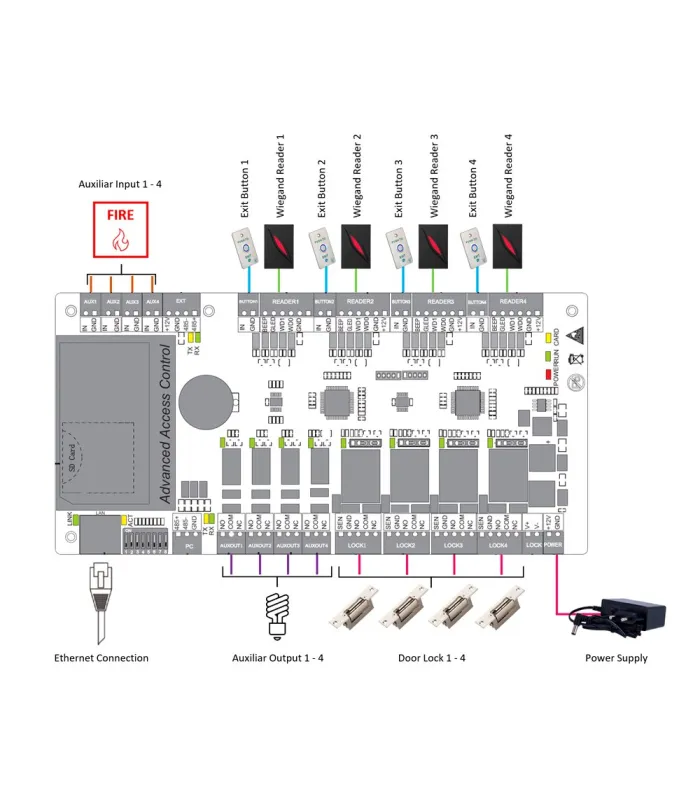

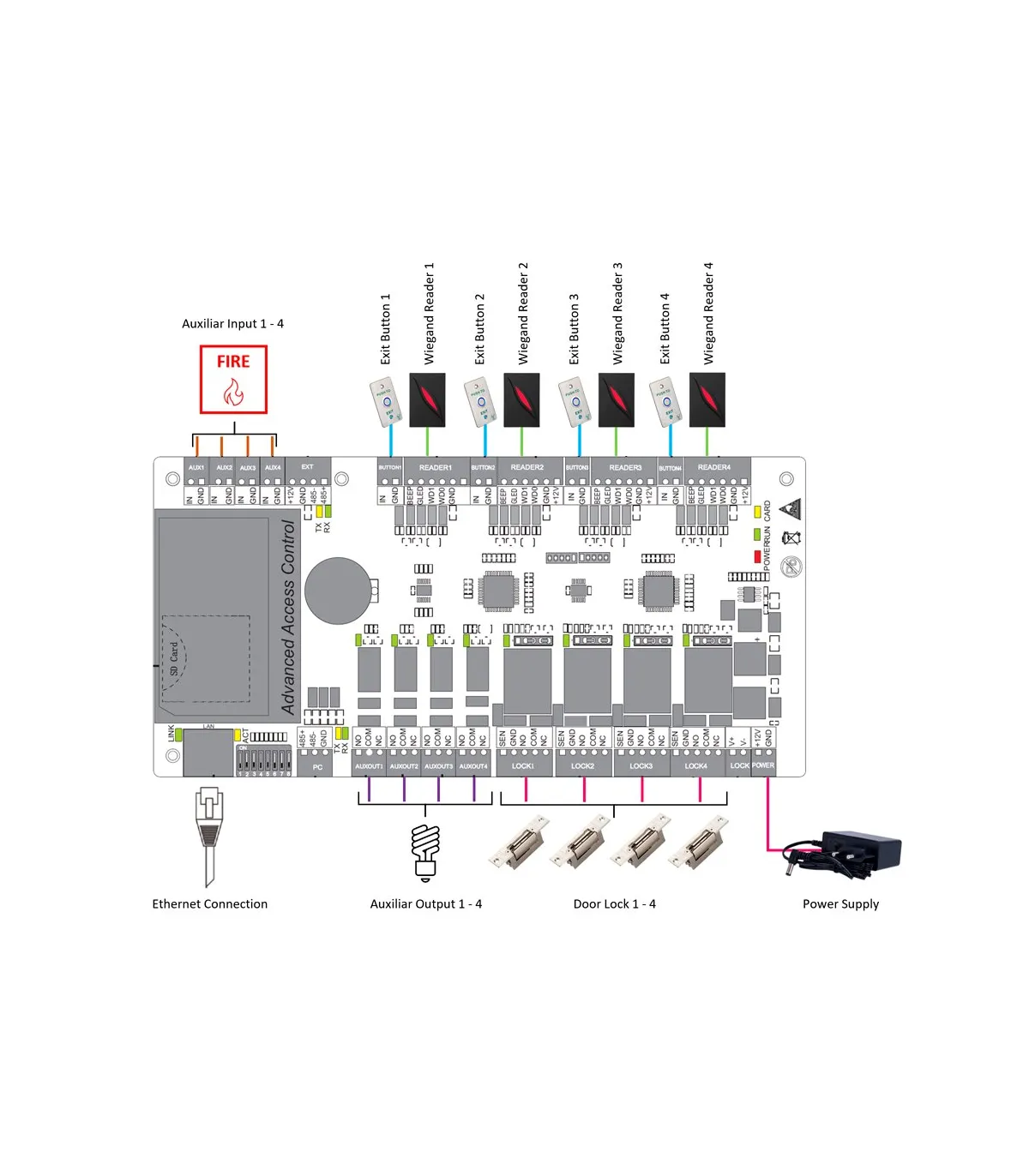

| Outputs | 4 x relay output, 4 x auxiliary outputs, 1 x DC 12 V |
| Inputs | 4 x Wiegand 26/34, 4 x door sensor, 4 x open button, 4 x auxiliary, 1 x RS485 |
| Software | ZKBio CVSecurity (up to 5 doors / 1 admin APP / 5 user APPs included for free) |
| Advanced Functions | Multi-door interlock, anti-passback, multi-card, first card opening, and occupancy control |
| Power Supply | DC 12 V / 1.5 A max. |
| Operating Temp. | 0°C ~ +55°C |
| Dimensions | 218 (W) x 106 (H) mm |
| Weight | 500 g |
Data sheet
