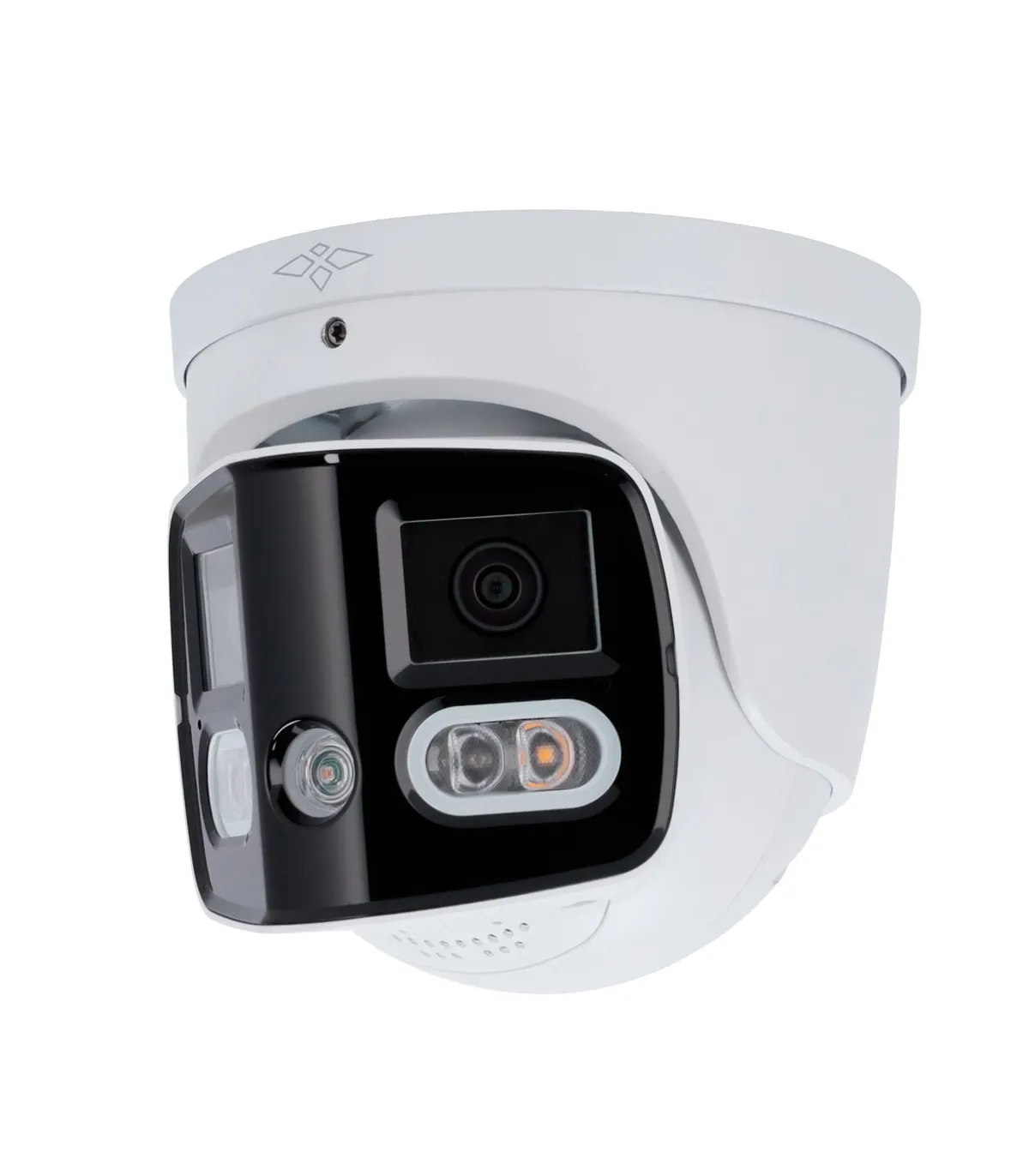

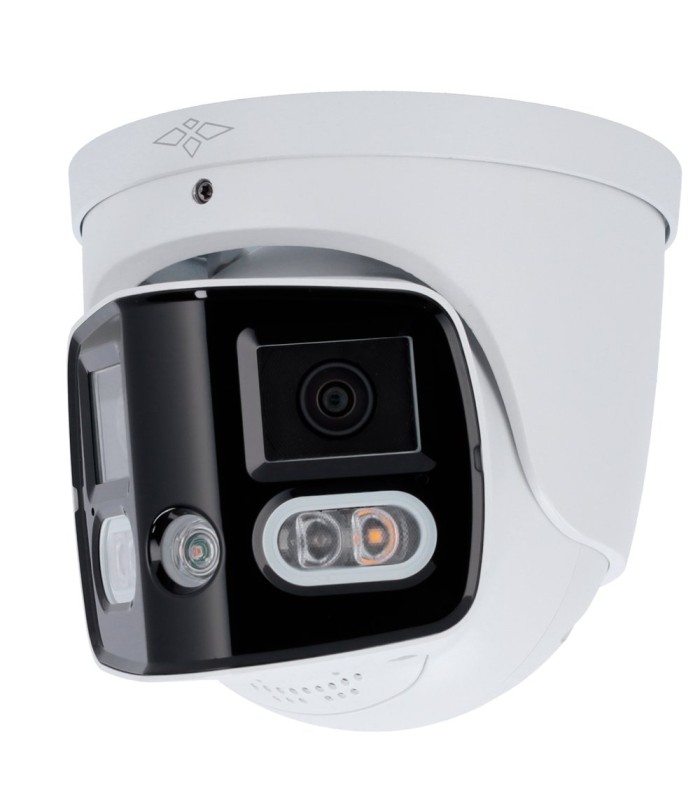

X-Security 8 Megapixel IP Turret Camera XS-IPT180A-8U-PAN-TIOC
Brand: X-SECURITY
- X-Security 8 Megapixel IP Turret Camera
- Active Deterrence | SMD 4.0
- 2 Lenses 2.8 mm / Dual Light 20m
- WDR 120 dB | Integrated Microphone and Speaker
- PoE | H.265 | Intelligent Functions
X-Security 8 Megapixel IP Turret Camera XS-IPT180A-8U-PAN-TIOC
- X-Security
- IP Turret Camera
- PRO Range
- WizSense -Dual 1/2.7" Progressive CMOS
- 8 Megapixel (4096 x1860)
- 2 Lenses of 2.8 mm
- 0.005 Lux
- Dual Light 20 m
- Compression H.265/H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Smart Search
- IVS
- SMD 4.0
- Active Deterrence
- Built-in Microphone and Speaker
- MicroSD Card Slot up to 256 GB
- WDR 120dB
- IR CUT
- WEB Interface, CMS (DSS/ PSS), Smartphone, and NVR
- ONVIF Compatible - IP67 Waterproof
- IK10 Vandal-proof
Technical Specifications
| Brand | X-SECURITY |
| Maximum Resolution | 8 Megapixel (4096 x1860) |
| Image Sensor | 1/2.7” Progressive CMOS |
| Lens | 2 Lenses of 2.8 mm |
| Lighting Range | Dual Lighting: IR up to 25m White LED up to 20m |
| Main Stream Rate | 4096 × 1860@(1–20 fps ) |
| Second Stream Rate | 1200 × 530@(1–20 fps) |
| Third Stream Rate | 1920 × 860@(1–20 fps) |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| DORI | 50.6 m / 20.2 m / 10.1 m / 5.1 m |
| Minimum Illumination | 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Image Enhancements | WDR 120 dB, BLC, HLC, AWB, AGC, 3D-NR, ROI , Smart IR |
| IVS (Perimeter Protection) | Intrusion, line crossing (both functions support accurate classification and detection of vehicles and people) |
| SMD | Equipped with SMD 4.0 |
| Smart Search | Work together with Smart NVR to refine smart search, event extraction, and event video merging |
| Quick Pick | With NVR AI, quickly detect human targets or vehicles from SMD events of interest to users |
| Network Interface | Ethernet 10/100 BaseT |
| Audio | 1 Input / 1 Output / Built-in Microphone and Speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Remote Access | WEB Interface, CMS (Smart PSS Lite; DSS; DMSS), Smartphone, and NVR |
| Material | Metal |
| Interoperability | ONVIF (Profile S/Profile T); CGI |
| Power | DC 12 V / 3.4 W, PoE IEEE802.3af 3.8 W |
| Operating Temperature | -30º C ~ +60º C |
| Protection Rating | IP67 Waterproof, IK10 Vandal-proof |
| Dimensions | 183.1 × 99.0 × 78.0 mm |
| Weight | 870 g |
Content
- X-Security IP Camera
- Installation Material
- User Manual
- CD with Software and Instructions
