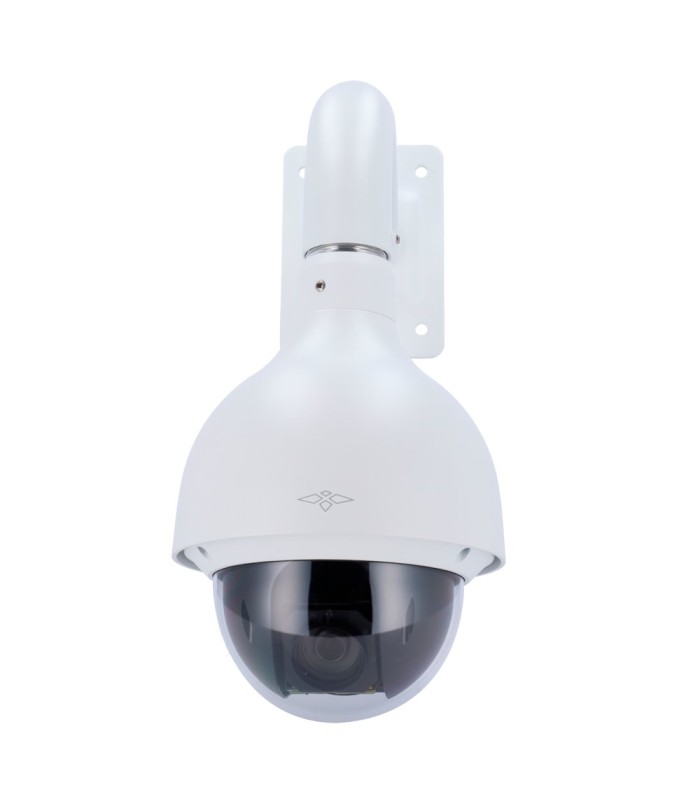

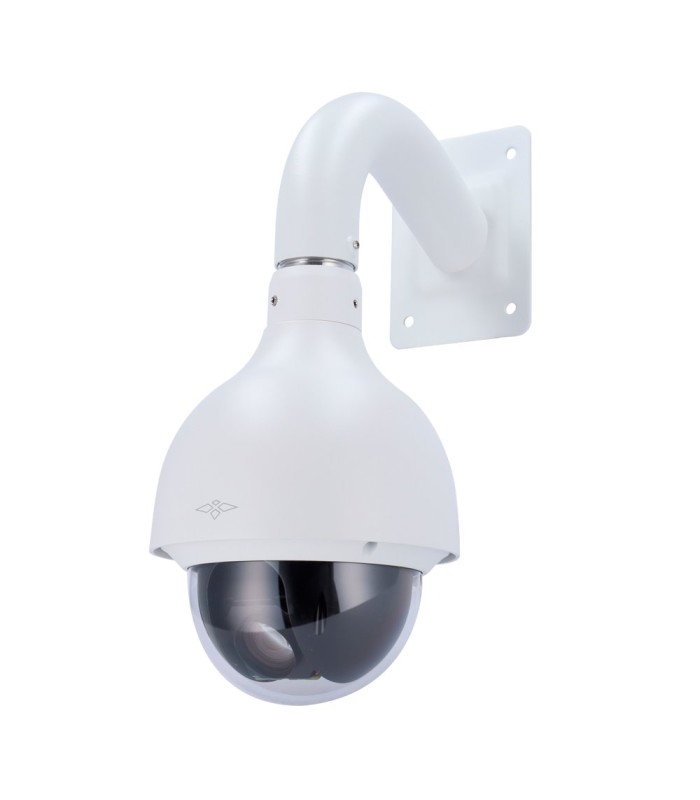

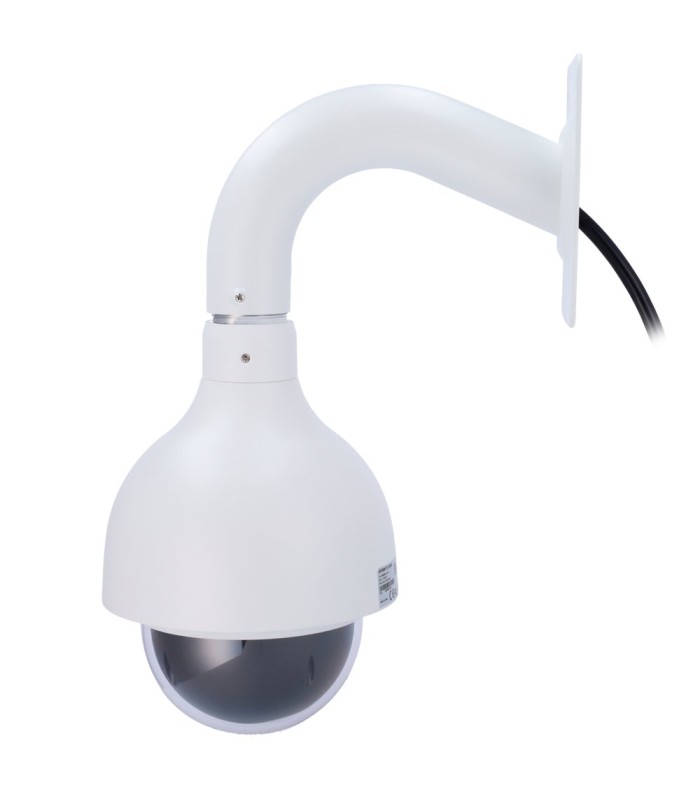

2 Megapixel PTZ IP Camera X-Security XS-SD50225DB-HNY
Brand: X-SECURITY
- X-Security
- 2 Megapixel PTZ IP Camera
- Perimeter Protection | Facial Detection
- H.265+ / H.264+ Compression
- 4.8-120 mm Varifocal Lens | 25X Zoom
2 Megapixel X-Security XS-SD50225DB-HNY PTZ IP Camera
- X-Security
- PTZ IP Camera
- Startlight
- Wizsense
- 25X Optical Zoom
- 1/2.8" Sony STARVIS CMOS
- 2 Megapixel (1920 × 1080)
- Varifocal Lens 4.8~120 mm
- 0.005 Lux
- H.265+/H.265/H.264+/H.264/MJPEG
- WizSense, false alarm filter for vehicles and people
- IVS (Perimeter Protection)
- Facial Detection
- RJ-45 10/100 BaseT
- PoE+ 802.3at
- IP67 Waterproof, IK10
- Alarms
- Recording on micro SD card up to 512 GB
- Compatible with ONVIF
- Wall mount included
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.8” Sony Starvis CMOS Starlight |
| Resolution | 1080p(1920x1080), 720p(1280x720), 1.3Mpx (1280x960), D1(704x576), CIF(352x288) |
| Compression | H.265 / H264 / MJPEG (video), G711a / G771u / AAC (audio) |
| Main Stream Rate | 1080p / 720p / 1.3 Mpx (1~50fps) |
| Extra Stream Rate | 2nd:D1/CIF, 3rd:1080p/720p/1.3Mpx/D1/CIF (1 ~ 25 FPS) |
| Bitrate | 448 Kbps ~ 8 Mbps |
| Lens | Varifocal 4.8 ~ 120 mm (25X Optical Zoom) Auto Iris, Auto Focus |
| Digital Zoom | 25X |
| Image Enhancements | WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask |
| Minimum Illumination | 0.005 Lux (color) / 0.0005 Lux (B/W) |
| Day/Night | Removable ICR mechanical filter |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS software, mobile application, and NVR |
| Memory | Micro SD card slot (Max 128 GB) |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: 0°~90° auto flip 180° |
| Manual Speed | Horizontal: 0.1°~350° /s, Vertical: 0.1°~250° /s |
| Speed between Presets | Horizontal: 500° /s, Vertical: 500° /s |
| Pre-set Positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Auto Tracking | Single scene, multiple scene, panoramic scene |
| IVS Functions | Tripwire; intrusion; cross line detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; Vehicle/human alarm classification |
| Face Detection | Supports face detection, face bounding box, snapshot capture, and facial image enhancement. Face cropping is also offered, where you can crop one face at a time and customize the size to make it a one-inch photo. Supported methods for capturing snapshots are: real-time capture, and quality first. |
| SMD | Integrated |
| Communication | CGI; Dahua SDK; API; SDK; ONVIF (Profile S&G&T) |
| Alarms | 2 inputs / 1 relay NO/NC |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Power | 24 VDC/2.5 A, PoE+(802.3at) |
| Protection Grade | IP67, IK10, TVS 6000 V lightning-proof; surge protection; Transient voltage protection |
| Operating Temp. | -40º C ~ +60º C |
| Dimensions | 253 mm (H) x 186.2 mm (Ø) |
| Weight | 2500 g |
Content
- Motorized IP dome camera
- 24 VDC/2.5 A power adapter
- CD with software and instructions
- User manual

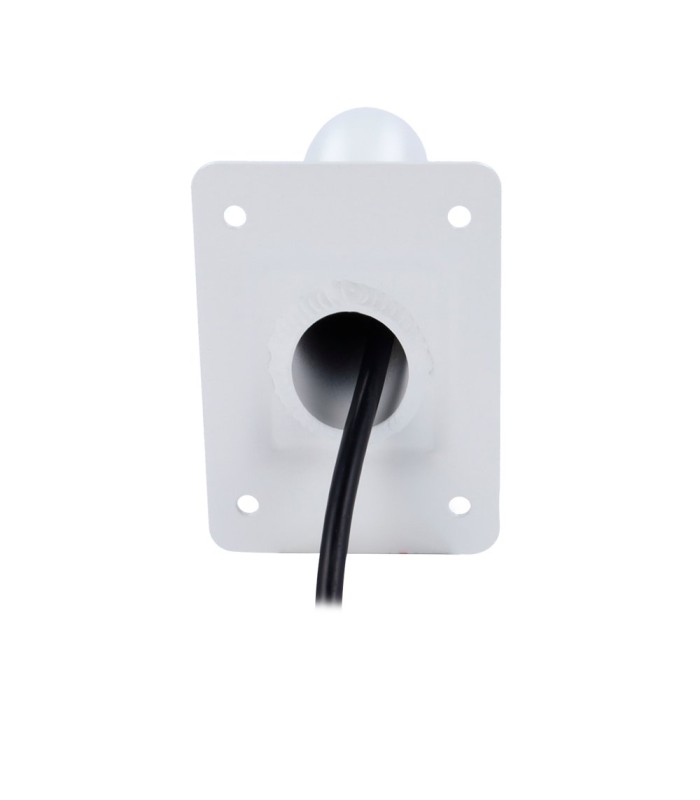

- Wall mount bracket PFB300S
- Thread for PFA110 mount
