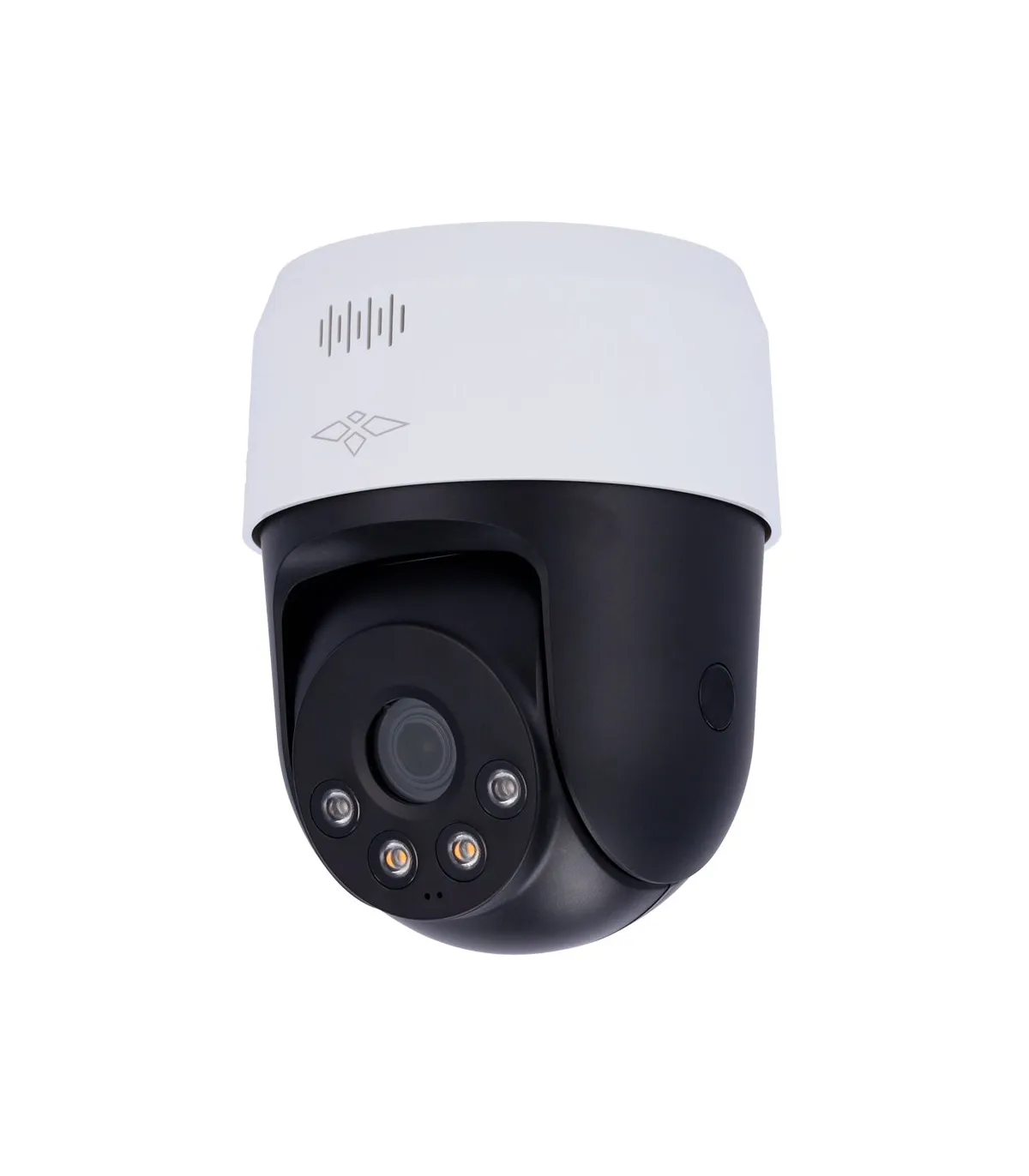

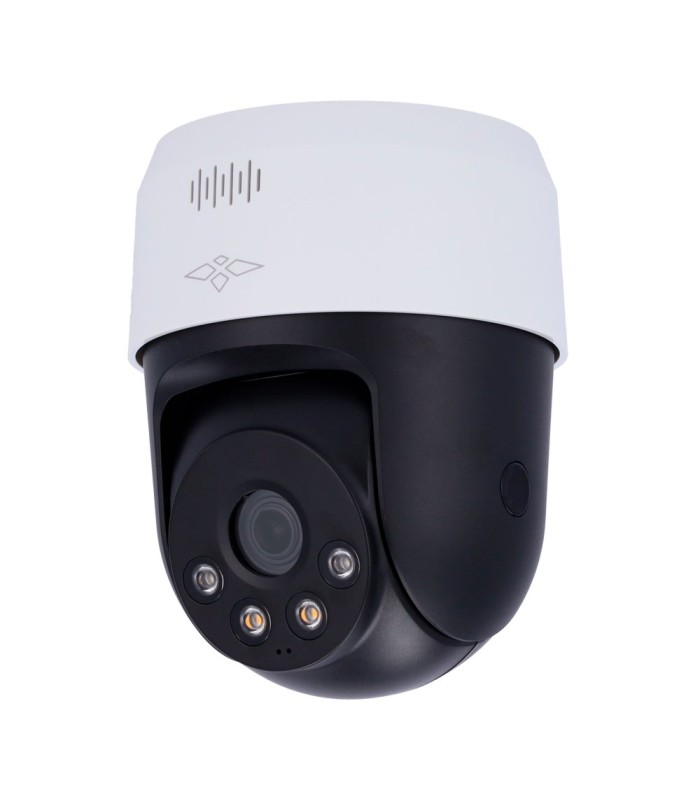

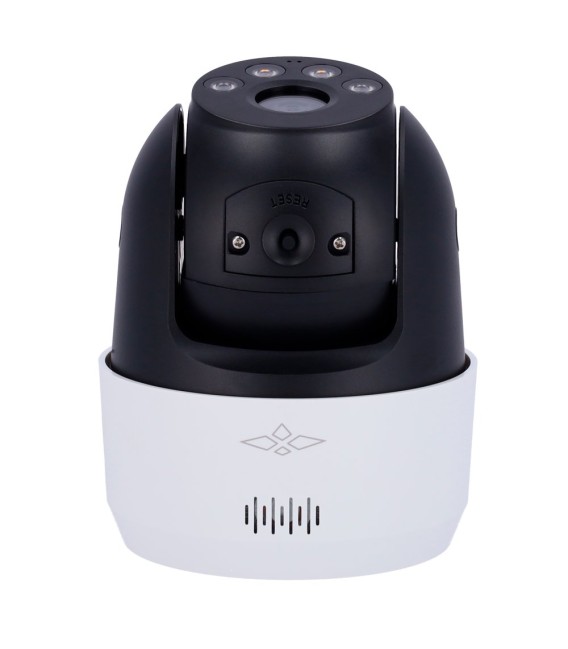

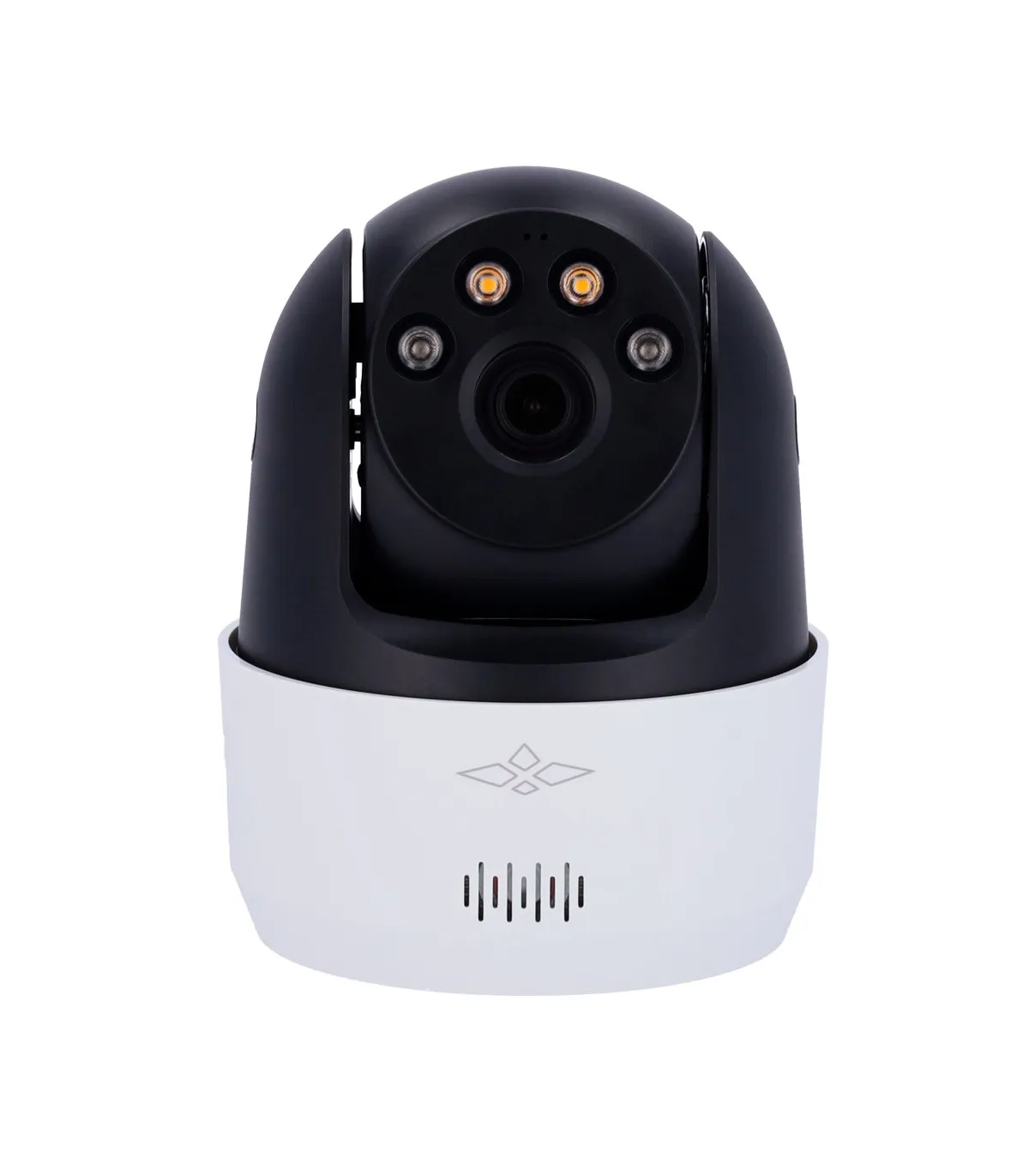

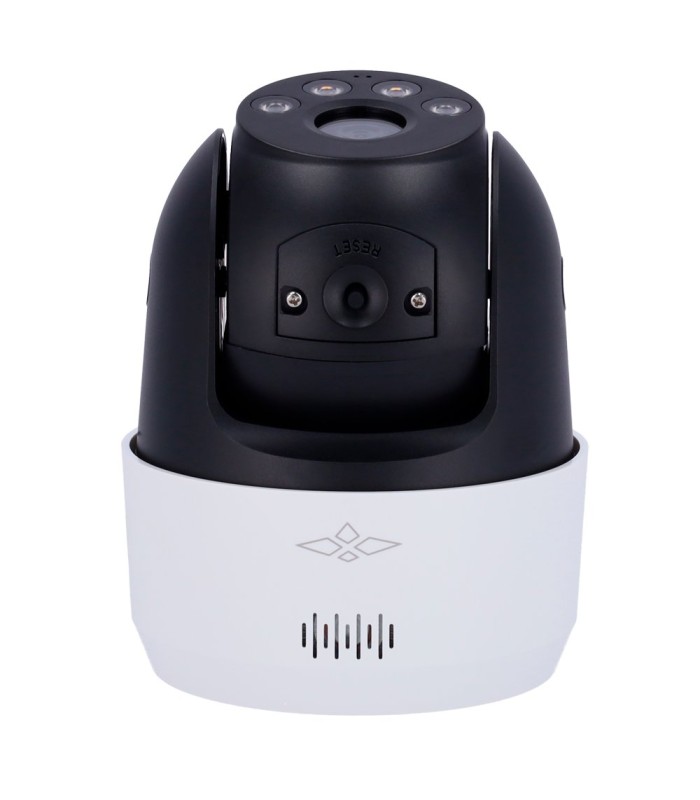

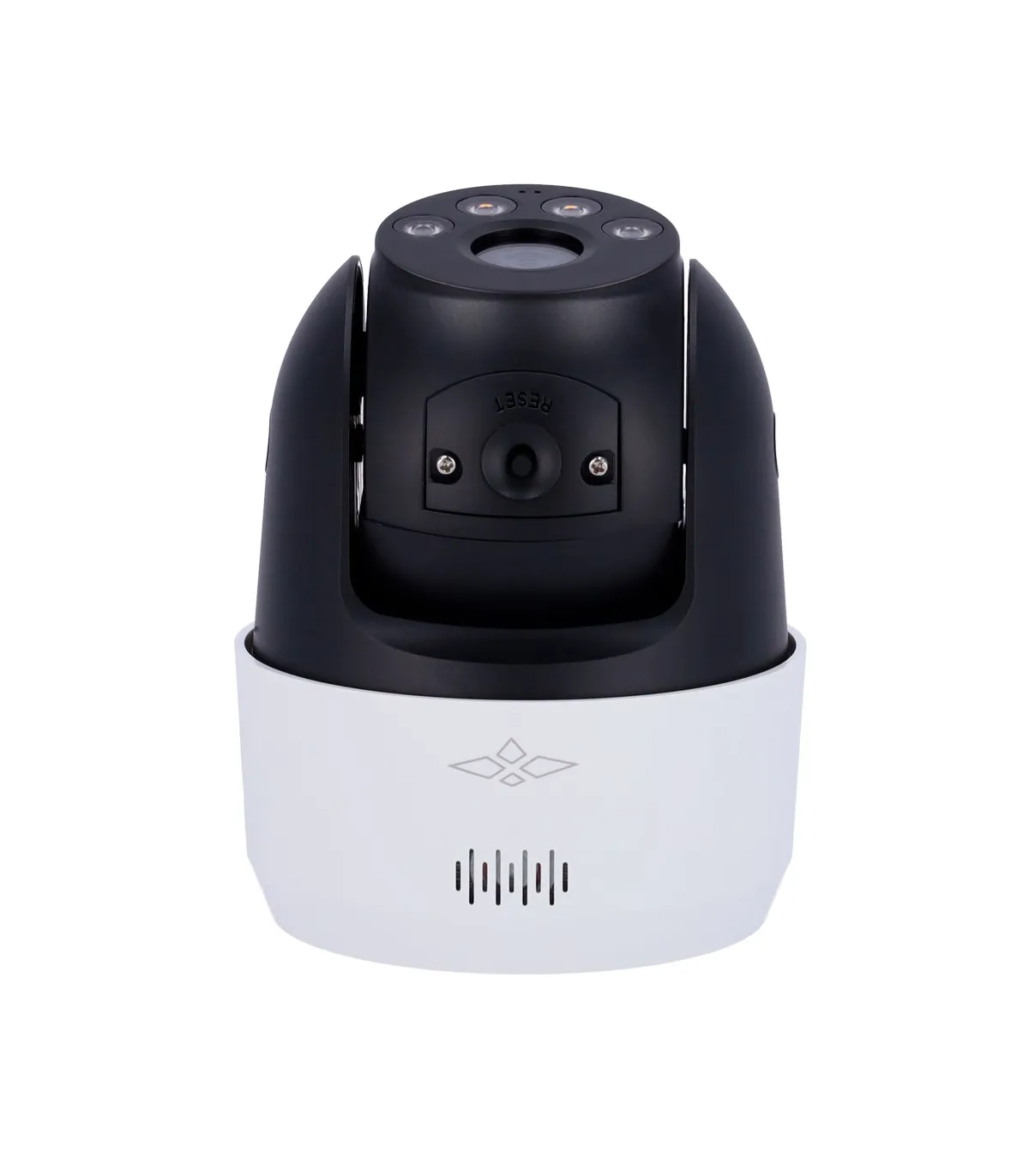

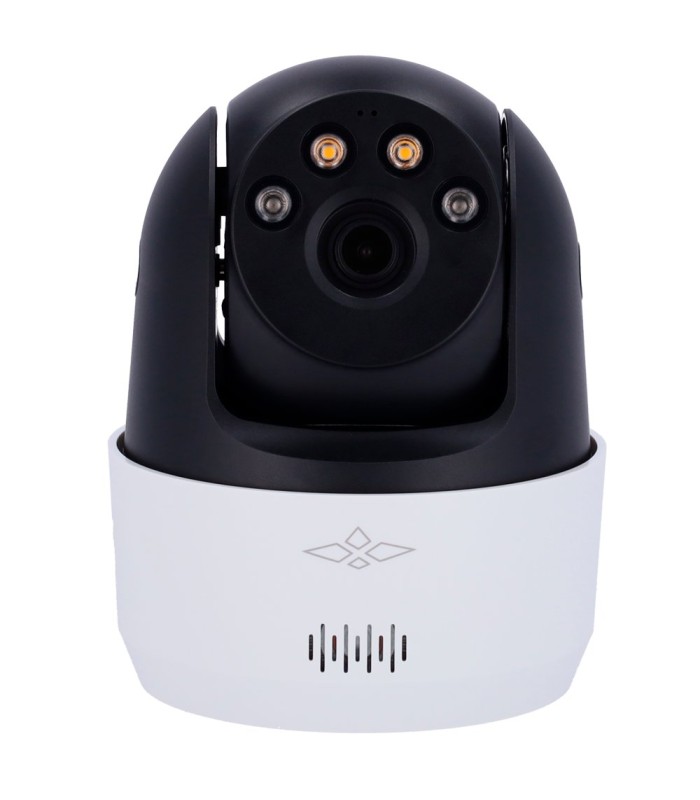

X-Security IP PT Camera XS-IPPT470-5ES-FC-AI2
Brand: X-SECURITY
- X-Security IP PT Camera
- 5 Megapixel (2560 × 1920)
- 1/2.8" CMOS | Fixed Lens 4mm
- Human Detection with Active Deterrence
- Dual Light: IR and White Light 30m
X-Security XS-IPPT470-5ES-FC-AI2 PT IP Camera
- X-Security
- PT IP Camera
- 1/2.8" STARVIS™ CMOS
- 5 Megapixel Fixed Lens 4mm
- Full-Color
- Dual Light: IR and White Light up to 30m
- Sound and Light Alarm
- DWDR
- 3DNR
- Two-Way Audio
- Integrated Microphone and Speaker
- MicroSD Card Recording up to 512GB
- Human Detection with Active Deterrence
- Medium Speed 62º/second
- H.265+
- RJ-45 10/100 BaseT
- WEB, CMS, Smartphone, and NVR Interface
- ONVIF Compatible
- IP66 Waterproof
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.8” STARVIS CMOS |
| Maximum Resolution | 5 Megapixel (2560 × 1920) |
| Lens | 4 mm |
| Full-Color | Yes |
| Main Stream Rate | 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps) |
| Compression | D1/CIF (1–25/30 fps) |
| Minimum Illumination | Color: 0.05 lux@F2.0 B/W: 0.005 lux@F2.0 0 lux (IR/white light on) |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Image Enhancements | DWDR, BLC, HLC, AWB, AGC, 3D-NR, IVS, ROI, Privacy Masking |
| Day/Night | Removable ICR mechanical filter |
| Active Deterrence | White light warning, Sound warning alarm |

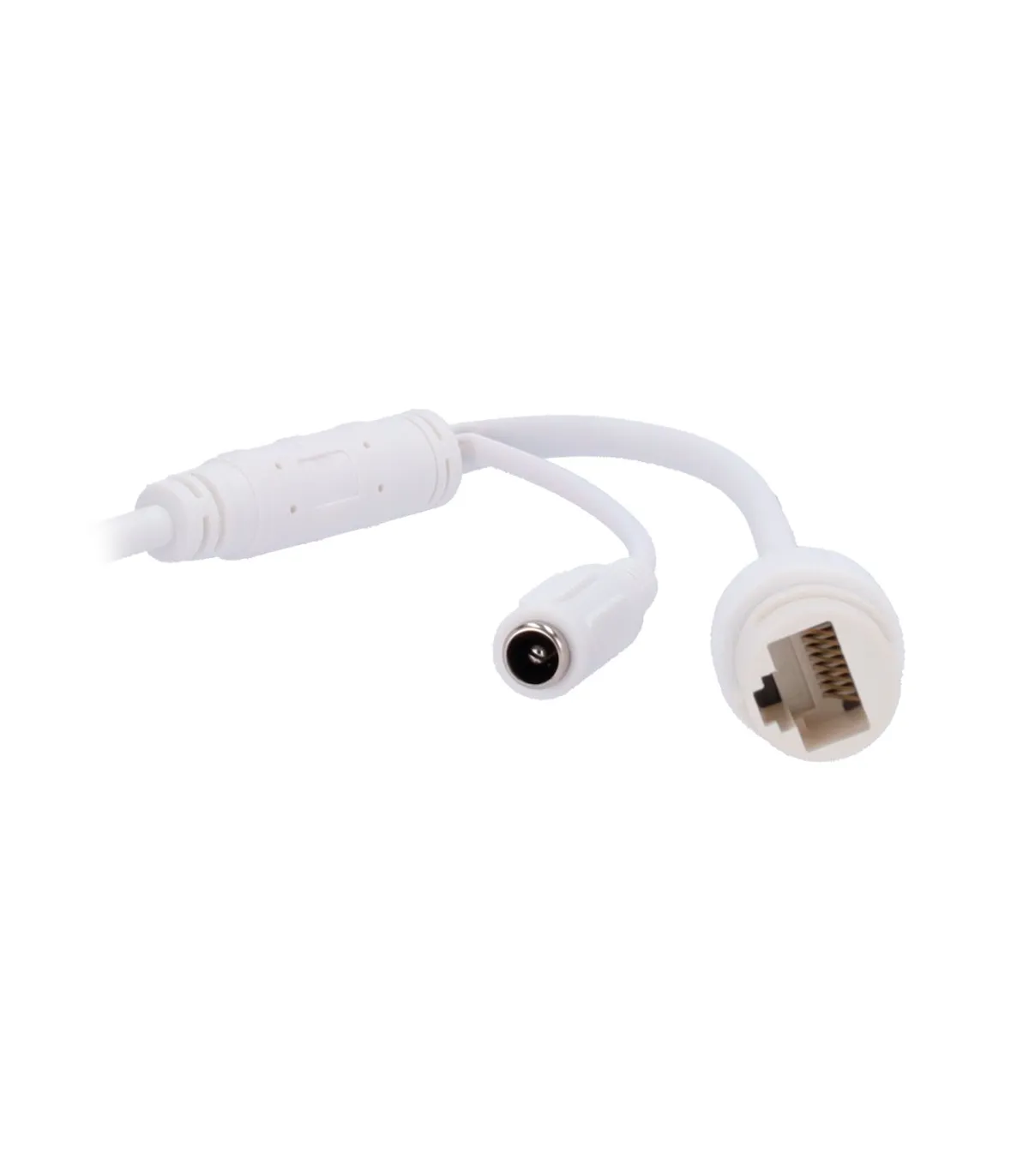

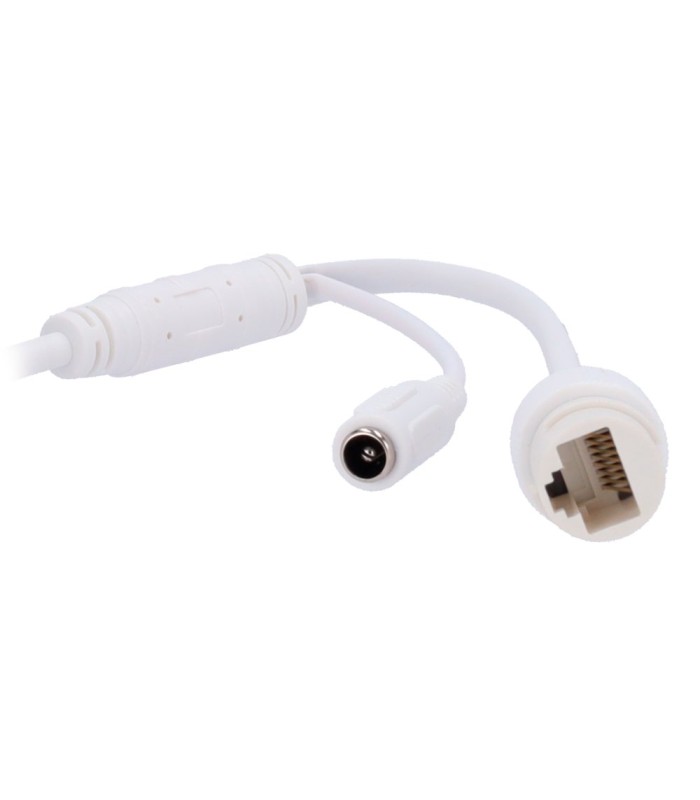

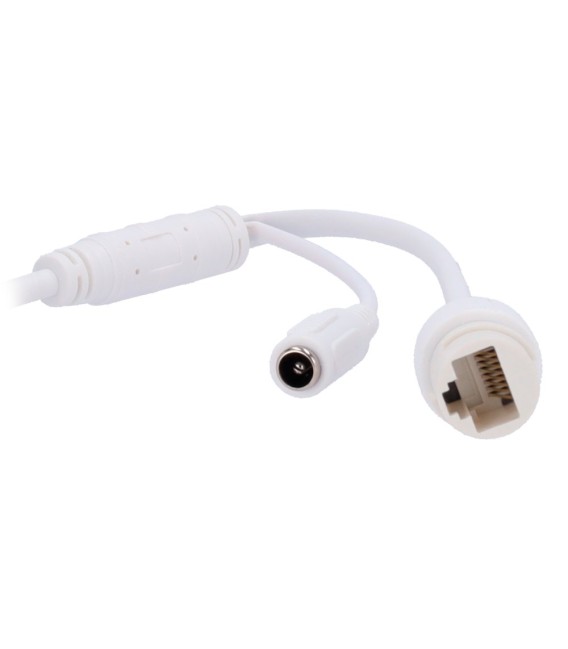

| Network Interface | Ethernet RJ-45 (10Base-T/100Base-TX) |
| Internal Storage | MicroSD Card Slot, Max 512GB |
| Audio | Integrated Speaker and Microphone |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1 |
| Audio I/O | 1/1 |
| Remote Access | Web Browser, CMS Software (DSS/PSS), Smartphone (DMSS), and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 1.5 A |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | IP66 Waterproof, TVS 2000V lightning-proof; surge protection; Voltage transient protection |
| Dimensions | Φ111 (mm) x 140.5 (mm) |
| Weight | 0.5 Kg |
Content
- PTZ IP Camera
- Installation Materials
- User Manual
- Includes Wall Mount Bracket
