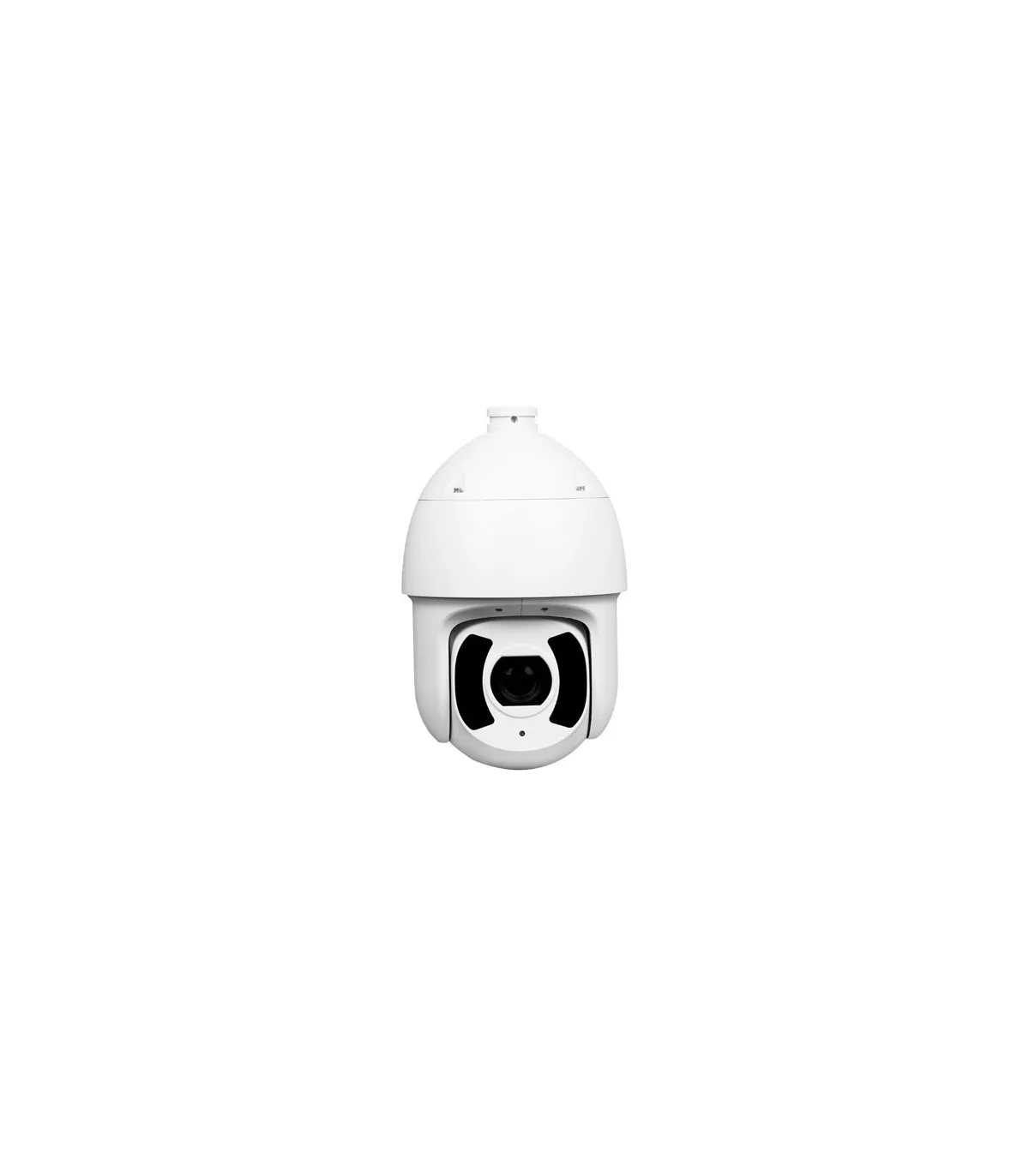

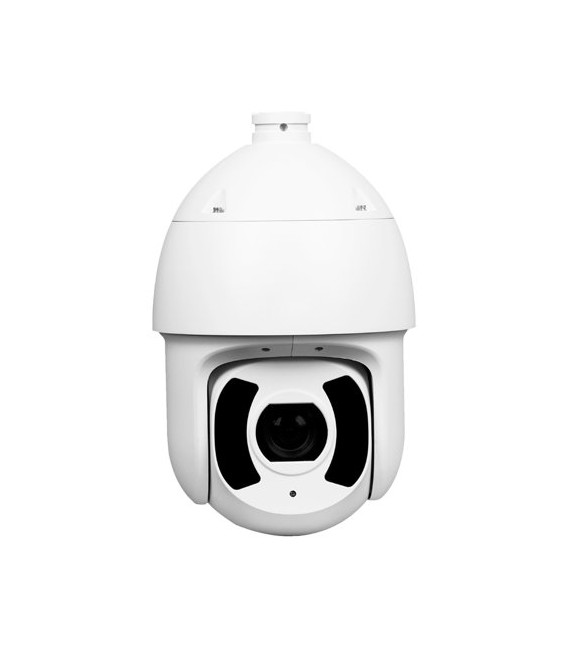

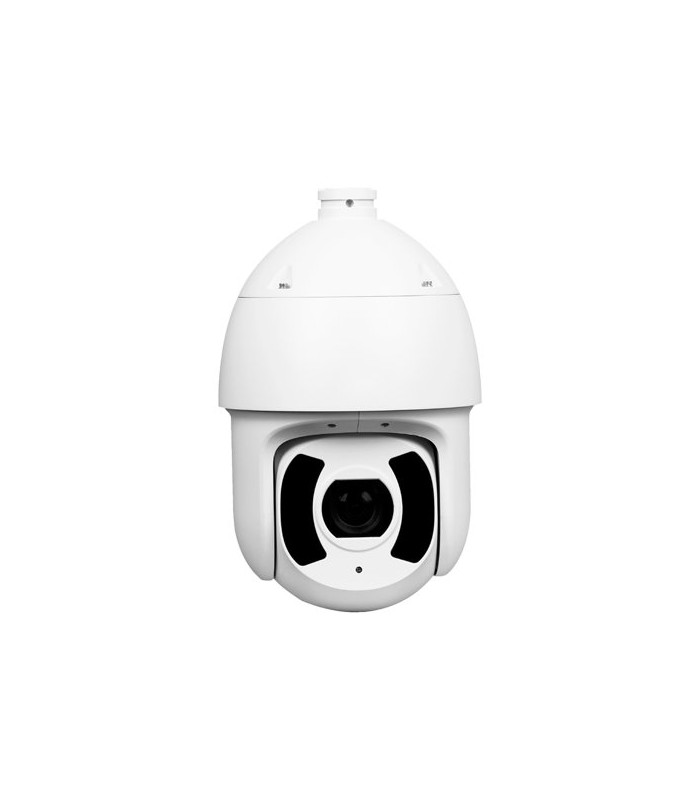

X-Security 4 Mpx PTZ IP Camera Ultra Range XS-IPSD8245ISWTA-4U-AI2
Brand: X-SECURITY
- PTZ X-Security 4MP Ultra Range IP Camera
- Varifocal Lens 3.95-177.75 mm (X45)
- Autotracking / Face Detection
- IVS (Perimeter Protection) | IR 250m
- H.265+ Compression / PoE+
X-Security Ultra Range 4MP PTZ IP Camera XS-IPSD8245ISWTA-4U-AI2
- X-Security
- PTZ IP Camera
- Ultra Range
- High speed 300º/second
- 45X optical zoom
- 1/2.8" Sony STARVIS CMOS
- 4 Megapixel (2560x1440)
- Varifocal lens 3.95~177.75 mm
- Starlight
- 0.005 Lux
- IR Range 250 m
- Compression H.265+/H.265/H.264+/H.264/MJPEG
- IVS (Perimeter Protection)
- Auto-tracking 3.0
- Face detection
- SMD
- RJ-45 10/100 BaseT
- PoE+ 802.3at
- Audio
- Alarms
- Recording on SD card
- WEB interface, CMS (DSS/PSS), Smartphone, and NVR
- Compatible with ONVIF
- Wall mount included
- IP67 Waterproof
- IK10 Vandal-proof
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Optical Zoom | 45X |
| Digital Zoom | x16 |
| Lens | Varifocal 3.95 ~ 177.75 mm (H: 65.7°–1.9°V: 39.4°–1.1°D: 73.1°–2.1°) |
| Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Main Stream Rate | 4M / 3M / 1080p / 1.3M / 720p (1-25/30 fps) |
| Extra Stream Rate | D1 / VGA / CIF (1-25/30 fps) Sub stream 2: 1080p / 1.3M / 720p (1-25/30 fps) |
| Bitrate | H264: 96 kbps–14848 kbps H265: 38 kbps–8960 kbps |
| Speed between Presets | Horizontal: 300° /s, Vertical: 200° /s |
| Pre-set Positions | 300, 5 auto pattern, 8 auto tour, 5 auto scan |
| Image Enhancements | WDR (120dB),2D/ 3DNR, HLC, BLC, ATW, AGC, Privacy Mask, ROI |
| Minimum Illumination | Color: 0.005 Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux@F1.6 (IR activated) |
| IR Illumination | 250m |
| Day/Night | Removable ICR mechanical filter |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/lost object; fast movement; parking detection; people gathering; vehicle/person alarm classification; Linkage tracking |
| Face Detection | Supports face detection, optimization, tracking, high-quality facial snapshot capture, and facial enhancement; Supports attribute extraction. 6 attributes and 8 expressions: Gender, age, glasses, expressions (angry, sad, hate, fear, surprise, calm, happy, and confused), mask, mustache; Supports facial cropping: Face, one-inch photo. Capture strategies include real-time capture, optimization, and quality |
| Auto-tracking 3.0 | YES |
| SMD | YES |
| Analog Output | 1 channel (CVBS output, BNC) RS-485 |
| Audio | 1 input (Line In) / 1 output (Line Out) |
| Alarms | 7 inputs / 2 relay |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS software, mobile app, and NVR |
| Memory | Micro SD card slot (Max 512 GB) |
| Communication | CGI; SDK; ONVIF (Profile S&G&T); P2P |
| Protection | IP67; IK10; TVS 8000V lightning-proof; surge protection; Transient voltage protection |
| Power | AC 24 V / 2.5 A , PoE+(802.3at) |
| Protection Grade | IP67 Waterproof, IK10 Vandal-proof |
| Operating Temp | -40º C ~ +70º C |
| Dimensions | 337.4 mm (H) x 209 mm (Ø) |
| Weight | 5900 g |
Contents
- Motorized PTZ IP Camera
- CD with software and instructions
- Wall mount PFB305W
