| Brand | X-Security |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Lens | Varifocal 2.8~12 mm (4x optical zoom) |
| Field of View (FOV) | H: 96.9º~31.6º, V: 51.4º~17.8º, D: 116.2º~36.4º |
| DORI | 240 m (D), 94.8 m (O), 48 m (R), 24 m (I) |
| Focus | Auto; semi-auto; manual |
| Digital Zoom | 16X |
| Electronic Shutter | 1 s~1/30.000 s |
| Minimum Illumination | 0.005 Lux @(F1.8, AGC ON) 0 lux with IR range 20 m |
| Day/Night | Removable ICR mechanical filter |
| Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+ |
| Main Stream Rate | 4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps) |
| Extra Stream 1 Rate | D1/VGA/CIF@ (1–25/30 fps) |
| Extra Stream 2 Rate | 720p@ (1–25/30 fps) |
| Bitrate | H264: 96 Kbps~14,848 Kbps H265: 38 Kbps~8,960 Kbps |
| Image Enhancements | WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, Smart IR, 180º Rotation |
| EIS (Electronic Image Stabilization) | Yes |
| SMD (Smart Motion Detection) | SMD 3.0, advanced motion detection |
| IVS (Perimeter Protection) | Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification |
| Face Detection | Supports face detection, image capture, and face enhancement. Supports face cropping: face, one-inch photo. Capture strategies include real-time capture and quality prioritization. |
| People Counting | Supports counting the number of people crossing the detection line, counting the number of people in an area, and queue management. In addition, only counting the number of people crossing the detection line supports the reporting function. |
| Audio | 1 Input / 1 Output Built-in microphone |
| Audio Compression | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 |
| Internal Storage | MicroSD card slot up to 512 GB |
| Pan/Tilt Range | Horizontal: 0°~355° Vertical: 5°~90° |
| Manual Speed | Horizontal: 0.1°~70°/s Vertical: 0.1°–30°/s |
| Speed between Presets | Horizontal: 0.1°~80°/s Vertical: 0.1°–40°/s |
| Pre-set Positions | 300, 8 tours |
| Communication | ONVIF (Profile S, G, T), CGI, SDK |

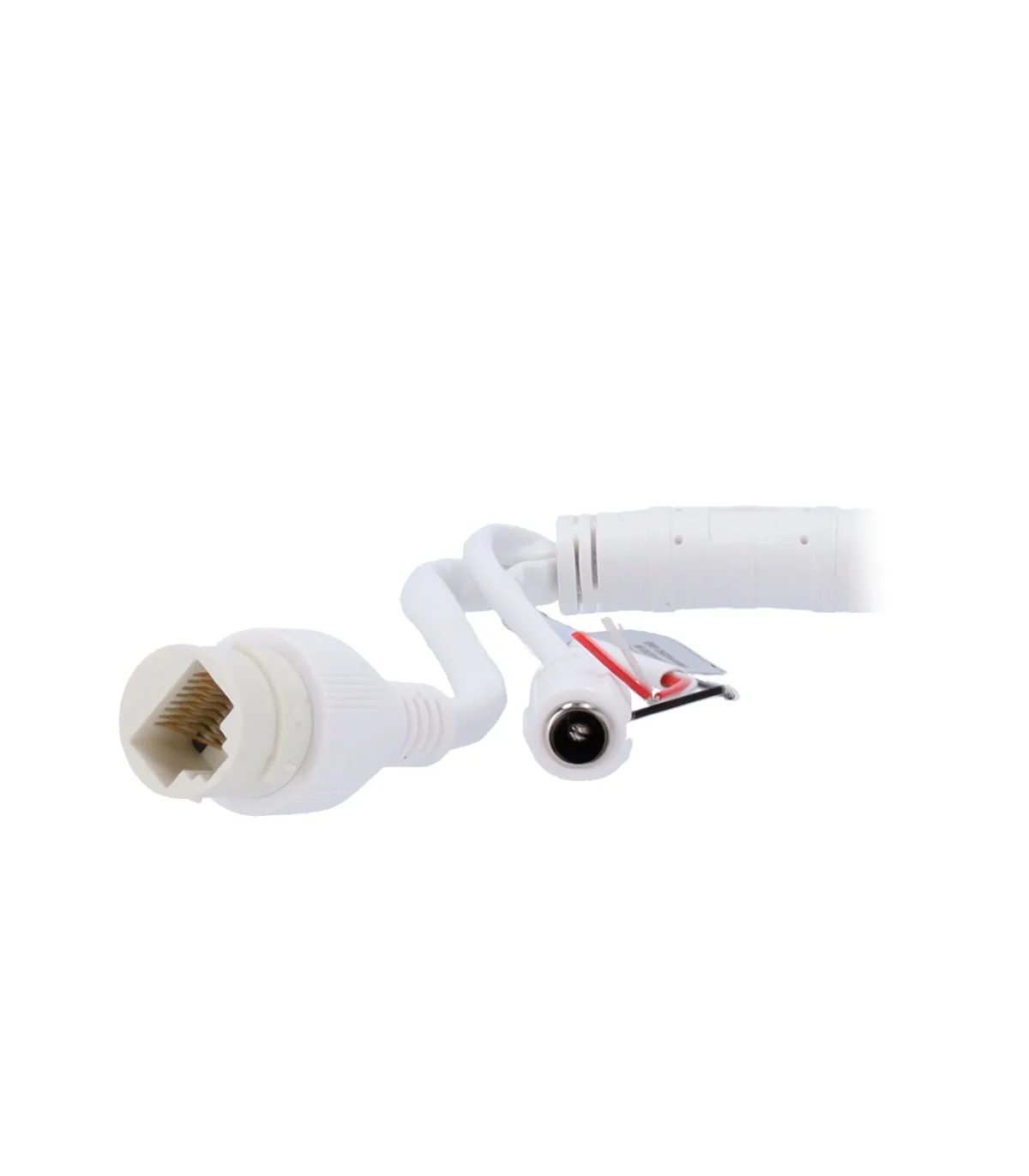

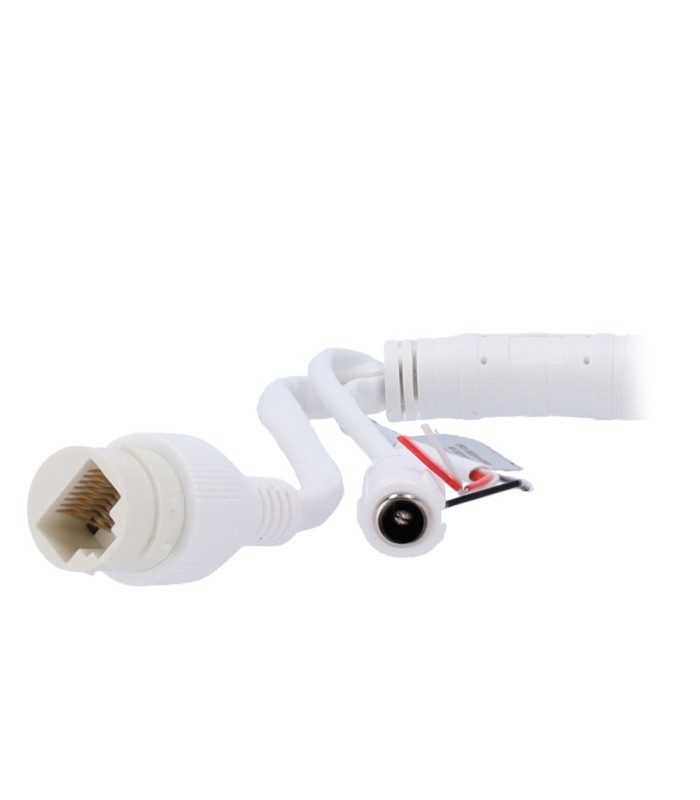

| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone, and NVR |
| Power | DC 12 V / 2 A, max. 13 W PoE (IEEE802.3af) |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | IP66 waterproof IK08 vandal-proof Surge protection 6000 V |
| Dimensions | 65.7 mm (H) x 128 mm (Ø) |
| Weight | 0.5 Kg |
