| Brand | X-SECURITY |
| Image Sensor | 1/2.9” Progressive CMOS |
| Maximum Resolution | 4 Megapixel (2688 × 1520) |
| Main Stream Rate | 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Compression | H.264H; H.265; H.264; H.264B; MJPEG |

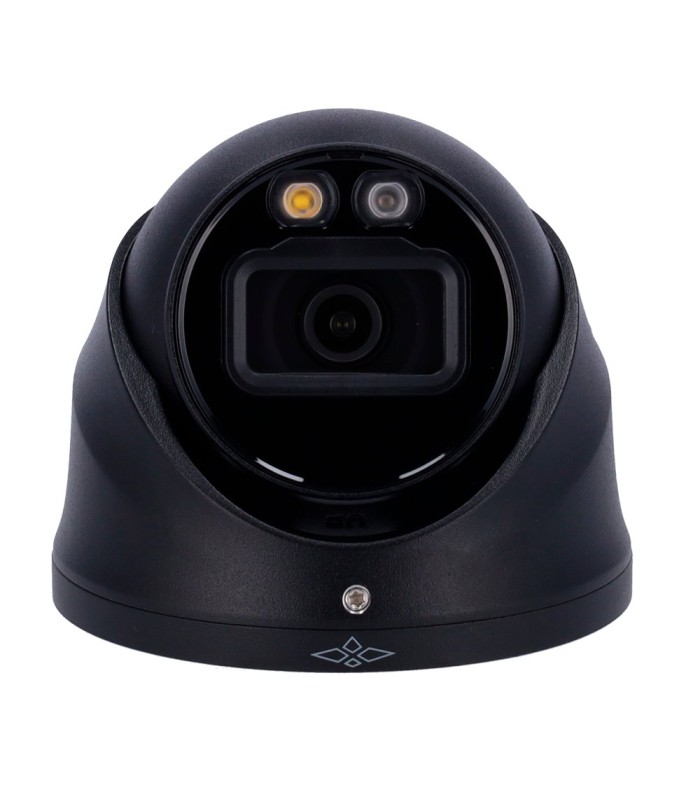

| Lens | 2.8 mm: H: 95°; V: 52°; D: 114° |
| Minimum Illumination | 0.008 lux@F1.6 (color, 30 IRE) 0.0008 lux@F1.6 (black and white, 30 IRE) 0 lux (illuminator on) |
| Image Enhancements | WDR, BLC, HLC, AWB, AGC, 3D-DNR, ROI , Smart IR, Mirror |
| IVS (Perimeter Protection) | Intrusion, tripwire (both functions support accurate classification and detection of vehicles and people) |
| Smart Search | Work together with Smart NVR for refined smart search, event extraction, and event video merging |
| Day/Night | Removable ICR mechanical filter |

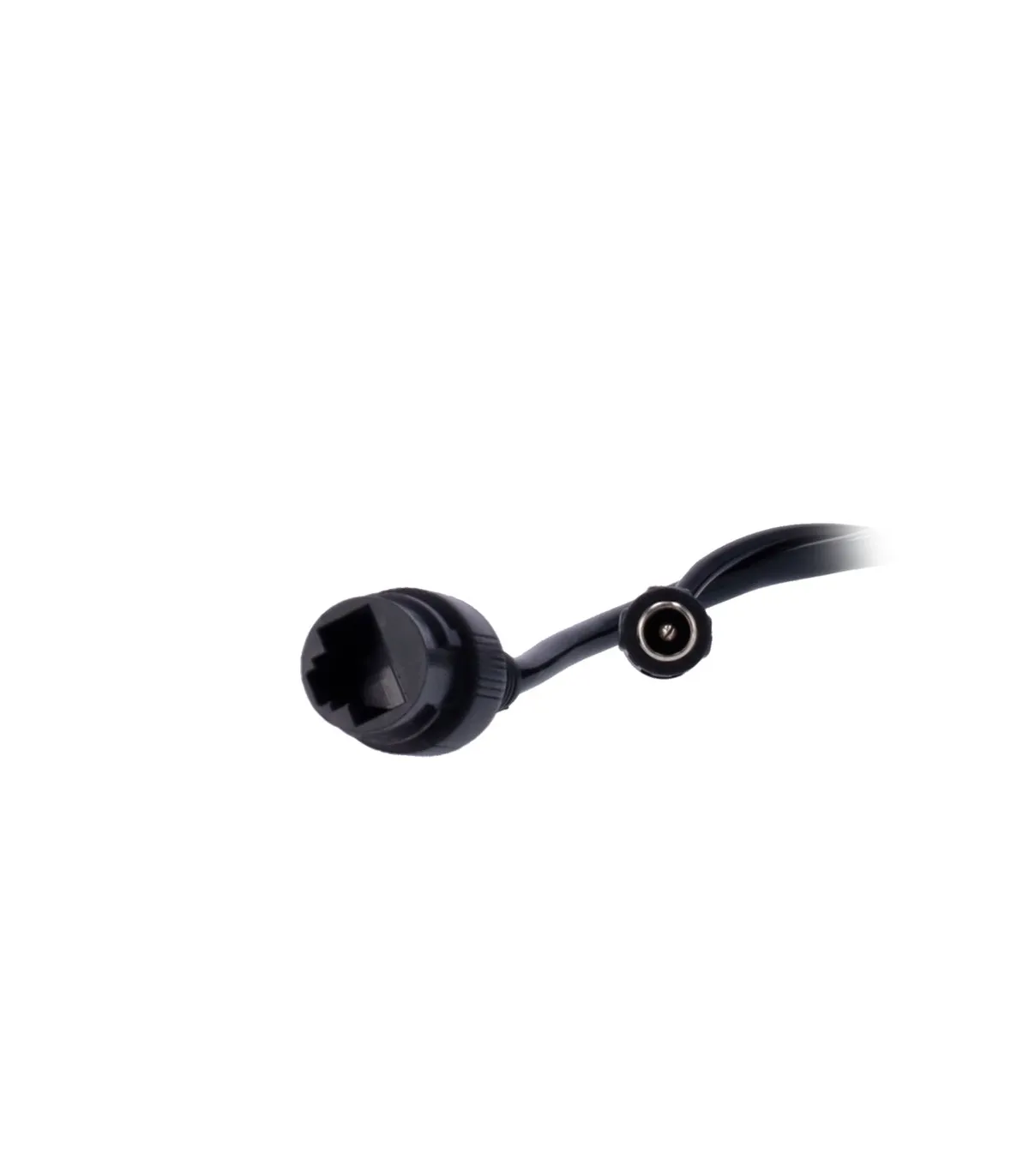

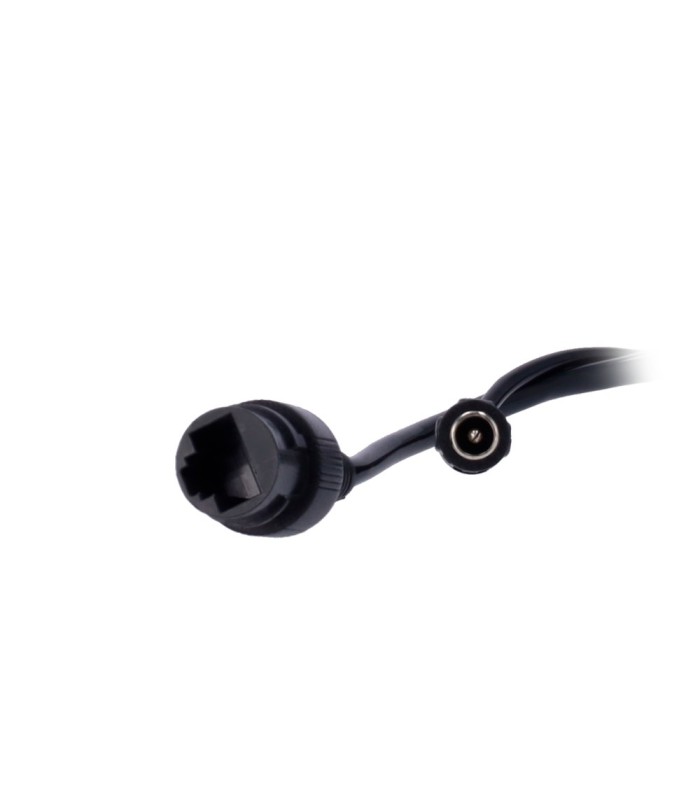

| Network Interface | Ethernet 10/100 BaseT |
| Audio | Integrated Microphone |
| Remote Access | WEB Interface, CMS (DSS/PSS), Smartphone, and NVR |
| Interoperability | ONVIF |
| Material | Internal core: Metal Cover: Plastic |
| Color | Black |
| Power | DC 12 V / 5.2W, PoE IEEE802.3af |
| Operating Temperature | -30º C ~ +60º C |
| Protection Grade | Waterproof IP67 |
| Dimensions | 100.9 mm (D) x 109.9 mm (Ø) |
| Weight | 560 g |
