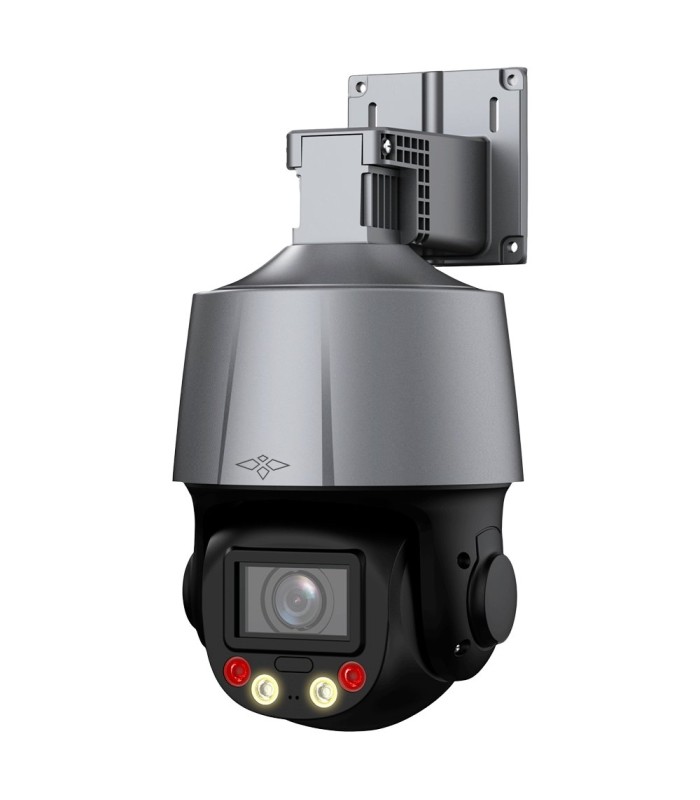

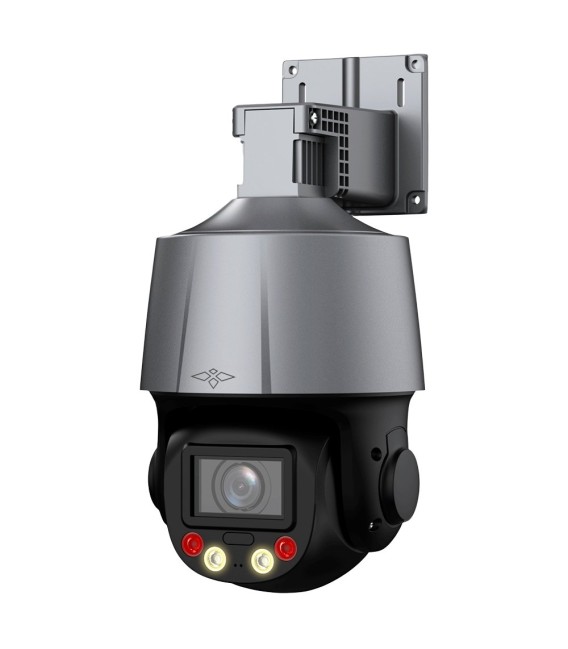

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD3005ITA-4UW-WIZ-DL

Name: X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD3005ITA-4UW-WIZ-DL
Brand: X-SECURITY
Price: 168.345 EUR
Availability: InStock

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD4025ITA-4U-WIZ

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD1004I-4UW-WIZ

Brand: X-SECURITY

SKU: XS-IPSD3005ITA-4UW-WIZ-DL

Condition: New product

PTZ X-Security 4MP Pro Range IP Camera
Varifocal lens 2.7~13.5 mm (5x optical zoom)
Dual Light | IR range 50m | White light 30m
IVS (Perimeter Protection) | SDM 3.0
Microphone and speaker | Deterrent siren and light

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

X-Security 4MP Pro Range WizSense PTZ IP Camera XS-IPSD3005ITA-4UW-WIZ-DL

X-Security
WizSense PTZ IP Camera
4 Megapixel (2560x1440)
Pro Range
1/2.8" Progressive Scan CMOS
Varifocal lens 2.7~13.5 mm
5X optical zoom
0 lux
Dual Light: IR and white light
IR range 50 m
White light range 30 m
Compression H.264H / H.264B / Smart H.265+ / H.265 / H.264 / MJPEG
IVS (Perimeter Protection)
Smart SMD 3.0 search
Integrated microphone and speaker
Alarm and deterrent light
WDR (120 dB)
3D DNR
IR CUT
MicroSD card slot up to 512GB
WEB interface, CMS (DSS/ Smart PSS Lite/ DMSS), Smartphone, and NVR
ONVIF compatible
RJ-45 10/100 BaseT
PoE (IEEE802.3af)
IP66 waterproof
Surge protection 2000 V

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8" Progressive Scan CMOS
Resolution	4 Megapixel (2560x1440)
Lens	Varifocal 2.7~13.5 mm (5x optical zoom)
Field of View (FOV)	H: 94.9º~30.1º, V: 51º~17.1º, D: 112.3º~34.6º
DORI	270 m (D), 106.6 m (O), 54 m (R), 27 m (I)
Focus	Auto; semi-auto; manual
Digital Zoom	16X
Electronic Shutter	1 s~1/30.000 s
Minimum Illumination	0.005 Lux @(F1.6, AGC ON) 0 lux with IR range 50 m
Supplementary Illumination	Dual light (IR + white light) IR range 50 m White light range 30 m
Day/Night	Removable ICR mechanical filter
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (ExtraStream); Smart H.264+
Main Stream Rate	4Mpx/3Mpx/1080p/1.3Mps/720p @(1–25/30 fps)
Extra Stream 1 Rate	D1/VGA/CIF @(1–25/30 fps)
Extra Stream 2 Rate	720p @(1–25/30 fps)
Bitrate	H264: 96 Kbps~14848 Kbps H265: 38 Kbps~8960 Kbps
Image Enhancements	WDR (120dB), 2D/ 3DNR, HLC, BLC, ATW, AGC, ROI, 180º Rotation
Motion Detection	Yes
EIS (Electronic Image Stabilization)	Yes
SMD (Smart Motion Detection)	SMD 3.0, advanced motion detection
IVS (Perimeter Protection)	Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification
Audio	Integrated microphone and speaker
Audio Compression	G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Deterrent Alarm	White deterrent light Flash duration: 5~30 s Flash frequency: high, medium, low. Deterrent siren Offers 11 types of alarm sound, and supports the import of up to 10 custom sounds. The alarm sound can be set to sound 1 to 10 times.
Internal Storage	MicroSD card slot up to 512 GB
Pan/Tilt Range	Horizontal: 0°~355° Vertical: -15°~90°
Manual Speed	Horizontal: 0.1°~36°/s Vertical: 0.1°–25.8°/s
Speed between Presets	Horizontal: 35.7°/s Vertical: 27.1°/s
Pre-set Positions	300, 8 tour, 5 Pattern, 5 Scan
Communication	ONVIF (Profile S, G, T), CGI, SDK, P2P
Network Interface	Ethernet 10/100 BaseT
Remote Access	WEB interface, CMS (DSS/PSS), Smartphone, and NVR
Power	DC 12 V / 1.5 A, max. 15 W PoE (IEEE802.3af)
Operating Temperature	-30º C ~ +60º C
Protection Rating	IP66 waterproof Surge protection 2000 V
Dimensions	236.2 mm (H) x 140 mm (W) x 142.6 mm (D)
Weight	1.1 Kg
