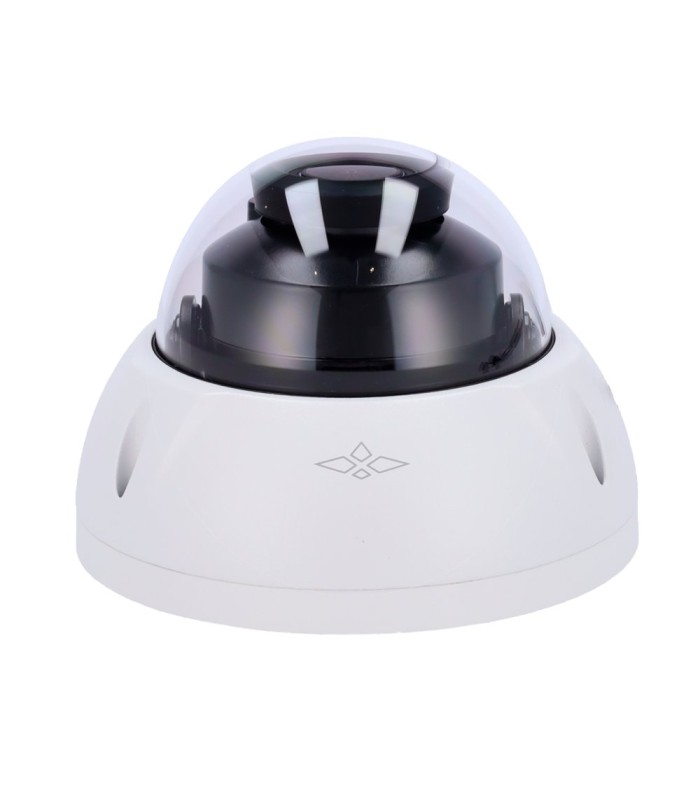

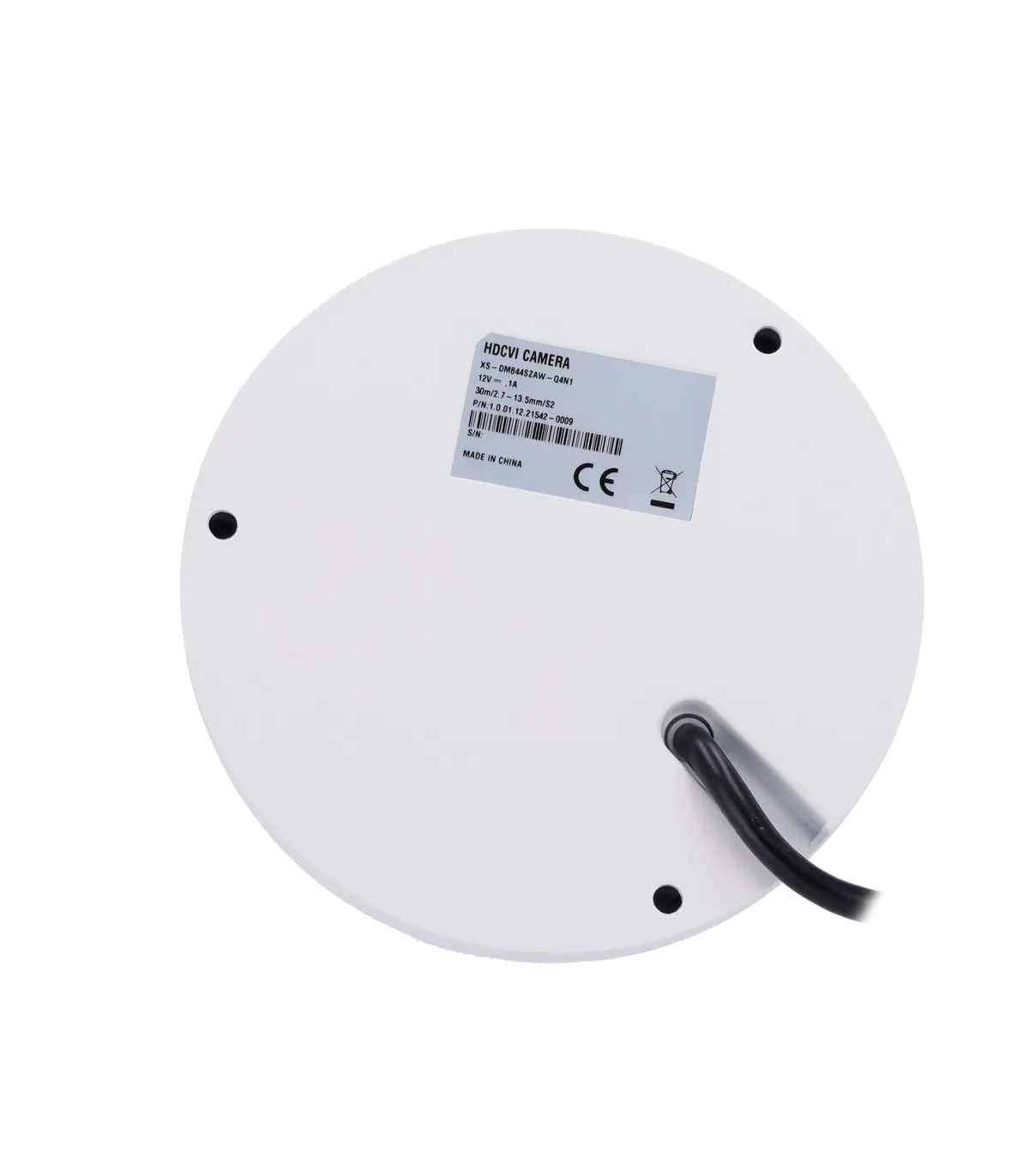

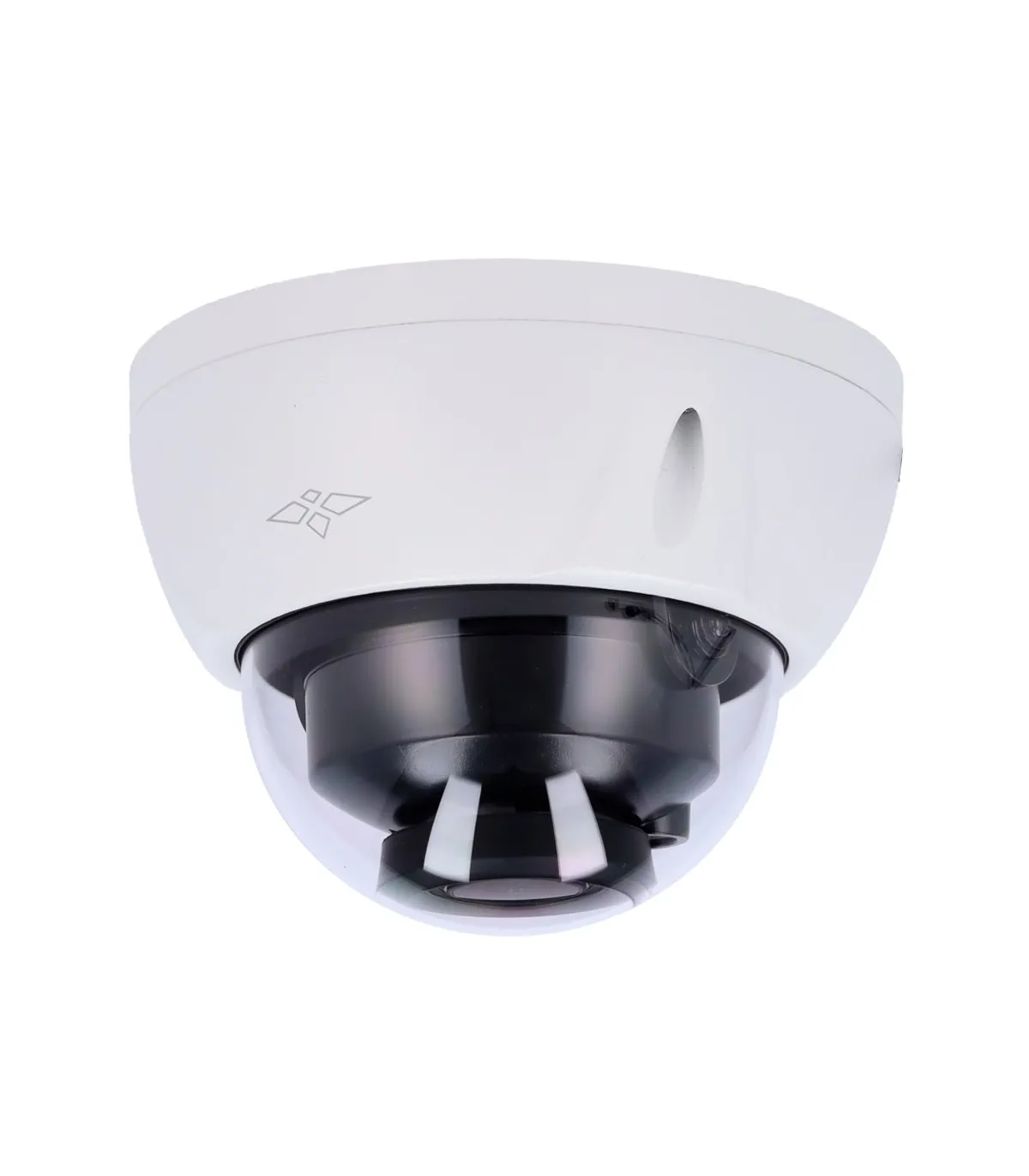

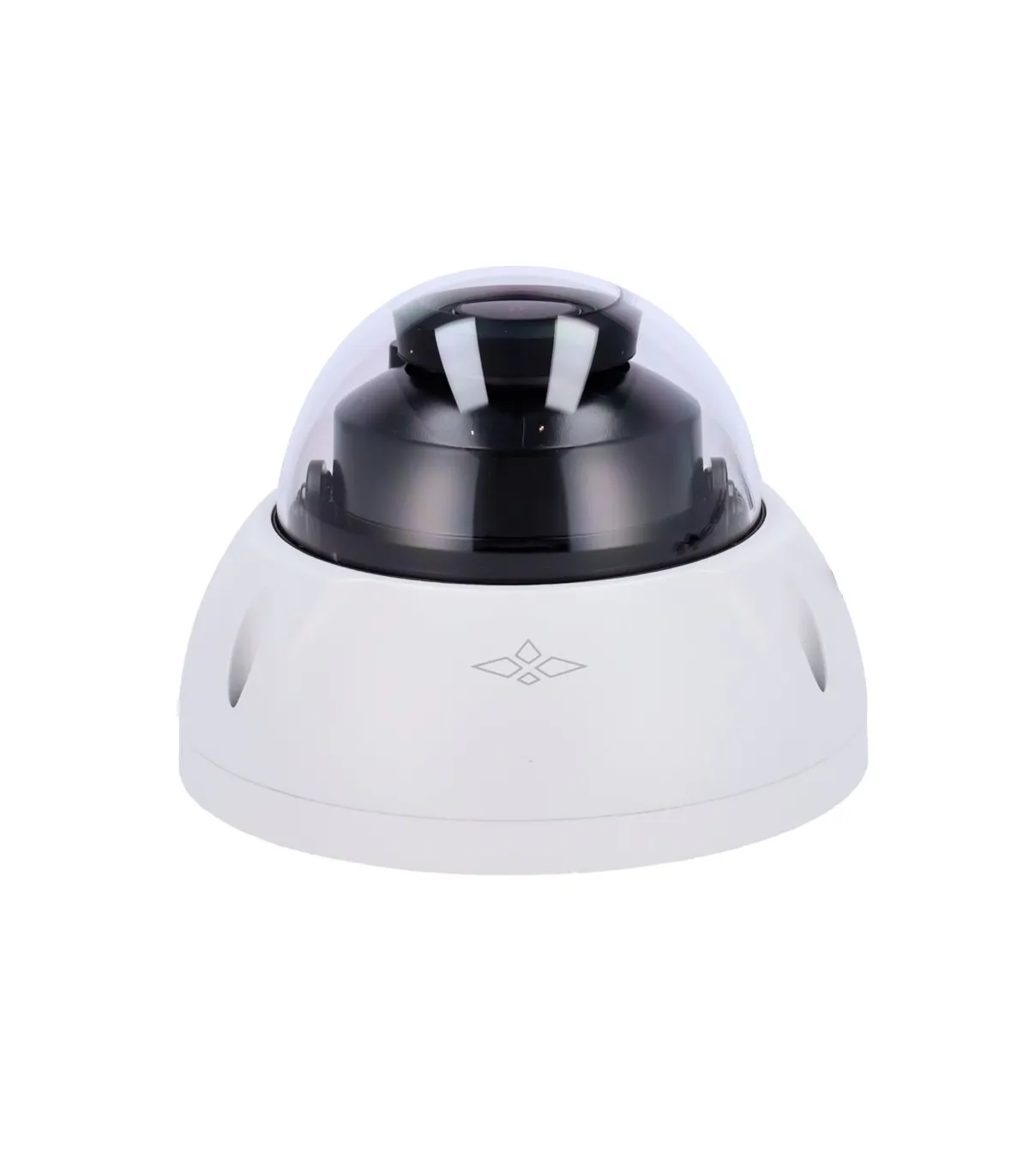

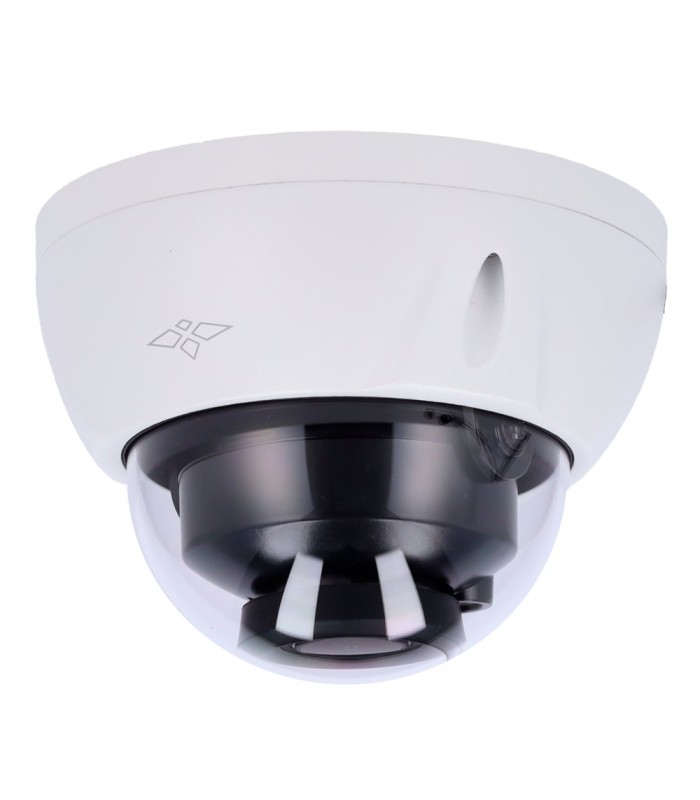

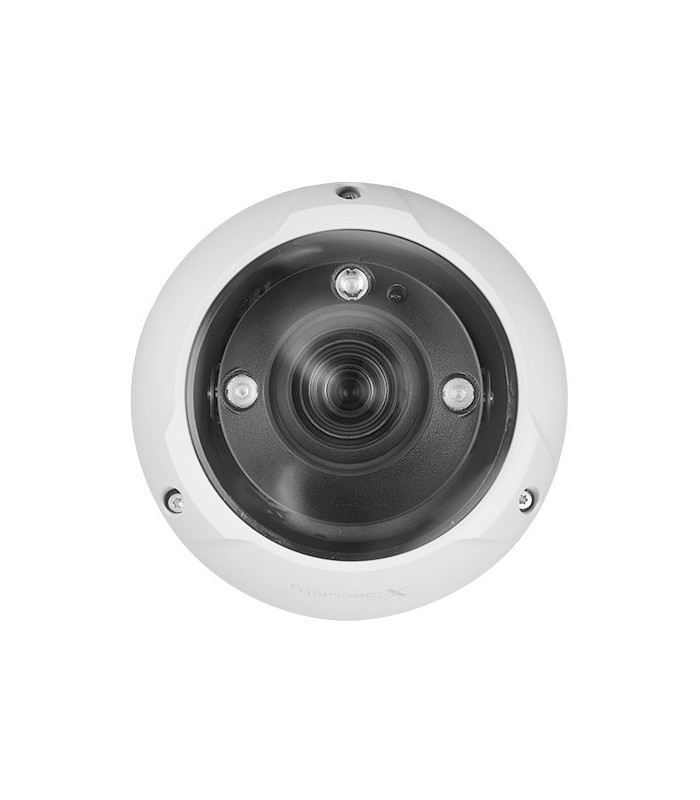

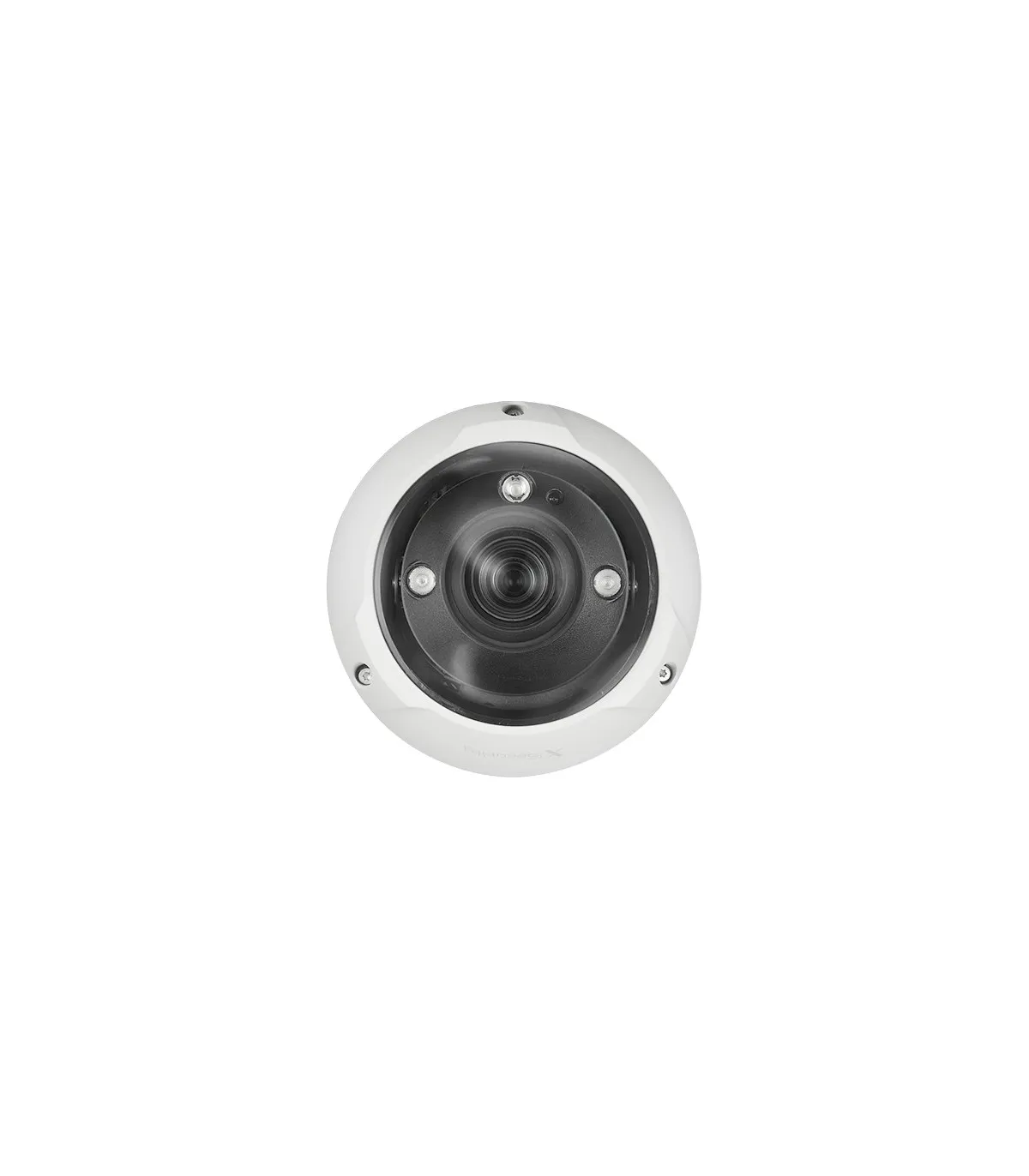

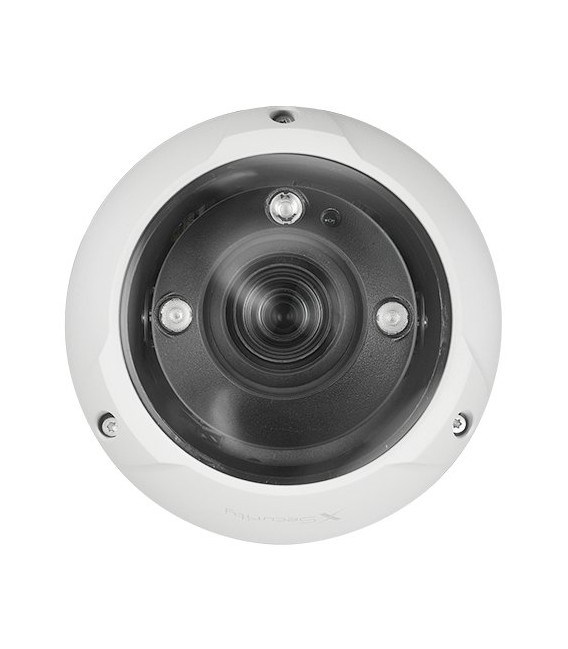

X-Security Dome Camera 5Mpx XS-DM844SZAW-Q4N1
Brand: X-SECURITY
- X-Security 5MP Dome Camera
- HDTVI, HDCVI, AHD, and CVBS
- 1/2.7" CMOS Starlight / 0.005Lux Color
- Motorized Autofocus Lens 2.7~13.5 mm
- IR LEDs Array with 30m range
X-Security Dome Camera 5Mpx XS-DM844SZAW-Q4N1
- X-Security
- HDTVI, HDCVI, AHD, and Analog Dome Camera
- ULTRA Range
- 1/2.7" CMOS Starlight
- 5 Mpx (2592x1944)
- 4 in 1 Output
- Motorized Lens 2.7~13.5 mm Autofocus
- High Sensitivity Starlight
- Color 0.005Lux
- 0 Lux - IR Array Range 30 m
- WDR (120dB)
- 3DNR
- IR CUT
- Waterproof IP67
Technical Specifications
| Brand | X-Security |
| Range | 1080p ULTRA |
| Image Sensor | 1/2.7" CMOS Starlight |
| Resolution | 5Mpx (2592x1944) at 20 FPS |

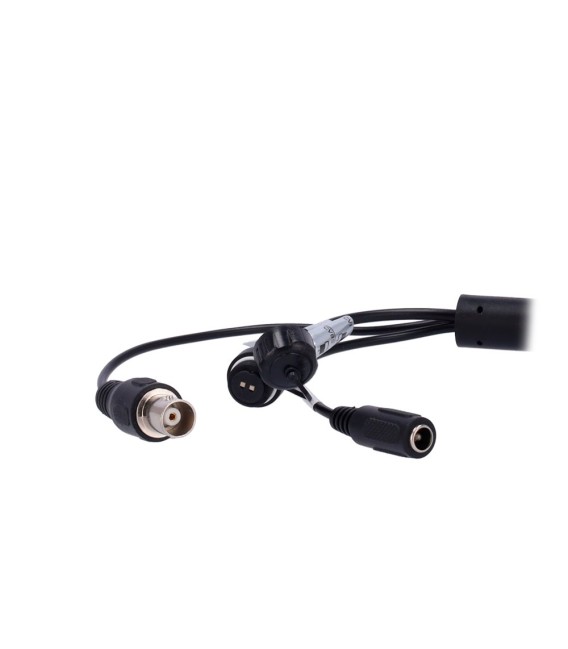

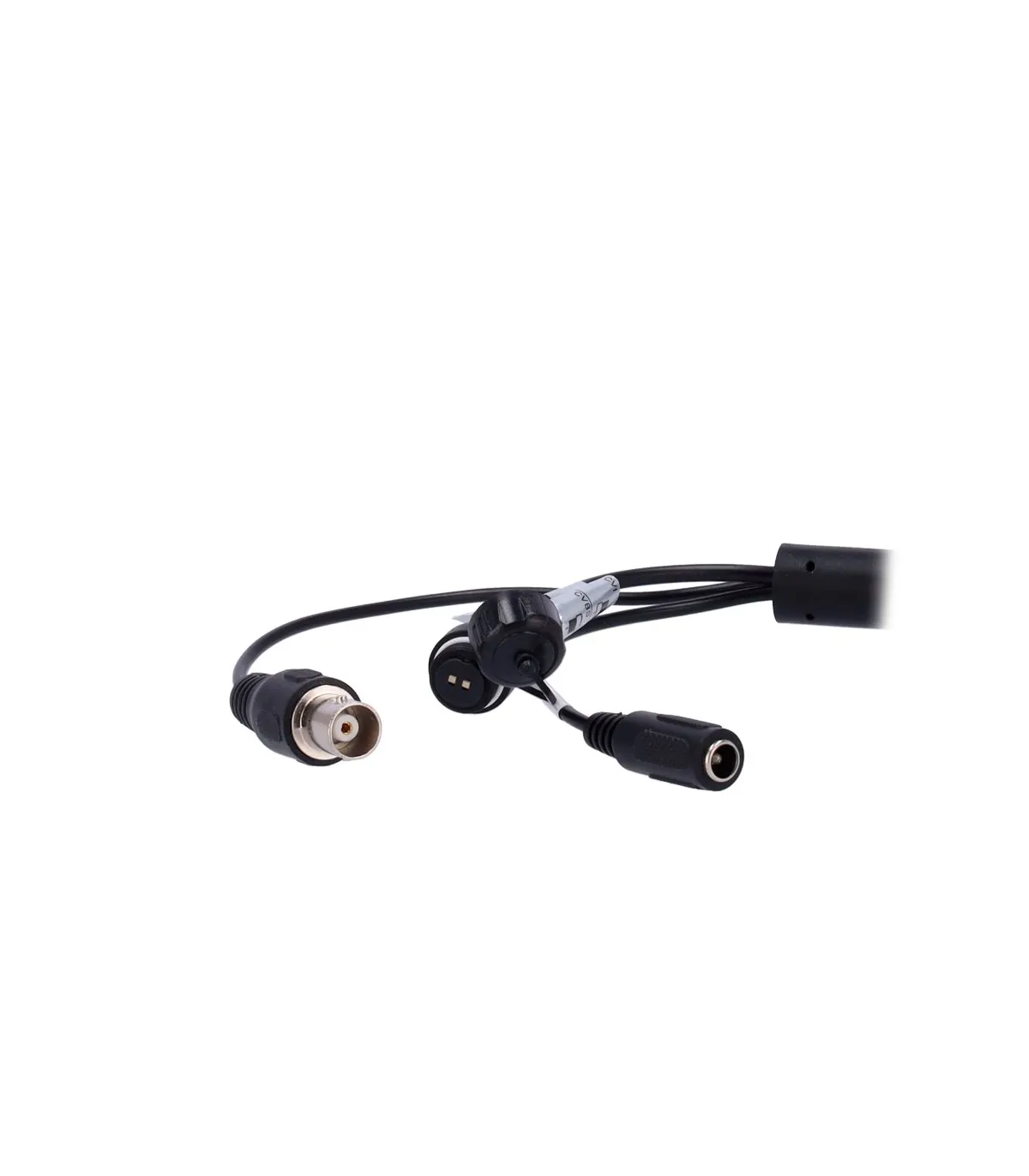

| Video Output | 1 x BNC HDTVI / HDCVI / AHD / CVBS |
| Minimum Illumination | Color 0.005Lux (F1.3) / B/W 0 Lux, IR LEDs Array (30 m) |
| Basic Functions | OSD Menu, Day/Night with IR-CUT (ICR), Smart IR |
| Configurable OSD Functions | WDR (120dB), 3D-NR, ACE, AE, AWB, HLC, BLC, AGC |
| Optics | Motorized Lens 2.7~13.5 mm (108.7º~28.7º) |
| Audio | Not available |
| Power Supply | DC 12 V / 8.8W max. |
| Protection Rating | Waterproof IP67, Vandal-proof IK10 |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | 88.9 (D) x 122 (Ø) mm |
| Weight | 470 g |
Contents
- HDTVI, HDCVI, AHD, and Analog Dome Camera
- Installation Materials
- User Instructions
