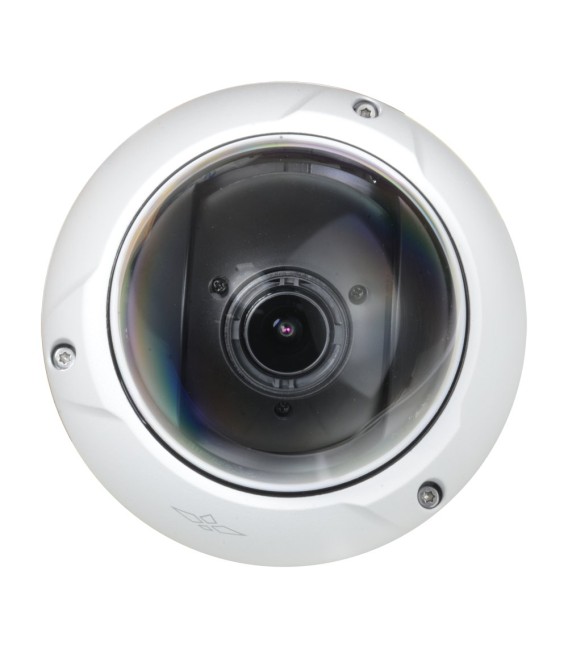

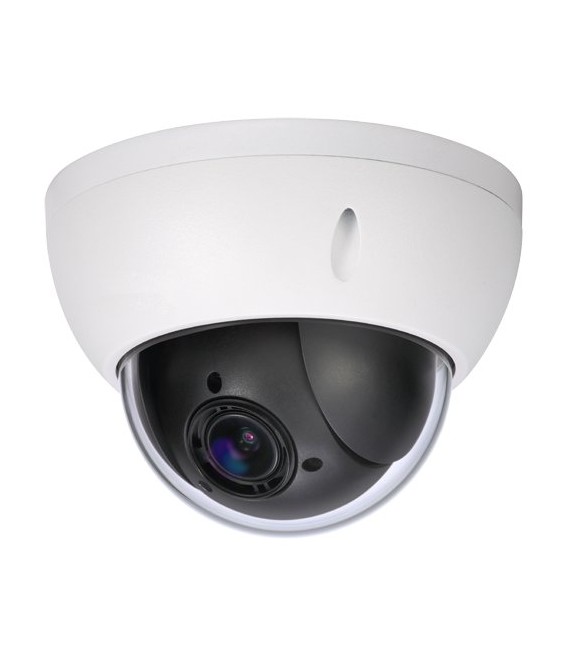

Motorized IP camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P

Motorized IP camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P

Name: Motorized IP camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P
Brand: X-SECURITY
Price: 179.568 EUR
Availability: OutOfStock

2 Megapixel PTZ IP Camera X-Security XS-IPSD5025A-2P-WIZ

X-Security 4 Mpx PTZ IP Camera Pro Range XS-IPSD4025ITA-4U-WIZ

Brand: X-SECURITY

SKU: XS-IPSD4604H-4P

Condition: New product

4 Megapixel Pro Range Motorized IP Camera
1/2.8” STARVIS CMOS
H.265/H.264/MJPEG Compression
Motorized varifocal lens 4X (2.8~12 mm)
Intelligent Functions

More details

Rating: Sign in to write a review

Overview
Data sheet
Reviews (0)

Overview

Motorized IP Camera 4 Megapixel Pro Range X-Security XS-IPSD4604H-4P

X-Security
PTZ IP Camera
PRO Range
Medium speed 100º/second
4X Optical Zoom - 1/2.8" STARVIS CMOS
4 Megapixel (1920x1080)
Varifocal Lens 2.8~12 mm Autofocus Motorzoom
0.005 Lux
Compression H.265/H.264/MJPEG
RJ-45 10/100 BaseT
DWDR
IVS
SMD 3.0
Facial Detection
MicroSD Card Slot up to 512 GB
WEB Interface, CMS (DSS/PSS), Smartphone, and NVR
ONVIF Compatible
IP66 Waterproof
IK10 Vandal-proof

Technical Specifications

Brand	X-Security
Image Sensor	1/2.8” STARVIS CMOS
Maximum Resolution	4 Megapixel (2560 × 1440)
Lens	Motorized Varifocal 2.8~12 mm (H: 90.3°–29.4°; V: 48.5°–16.6°; D: 105.7°–33.6°)
Optical Zoom	4X
Digital Zoom	16X
Main Stream Rate	4M/3M/1080p/1.3M/720p@(1–25/30 fps)
Extra Stream Rate	D1/VGA/CIF@(1–25/30 fps)
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
Bitrate	H.264: 2816Kbps – 13056Kbps H.265: 1024Kbps – 7936Kbps
Minimum Illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6
Image Enhancements	dWDR, BLC, HLC, AWB, AGC, 2D/3D-NR, Privacy Masking
Network Interface	Ethernet 10/100 BaseT
Pan/Tilt Range	Horizontal: 0°~355°, Vertical: 0°~90° auto flip 180°
Manual Speed	Horizontal: 0.1°~100° /s, Vertical: 0.1°~60° /s
Speed between Presets	Horizontal: 100° /s, Vertical: 60° /s
Pre-set Positions	300, 8 Tour, Auto Scan
Face Detection	Supports face detection, face tracking, snapshots, and face enhancement; Supports face cropping: face, one-inch photo; Capture strategies include real-time capture and quality first.
IVS (Perimeter Protection)	Tripwire; intrusion; cross-line detection; loitering detection; abandoned/lost object; fast-moving; parking detection; people gathering; Vehicle/human alarm classification
SMD	Yes
Internal Storage	MicroSD Card Slot up to 512 GB
Remote Access	Web Browser, CMS Software (DSS/PSS), Smartphone (DMSS), and NVR
Interoperability	ONVIF (Profile S&G&T); P2P; .CGI; SDK

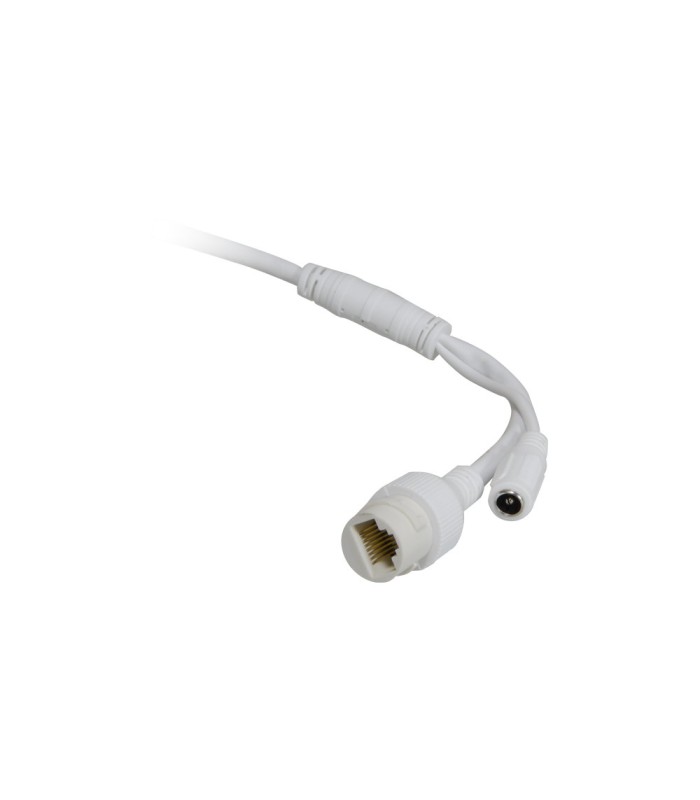

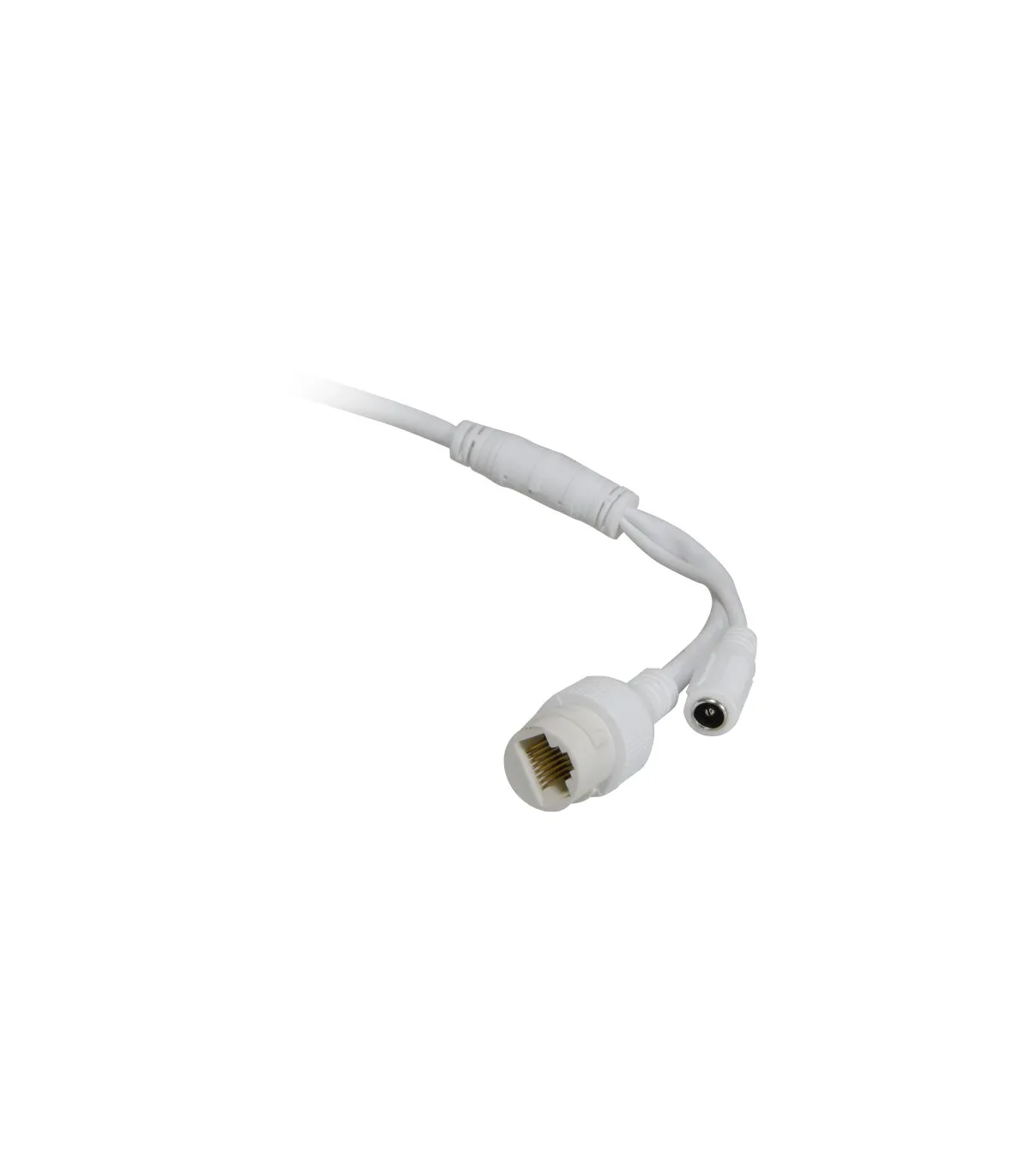

Power	DC 12 V / 6.1 W, PoE(802.3af)
Protection Grade	IP66 Waterproof, IK10 Vandal-proof
Operating Temperature	-30º C ~ +60º C
Dimensions	89 mm (H) x 122 mm (Ø)
Weight	500 g
