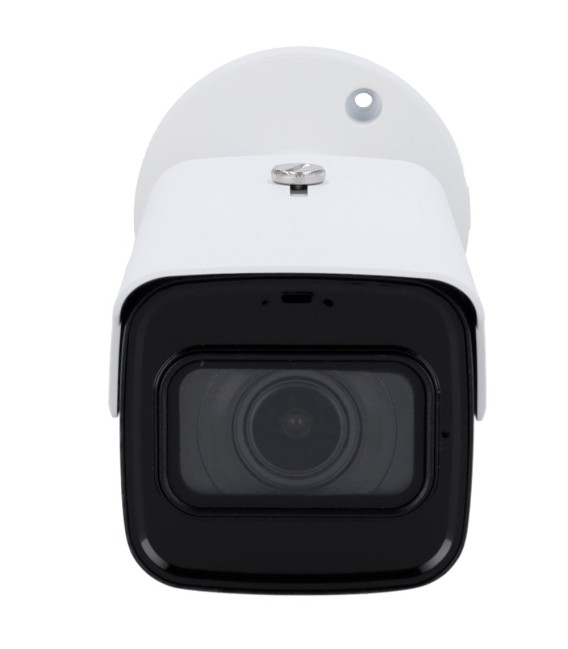

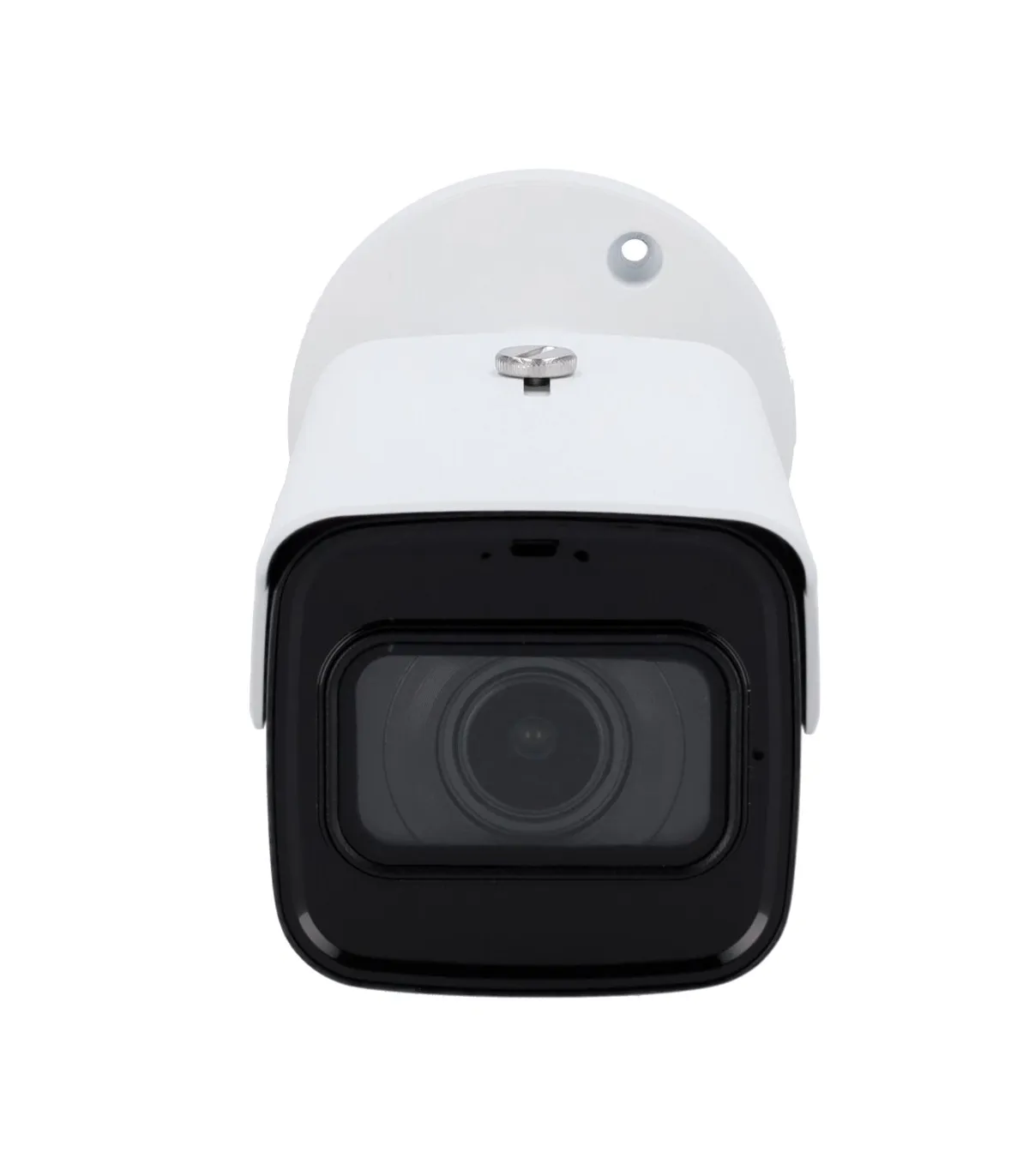

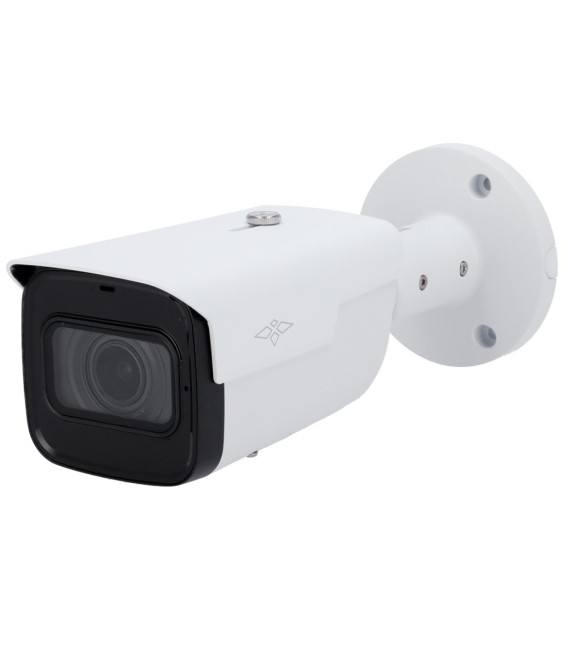

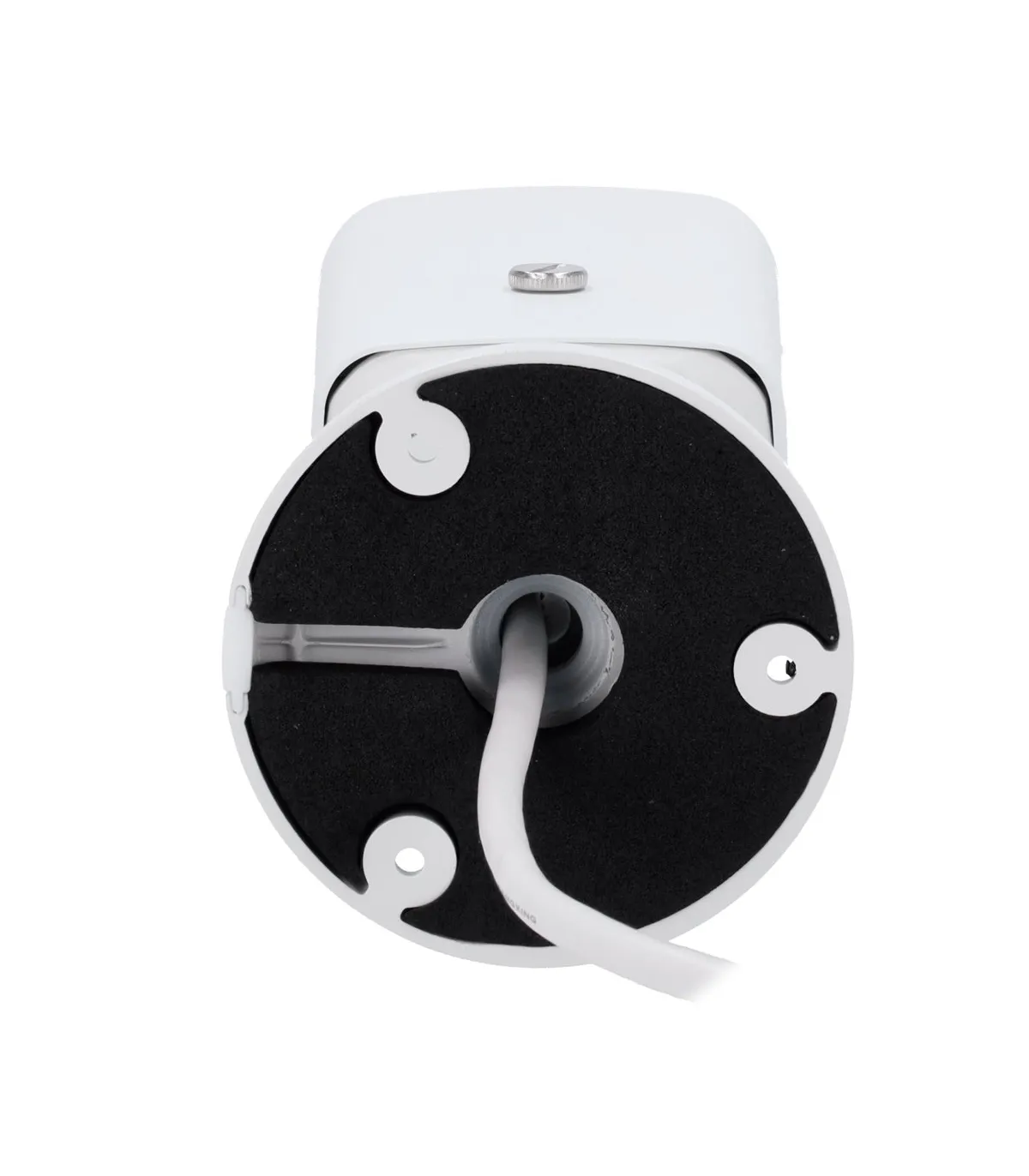

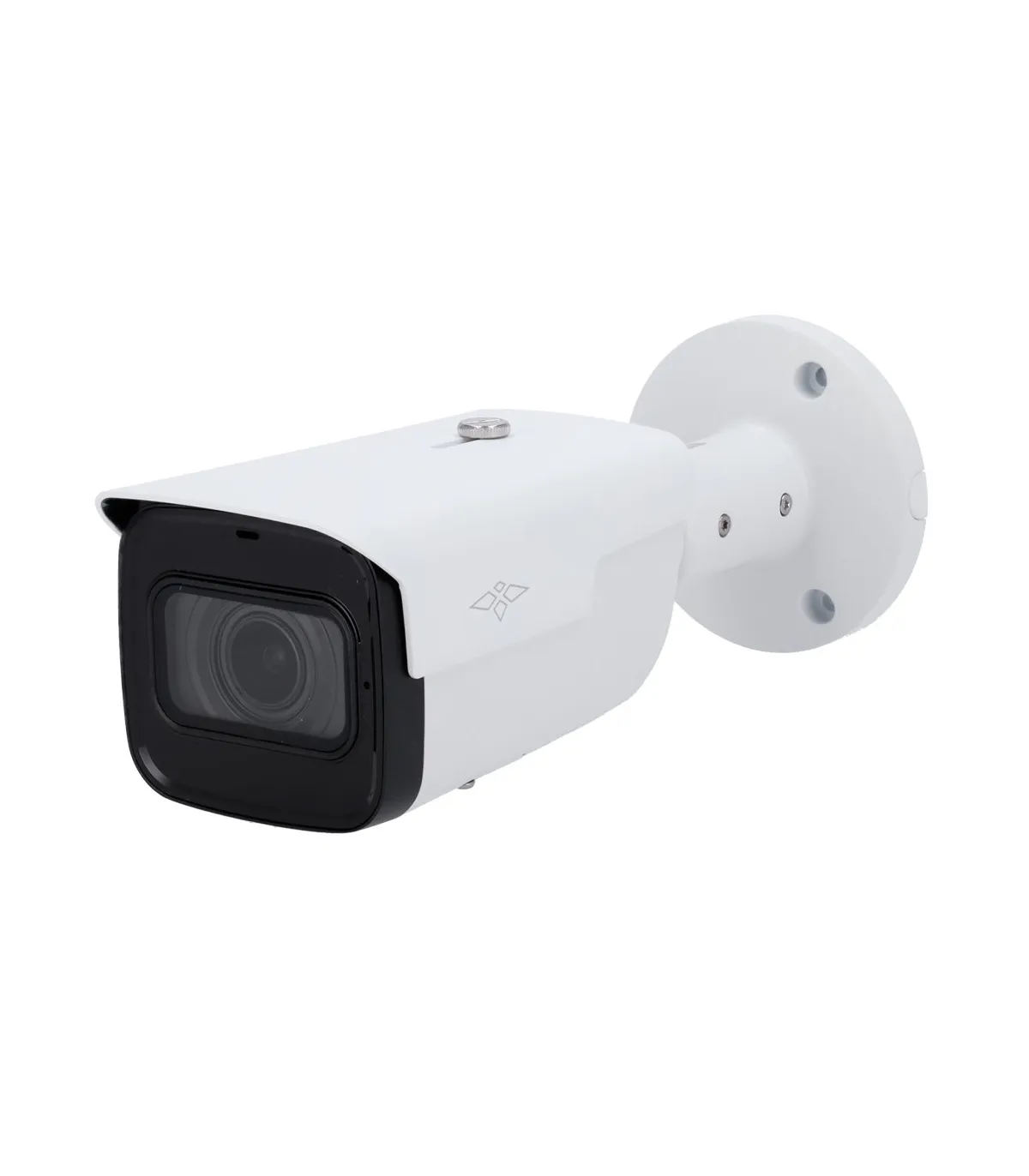

| Brand | X-Security |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Resolution | 8 Megapixel (3840×2160) |
| Main Stream Rate | 8Mpx @(1–20 fps) / 2688 × 1520@ (1–25/30 fps) |
| Extra Stream Rate | 704×576, 704×480 (1 ~ 25/30fps) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Bitrate | H.264: 32 kbps ~ 8192 kbps H.265: 12 kbps ~ 8192 kbps |
| Lens | 2.7~13.5mm motorized AF |
| Minimum Illumination | 0.008Lux/F1.4 |
| Infrared Illumination | 0 Lux / Array IR LEDs (60 m) |
| Image Enhancements | WDR, Smart IR, BLC, HLC, AWB, AGC, 3D-NR, Privacy Masking, SMD Plus, ROI |
| Video Analysis | Line crossing | Area intrusion |
| Day / Night | Removable ICR mechanical filter |

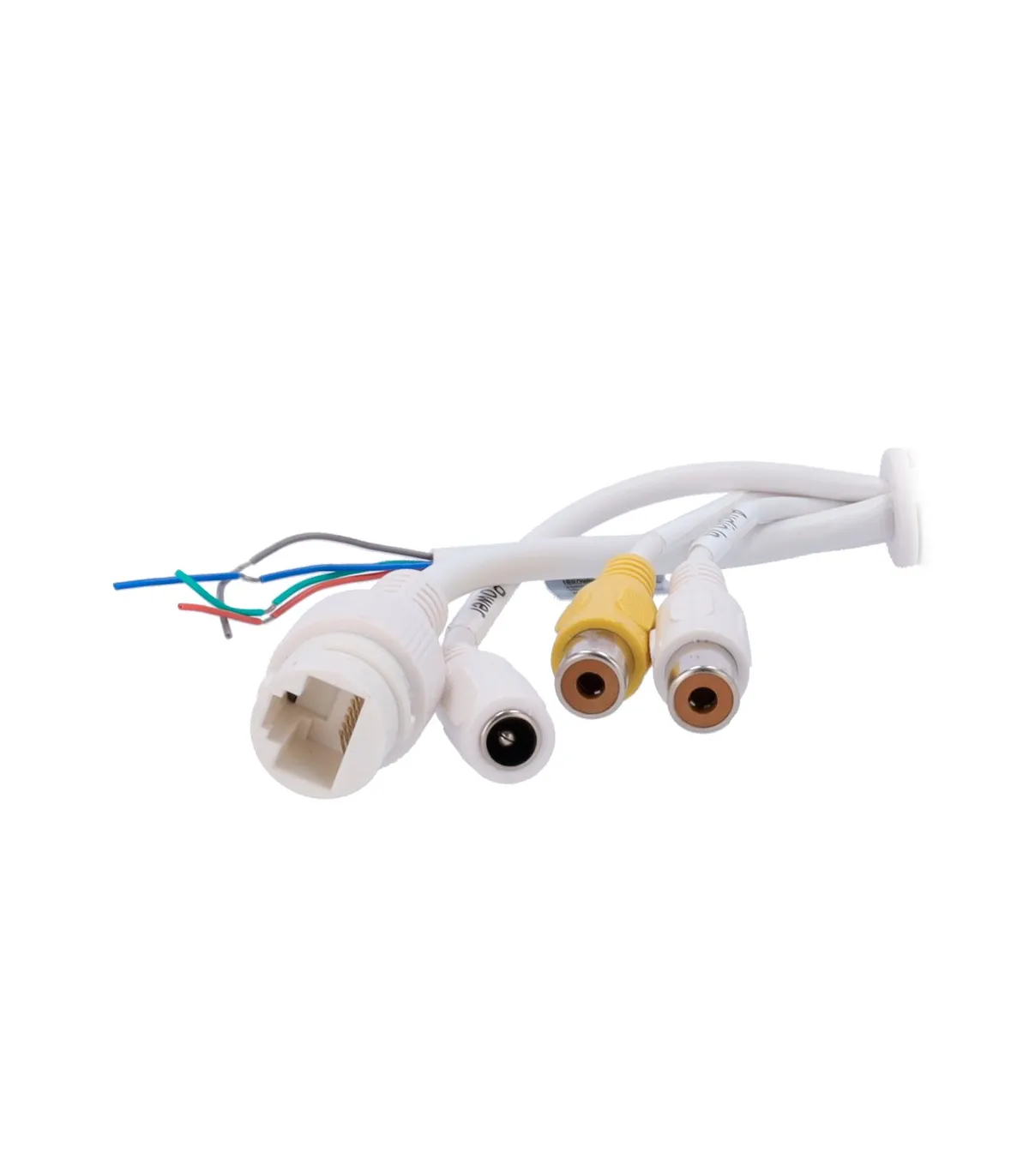

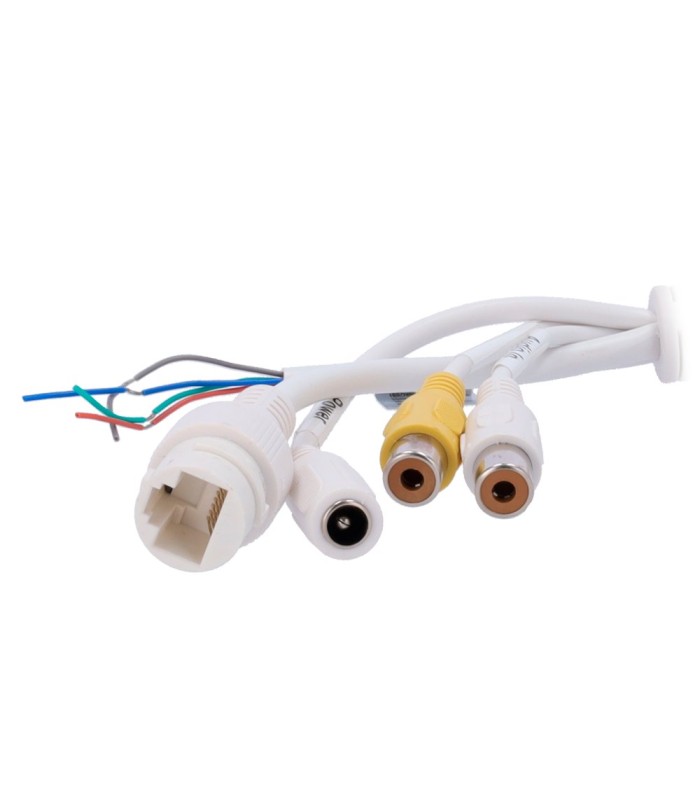

| Network Interface | Ethernet 10/100 BaseT |

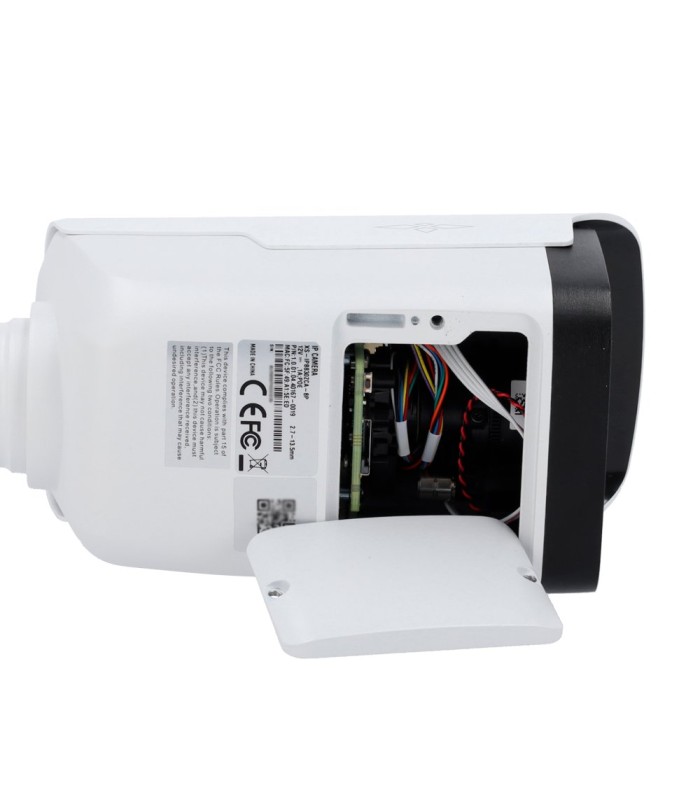

| Internal Storage | MicroSD Card Slot, Max 128 GB |
| Remote Access | Web Browser, CMS Software (DSS/PSS), Smartphone (DMSS) and NVR |
| Interoperability | ONVIF |
| Alarms | 1 Input / 1 Relay |
| Audio | Integrated Microphone |
| Power | DC 12 V / 2.7 W, PoE IEEE802.3af 3.6 W |
| Protection Grade | Waterproof IP67 |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 238.5 × 90.7 × 90.7 mm |
| Weight | 1.01 Kg |
