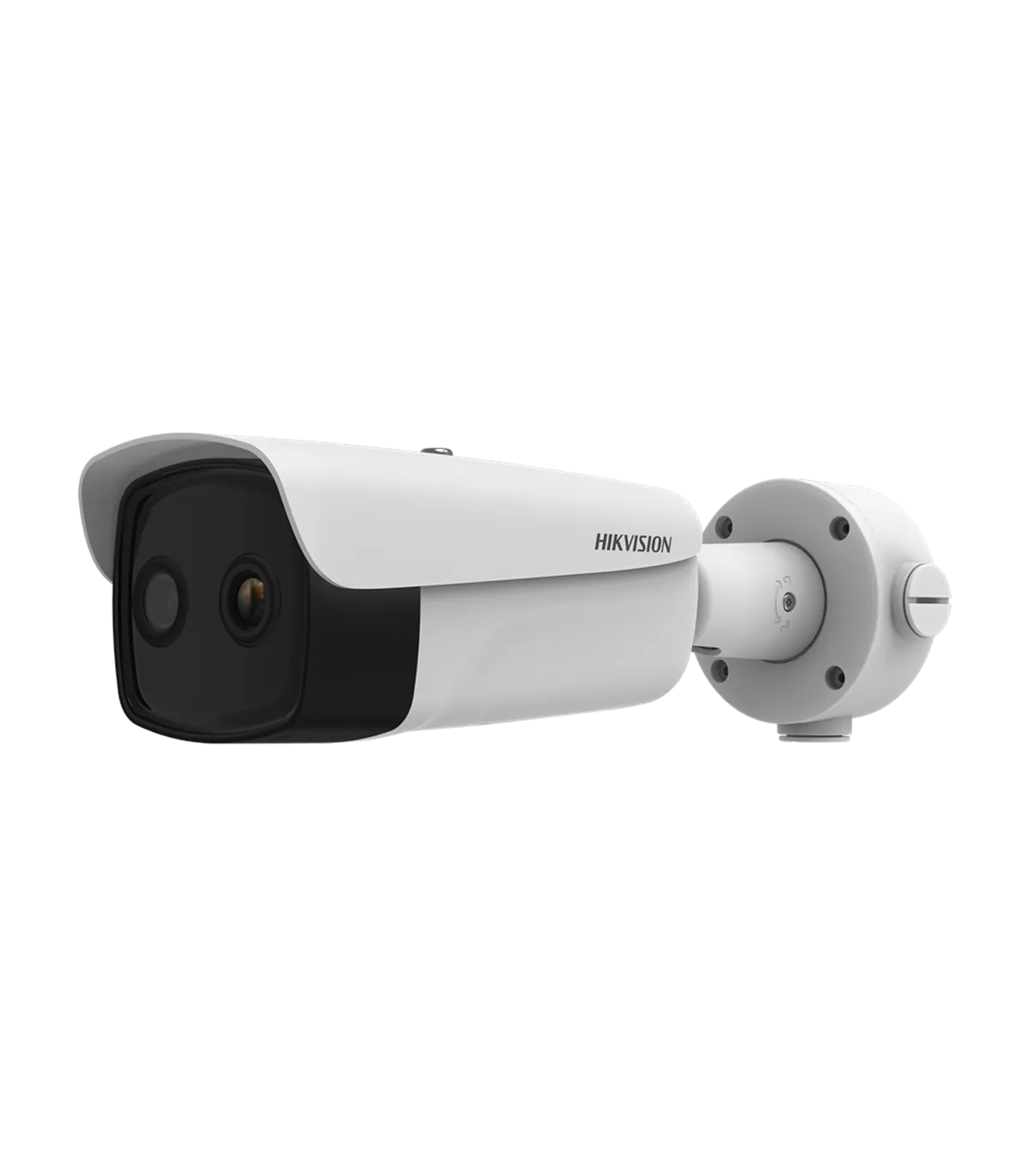

The DS-2TD2637-7/QY is a state-of-the-art dual thermal bullet IP camera designed for advanced security applications. Ideal for environments requiring anti-corrosion features, this device excels in temperature measurement and fire detection. With its high-resolution imaging capabilities and robust construction, it is perfect for monitoring critical areas where both thermal and optical surveillance are essential. This camera is particularly suited for industrial sites, warehouses, and outdoor facilities.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 384x288 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 352×288, 384×288) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352×288, 384×288) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.5 mm (Thermal) / 4 mm (Optical) |
| Minimum Illumination | 0.0089 Lux@(F1.6, AGC ON) 0 lux with IR range 30 m |
| DRI | Person: 191 m (D), 48 m (R), 24 m (I) Vehicle: 586 m (D), 147 m (R), 73 m (I) |
| VCA Ranges | Person: 45.5 m Vehicle: 136.5 m Temperature Measurement (Object 0.2x0.2m): 15.2 m Temperature Measurement (Object 1x1m): 76 m Fire Detection (Object 0.2x0.2m): 65 m |
| Field of View | Thermal: 60° (H), 44.1° (V) Optical: 84.4° (H), 51.1° (V) |
| Thermal Sensitivity | < 35 mK |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 17 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Internal Storage | MicroSD Card Slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V, 500~800 mA, 9.5 W max. DC 12 V, 630~1060 mA, 9 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 Waterproof, IK10 Vandal-proof, Surge Protection 4000 V, Anti-corrosion |
| Dimensions | 118.1 mm (H) x 119.1 mm (W) x 376.1 mm (D) |
| Base Diameter | Ø base 113 mm / Ø between screws 88.5 mm / 4 screws |
| Weight | 1.82 kg |
The DS-2TD2637-7/QY is ideally deployed in industrial settings where both thermal and optical surveillance are critical. For instance, in a manufacturing plant, this camera can monitor equipment and personnel, ensuring safety and compliance with regulations. The preventive fire detection feature allows for early warning in case of overheating machinery, while the high-resolution imaging provides clear visuals for incident analysis. Additionally, the camera's remote monitoring capabilities enable security personnel to access live feeds via a smartphone app, enhancing situational awareness. With its IP67 waterproof rating, the camera can withstand harsh environmental conditions, making it suitable for outdoor installations. The anti-corrosion design ensures longevity, reducing maintenance costs and downtime.
