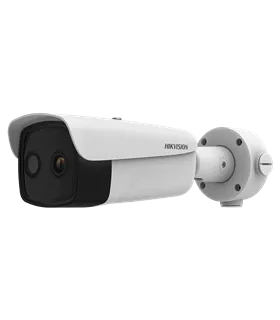

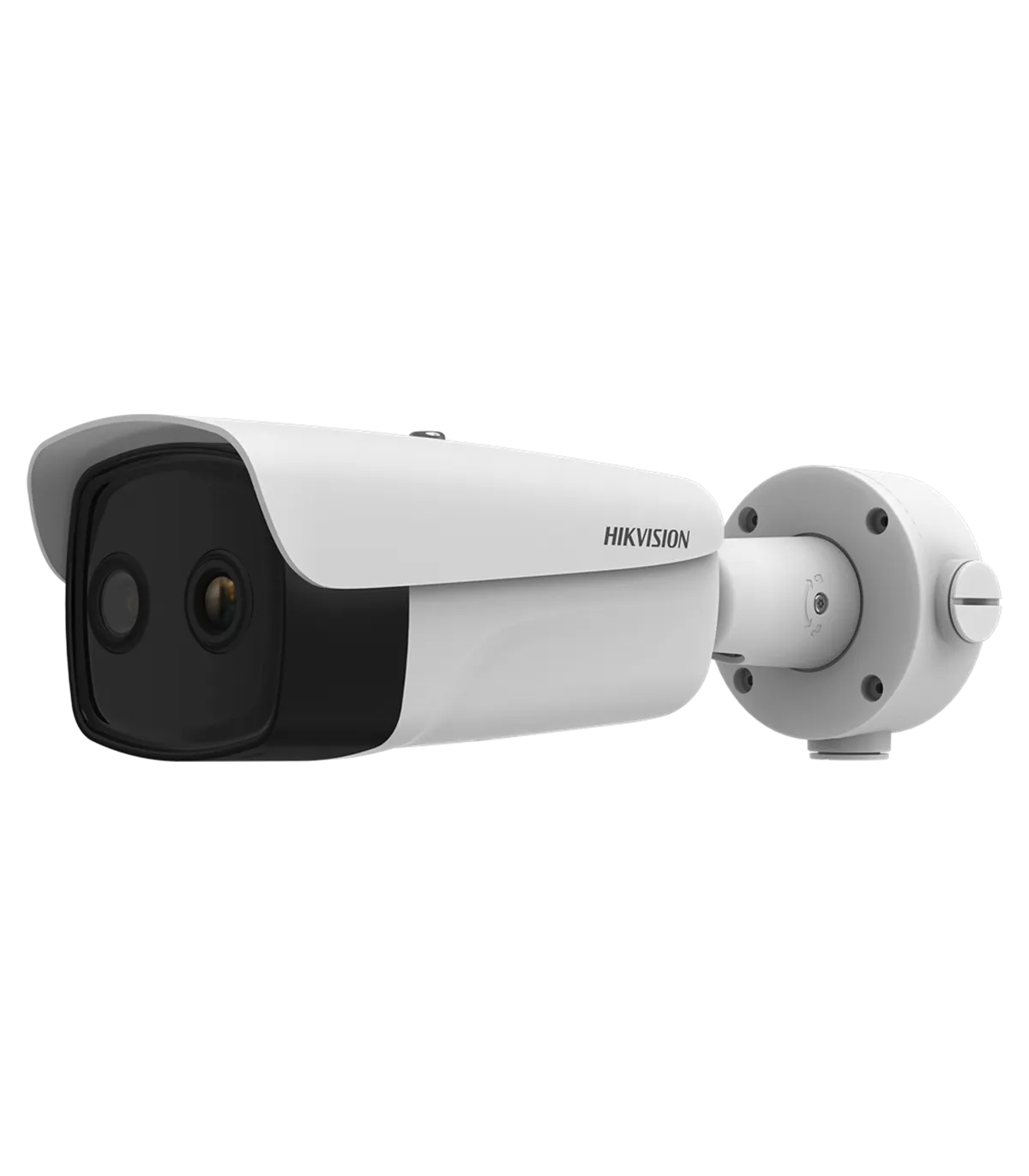

The HM-TD2638-35/G1/T3Y is a state-of-the-art dual IP thermal bullet camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this device excels in temperature measurement and fire detection, making it suitable for critical infrastructure and industrial settings. With its robust features, including a high-resolution optical sensor and IP67 waterproof rating, it ensures reliable performance in various conditions.
| Brand | Hikvision |
| Series | PRO based on GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 384x288 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 352x288, 384×288) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352x288, 384×288) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 35mm (Thermal) / 12.4mm (Visible) |
| DORI | Person: 1458m (D), 365m (R), 182m (I) Vehicle: 4472m (D), 1118m (R), 559m (I) |
| VCA Ranges | Person: 455m Vehicle: 1050m Temperature Measurement (Object 0.2x0.2m): 116m Temperature Measurement (Object 0.5x0.5m): 290m Fire Detection (Object 0.5x0.5m): 74.4m |
| Field of View | Thermal: 7.5° (H), 5.6° (V) Optical: 24.6° (H), 14° (V) |
| Thermal Sensitivity | ≤20mK (25°C, F1.0) |
| Thermal Measurement Range | -20ºC ~ 150ºC / ±8ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 relays |
| Internal Storage | MicroSD Card Slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 24VAC ± 25% 12VDC ± 25% 24VDC PoE (802.3af, class 3) |
| Power Consumption | 24VAC ± 25%: 0.33A to 0.55A, max. 12.1W 12VDC ± 25%: 0.8A to 1.33A, max. 11.3W PoE (802.3af, class 3): 36V to 57V, 0.33A to 0.21A, max. 11.8W |
| Operating Temperature | -40ºC ~ +70ºC |
| Protection Rating | IP67 Waterproof, Surge Protection 4000V IK10 Vandal Resistant NEMA 4X Corrosion Resistant |
| Dimensions | 376.1mm x 119.1mm x 118.1mm |
| Weight | 1.82kg |
The HM-TD2638-35/G1/T3Y is particularly effective in industrial settings where fire safety is paramount. For instance, in a manufacturing plant, this camera can be deployed to monitor critical areas where heat generation is a concern. Its advanced thermal imaging capabilities allow for early detection of potential fire hazards, ensuring timely alerts to prevent disasters. Additionally, the camera's remote monitoring features enable security personnel to oversee operations from a distance, enhancing overall safety. The integration of VCA rules allows for automated responses to specific events, such as unauthorized access or temperature anomalies. This makes the HM-TD2638-35/G1/T3Y an invaluable asset for maintaining safety and security in high-risk environments.
