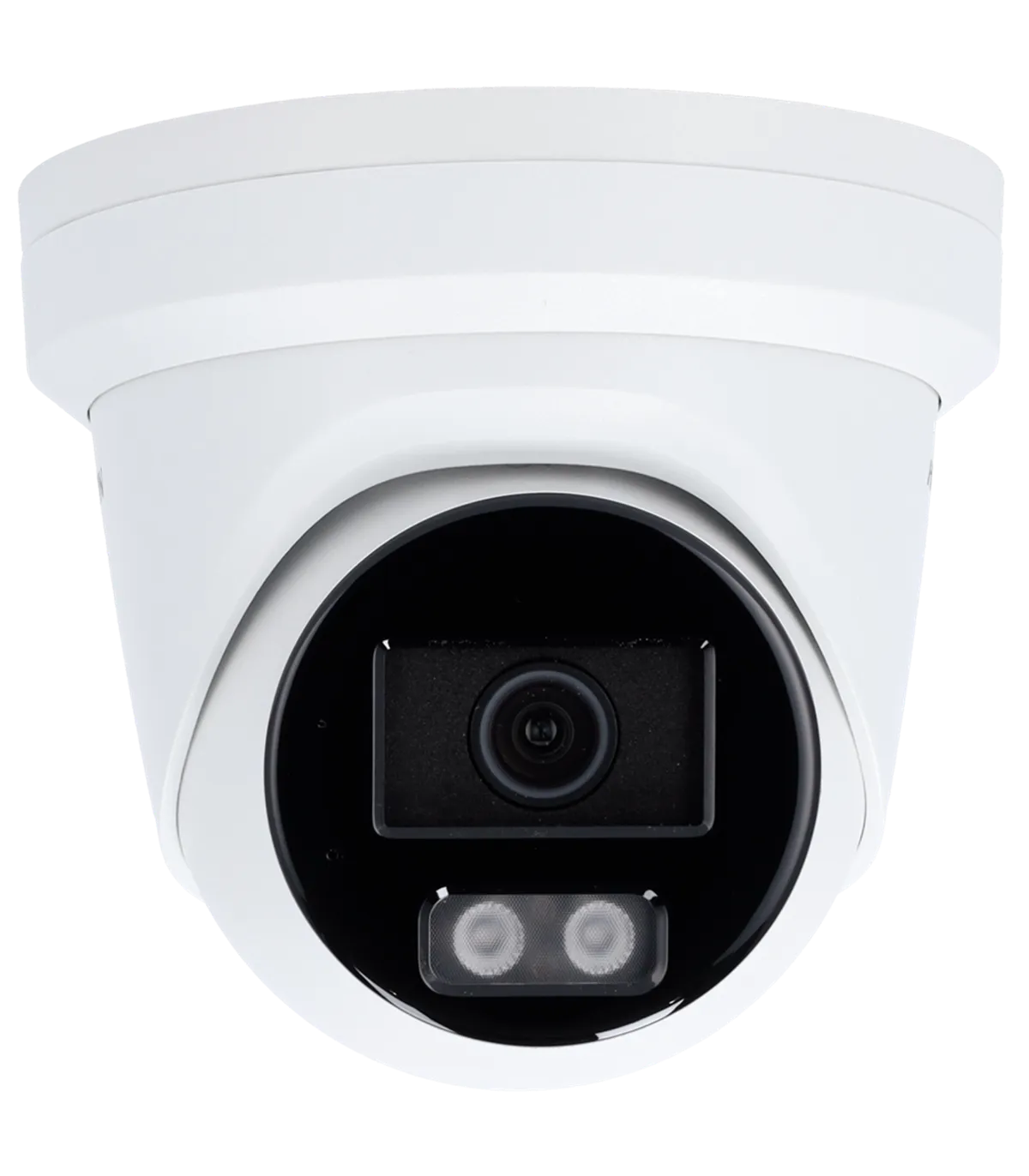

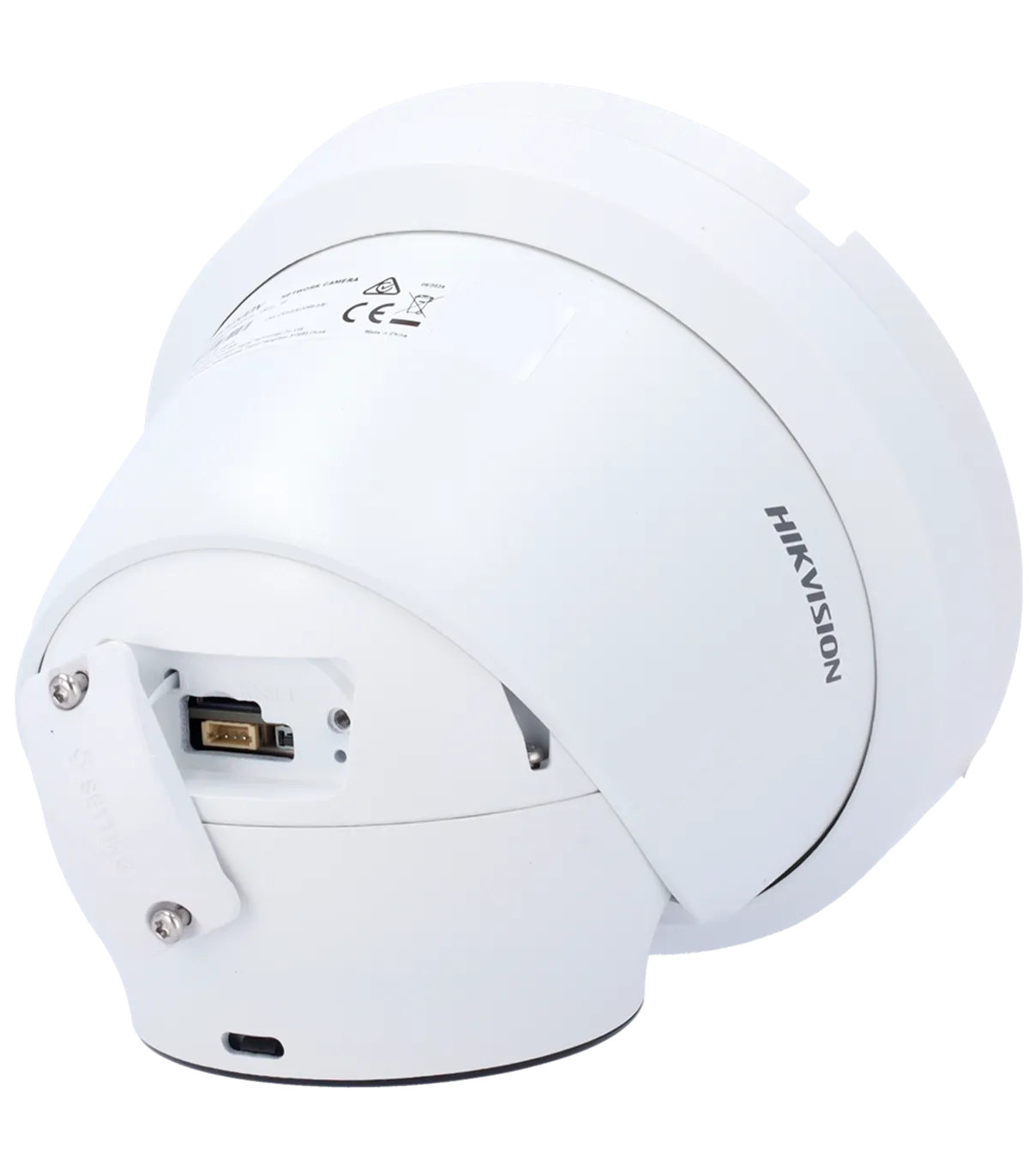

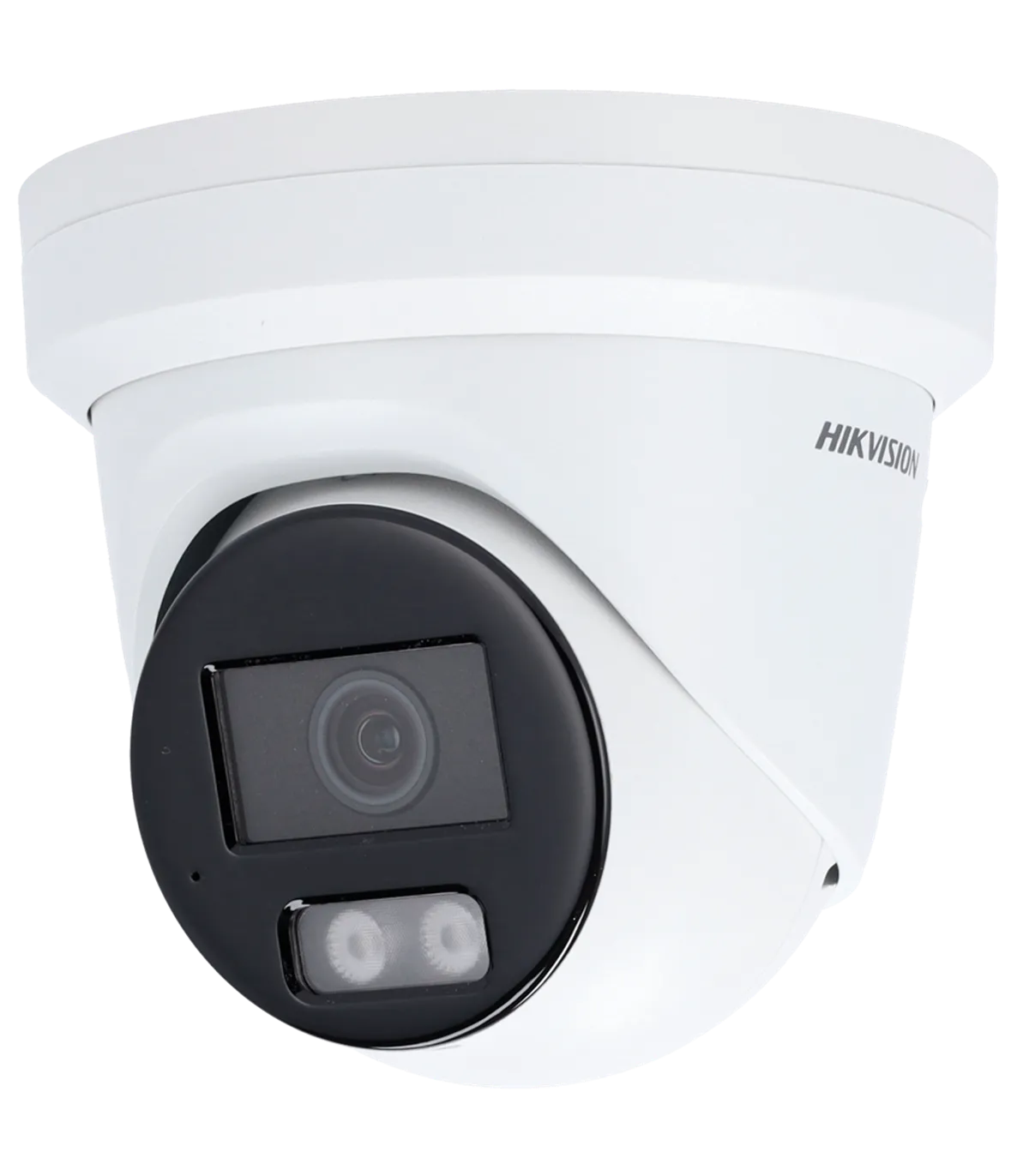

The DS-2CD2386G2H-IU(2.8mm)(eF) is a high-performance IP turret camera designed for advanced surveillance applications. Ideal for both indoor and outdoor environments, this camera excels in low-light conditions, making it perfect for security monitoring in various settings. With its 8 Megapixel resolution and integrated DarkFighter technology, it ensures clear images even in complete darkness. The device is equipped with features such as motion detection and facial recognition, enhancing its capability to provide reliable security solutions.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.9" Progressive Scan CMOS |
| Maximum Resolution | 8 Megapixel (3840x2160) |
| Main Stream Rate | 25 fps (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720) |
| Extra Stream Rate | 25 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 10 fps (1920×1080, 1280×720, 640×480, 640×360) * (The third stream is available under certain configurations) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 16 Mbps |
| Optics | 2.8 mm |
| Field of View (FOV) | H: 108.8°, V: 56.4°, D: 134.3° |
| DORI | 89 m (D), 35 m (O), 17 m (R), 8 m (I) |
| Electronic Shutter | 1/3~1/100,000 s |
| Minimum Illumination | Low Light Powered by DarkFighter Color: 0.0008 Lux @(F1.0, AGC ON) 0 Lux with IR range 30 m |
| Day/Night | Removable ICR Mechanical Filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror Function, Privacy Mask |
| ANR | Yes |
| Audio | Integrated Microphone |
| Audio Type | Mono |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion, Entry Region, Exit Region * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture * Motion Detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD Card Slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 540 mA / 6.5 W max. PoE IEEE802.3af |
| Protection Grade | IP67 Waterproof |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 138.3 mm x 115.4 mm (H) |
| Base Dimensions | Ø base 138.3 mm / Ø between screws 96 mm / 4 screws |
| Weight | 775 g |
The DS-2CD2386G2H-IU(2.8mm)(eF) is ideally suited for deployment in retail environments, where security is paramount. Installers can easily set up this high-resolution camera to monitor entrances and exits, ensuring that all activities are captured in stunning detail. With its low-light capabilities, the camera can operate effectively even in dimly lit areas, providing 24/7 surveillance. The integrated motion detection and AcuSense technology allow for precise alerts, reducing false alarms and ensuring that security personnel are notified only when necessary. Additionally, the camera's remote access features enable users to monitor live feeds from anywhere, enhancing the overall security management. This makes the DS-2CD2386G2H-IU(2.8mm)(eF) an essential tool for any business looking to bolster its security measures.
