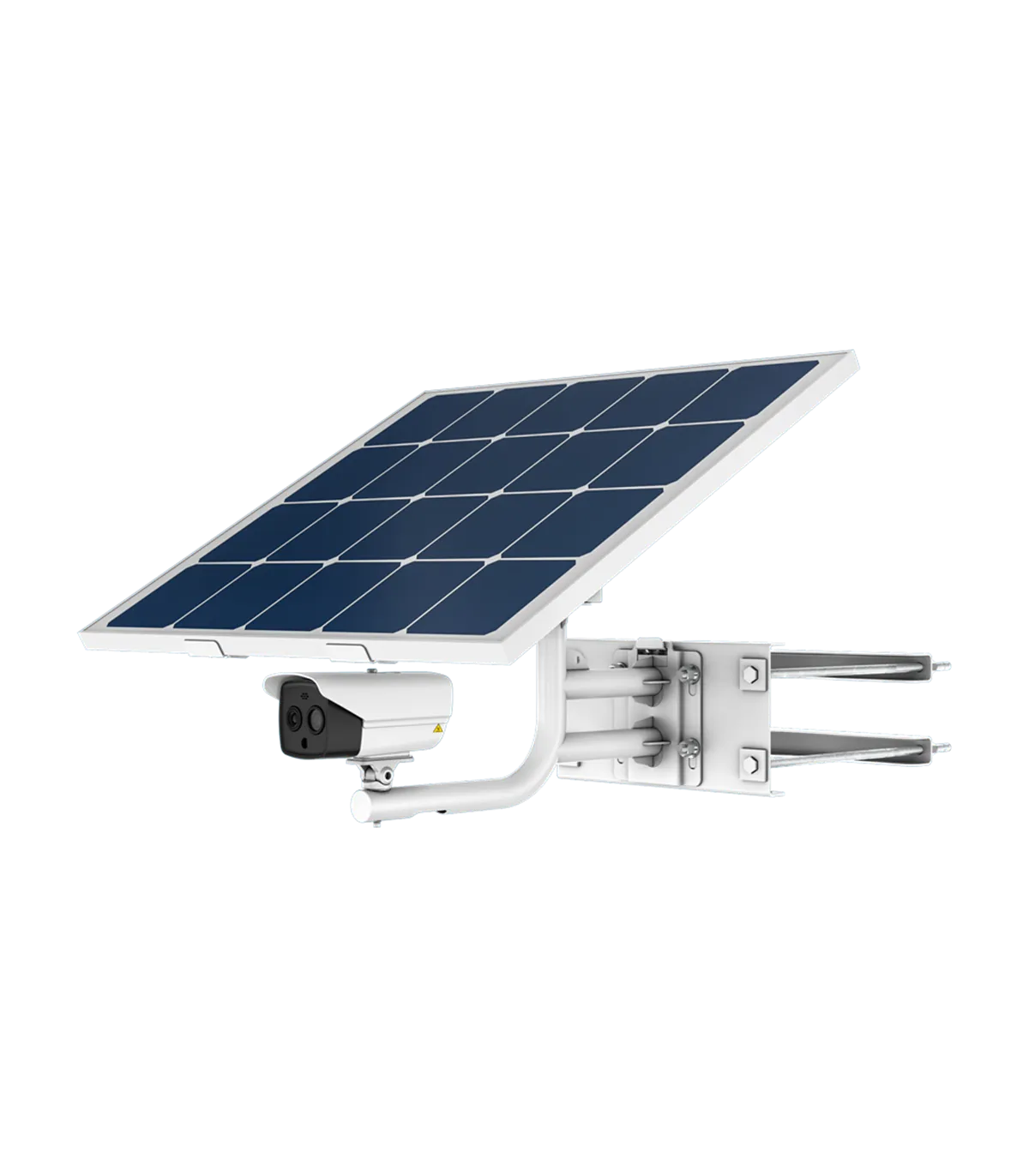

The DS-2TXS2628-7P/QA/GLT/CH36S80 is a state-of-the-art dual thermal IP bullet camera designed for outdoor security applications. This device is ideal for environments requiring reliable surveillance, such as perimeter security, industrial sites, and remote monitoring locations. With its advanced features, including a 256x192 thermal sensor and a 4G communication interface, it ensures effective monitoring even in challenging conditions.
| Brand | HIKVISION |
| Thermal sensor | Vanadium Oxide |
| Thermal sensor resolution | 256x192 |
| Optical sensor | 1/3" Progressive Scan CMOS |
| Optical sensor resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704x576, 640x512, 320x240) Optical: 25 fps (2688x1520, 1920x1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704x576, 640x512, 320x240) Optical: 25 fps (704x576, 352x240) |
| Compression | H.265/H.264 |
| Lens | 6.9 mm (Thermal) / 6.4 mm (Optical) |
| Minimum illumination | Color: 0.0089 Lux @(F1.6, AGC ON) 0 Lux with IR range 30 m White light range 30 m |
| Field of View (FOV) | Thermal: H: 24.9°, V: 18.7° Optical: H: 53°, V: 28° |
| Thermal sensitivity | < 40mK (0.05 º C) |
| Thermal measurement range | -20 ~150 ºC / ± 8 ºC |
| Spectral range | 8~14 μm |
| Detector pitch | 12 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Image enhancements | WDR (120 dB), 3D-DNR, AGC, AWB |
| ANR | Yes |
| Motion detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. |
| Alarms | 2 inputs / 1 output |
| Deterrent alarm | Integrated siren and strobe flash in the camera |
| Audio | 1 input / 1 output |
| Audio compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Communication interface | Micro SIM 4G (LTE-TDD/LTE-FDD/WCDMA) |
| Internal storage | Micro SD card slot up to 256 GB |
| Remote access | Web browser, Hik-Connect Smartphone App, PC software iVMS-4200, and Hik-Central |
| Communication | 1 x RS-485 half duplex |
| Power supply | DC 12 V ± 25% PoE (IEEE802.3af) |
| Consumption | Power and current consumption: Average power consumption over 24 hours: 2.97 W Power consumption in thermal-only mode: 2.73 W Maximum power consumption: 7.1 W |
| Battery voltage | 10.8 V |
| Battery | 36Ah lithium battery |
| Battery life | More than 500 cycles |
| Solar panel | 80 W |
| Protection grade | Waterproof IP67, Vandal-proof IK10, Surge protection 6000 V |
| Operating temperature | -40º C ~ +65º C |
| Dimensions | 543 (H) × 1079.9 (L) × 760 (W) mm |
| Weight | 26.6 kg |
| Mounting | Pole/post mounting |
| Battery dimensions | 236 (L) x 154 (W) x 80 (H) mm |
| Battery weight | 3.3 kg |
The DS-2TXS2628-7P/QA/GLT/CH36S80 is particularly suited for deployment in remote areas where traditional power sources are unavailable. For instance, in a construction site or a solar farm, this camera can be mounted on a pole to provide continuous surveillance. The integrated 80 W solar panel and 36 Ah lithium battery ensure that the camera remains operational even during extended periods without sunlight. With features like motion detection and preventive fire detection, it enhances security by alerting users to potential threats. The camera's IP67 waterproof and IK10 vandal-proof ratings make it ideal for outdoor use, ensuring durability against harsh weather conditions and tampering. Additionally, the remote access capabilities allow users to monitor the site in real-time via a smartphone app or web browser, providing peace of mind and enhancing overall site security.
