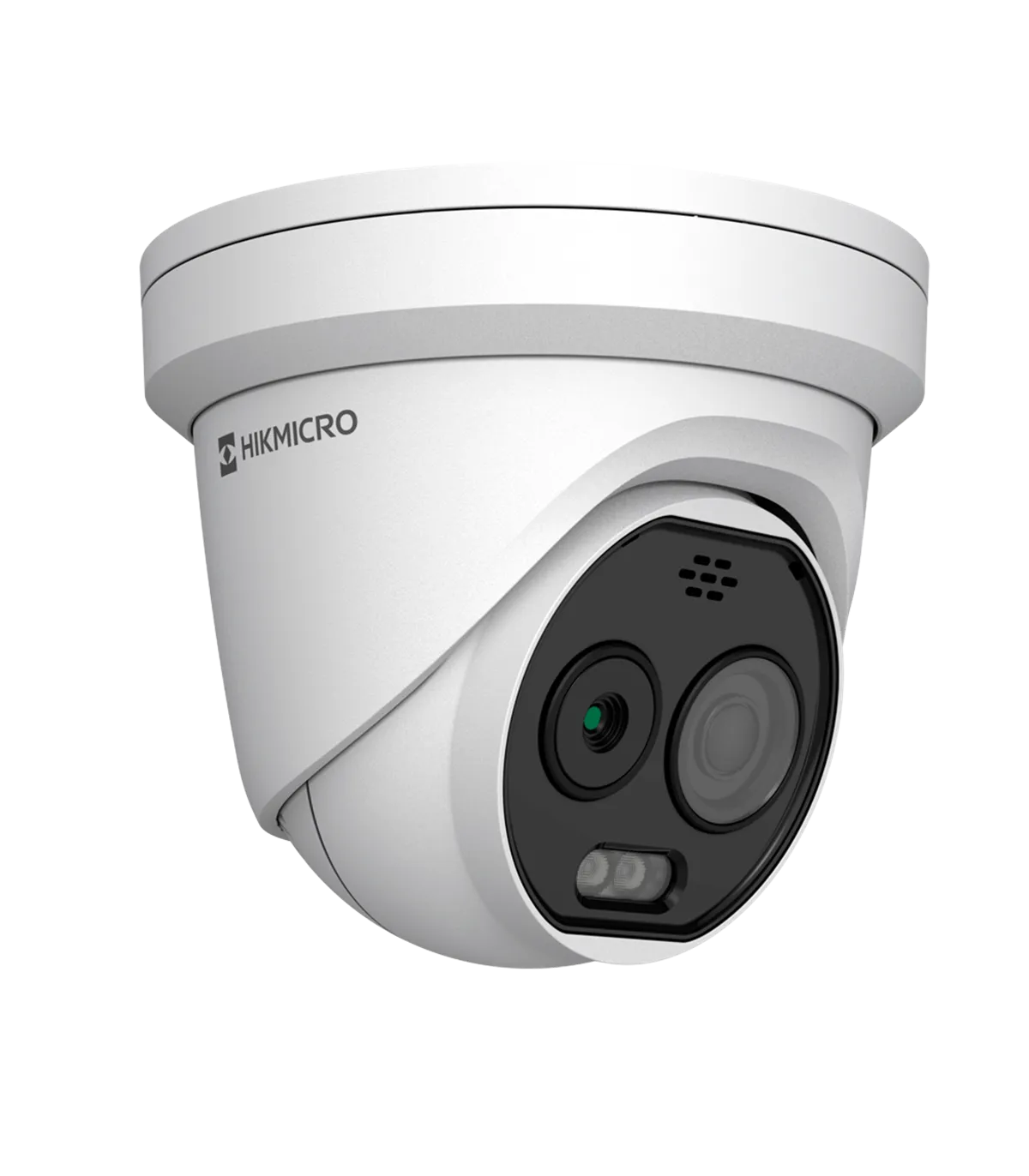

The HM-TD1228-7/G1/T3A is a cutting-edge dual IP thermal turret camera designed for advanced surveillance applications. This device excels in environments requiring precise temperature measurement and reliable fire detection. With its robust features, it is ideal for industrial sites, warehouses, and outdoor areas where safety and security are paramount.
| Brand | Hikvision |
| Series | PRO Powered by GUANLAN Large Scale AI Model |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 256x192 |
| Detector Pitch | 12 μm |
| Thermal Sensitivity | ≤25mK (25°C, F1.0) |
| Spectral Range | 8~14 μm |
| Thermal Measurement Range | -20~150ºC / ±8ºC |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 5 Megapixel (2688x1944) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 640×512, 320×240) Optical: 25 fps (2688×1944, 2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 640×512, 320×240) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 6.9mm (Thermal) / 8mm (Visible) |
| Field of View | Thermal: 24.9° (H), 18.7° (V) Optical: 39.4º (H), 21.96° (V) |
| DORI | Person: 287m (D), 72m (R), 36m (I) Vehicle: 881m (D), 220m (R), 110m (I) |
| VCA Ranges | Person: 84m Vehicle: 207m Temperature Measurement (Object 0.2x0.2m): 23.3m Temperature Measurement (Object 1x1m): 116.7m Fire Detection (Object 0.5x0.5m): 48m Smoker Detection: 10.35m |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 1 input / 2 relays |
| Deterrent Alarm | Integrated speaker and flash in the camera |
| Internal Storage | MicroSD card slot up to 512GB |
| Network Interface | Ethernet 10/100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | 12 VDC ± 25% PoE (802.3at, class 4) |
| Power Consumption | 12 VDC ± 25%: 1A to 1.7A, max. 16W PoE (802.3at, class 4): 42.5V to 57V, 0.28A to 0.37A, max. 16W |
| Operating Temperature | -40ºC ~ +65ºC |
| Protection Grade | IP67 waterproof, 6000V surge protection |
| Dimensions | Ø 138.3mm x 121.6mm |
| Weight | 975.6g |
The HM-TD1228-7/G1/T3A is ideally suited for deployment in high-security environments such as industrial facilities and critical infrastructure sites. For instance, an installer can set up this dual IP thermal turret camera at the perimeter of a manufacturing plant to monitor for unauthorized access and detect potential fire hazards. With its advanced thermal sensitivity of ≤25mK, the camera can accurately identify temperature anomalies, providing early warnings for fire prevention. The integration of remote monitoring capabilities allows security personnel to access live feeds via a smartphone app or web interface, ensuring constant vigilance. Additionally, the camera's IP67 waterproof rating ensures reliable performance in harsh weather conditions, while its surge protection safeguards against electrical disturbances. This combination of features makes the HM-TD1228-7/G1/T3A an essential tool for enhancing safety and security in sensitive environments.
