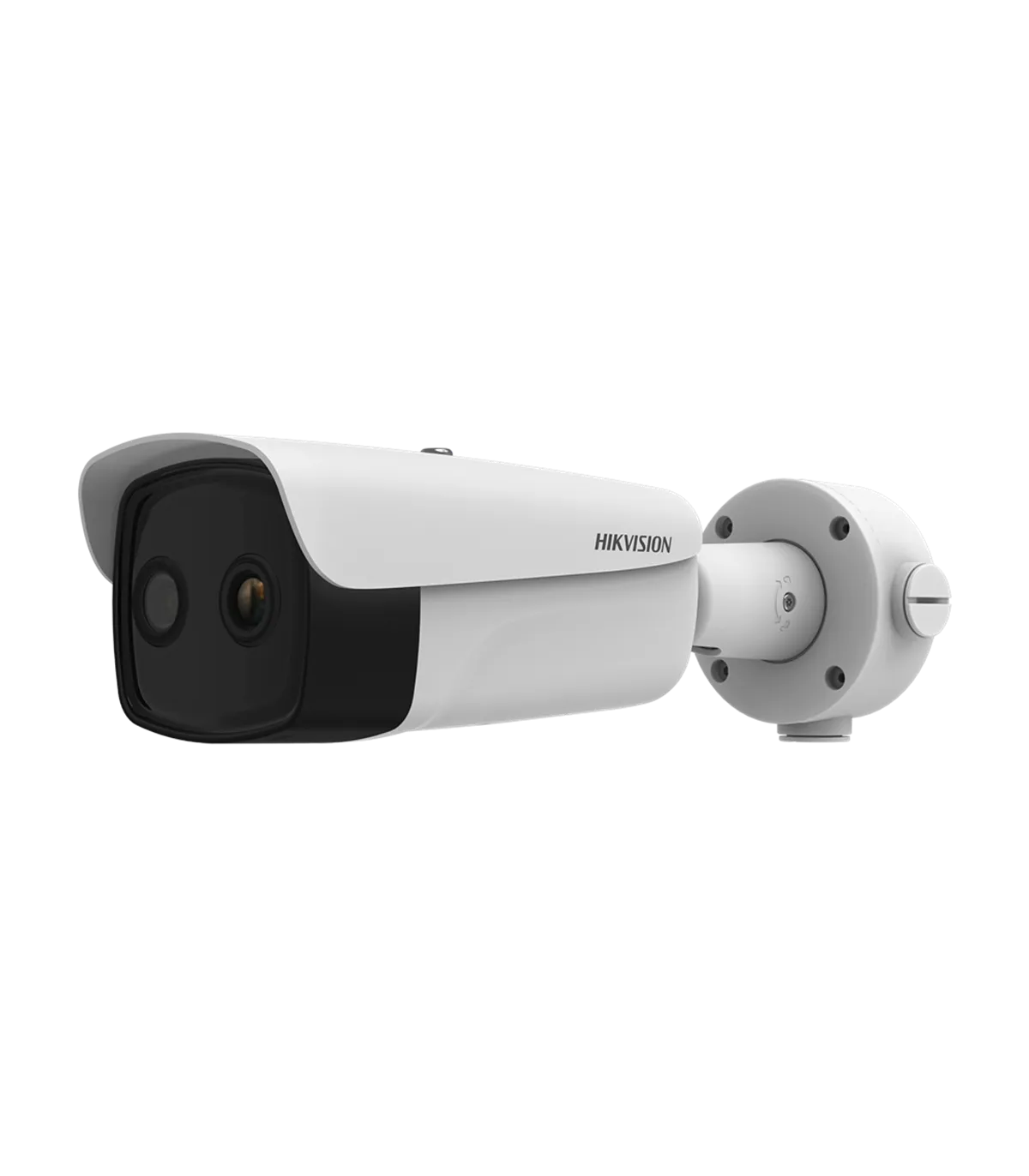

The DS-2TD2637-25/QY is a cutting-edge dual thermal bullet camera designed for advanced surveillance applications. This device excels in environments requiring anti-corrosion capabilities, making it ideal for outdoor installations. With its high-resolution thermal sensor and optical capabilities, it provides exceptional performance in various lighting conditions, ensuring reliable monitoring and detection.
| Brand | Hikvision |
| Series | PRO |
| Thermal Sensor | Vanadium Oxide |
| Thermal Sensor Resolution | 384x288 |
| Optical Sensor | 1/2.7” Progressive Scan CMOS |
| Optical Sensor Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | Thermal: 25 fps (1280×720, 704×576, 352×288, 384×288) Optical: 25 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | Thermal: 25 fps (704×576, 352×288, 384×288) Optical: 25 fps (704x576, 352x288) |
| Compression | H.265 / H.264 / MJPEG |
| Lens | 25 mm (Thermal) / 12 mm (Optical) |
| DRI | Person: 735 m (D), 184 m (R), 92 m (I) Vehicle: 2255 m (D), 564 m (R), 282 m (I) |
| VCA Ranges | Person: 175 m Vehicle: 525 m Temperature Measurement (Object 0.2x0.2m): 58.8 m Temperature Measurement (Object 1x1m): 294 m Fire Detection (Object 0.2x0.2m): 250 m |
| Field of View | Thermal: 14.9° (H), 11.2° (V) Optical: 25.25° (H), 14.44° (V) |
| Thermal Sensitivity | < 35 mK |
| Thermal Measurement Range | -20 ~150 ºC / ± 8 ºC |
| Spectral Range | 8~14 μm |
| Detector Pitch | 17 μm |
| VCA | Up to 8 VCA rules (line crossing, intrusion, area entry and exit) |
| Temperature Rules | Up to 21 rules (10 points, 10 areas, and 1 line) |
| Audio | 1 input / 1 output line level 600 ohm |
| Audio Compression | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Alarms | 2 inputs / 2 outputs |
| Internal Storage | MicroSD card slot up to 256 GB |
| Network Interface | Ethernet 10/100 BaseT |
| Communication | 1 x RS-485 (half duplex) |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | AC 24 V, 500~800 mA, 9.5 W max. DC 12 V, 630~1060 mA, 9 W max. PoE IEEE802.3af |
| Operating Temperature | -40º C ~ +65º C |
| Protection Grade | IP67 waterproof, IK10 vandal-proof, Surge protection 4000 V, Anti-corrosion |
| Dimensions | 118.1 mm (H) x 119.1 mm (W) x 321.9 mm (D) |
| Base Diameter | Ø base 113 mm / Ø between screws 88.5 mm / 4 screws |
| Weight | 1.82 kg |
The DS-2TD2637-25/QY is ideally suited for deployment in critical infrastructure settings, such as power plants or chemical facilities, where fire prevention is paramount. With its advanced temperature measurement capabilities, this camera can detect abnormal heat signatures, triggering alarms to prevent potential disasters. The high-resolution imaging allows security personnel to monitor vast areas effectively, while the remote monitoring feature enables real-time access to live feeds from anywhere. Additionally, the camera's IP67 waterproof and IK10 vandal-proof ratings ensure durability in harsh environments, making it a reliable choice for outdoor surveillance. The integration of PoE technology simplifies installation, reducing the need for additional power sources.
