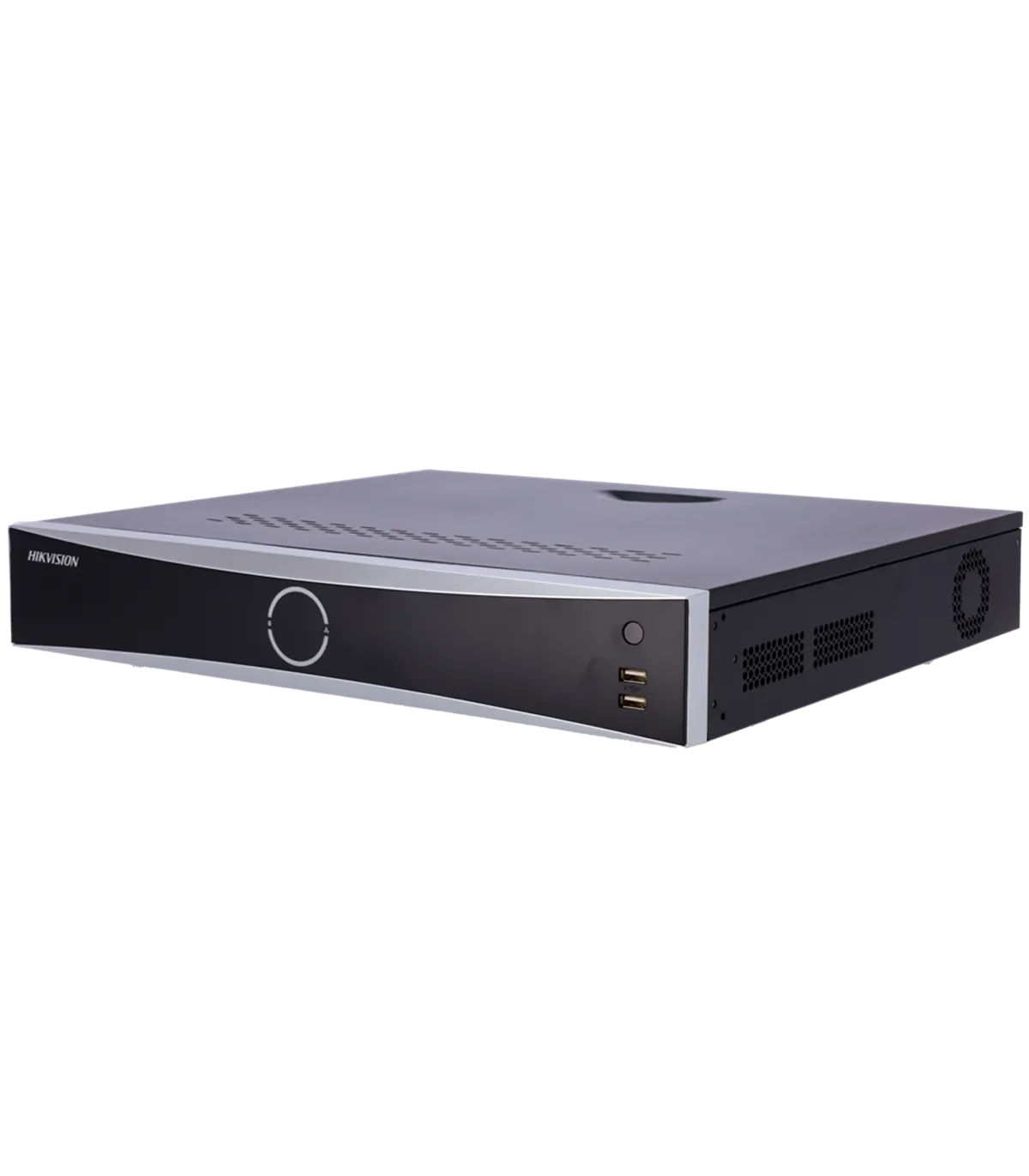

Hikvision 16-Channel AcuSense 32 MP Network Video Recorder DS-7716NXI-I4/VPro
- Hikvision
- PRO Series
- 16 CH IP NVR Recorder
- Maximum Resolution 32Mpx | Alarms | AcuSense
- Bandwidth 192 Mbps | Supports 4 Hard Drives
- AcuSeek, text-based search up to 16CH
Description & Key Features: DS-7716NXI-I4/VPro
The Hikvision DS-7716NXI-I4/VPro is a state-of-the-art NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for large-scale surveillance applications, providing enhanced video management and search functionalities. With its robust video compression technology and high-resolution support, it ensures efficient storage and retrieval of critical footage.
The Hikvision AcuSense VPRO series recorders incorporate artificial intelligence based on a large-scale algorithm known as Guanlan. This series includes features such as AcuSeek and AcuSearch across its 8CH.
AcuSeek: Search through vast amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
- Hikvision
- AcuSense VPRO series
- NVR for IP cameras
- 16 CH
- Supported incoming bandwidth 192 Mbps
- Maximum resolution 32 Mpx
- Compression H.265+/H.265/H.264+/H.264
- 4K HDMI and VGA output
- Artificial intelligence based on the large-scale Guanlan algorithm
- Motion detection 2.0 across all channels
- AcuSeek, text-based search
- AcuSearch, image-based target search across all channels
- Facial recognition
- AcuSense
- Alarms
- Audio
- POS
- Space for 4 HDDs
- Compatible with ONVIF
Specifications: DS-7716NXI-I4/VPro
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 16 channels |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI 1 and VGA are independent |
| Total bandwidth | 192 Mbps input / 256 Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capability | 20CH@1080p 30fps (AI enabled by NVR) 32CH@1080p 30fps (AI disabled by NVR) |
| Motion detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial recognition | Face Capture on 4 CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Comparison type, Stored image in your Library, or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2Mpx per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| AcuSeek | Search through vast amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and can model 300,000 targets per day. |
| AcuSearch | Video search based on target images. Multiple targets can be detected simultaneously in the image, and the target to search for can be selected. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and can model 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 16 Inputs / 9 Outputs |
| Audio | 1 input / 1 output |
| Two-way audio | 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote connections | 128 |
| Internal storage | 4 SATA 3.5" HDDs of up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000M (Ethernet) |
| Power supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rack mountable | 1.5U |
| Dimensions / Weight | 72 (H) x 440 (W) x 391 (D) mm / 5 Kg (without HDD) |
Package Contents
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- User Manual
- Cabling to connect hard drive
- Power Adapter
Use Case
The Hikvision DS-7716NXI-I4/VPro is ideally suited for deployment in commercial environments such as retail stores, warehouses, and office buildings. Installers can leverage its remote monitoring capabilities through the Hik-Connect app, allowing end users to access live feeds and recorded footage from anywhere. The device's AI-driven features, including AcuSeek and AcuSearch, enable quick retrieval of specific incidents, significantly enhancing operational efficiency. With support for up to 16 channels, this NVR can seamlessly integrate into existing IP camera systems, providing comprehensive coverage. Additionally, the high-resolution output ensures that critical details are captured, making it an excellent choice for environments where security is paramount. The ability to support multiple users simultaneously enhances collaboration among security personnel, ensuring a swift response to any incidents.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Wi-Fi
- No dispone
- Series
- Pro
- Channels
- 16
Specific References
- EAN13
- 6936422162726
