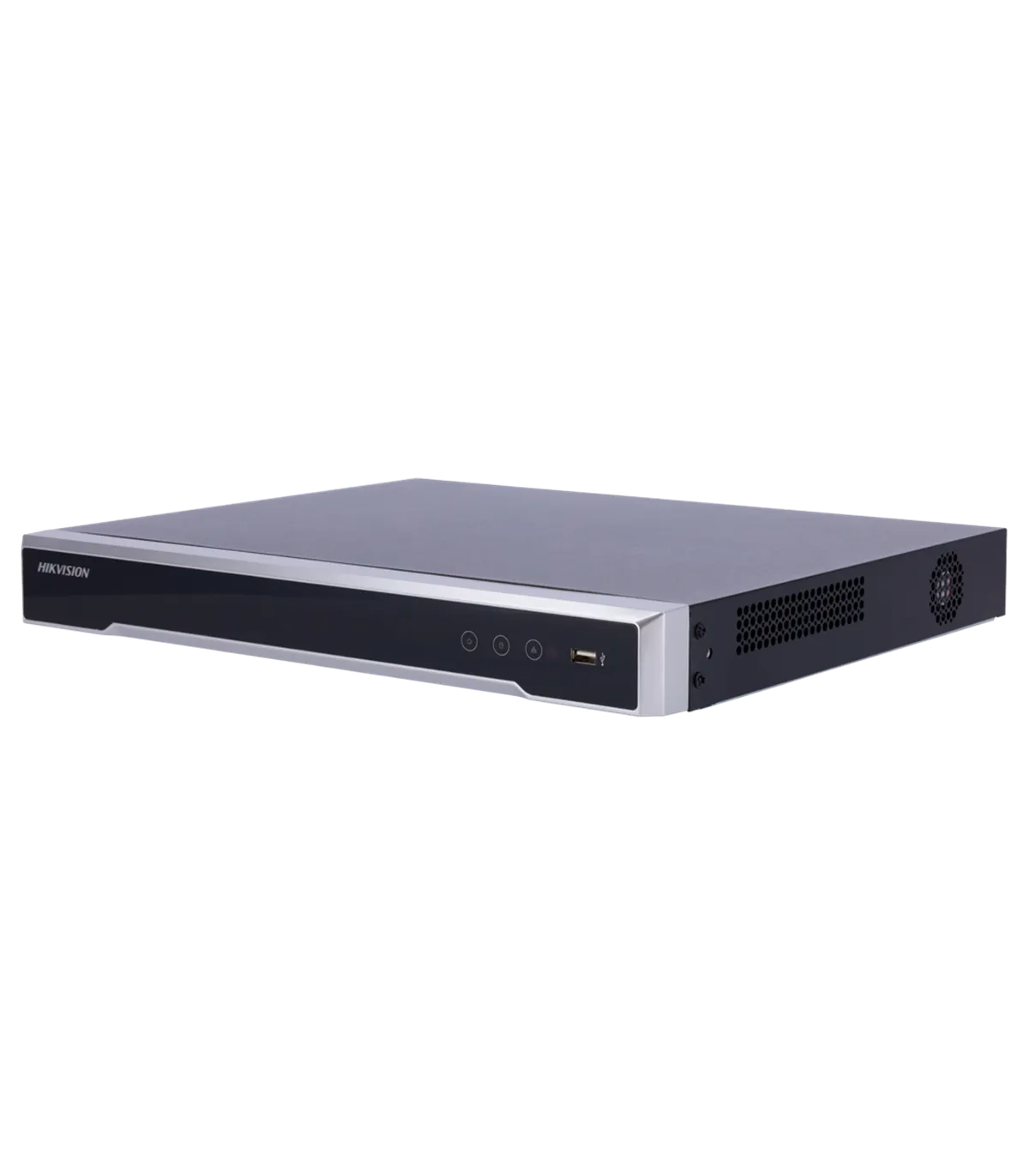

The DS-7608NI-Q2(D) is a high-performance NVR designed for IP camera surveillance. It is ideal for medium to large-scale installations, providing robust features for video recording and remote access. With support for up to 8 channels and a maximum resolution of 8 MP, this device ensures high-quality video capture and playback, making it suitable for both residential and commercial applications.
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 8 channels |
| PoE power supply | Not available |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Video outputs | 1xHDMI 4K, 1xVGA simultaneous |
| Display resolution | HDMI: 4096x2160, 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total bandwidth | 80 Mbps input / 80 Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding capability | 1CH@8MP, 3CH@4MP, 6CH@1080p |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on up to 4 channels. |
| Two-way audio | 1 RCA input / 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726 |
| Alarms | 4 inputs / 1 output |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote connections | 32 |
| Internal storage | 2 x 3.5" SATA HDDs up to 8 TB each (not included) |
| Communication | 2 x USB 2.0 / 1 x RJ45 10/100M (Ethernet) |
| Power supply | DC 12 V / 3.33 A, ≤ 15 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 1.8 Kg (without HDD) |
The DS-7608NI-Q2(D) NVR is perfect for a variety of surveillance scenarios, such as securing a retail store or monitoring a corporate office. Installers can easily set up the system using the plug-and-play functionality, allowing for quick deployment. With support for up to 8 channels and a maximum resolution of 8 MP, users can expect high-quality video feeds that enhance security measures. The remote monitoring capabilities via the Hik-Connect app enable users to access live footage from anywhere, ensuring peace of mind. Additionally, the advanced motion detection feature classifies human and vehicle movements, providing accurate alerts and reducing false alarms. This makes the DS-7608NI-Q2(D) an excellent choice for both residential and commercial applications, ensuring comprehensive surveillance coverage.
