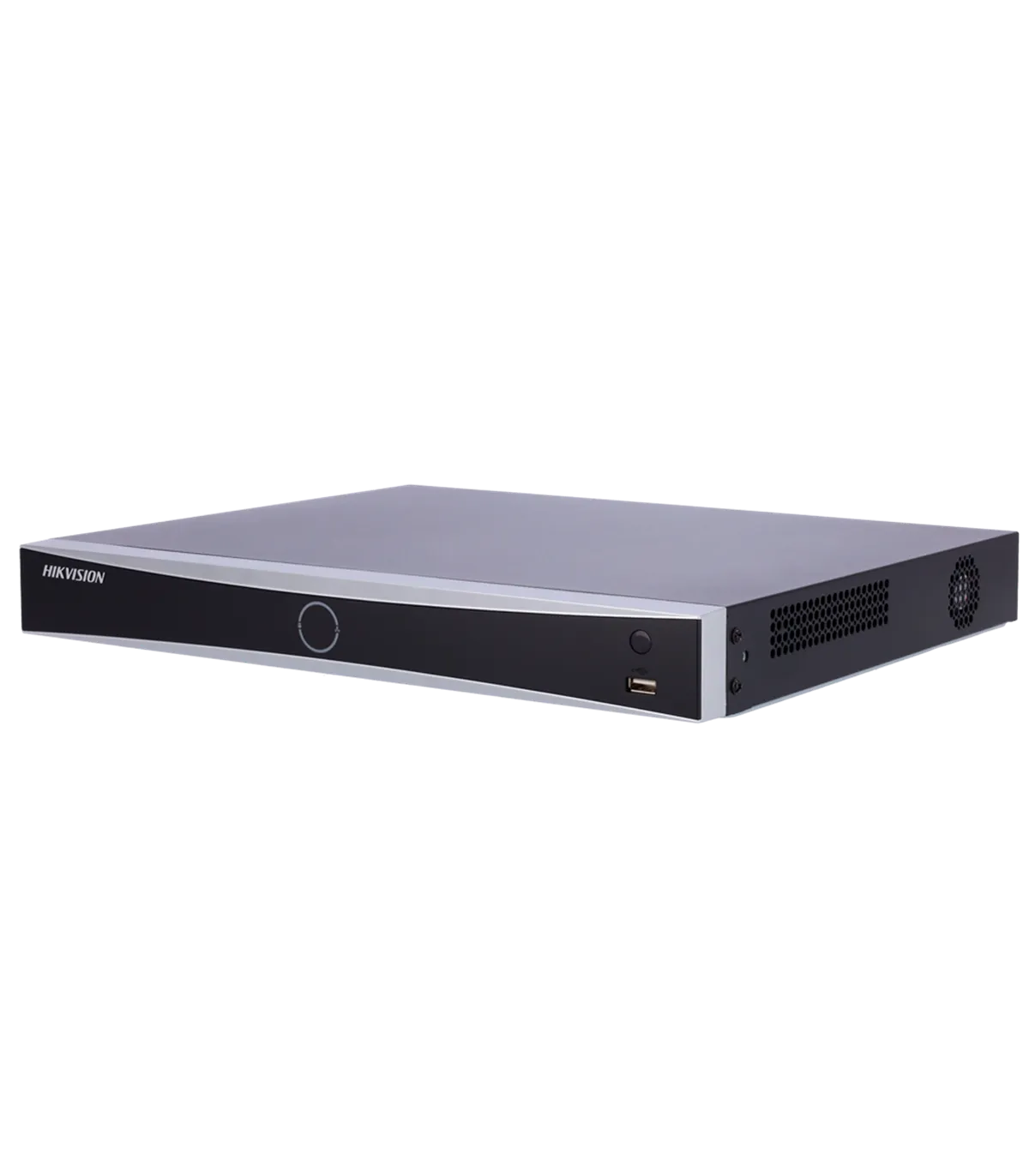

The DS-7632NXI-K2/16P(D) is a high-performance NVR designed for IP camera surveillance, making it ideal for both commercial and residential security systems. With support for up to 32 channels and advanced features such as facial recognition and AcuSense technology, this device ensures comprehensive monitoring and efficient management of security footage. Its robust capabilities, including a maximum resolution of 12 MP and dual-stream access, make it a top choice for users seeking reliable and scalable video surveillance solutions.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 32 channels |
| PoE Power Supply | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 256 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 1CH@12MPx, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP (up to 8 MP with SVC mode enabled). With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 2 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 52 (H) x 385 (W) x 315 (D) mm / 3 Kg (without HDD) |
The DS-7632NXI-K2/16P(D) NVR is perfectly suited for a variety of deployment scenarios, particularly in medium to large-scale security installations. For instance, in a corporate office environment, this NVR can manage up to 32 IP cameras, providing comprehensive coverage of the premises. The dual-stream access feature allows for efficient bandwidth management, ensuring that high-resolution footage is available for critical monitoring while conserving resources for less important views. Additionally, the facial recognition capability enhances security by enabling quick identification of individuals entering the facility. With remote monitoring options via web browsers and mobile apps, security personnel can stay connected and responsive, even when off-site. The AcuSense technology further reduces false alarms, allowing for more accurate alerts and efficient incident management. Overall, the DS-7632NXI-K2/16P(D) is an excellent choice for users seeking a reliable and feature-rich NVR solution.
