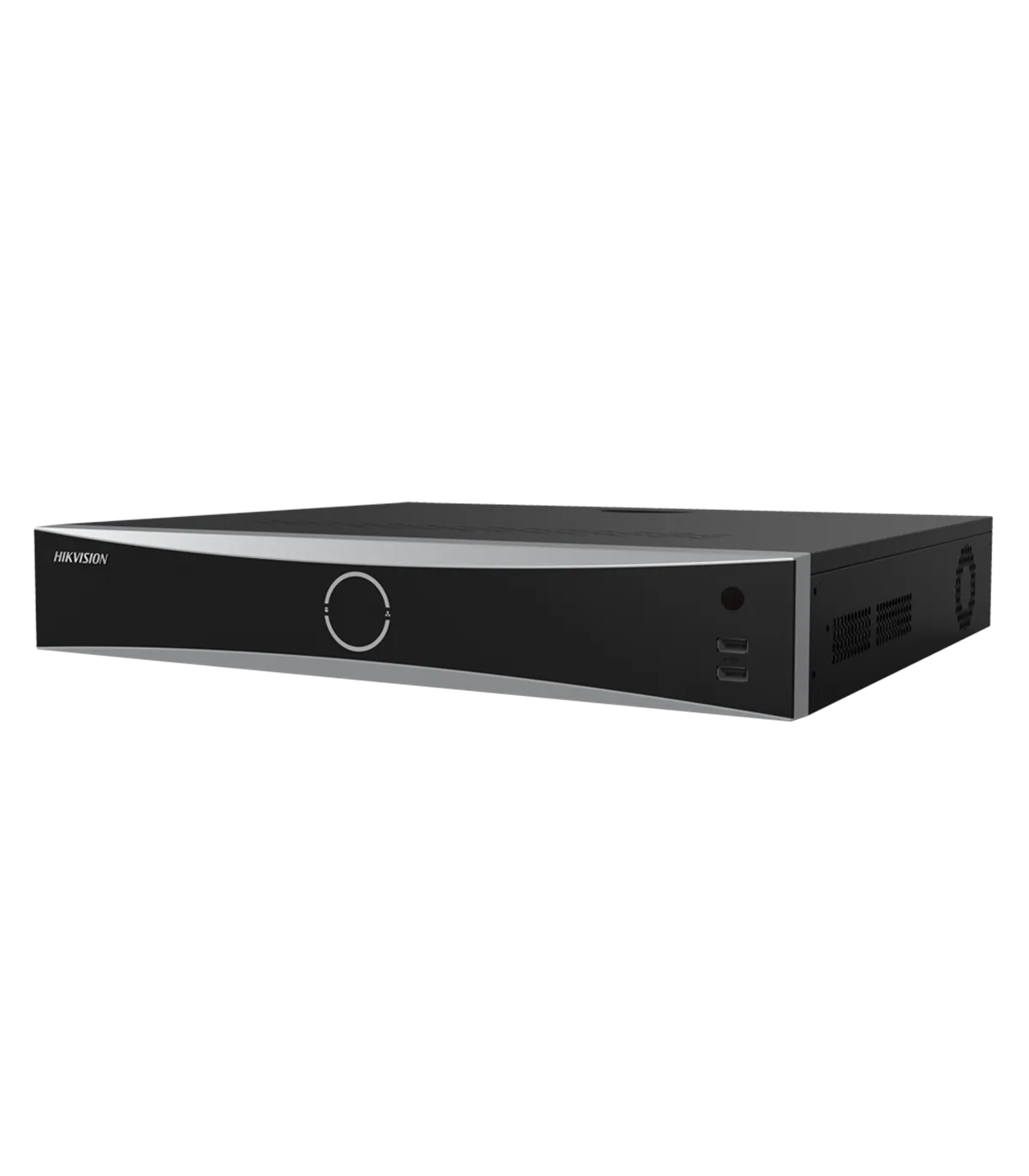

The DS-7732NXI-K4(D) is a high-performance NVR designed for IP camera systems, ideal for medium to large-scale surveillance installations. With support for up to 32 channels and a maximum resolution of 12 MP, this device is perfect for users seeking advanced video management capabilities. Its features include H.265+ compression for efficient storage and bandwidth usage, along with dual-stream access for enhanced flexibility in remote monitoring.
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 32 channels |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 4K, 1xVGA independent |
| Display resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Total bandwidth | 256 Mbps input / 160 Mbps output |
| Stream type | Video / Video + Audio |
| Main Stream recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capability | With AI enabled: 1CH@12MPx, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels. With cameras with motion detection 2.0: Available on all channels. * Motion detection 2.0, AcuSense, and Facial Recognition cannot be enabled simultaneously. |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP With AcuSense cameras: Available on all channels. * Motion detection 2.0, AcuSense, and Facial Recognition cannot be enabled simultaneously. |
| Facial recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. * Motion detection 2.0, AcuSense, and Facial Recognition cannot be enabled simultaneously. |
| Alarms | 16 Inputs / 4 Outputs |
| Two-way audio | 1 RCA input / 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal storage | 4 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 |
| Power supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 445 (W) x 400 (D) mm / 5 Kg (without HDD) |
The DS-7732NXI-K4(D) NVR is ideally suited for a variety of surveillance applications, including retail environments, corporate offices, and public spaces. For instance, in a retail setting, the device can manage up to 32 IP cameras, providing comprehensive coverage of the premises. With its motion detection 2.0 feature, it can accurately differentiate between human and vehicle movements, significantly reducing false alarms. The facial recognition capability enhances security by allowing for real-time identification of individuals, which is crucial for loss prevention strategies. Additionally, the remote access functionality enables security personnel to monitor live feeds and recorded footage from anywhere, ensuring that they can respond promptly to incidents. The NVR's dual-stream access allows for efficient bandwidth management, making it easier to view high-resolution video without compromising performance. Overall, the DS-7732NXI-K4(D) is an excellent choice for those seeking a robust and feature-rich surveillance solution.
