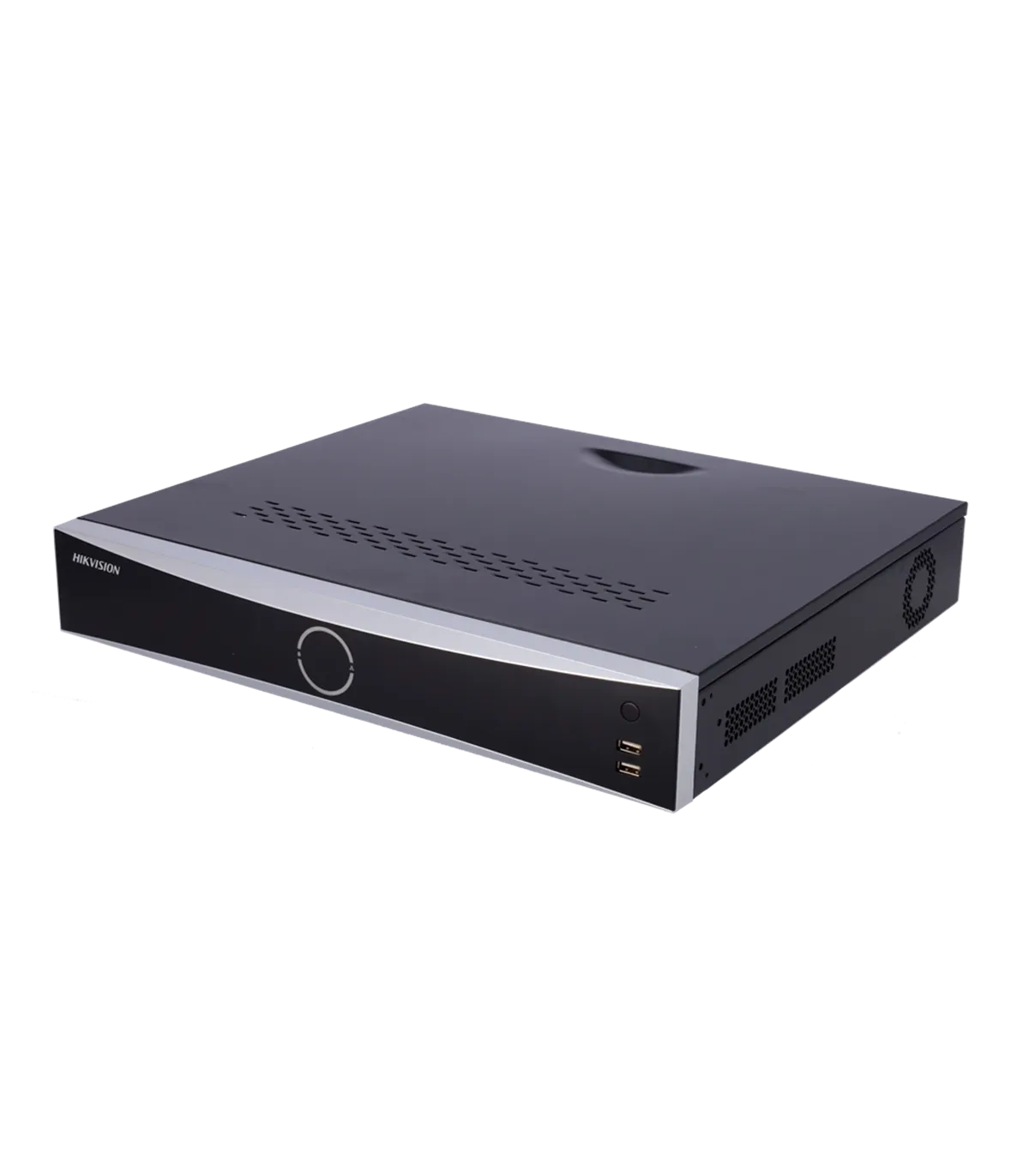

The DS-7716NXI-K4/16P is a high-performance NVR designed for IP camera systems, making it ideal for both commercial and residential security applications. With support for up to 16 channels and advanced features such as facial recognition and motion detection, this device ensures comprehensive surveillance capabilities. Its compatibility with ONVIF standards allows for seamless integration with various camera brands, enhancing its versatility in diverse security setups.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| PoE Power Supply | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Display Resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Total Bandwidth | 160 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 1CH@12MP, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0 and Facial Recognition cannot be enabled simultaneously. |
| Facial Recognition | Face Capture on 1 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol) Up to 4CH with cameras with Face Capture up to 2 MP per channel (Cameras XX6G2/XX7G2) Storage of 16 Libraries with up to 20,000 faces Comparison by match level (Successful / Failed) or by Stranger Search by: Type of comparison, Stored image in your Library or Name * Motion detection 2.0 and Facial Recognition cannot be enabled simultaneously. |
| Alarms | 16 Inputs / 4 Relay |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 |
| Power Supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 445 (W) x 400 (D) mm / 5 Kg (without HDD) |
The DS-7716NXI-K4/16P NVR is ideally suited for a variety of security installations, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the device can be deployed to monitor customer activity and prevent theft. With its remote monitoring capabilities, security personnel can access live feeds and recorded footage from anywhere using the Hik-Connect app. The dual stream IP access feature allows for efficient bandwidth management, ensuring high-quality video without overwhelming the network. Additionally, the motion detection and facial recognition functionalities enhance security by providing alerts and identifying individuals in real-time. This NVR's ability to support up to 16 channels makes it a scalable solution for growing businesses, while its compatibility with various IP cameras ensures flexibility in system design. Overall, the DS-7716NXI-K4/16P is a robust choice for comprehensive surveillance needs.
