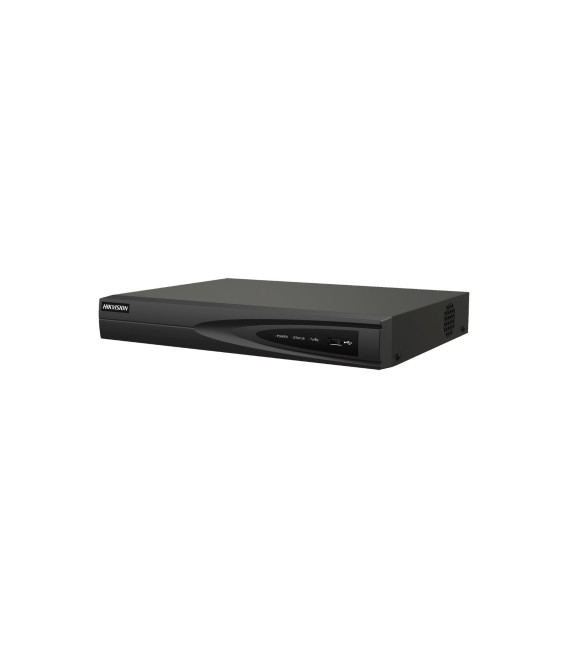

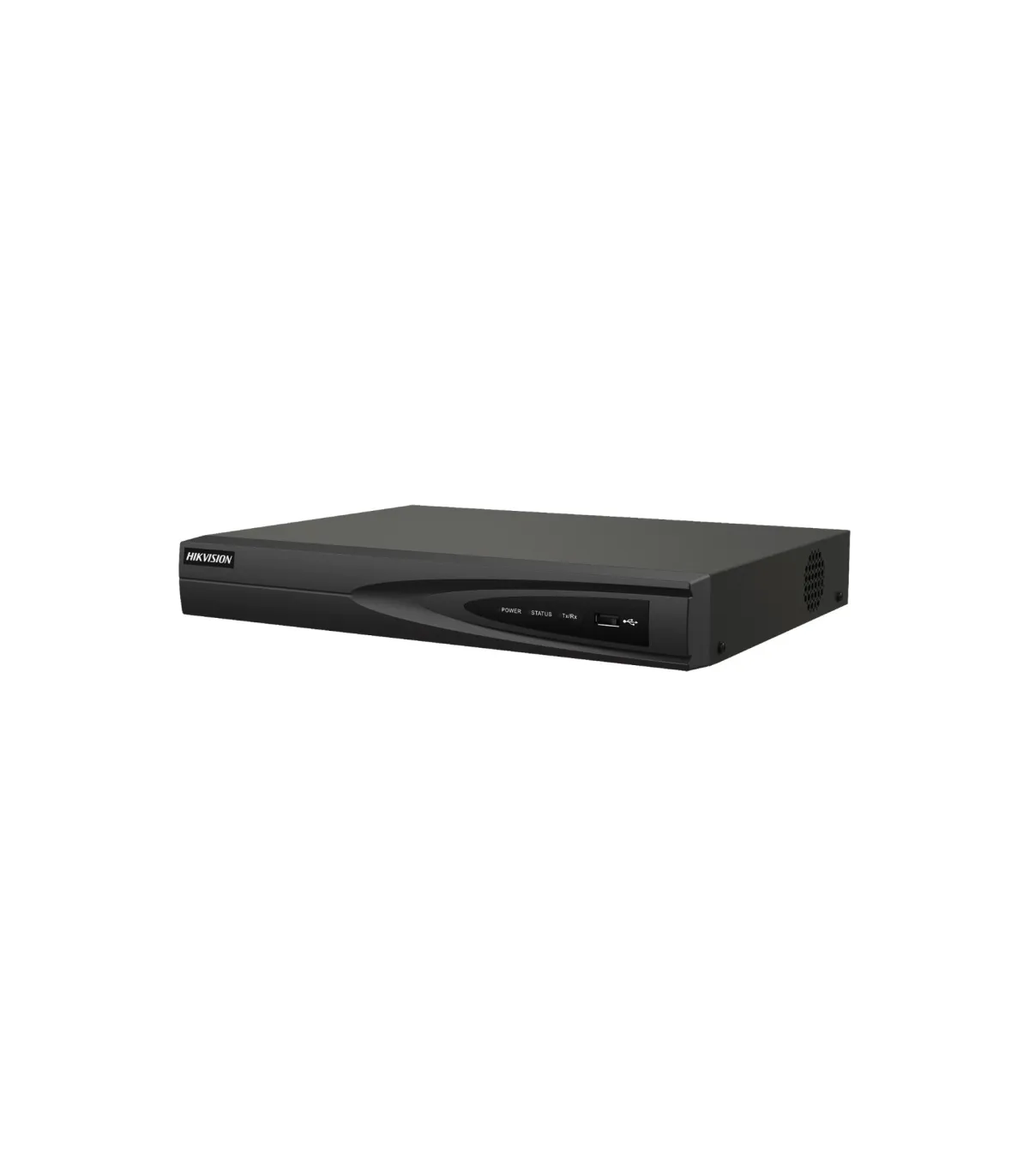

Hikvision DS-7616NI-Q1 IP Recorder

Characteristics of Grabador IP Hikvision DS-7616NI-Q1

The Grabador IP Hikvision DS-7616NI-Q1 is a 16-channel 4K NVR video recorder that offers advanced features for high-quality video surveillance. With video formats such as H.265+/H.265/H.264+/H.264, this device provides exceptional decoding capabilities, supporting up to 1 channel @ 8MP or 5 channels @ 1080P. It boasts a maximum incoming bandwidth of 160 Mbps, ensuring smooth and clear video playback.

Technical Characteristics:

- Motion Detection 2.0: Human/Vehicle Analysis - 4 channels - Video and Audio: - IP Video Input: 16 channels - Incoming Bandwidth: 160 Mbps - Outgoing Bandwidth: 80 Mbps - HDMI Output: 1 channel, 4K (4096 x 2160)/30 Hz - VGA Output: 1 channel, 1920 × 1080/60 Hz - Video Output Mode: Simultaneous HDMI/VGA - Audio Output: 1 channel, RCA (linear, 1 KΩ) - Bidirectional Audio: 1 channel, RCA (2.0 Vp-p, 1 KΩ) - Decoding: - Decoding Format: H.265+,H.265,H.264+,H.264 - Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF - Synchronous Playback: 16 channels - Decoding: 1 channel at 8 MP (30 fps) - Remote Connection: 32 - Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS - Network Interface: 1 RJ-45 10/100/1000 Mbps auto-adaptive Ethernet interface - Auxiliary Interface: - SATA Interface: 1 - Capacity: Up to 8 TB per disk - USB Interface: 2×USB 2.0 - General: - Power Supply: 12 VDC, 1.5 A - Power Consumption: ≤ 10 W (without hard disk) - Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F) - Humidity Conditions: 10% to 90% - Dimensions (W × D × H): 320 × 240 × 48 mm (12.4" × 9.4" × 1.9") - Weight: ≤ 1 kg (without HDD, 2.2 lb.)

Product Specifications:

- Brand: Hikvision Value - Technology: IP - Maximum Resolution: 8MP - Functions: N/A - POE: No PoE / PoC Product Advantage and Use: The Grabador IP Hikvision DS-7616NI-Q1 is ideal for businesses and homes looking for a reliable and high-performance NVR solution. With its advanced video decoding capabilities, multiple channel support, and user-friendly interface, this device ensures seamless video surveillance and monitoring. Whether you need to keep an eye on your property or enhance security measures, this NVR is a versatile and efficient choice. Trust Hikvision for quality and innovation in video surveillance technology.
