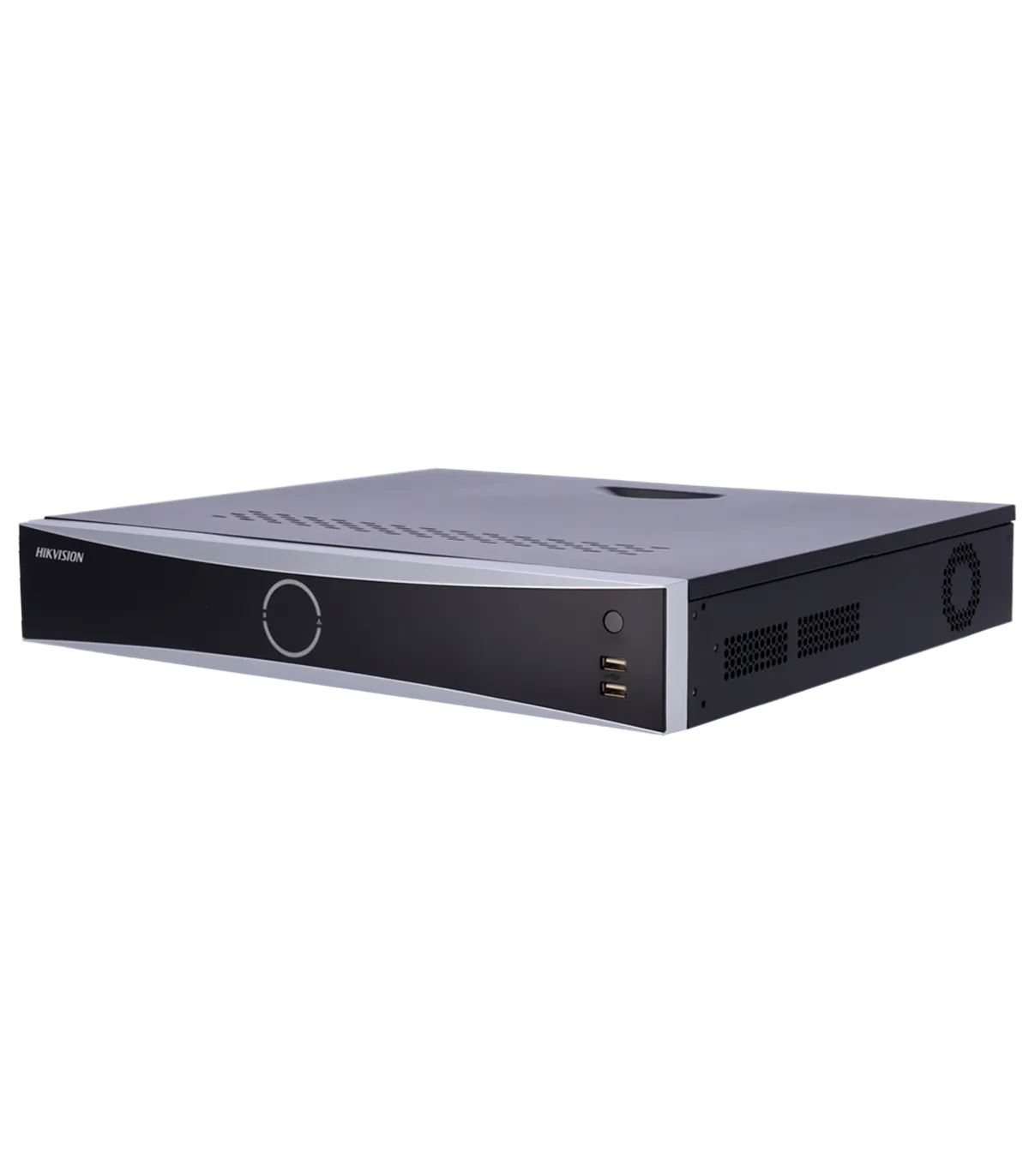

The Hikvision DS-7732NXI-I4/16P/VPro is a state-of-the-art NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for large-scale surveillance applications, providing efficient video management and intelligent search functionalities. With its 32 channels and support for high-resolution video, it is perfect for both commercial and industrial environments that require robust security solutions.
The Hikvision AcuSense VPRO series recorders include artificial intelligence based on a large-scale algorithm known as Guanlan. This series features functionalities such as AcuSeek and AcuSearch across its 32 channels.
AcuSeek: Search through large amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 32 channels |
| POE Ports | 16x POE IEEE 802.3 af/at Consumption ≤ 200W |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI 1 and VGA are independent |
| Total Bandwidth | 384 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 20CH@1080p 30fps (AI enabled by NVR) 32CH@1080p 30fps (AI disabled by NVR) |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture on 4 CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Type of comparison, Stored image in your Library or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2Mpx per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSeek | Search through large amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and can model 300,000 targets per day. |
| AcuSearch | Video search based on target images. Multiple targets can be detected simultaneously in the image and the target to search for can be selected. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and can model 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 16 Inputs / 9 Outputs |
| Audio | 1 input / 1 output |
| Two-way Audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs of up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rack Mountable | 1.5U |
| Dimensions / Weight | 72 (H) x 440 (W) x 391 (D) mm / 5 Kg (without HDD) |
The Hikvision DS-7732NXI-I4/16P/VPro is ideally suited for deployment in large retail environments, where comprehensive surveillance is critical. Installers can leverage its 32-channel capability to connect multiple IP cameras, ensuring complete coverage of the premises. The AcuSense technology significantly reduces false alarms, allowing security personnel to focus on genuine threats. With features like remote monitoring via the Hik-Connect app, users can access live feeds and recorded footage from anywhere, enhancing situational awareness. The facial recognition feature can be utilized for identifying known individuals, while the AcuSeek function allows for quick searches through vast amounts of footage using natural language queries. This combination of advanced features makes the DS-7732NXI-I4/16P/VPro an essential tool for effective security management in high-traffic areas.
