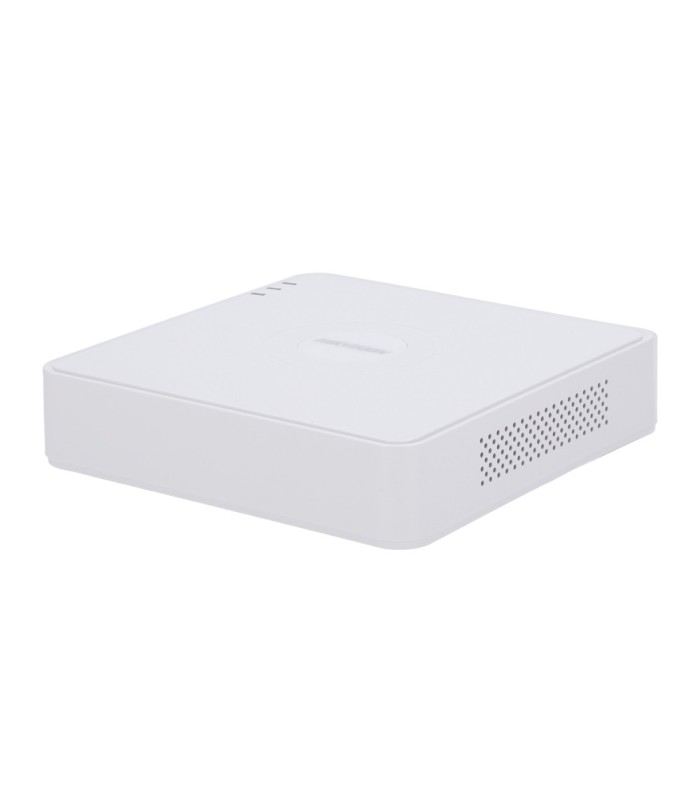

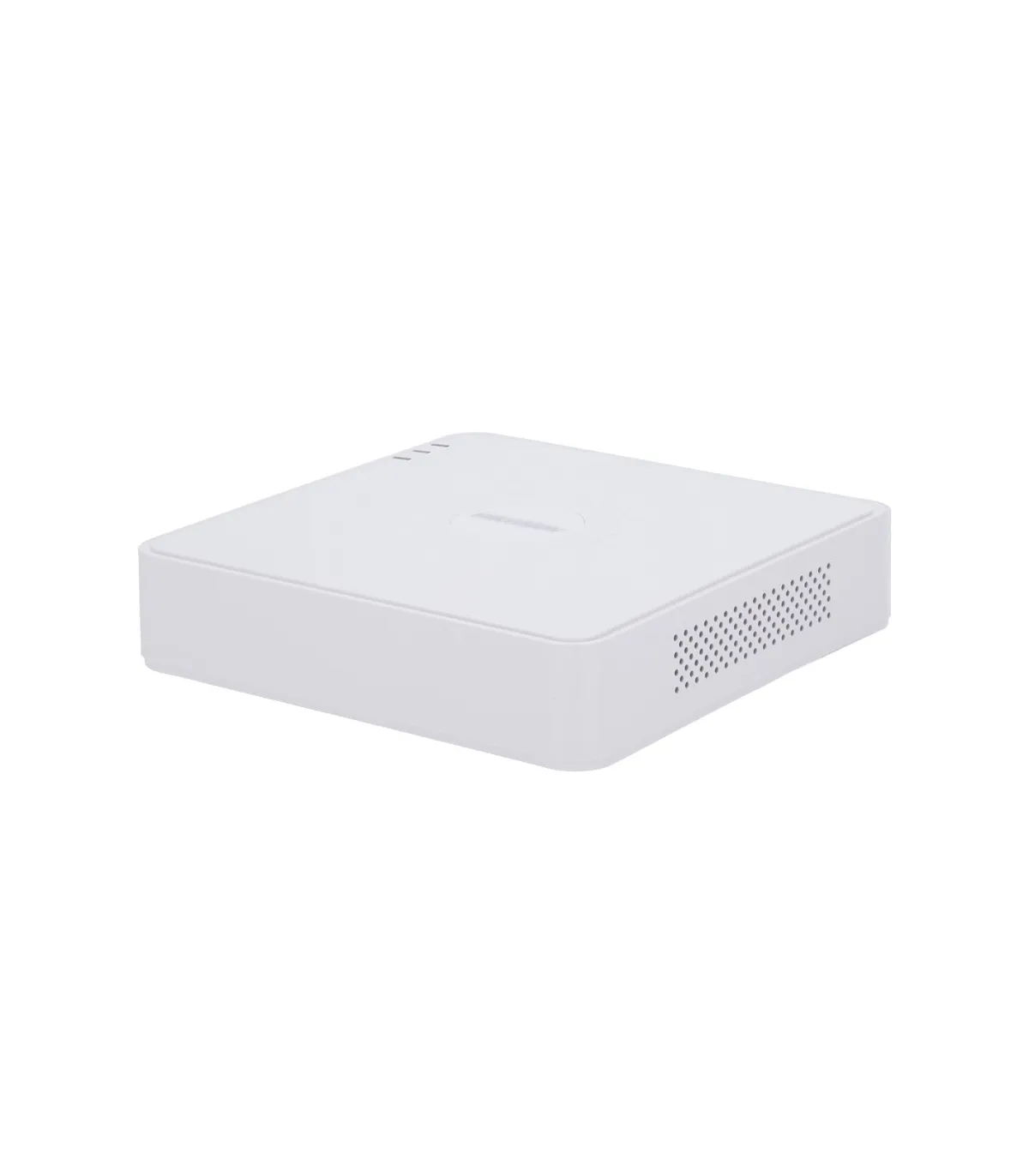

NVR recorder for HIKVISION IP cameras DS-7108NI-Q1(D)
Brand: HIKVISION VALUE
- Hikvision
- VALUE Series
- NVR Recorder for IP Cameras
- 8 CH video / Maximum Resolution 6 Mpx
- Bandwidth 60 Mbps
- Supports 1 hard drive
HIKVISION DS-7108NI-Q1(D) IP Camera NVR Recorder
- Hikvision
- Value Range
- IP Camera NVR Recorder
- 8 Channels
- Supported Incoming Bandwidth 60 Mbps
- Maximum Resolution 6 MP
- Compression H.265+/H.265/H.264+/H.264
- FullHD HDMI and VGA Output
- Dual Stream IP Access
- Mouse Included
- Space for 1 HDD
- WEB, CMS, and Smartphone Interface
- ONVIF Compatible
Technical Specifications
| Brand | Hikvision |
| Range | Value |
| IP Camera Inputs | LAN Port up to 8 channels |
| PoE Power | Not available |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1x FullHD HDMI, 1x VGA simultaneous |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1600x1200, 1280x1024, 1280x720 |
| Total Bandwidth | 60 Mbps input / 60 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 6MP /4MP / 3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capacity | 1CH@6MPx, 2CH@4MPx, 4CH@1080p |
| Simultaneous Function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection Only available when using cameras that also have Motion Detection 2.0. |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 16 |
| Internal Storage | 1 SATA 3.5" HDD up to 6 TB (not included) |
| Communication | 2 x USB 2.0 (Back) / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 200 (W) x 200 (D) mm / 1 Kg (without HDD) |
Content
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- Instruction Manual
- Wiring for connecting hard drive
- Power Adapter
