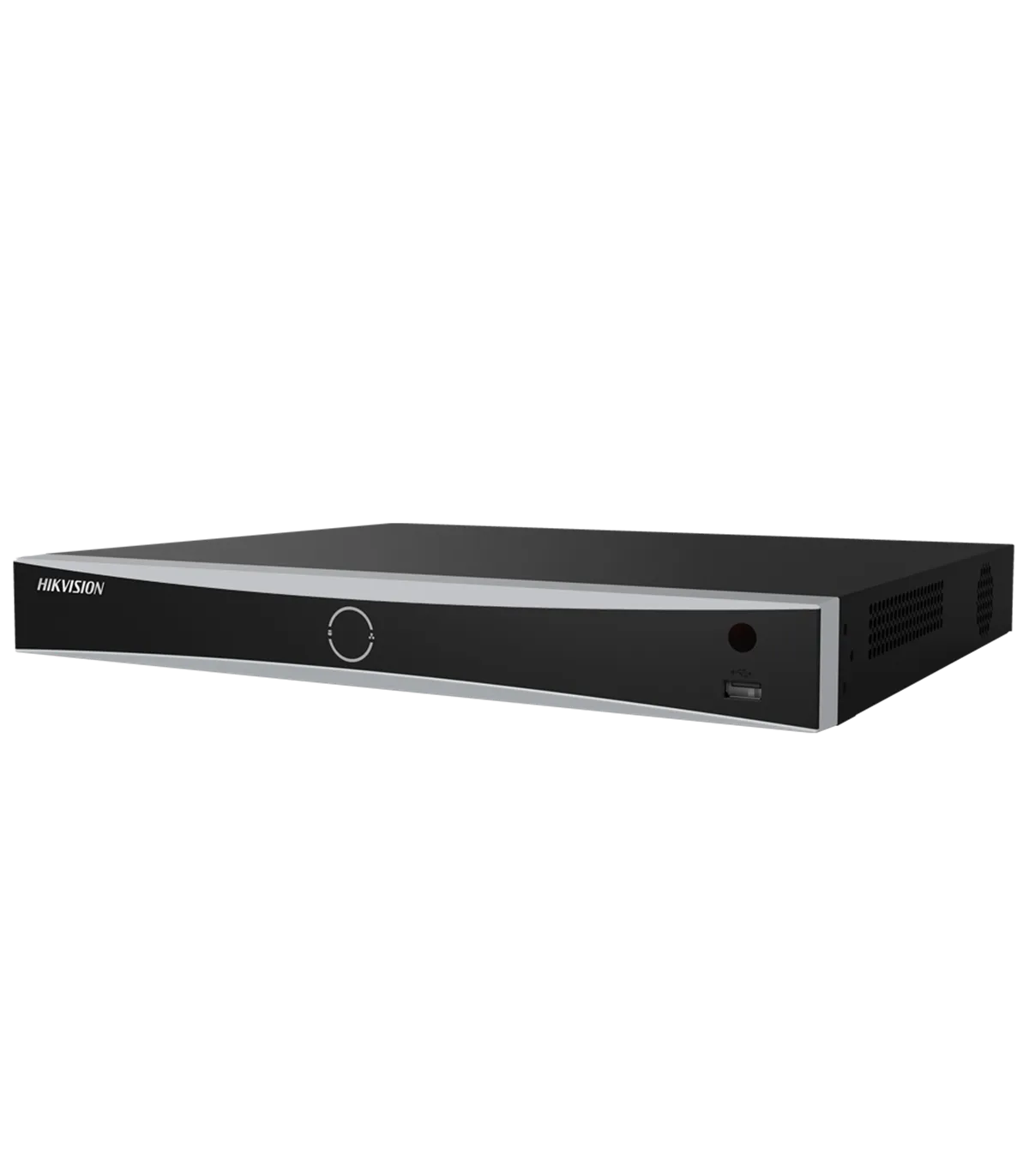

The DS-7616NXI-K2/16P(D) is a high-performance NVR designed for IP camera surveillance systems, making it ideal for both commercial and residential applications. With support for up to 16 channels and advanced features such as facial recognition and AcuSense technology, this device ensures efficient monitoring and security management. Its compatibility with ONVIF standards allows for seamless integration with various camera brands, enhancing its versatility in diverse security setups.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| PoE Power | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 160 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | With AI enabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MPx, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP. With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 4 Inputs / 1 Output |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Internal Storage | 2 SATA 3.5" HDDs up to 16 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 15 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions | 52 (H) x 385 (W) x 315 (D) mm |
| Weight | ≤3 Kg (without HDD) |
The DS-7616NXI-K2/16P(D) NVR is perfectly suited for a variety of surveillance applications, including retail stores, office buildings, and residential complexes. In a retail environment, for instance, the device can be deployed to monitor customer activity and enhance security. With its remote monitoring capabilities, store managers can access live feeds and recorded footage from anywhere using the Hik-Connect app. The dual stream feature allows for efficient bandwidth management, ensuring high-quality video without overwhelming the network. Additionally, the facial recognition technology can be utilized to identify known customers or detect suspicious behavior, providing an added layer of security. The motion detection feature, combined with the AcuSense technology, minimizes false alarms, allowing for more accurate alerts. This makes the DS-7616NXI-K2/16P(D) an invaluable tool for enhancing security and operational efficiency in various settings.
Data sheet
