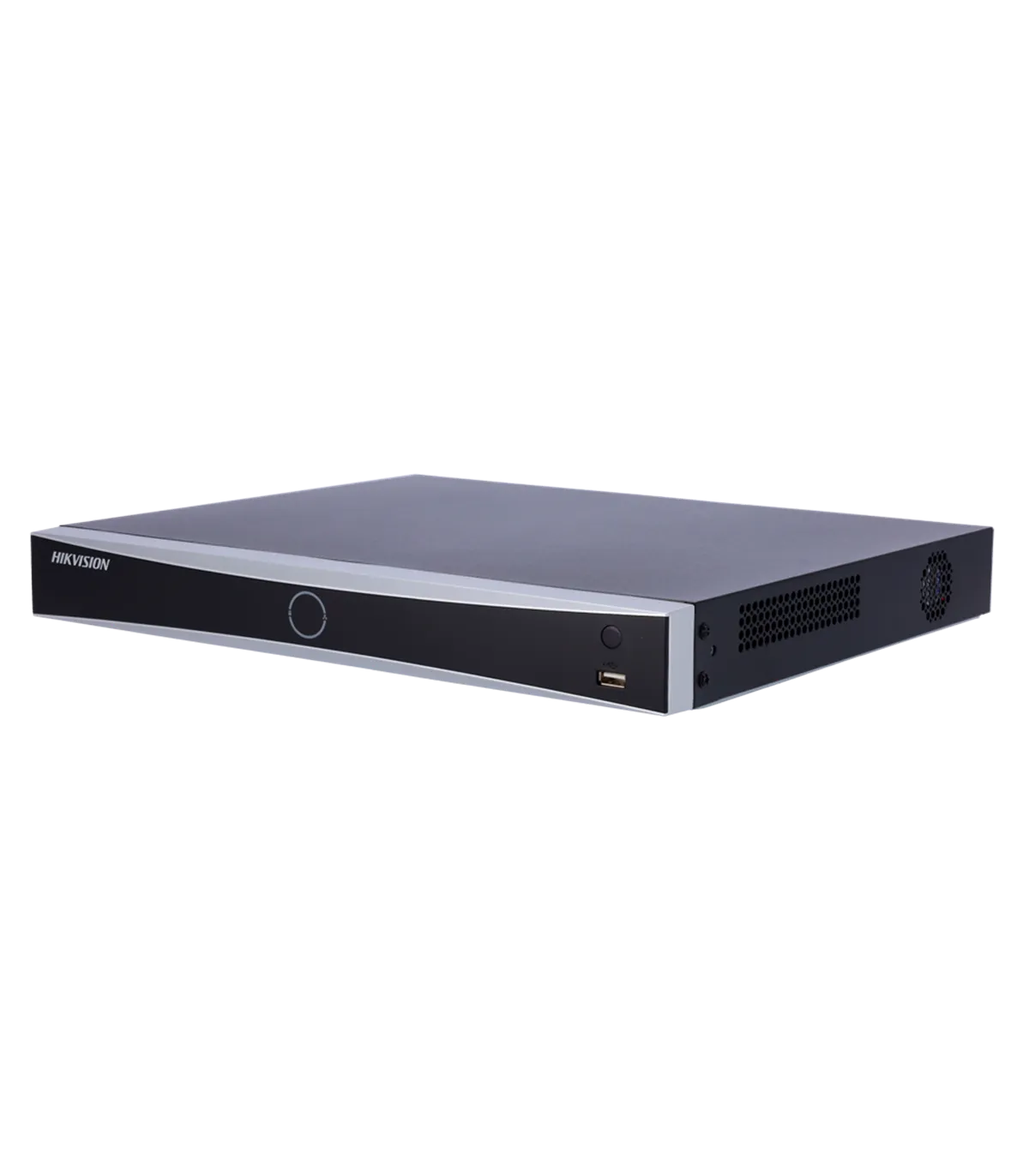

The Hikvision DS-7616NXI-I2/VPro is a cutting-edge NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for large-scale surveillance applications, providing robust video management and intelligent search functionalities. With its 16-channel support and high bandwidth capacity, it is perfect for environments requiring comprehensive security solutions.
The Hikvision AcuSense VPRO series recorders include artificial intelligence based on a large-scale algorithm known as Guanlan. This series features functionalities such as AcuSeek and AcuSearch across its 16 channels.
AcuSeek: Search through vast amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Total Bandwidth | 192 Mbps input / 256 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding Capability | 20CH@1080p 30fps (AI enabled by NVR) 32CH@1080p 30fps (AI disabled by NVR) |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Facial Recognition | Face Capture on 4 CH with a maximum resolution of 8 Mpx (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Comparison type, Stored image in your Library or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Intelligent Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2Mpx per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| AcuSeek | Search through vast amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and can model 300,000 targets per day. |
| AcuSearch | Video search based on target images. Multiple targets can be detected simultaneously in the image and the desired target can be selected for searching. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and can model 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 4 Inputs / 1 Output |
| Audio | 1 input / 1 output |
| Two-way Audio | 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 2 SATA 3.5" HDDs up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000M (Ethernet) |
| Power Supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rack Mountable | 1U |
| Dimensions / Weight | 52 (H) x 384 (W) x 371 (D) mm / 4 Kg (without HDD) |
The Hikvision DS-7616NXI-I2/VPro is ideally suited for deployment in commercial environments such as retail stores, warehouses, and office buildings. Installers can leverage its 16-channel support to connect multiple IP cameras, ensuring comprehensive coverage of the premises. The device's remote monitoring capabilities allow users to access live feeds and recorded footage from anywhere via the Hik-Connect app or web browser. With features like AcuSeek and AcuSearch, users can efficiently sift through vast amounts of video data using natural language queries or target images, significantly reducing the time spent on investigations. Additionally, the advanced motion detection and facial recognition functionalities enhance security by providing accurate alerts and identifying individuals of interest. This makes the DS-7616NXI-I2/VPro an essential tool for modern security management.
