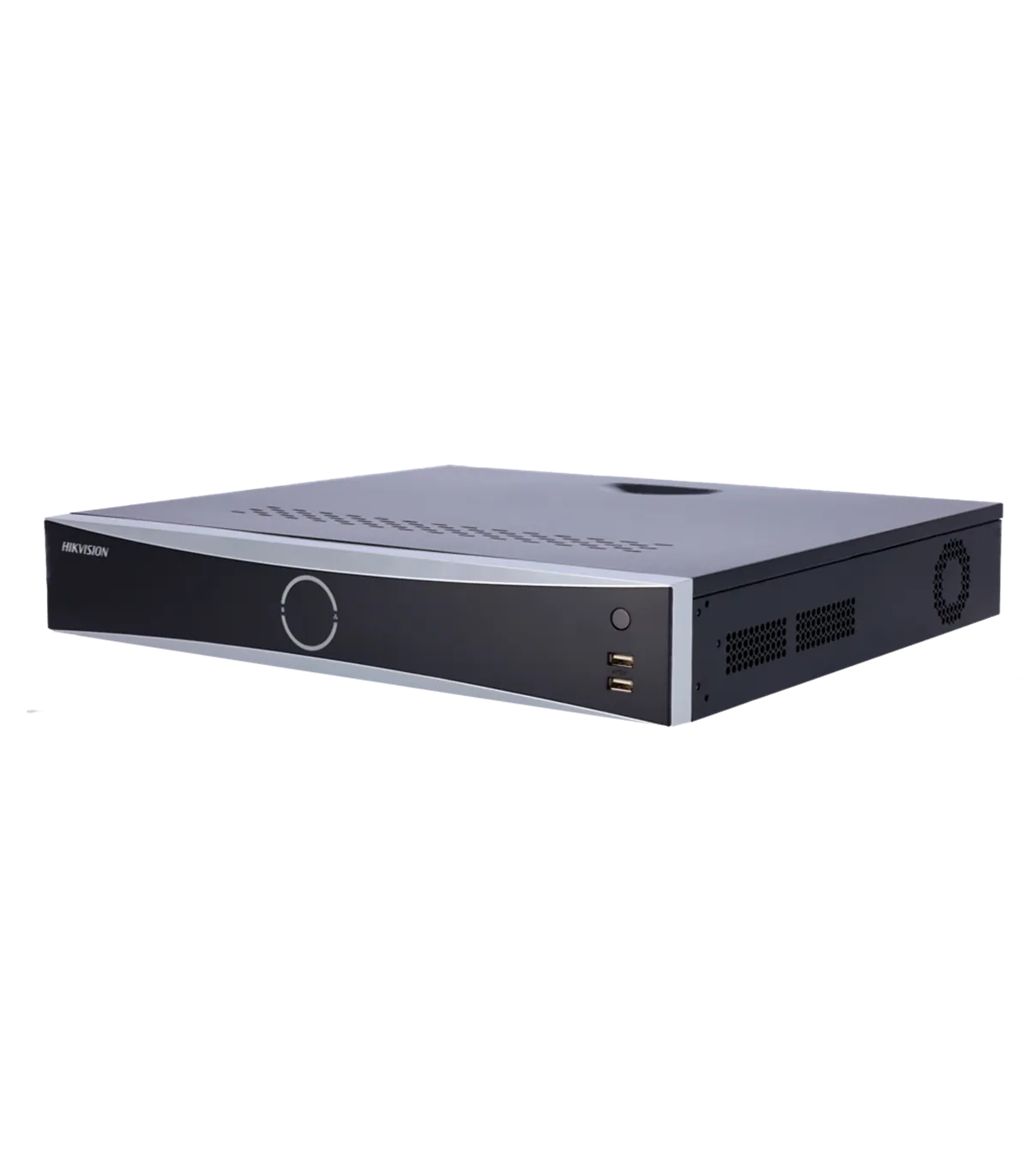

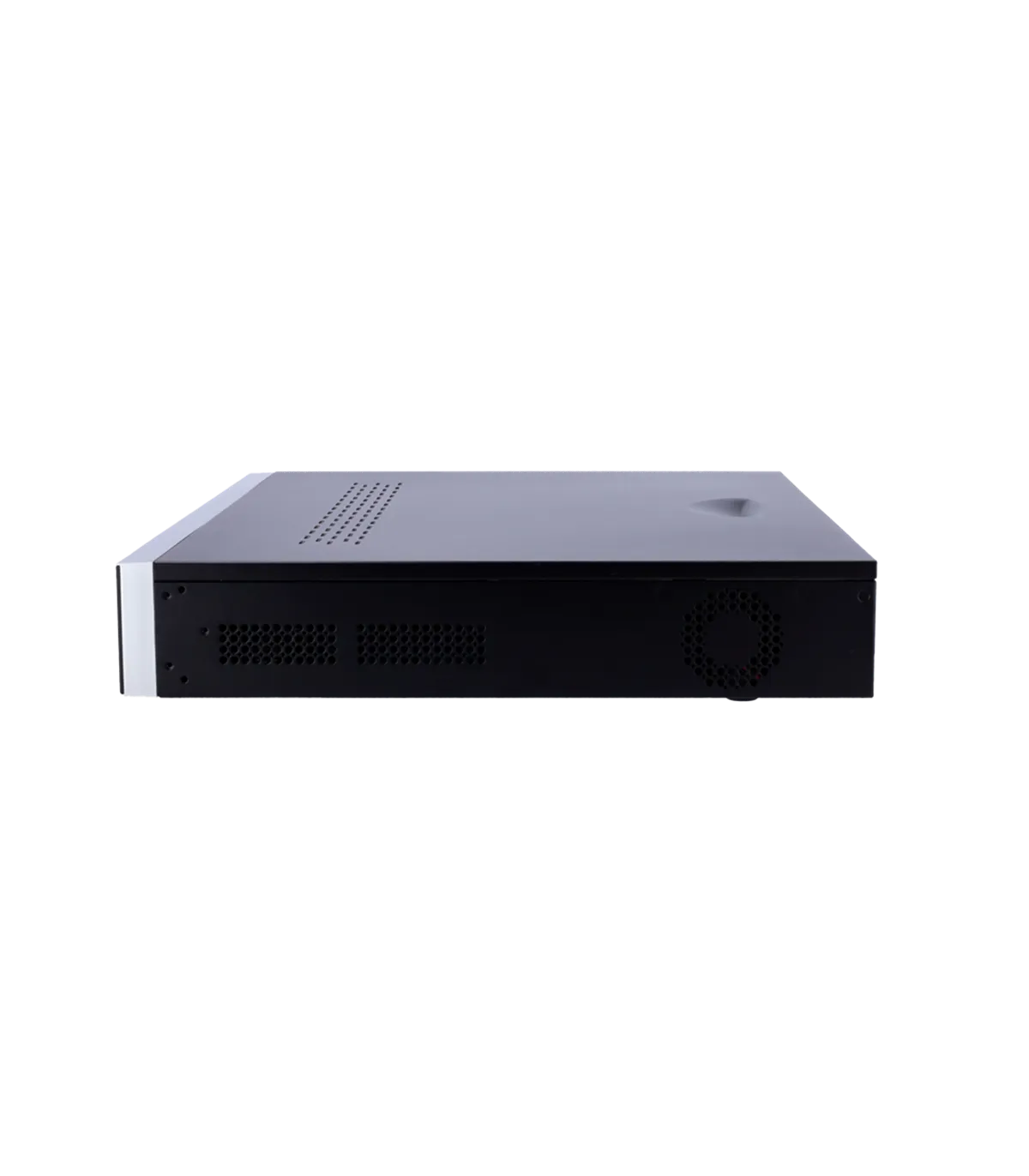

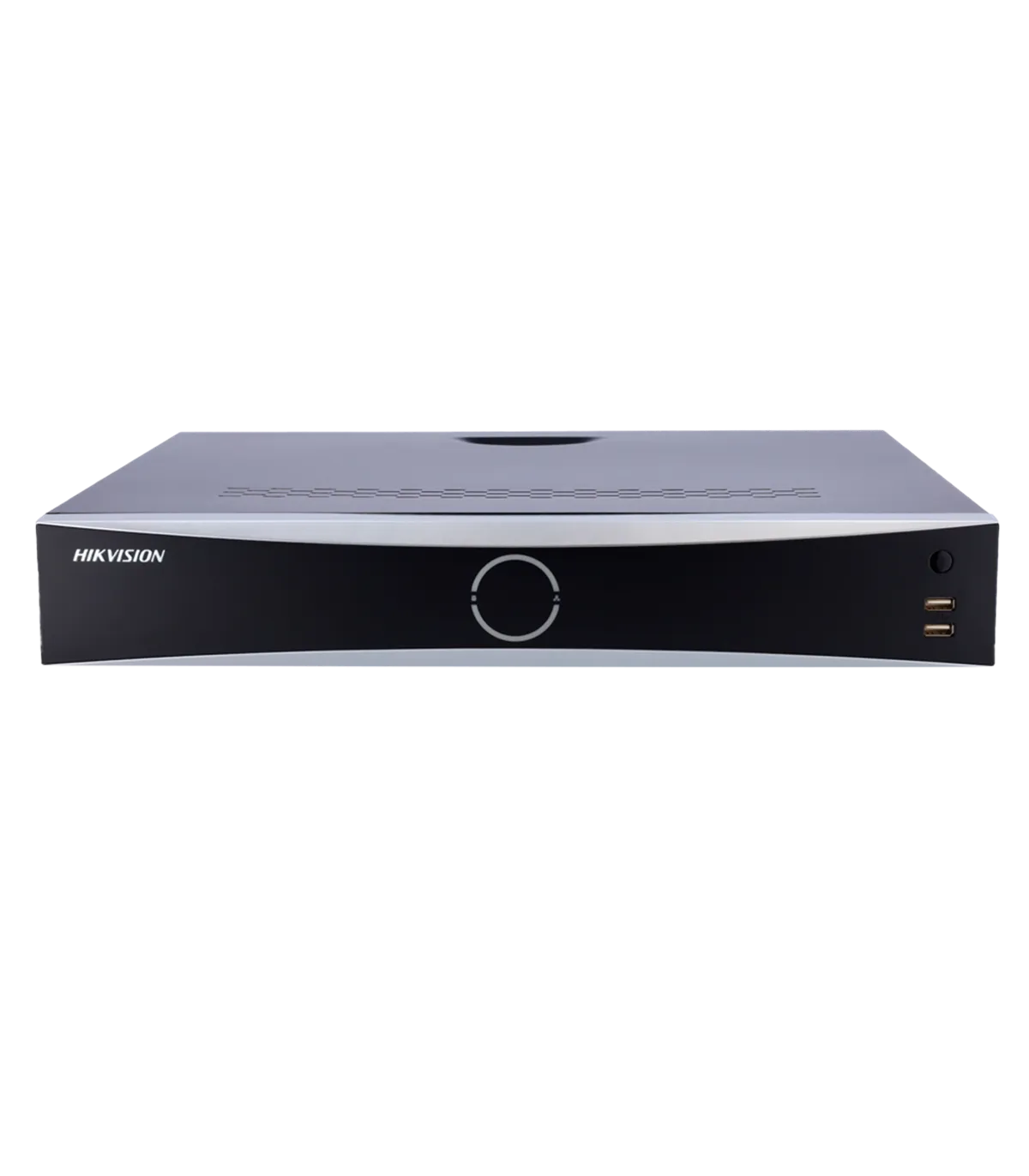

The DS-7716NXI-K4(D) is a high-performance NVR designed for IP camera surveillance systems, ideal for both commercial and residential applications. With support for up to 16 channels and a maximum resolution of 12 MP, this device is perfect for users seeking advanced video surveillance capabilities. Its robust features, including motion detection and facial recognition, make it a reliable choice for comprehensive security solutions.
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 16 channels |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Two-way audio | 1 RCA input / 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video outputs | 1xHDMI 4K, 1xVGA independent |
| Display resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Total bandwidth | 160 Mbps input / 160 Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capability | With AI enabled: 1CH@12MPx, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP. With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Perimeter protection based on VCA rules with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote connections | 128 |
| Internal storage | 4 SATA 3.5" HDDs of up to 16 TB each (not included) |

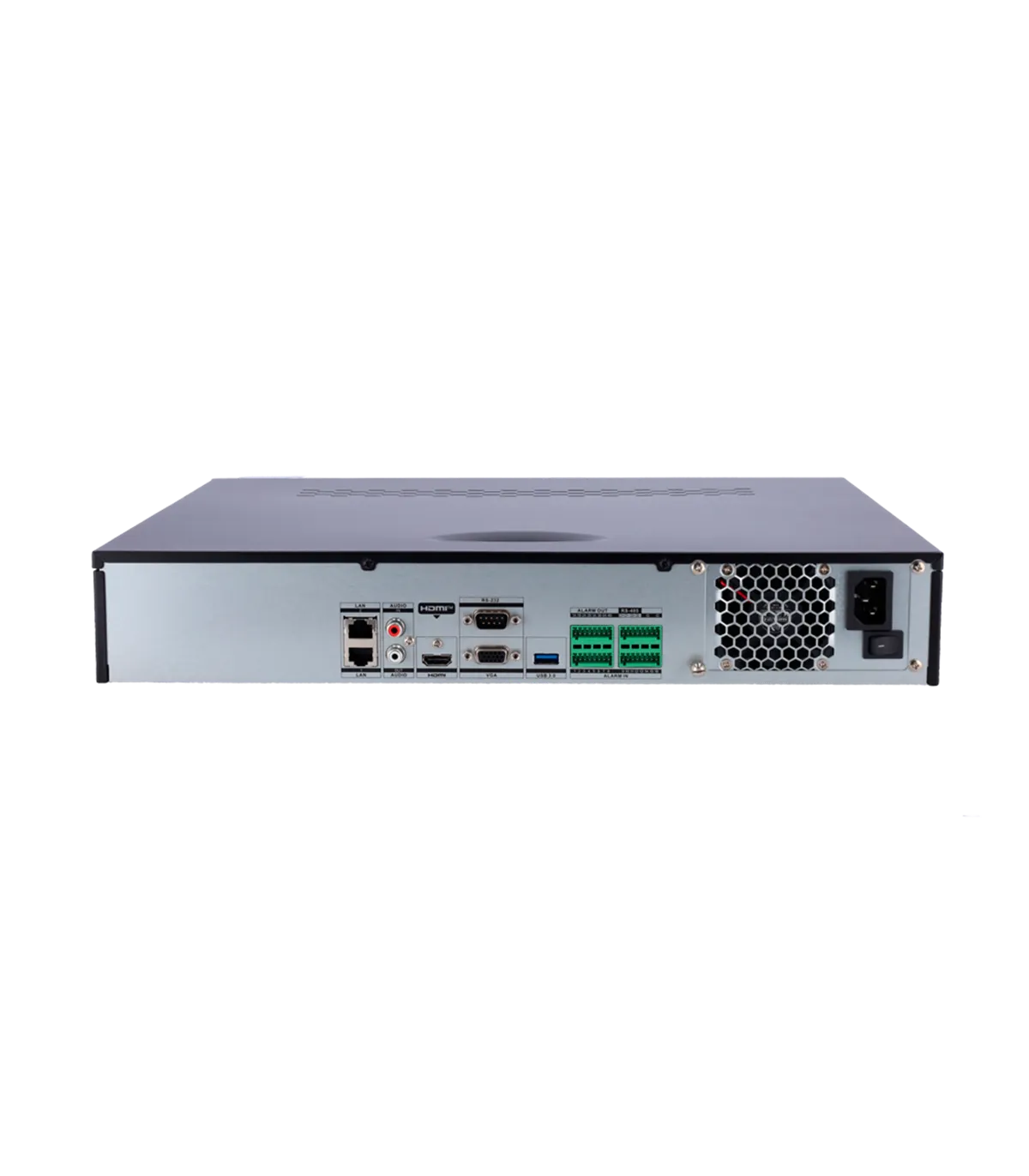

| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 |
| Power supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions | 75 (H) x 445 (W) x 400 (D) mm |
| Weight | 5 Kg (without HDD) |
The DS-7716NXI-K4(D) NVR is ideally suited for a variety of surveillance environments, such as retail stores, office buildings, and residential complexes. Installers can easily set up this plug-and-play device, which supports up to 16 IP cameras, ensuring comprehensive coverage of the premises. With its advanced motion detection capabilities and AcuSense technology, users can minimize false alarms while maintaining high security standards. The NVR's remote monitoring features allow users to access live feeds and recorded footage from anywhere using the Hik-Connect app, enhancing convenience and control. Additionally, the facial recognition feature provides an extra layer of security, enabling quick identification of individuals. This makes the DS-7716NXI-K4(D) an excellent choice for those seeking a reliable and efficient video surveillance solution.
