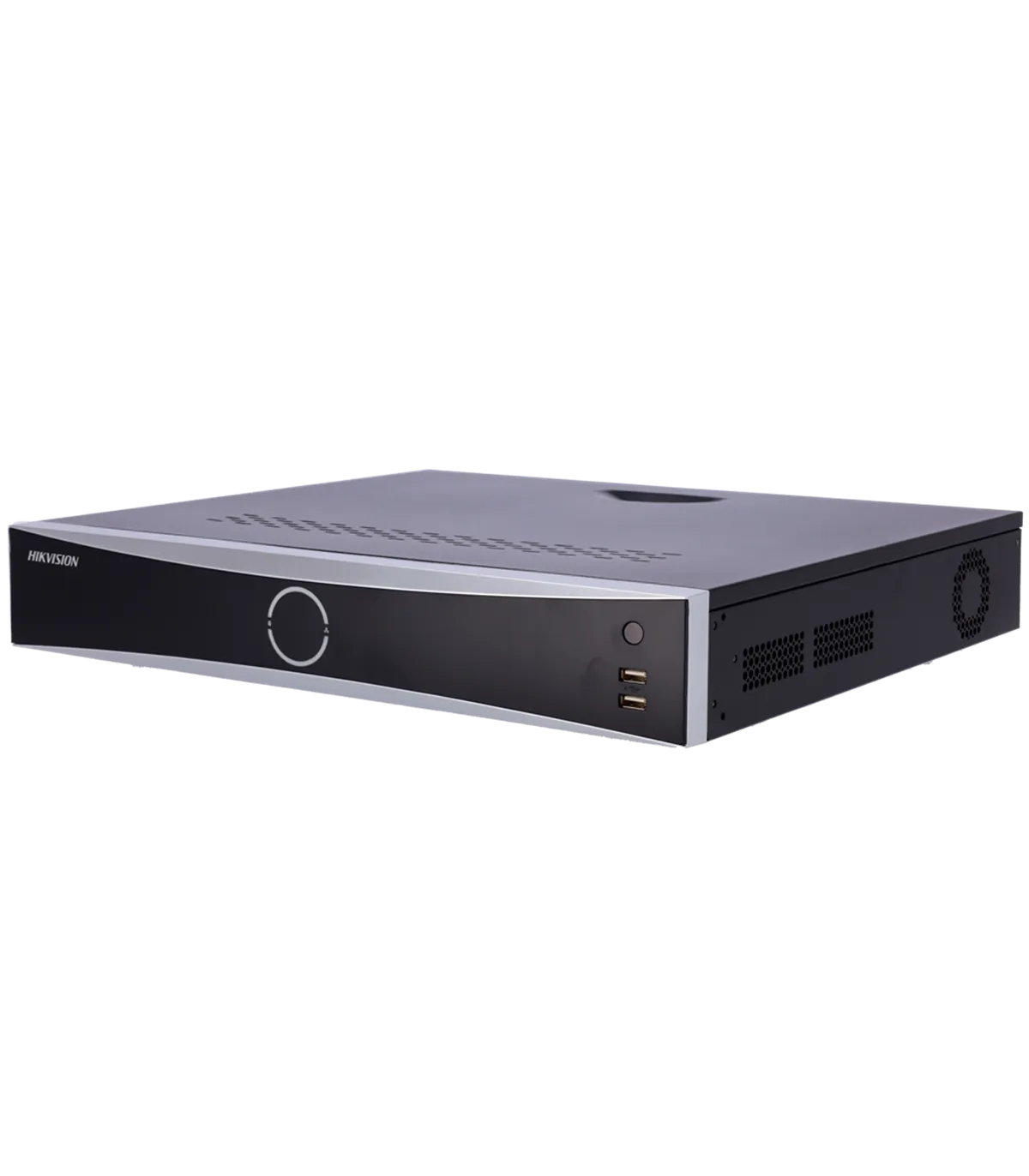

Hikvision 32-Channel 32MP AcuSense NVR DS-7732NXI-I4/VPro
- Hikvision
- PRO Series
- 32 CH IP NVR Recorder
- Maximum Resolution 32Mpx | Alarms | AcuSense
- Bandwidth 384 Mbps | Supports 4 Hard Drives
- AcuSeek, text-based search on 32 CH
Description & Key Features: DS-7732NXI-I4/VPro
The Hikvision DS-7732NXI-I4/VPro is a state-of-the-art NVR designed for IP camera systems, featuring advanced artificial intelligence capabilities. This device is ideal for large-scale surveillance applications, providing efficient video management and intelligent search functionalities. With its 32 channels, it is perfect for environments requiring comprehensive monitoring and quick access to recorded footage.
The Hikvision AcuSense VPRO series recorders incorporate large-scale algorithm-based artificial intelligence known as Guanlan. This series includes functionalities such as AcuSeek and AcuSearch across its 32 channels.
AcuSeek: Search through vast amounts of video recordings using natural language text descriptions.
AcuSearch: Search for events based on a target image. The recorder can search for a target of interest across all NVR channels.
- Hikvision
- AcuSense VPRO series
- NVR for IP cameras
- 32 CH
- Supported incoming bandwidth 384 Mbps
- Maximum resolution 32 MP
- Compression H.265+/H.265/H.264+/H.264
- 4K HDMI and VGA output
- Artificial intelligence based on the large-scale Guanlan algorithm
- Motion detection 2.0 across all channels
- AcuSeek, text-based search
- AcuSearch, image-based target search across all channels
- Facial recognition
- AcuSense
- Alarms
- Audio
- POS
- Space for 4 HDDs
- Compatible with ONVIF
Specifications: DS-7732NXI-I4/VPro
| Brand | Hikvision |
| Series | PRO |
| IP camera inputs | LAN port up to 32 channels |
| Compatible IP cameras | HIKVISION (native protocol), ONVIF |
| Video outputs | 1xHDMI 4K, 1xHDMI 1080p, 1xVGA |
| Video compression format | H.265+ / H.265 / H.264+ / H.264 |
| Display resolution | HDMI 1: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 HDMI 2: 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 * HDMI 1 and VGA are independent |
| Total bandwidth | 192 Mbps input / 256 Mbps output |
| Stream type | Video / Video + Audio |
| Main stream recording | 32MP /24MP /12MP /8MP /6MP /5MP /4MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF |
| Decoding capability | 20CH@1080p 30fps (AI enabled by NVR) 32CH@1080p 30fps (AI disabled by NVR) |
| Motion detection | Motion detection 2.0 with human and vehicle classification applied to motion detection Available on all channels. * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Facial recognition | Face Capture on 4 CH with a maximum resolution of 8 MP (Valid for cameras with HIKVISION or ONVIF protocol) Storage of 16 Libraries with up to 50,000 faces Comparison by match level (Successful / Failed) or by Stranger Searches by: Type of comparison, Stored image in your Library or Name * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| Intelligent functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Area Entry, and Area Exit. Available on up to 4 channels with 2MP per channel * Motion detection 2.0, Facial Recognition, and AcuSense cannot be enabled simultaneously. Enabling one feature will disable the other two. |
| AcuSeek | Search through vast amounts of video recordings using natural language text descriptions. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSeek on all channels and can model 300,000 targets per day. |
| AcuSearch | Search for video based on target images. Multiple targets can be detected simultaneously in the image and the desired target can be selected for searching. If the cameras support AcuSense technology and have the AcuSearch function enabled, the NVR supports AcuSearch on all channels and can model 300,000 targets per day. |
| ANPR | Supports license plate search on all channels with cameras that support ANPR function |
| POS | Yes |
| Alarms | 16 Inputs / 9 Outputs |
| Audio | 1 input / 1 output |
| Two-way audio | 1 RCA output |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Recording method | Manual, scheduled, motion detection |
| External backup | USB memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote connections | 128 |
| Internal storage | 4 SATA 3.5" HDDs of up to 20 TB each (not included) |
| Communication | 1 x USB 2.0 front, 1 x USB 3.0 rear / 2 x RJ45 10/100/1000M (Ethernet) |
| Power supply | AC 100~240 V, ≤ 50 W (without HDD) |
| Operating temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Rackable | 1.5U |
| Dimensions / Weight | 72 (H) x 440 (W) x 391 (D) mm / 5 Kg (without HDD) |
Package Contents
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- User Manual
- Cabling for hard drive connection
- Power Supply
Use Case
The Hikvision DS-7732NXI-I4/VPro NVR is ideally suited for deployment in commercial settings such as retail stores, warehouses, and office buildings. With its ability to support up to 32 channels, this high-capacity NVR allows for extensive surveillance coverage, ensuring that every corner of the premises is monitored effectively. The integration of AI-driven features like AcuSeek and AcuSearch enables users to quickly locate specific footage using natural language queries or target images, significantly enhancing operational efficiency. Additionally, the device's remote access capabilities allow security personnel to monitor live feeds and recorded footage from anywhere, providing peace of mind. The advanced motion detection technology further reduces false alarms, making it a reliable choice for security applications. Overall, the DS-7732NXI-I4/VPro is an excellent solution for businesses looking to enhance their security infrastructure with cutting-edge technology.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Wi-Fi
- No dispone
- Series
- Pro
- Channels
- 32
Specific References
- EAN13
- 6936422162504
