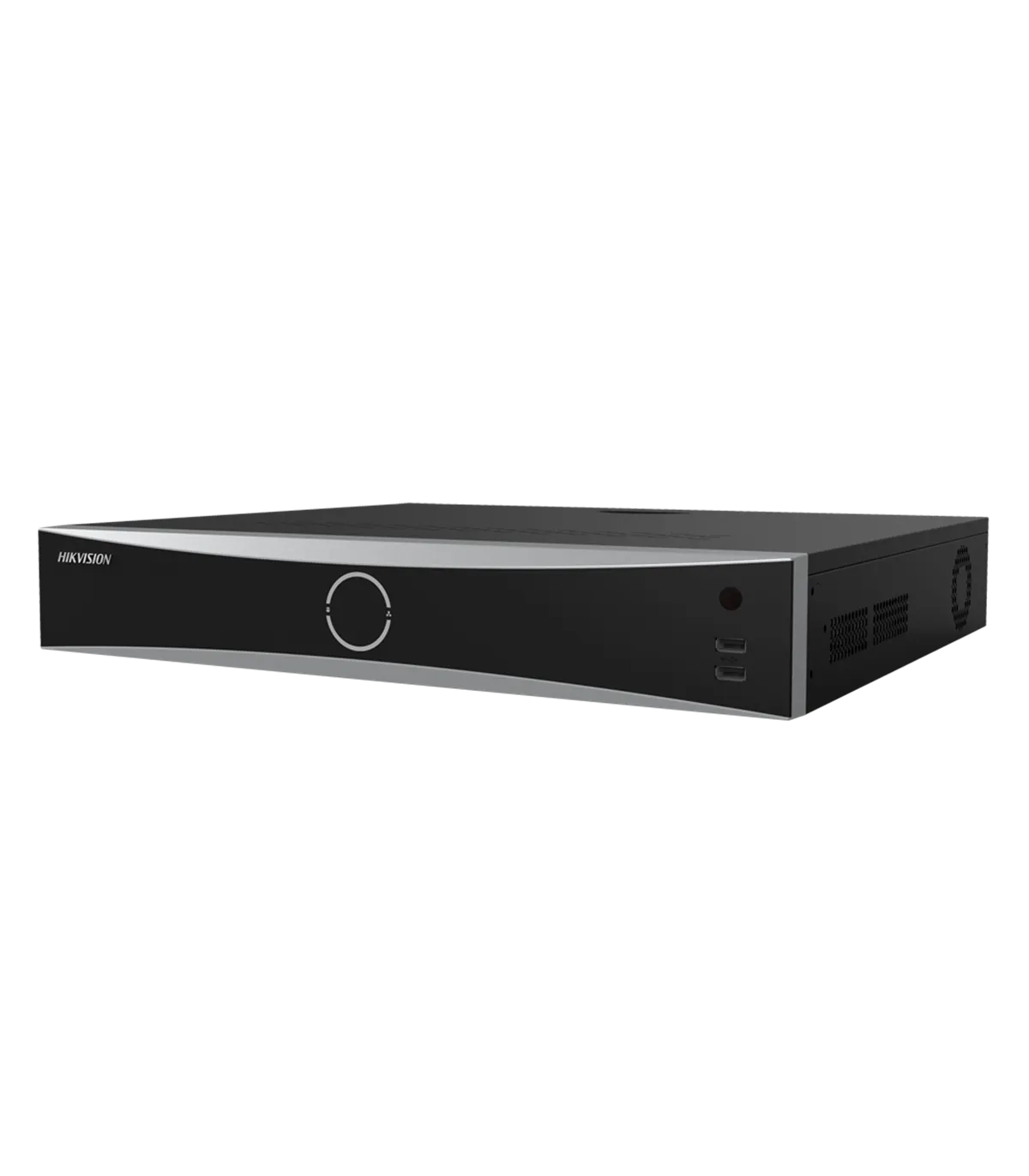

The DS-7732NXI-K4/16P(D) is a high-performance NVR designed for IP camera surveillance, making it ideal for both commercial and residential applications. With support for up to 32 channels and advanced features such as facial recognition and motion detection, this device ensures comprehensive security monitoring. Its compatibility with ONVIF standards allows for seamless integration with various security systems, enhancing overall surveillance capabilities.
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 32 channels |
| PoE Power Supply | 16-port PoE switch IEEE802.3af/at (max. 200 W) |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Display Resolution | HDMI 4K: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720 |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Total Bandwidth | 256 Mbps input / 160 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | With AI enabled: 1CH@12MP, 2CH@8MP, 4CH@4MP, 8CH@1080p With AI disabled: 2CH@12MP, 3CH@8MP, 6CH@4MP, 12CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels up to 4 MP. With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 2 channels of 4 MP With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage in up to 16 libraries with up to 20,000 faces in total (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | 16 Inputs / 4 Outputs |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200 and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 4 SATA 3.5" HDDs of up to 10 TB each (not included) |
| Communication | 2 x USB 2.0 front, 1 x USB 3.0 rear / 1 x RJ45 10/100M (Ethernet) / 2 x RS-485 / 1 x RS-232 |
| Power Supply | AC 100~240 V, ≤ 20 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 75 (H) x 445 (W) x 400 (D) mm / 5 Kg (without HDD) |
The DS-7732NXI-K4/16P(D) NVR is ideally suited for a variety of surveillance environments, including retail stores, office buildings, and residential complexes. In a retail setting, for instance, the device can be deployed to monitor customer activity and enhance security. With its 256 Mbps incoming bandwidth, the NVR can handle multiple high-resolution streams simultaneously, ensuring that no critical detail is missed. The facial recognition feature allows for effective identification of individuals, which can be crucial for loss prevention strategies. Additionally, the dual stream IP access enables remote monitoring via smartphones or web browsers, providing flexibility for security personnel. The AcuSense technology minimizes false alarms by filtering out non-threatening movements, thus optimizing the surveillance process. Overall, the DS-7732NXI-K4/16P(D) offers a robust solution for comprehensive security management.
