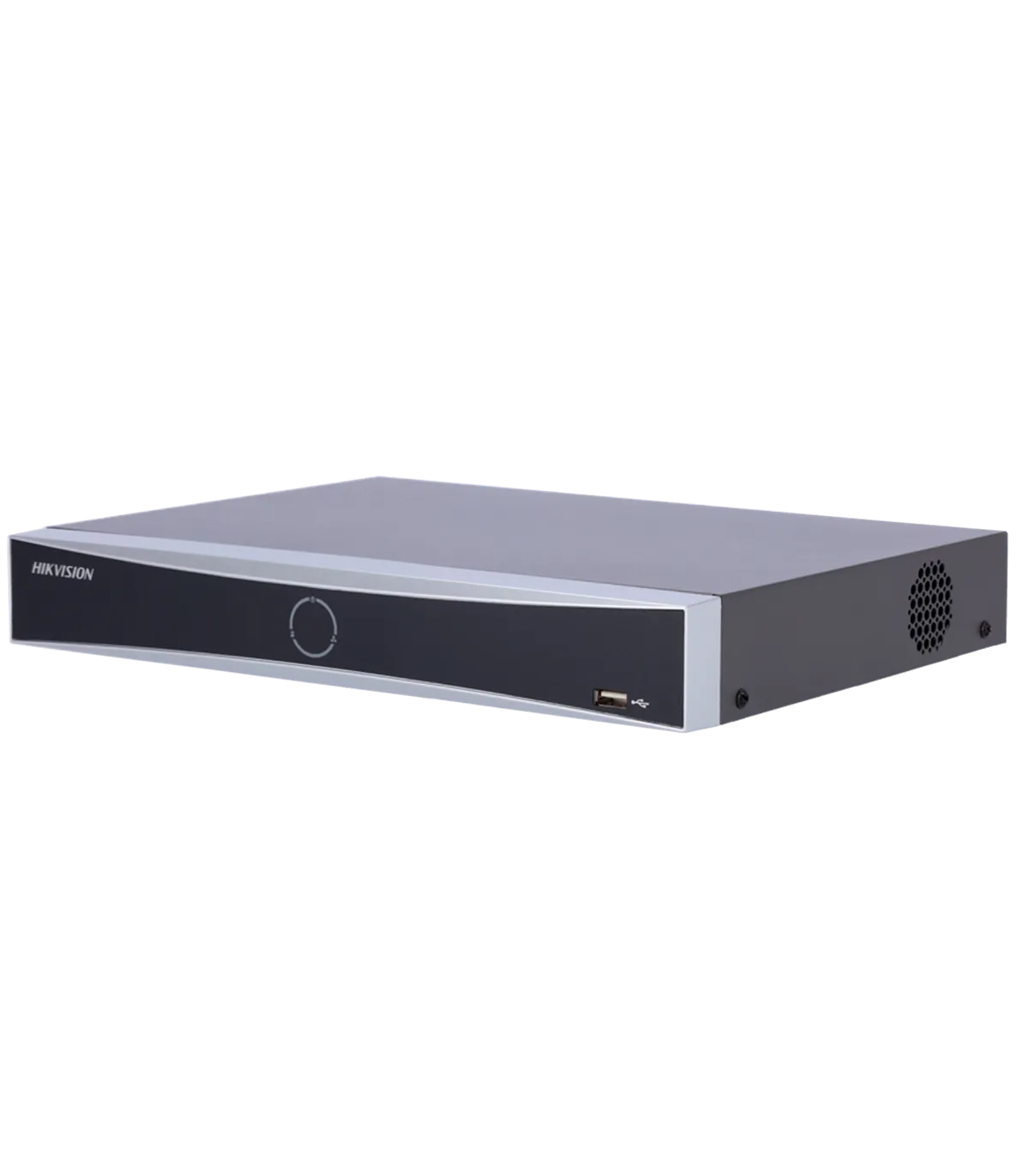

Hikvision 16-Channel AcuSense Facial Recognition NVR DS-7616NXI-K1(D)
- Hikvision NVR 16 CH IP PRO series recorder
- Maximum resolution 12MP@2ch
- Bandwidth 160 Mbps
- Supports 1 hard drive
- AcuSense | Audio
- Motion Detection 2.0 | Face Recognition
Description & Key Features: DS-7616NXI-K1(D)
The DS-7616NXI-K1(D) is a state-of-the-art NVR designed for IP camera systems, ideal for medium to large-scale surveillance applications. With support for up to 16 channels and a maximum resolution of 12 MP, this device is perfect for users seeking high-definition video quality and advanced features. Its capabilities include motion detection, facial recognition, and AcuSense technology, making it a robust solution for security needs.
- Hikvision
- PRO Series
- NVR for IP cameras
- 16 CH
- Supported incoming bandwidth 160 Mbps
- Maximum resolution 12 MP
- Compression H.265+/H.265/H.264+/H.264
- 4K HDMI and VGA output
- Motion detection 2.0 on all channels
- AcuSense, false alarm filter for vehicles and people (line crossing and area intrusion) on up to 1 channel
- Facial recognition
- Audio
- Dual Stream IP access
- Mouse included
- Space for 1 HDD
- WEB interface, CMS, and Smartphone compatibility
- ONVIF compliant
Specifications: DS-7616NXI-K1(D)
| Brand | Hikvision |
| Series | PRO |
| IP Camera Inputs | LAN port up to 16 channels |
| Compatible IP Cameras | HIKVISION (native protocol), ONVIF |
| Two-way Audio | 1 RCA input / 1 RCA output |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC |
| Video Outputs | 1xHDMI 4K, 1xVGA independent |
| Video Compression Format | H.265+ / H.265 / H.264+ / H.264 |
| Display Resolution | HDMI: 3840x2160, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Total Bandwidth | 160 Mbps input / 80 Mbps output |
| Stream Type | Video / Video + Audio |
| Main Stream Recording | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Decoding Capability | With AI enabled: 2CH@12MPx, 3CH@8MP, 6CH@4MP, 12CH@1080p With AI disabled: 2CH@12MPx, 4CH@8MP, 8CH@4MP, 16CH@1080p |
| Simultaneous Multi-function | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Motion Detection | Motion detection 2.0 with human and vehicle classification applied in motion detection For the NVR: Available on all channels. With cameras with motion detection 2.0: Available on all channels. |
| AcuSense | Rule-based VCA perimeter protection with false alarm filter for human and vehicle detection applied on: Line Crossing, Area Intrusion. For the NVR: Available on up to 1 channel of 4 MP. With AcuSense cameras: Available on all channels. |
| Facial Recognition | Face comparison, face capture, face search. Storage for up to 16 libraries with a total of up to 20,000 faces (each image ≤ 4 MB, total capacity ≤ 1 GB). Facial detection and analysis tools on up to 1CH with 8 MP. Face comparison on up to 4 CH. |
| Alarms | Not available |
| Recording Method | Manual, scheduled, motion detection |
| External Backup | USB Memory / USB HDD / USB CD-RW / USB DVR-RW |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Remote Connections | 128 |
| Internal Storage | 1 SATA 3.5" HDD up to 16 TB (not included) |

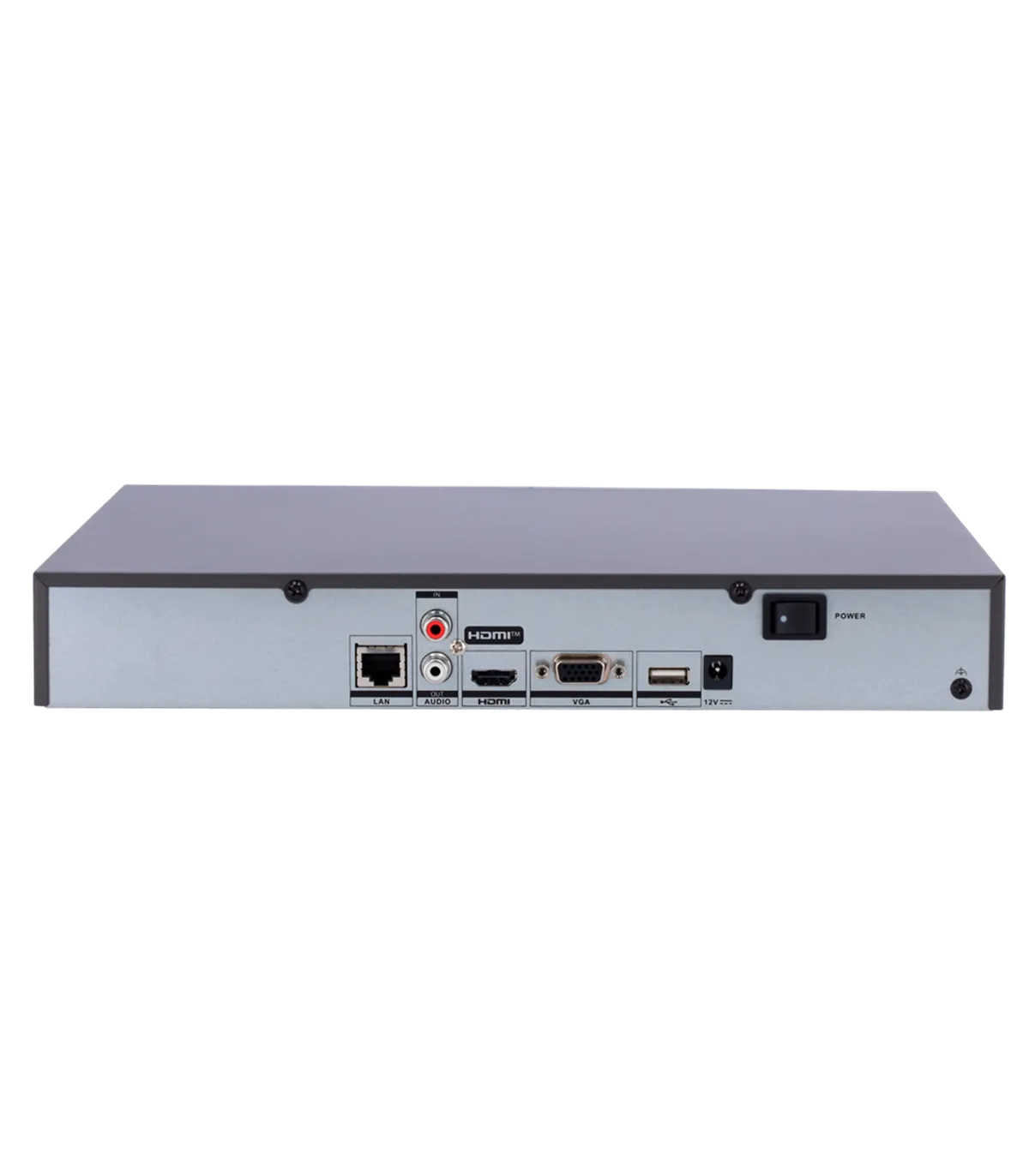

| Communication | 1 x USB 2.0 front, 1 x USB 2.0 rear / 1 x RJ45 10/100M (Ethernet) |
| Power Supply | DC 12 V / 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10ºC ~ 55ºC (10%-90% Humidity) |
| Dimensions / Weight | 48 (H) x 320 (W) x 240 (D) mm / 1 Kg (without HDD) |
Package Contents
- Hikvision NVR Recorder
- Mouse
- Ethernet Cable
- User Manual
- Cabling to connect hard drive
- Power Adapter
Use Case
The DS-7616NXI-K1(D) NVR is ideally suited for a variety of surveillance environments, such as retail stores, office buildings, and residential complexes. Installers can easily set up this plug-and-play device, which supports up to 16 IP cameras, ensuring comprehensive coverage of the premises. With its remote monitoring capabilities via the Hik-Connect app, users can access live feeds and recorded footage from anywhere, enhancing security management. The advanced AcuSense technology minimizes false alarms by accurately distinguishing between human and vehicle movements, making it an efficient choice for busy locations. Additionally, the facial recognition feature allows for effective identification and tracking of individuals, providing an added layer of security. Overall, the DS-7616NXI-K1(D) is a powerful solution for those seeking reliable and high-performance video surveillance.
Data sheet
- Brand
- HIKVISION
- Technology
- IP
- Wi-Fi
- No dispone
- Series
- Pro
- Channels
- 16
Specific References
- EAN13
- 6942160489803
