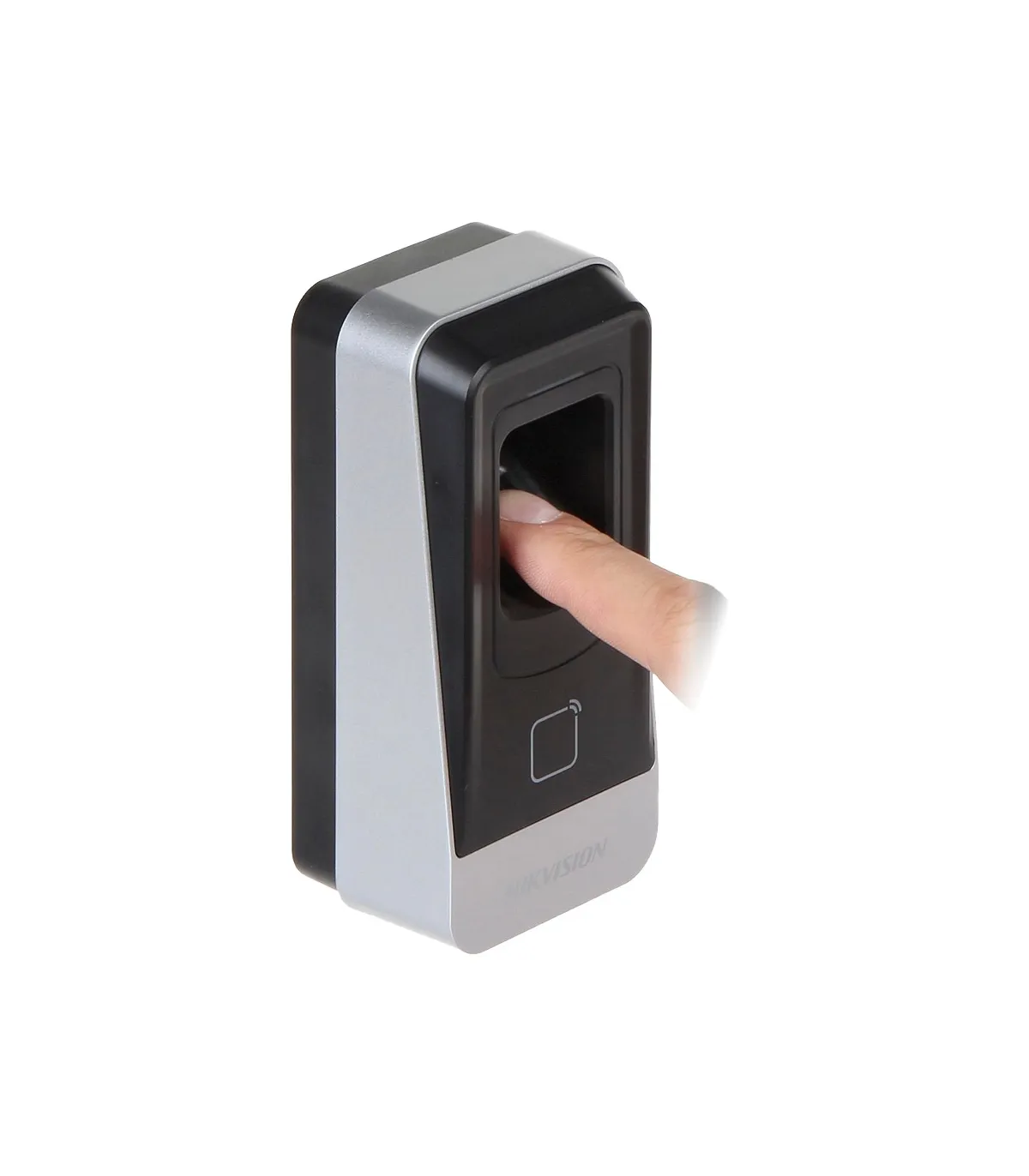

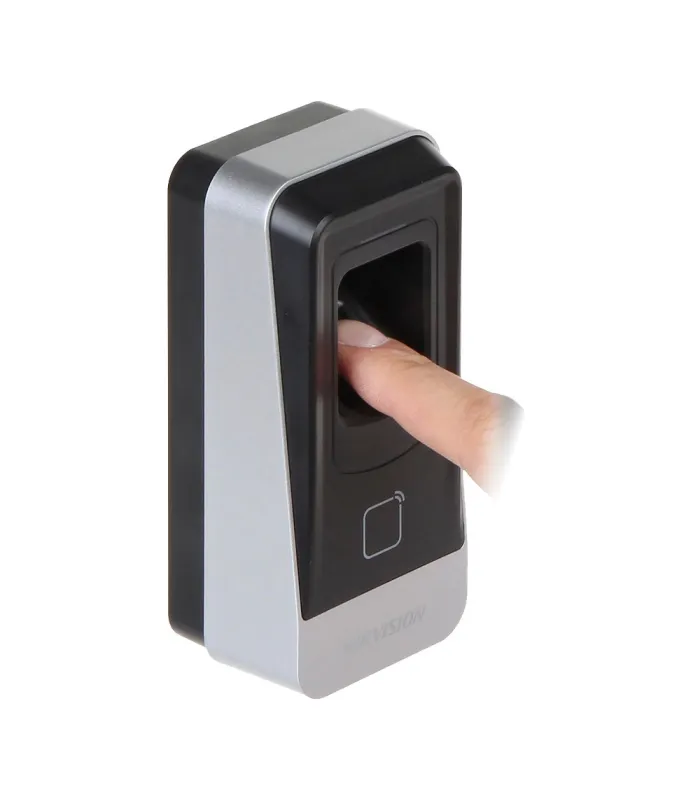

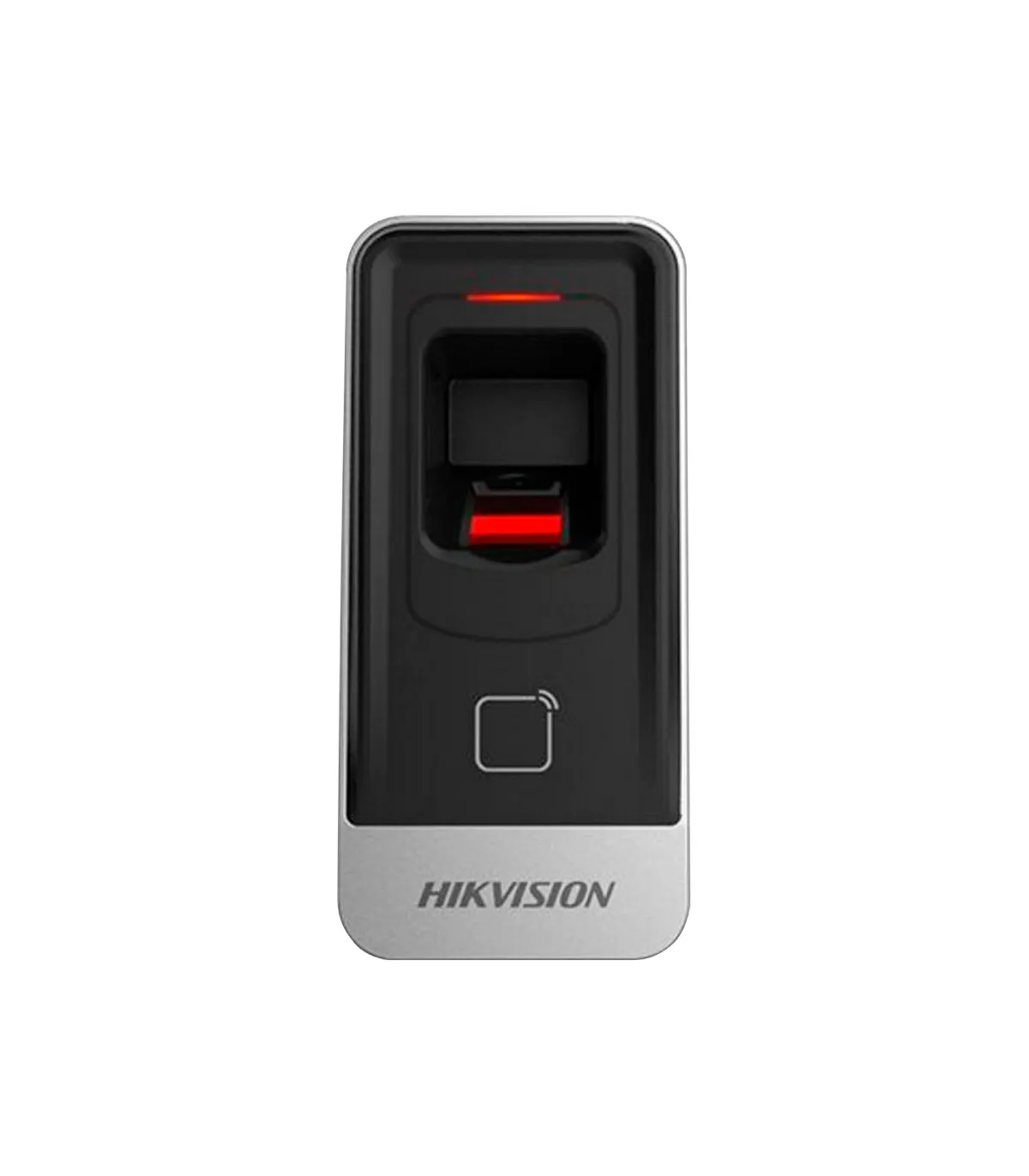

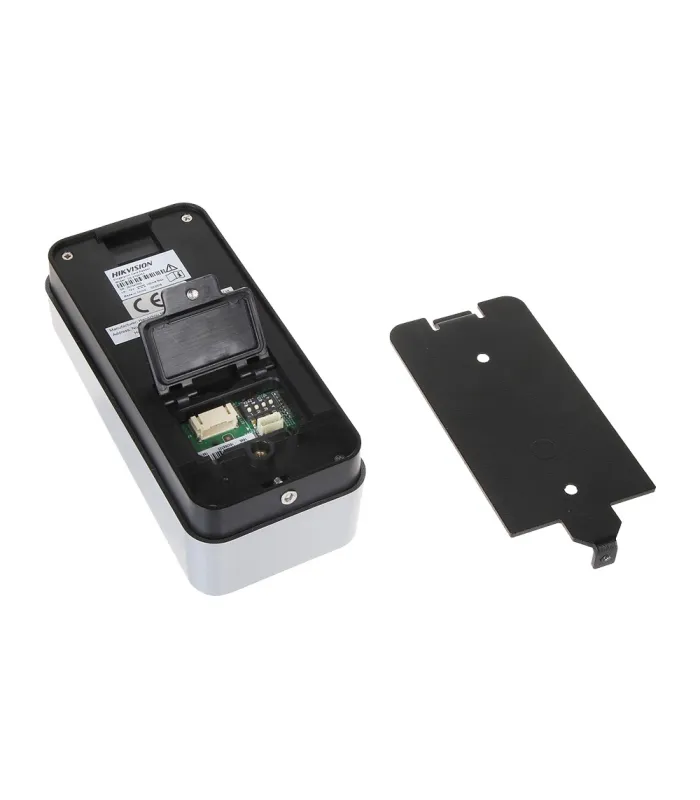

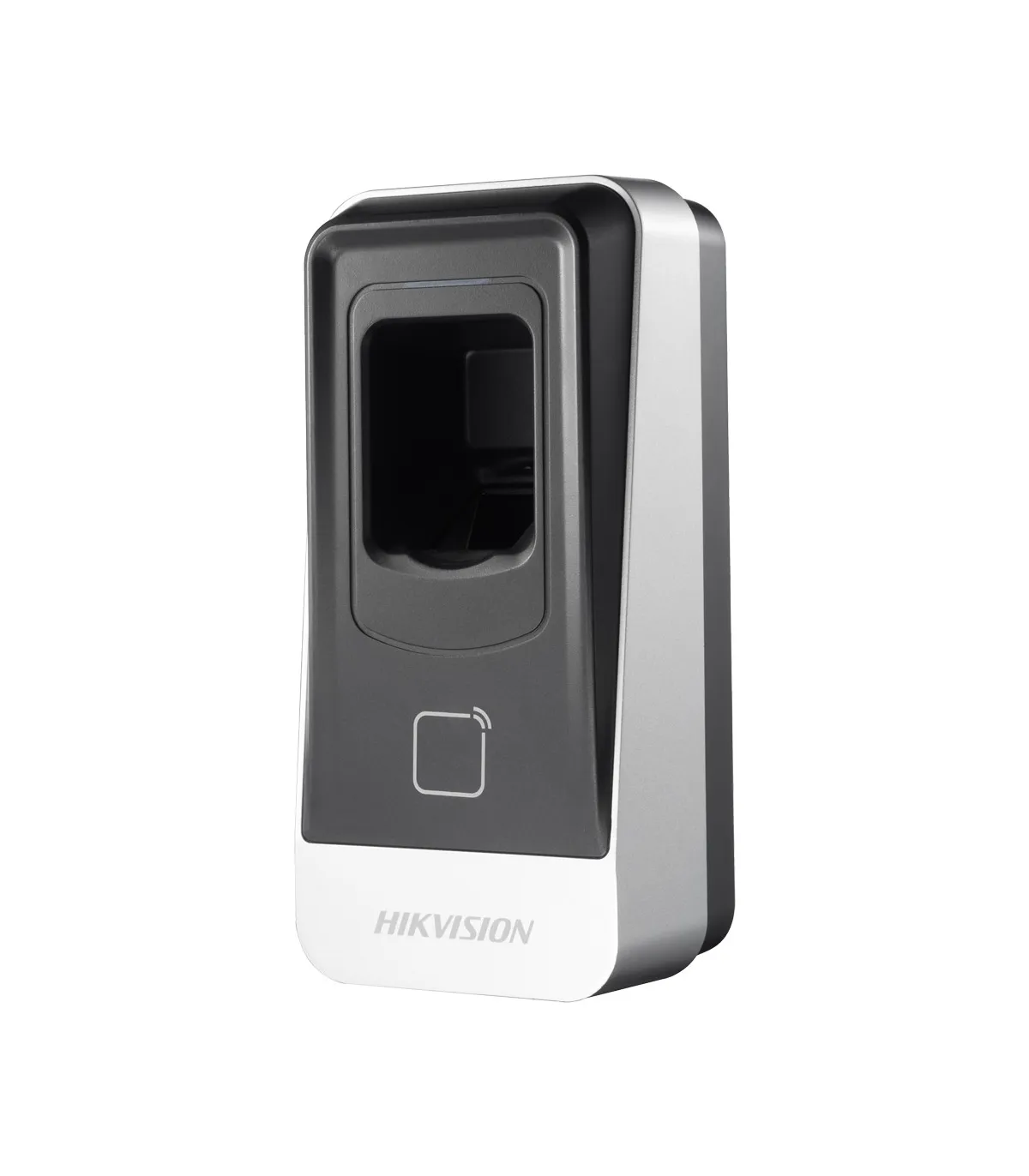

Hikvision DS-K1201AEF access reader
- Hikvision
- Access reader for controller
- Access by fingerprint and EM card
- Optical sensor
- LED signaling and acoustic indicator
- RS485
- Suitable for outdoors IP65
- Compatible with Hikvision controllers
Technical specifications
| Brand | Hikvision |
| Model | DS-K1201AEF |
| Sensor | Optical CMOS fingerprint module |
| Capacity | 5,000 fingerprints |
| Activation sensor | Infrared auto-activation |
| Verification time | < 1 sec |
| Card reading distance | 3 ~ 10 cm |
| Identification modes | Fingerprint and card (RFID EM 125 kHz) |
| Outputs | RS485, buzzer for status indication, tamper |
| Compatibility | Hikvision DS-K2600T Controllers Series |
| Power | DC 12 V / 70 mA max. |
| Protection degree | Suitable for outdoor use IP65 |
| Temp. operation | -40º C ~ +70º C |
| Dimensions | 62 (W) x 132 (H) x 44 (D) mm |
| Weight | 200 g |
Contents
- Hikvision biometric reader
- Mounting material
- Instructions for use
