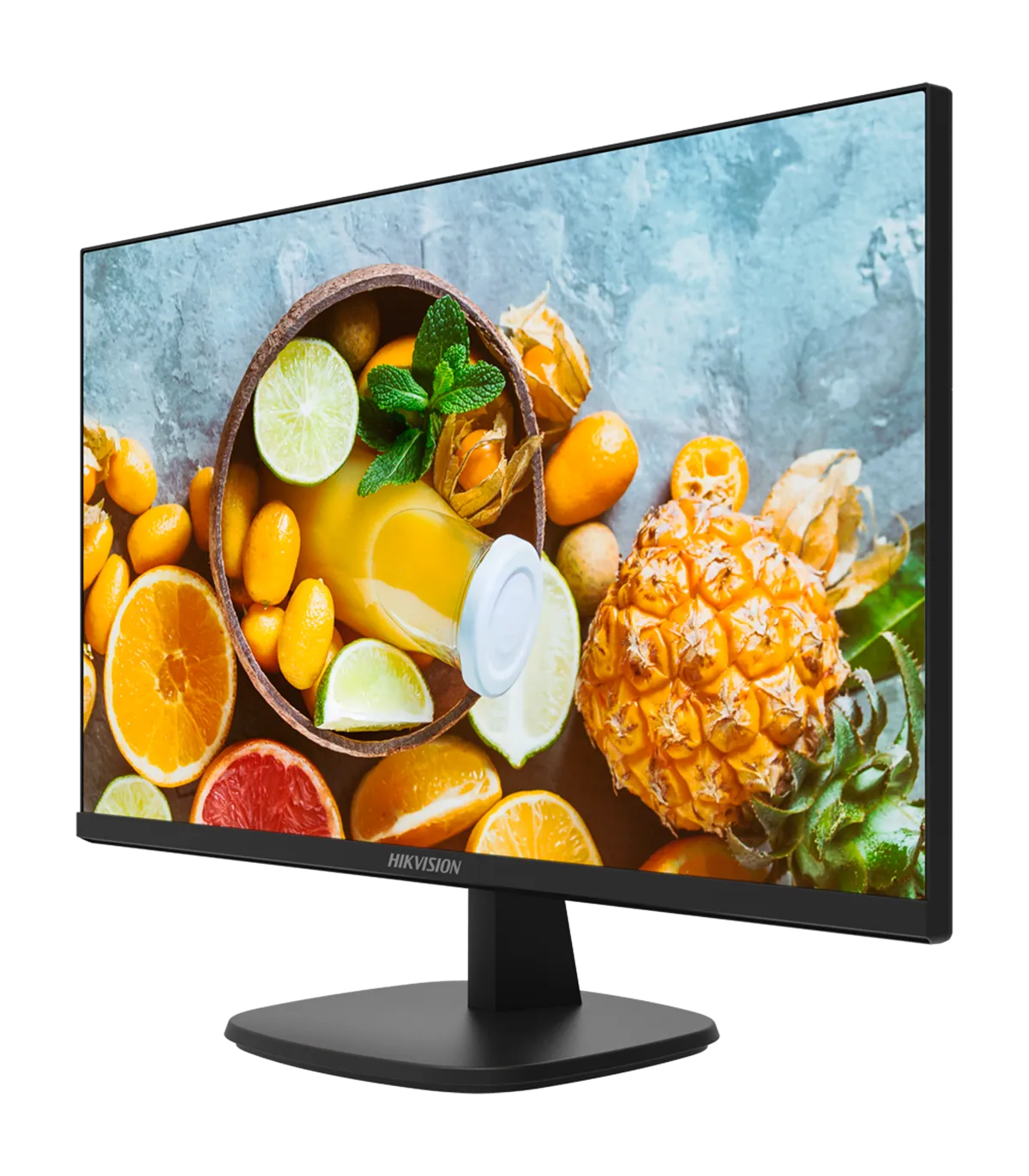

Hikvision 27-inch 4K CCTV Monitor 5 ms Response Time DS-D5227U3-1P0
- 27" Monitor
- 4K Resolution
- 60 Hz Refresh Rate
- 1200:1 Contrast
- 5 ms Response Time
Description & Key Features: DS-D5227U3-1P0
The DS-D5227U3-1P0 is a specialized CCTV monitor designed for continuous operation in security environments. It excels in providing clear and detailed video playback, making it ideal for use in commercial buildings, banks, airports, and homes. This monitor supports various video inputs, including HDMI, VGA, and BNC, ensuring compatibility with most security systems. Its advanced features enhance visibility in low-light conditions, making it a crucial component for effective surveillance and real-time monitoring.
CCTV monitors, unlike conventional monitors, are optimized for long-term use, offering superior video reproduction. They are essential in recording systems, facilitating the review of footage stored in DVRs (Digital Video Recorders) or NVRs (Network Video Recorders).
- Monitor 27"
- Resolution 4K
- Brightness 350 cd/m2
- Contrast 1200:1
- Response time 5 ms (OD)
- Operation 24/7
- VESA 100x100 mm
Specifications: DS-D5227U3-1P0
| Brand | Hikvision |
| Size | 27" |
| Resolution | 3840x2160 |
| Refresh Rate | 60 Hz |
| Aspect Ratio | 16:9 |
| Brightness | 350 cd/m2 |
| Contrast | 1200:1 |
| Response Time | 5 ms (OD) |
| Viewing Angle (Horizontal / Vertical) | 178º / 178º |
| Color Depth | 10 bits, 1.07 M |
| Color Gamut | 72% NTSC |
| Operation | 24/7 |
| Inputs | HDMI x2 DP x1 |
| Outputs | Audio 3.5 mm x1 |
| VESA | 100x100 mm |
| Average Power Consumption | <50 W |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz |
| Dimensions | Without stand: 614.7 (W) × 366.4 (H) × 53.5 (D) mm With stand: 614.7 (W) × 452.5 (H) × 226.4 (D) mm |
| Weight | 5.11 Kg |
| Operating Conditions | Temperature: 0 ~ 40 ºC Humidity (non-condensing): 20 ~ 90 % |
| Storage Conditions | Temperature: -20 ~ 60 ºC Humidity (non-condensing): 10 ~ 90 % |
Package Contents
- 27" Monitor
- Power Cable
- HDMI Cable
- Stand
- User Manual
- Quick Start Guide
Use Case
The DS-D5227U3-1P0 monitor is an excellent choice for security professionals looking to enhance their surveillance systems. In a typical deployment scenario, this monitor can be installed in a control room of a commercial building, where it will display live feeds from multiple CCTV cameras. The 4K resolution ensures that every detail is visible, which is crucial for identifying potential security threats. With its 24/7 operation capability, the monitor can continuously display footage, allowing security personnel to monitor activities in real-time. The dual HDMI inputs enable easy connectivity to various devices, making it a versatile option for any security setup. Additionally, the monitor's ability to function effectively in low-light conditions enhances its utility in environments where lighting may be a concern. Overall, the DS-D5227U3-1P0 provides a reliable and high-quality solution for effective remote monitoring and security management.
