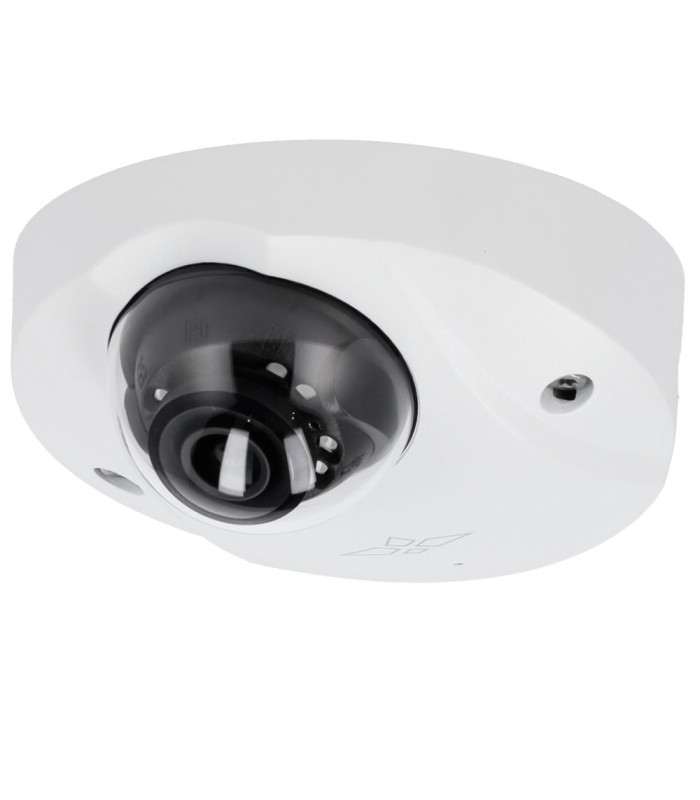

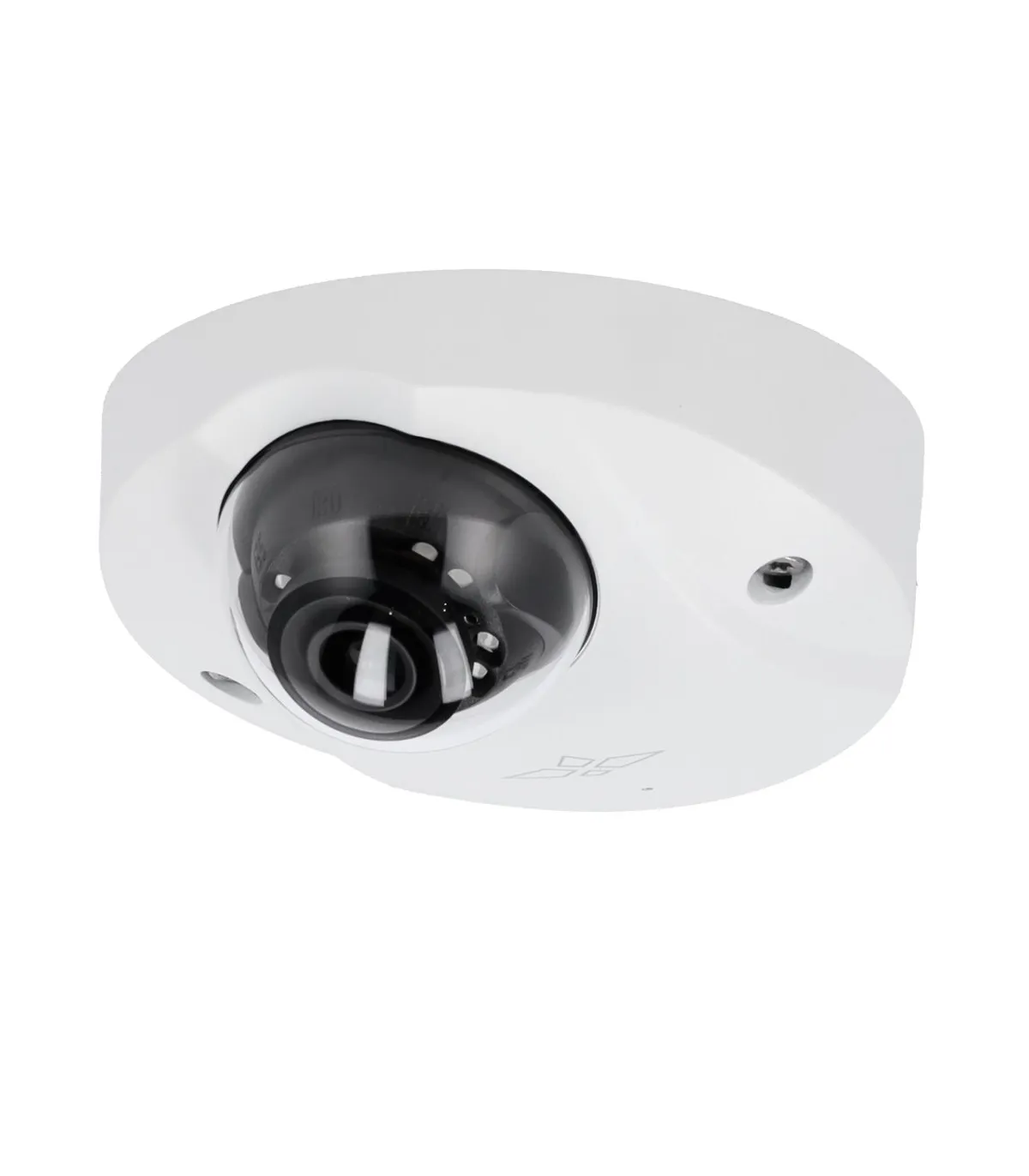

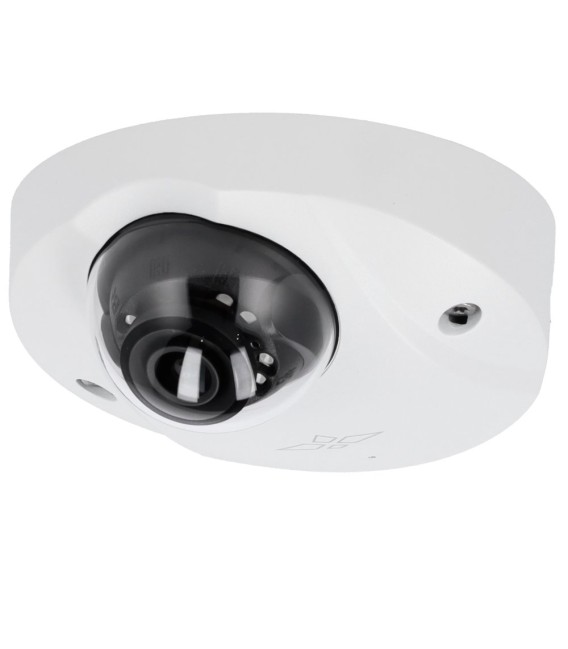

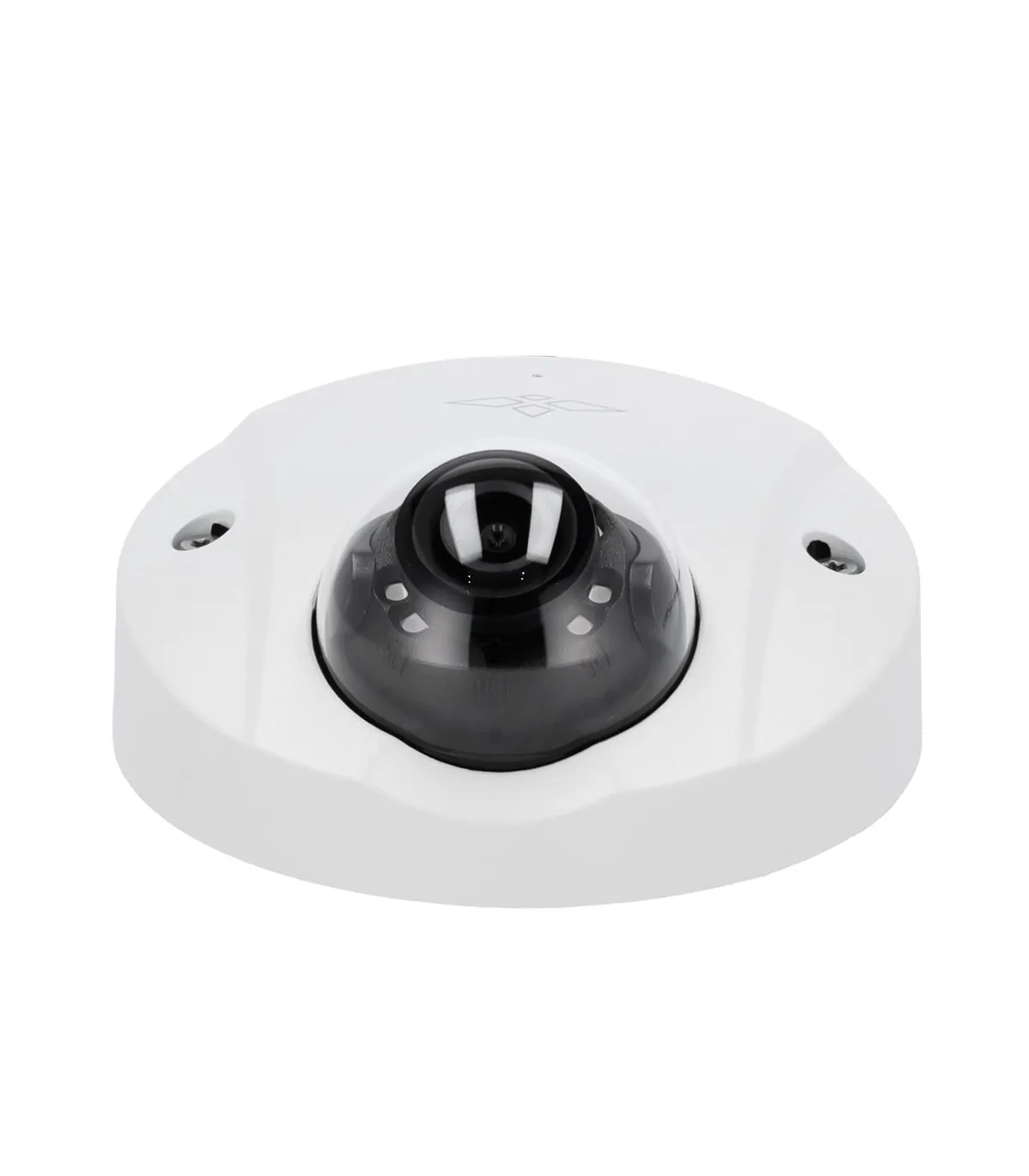

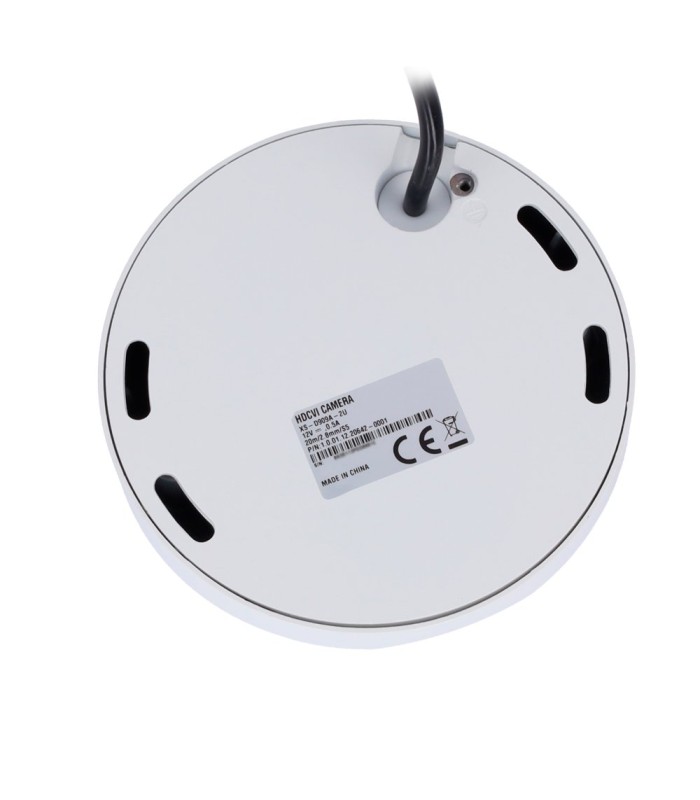

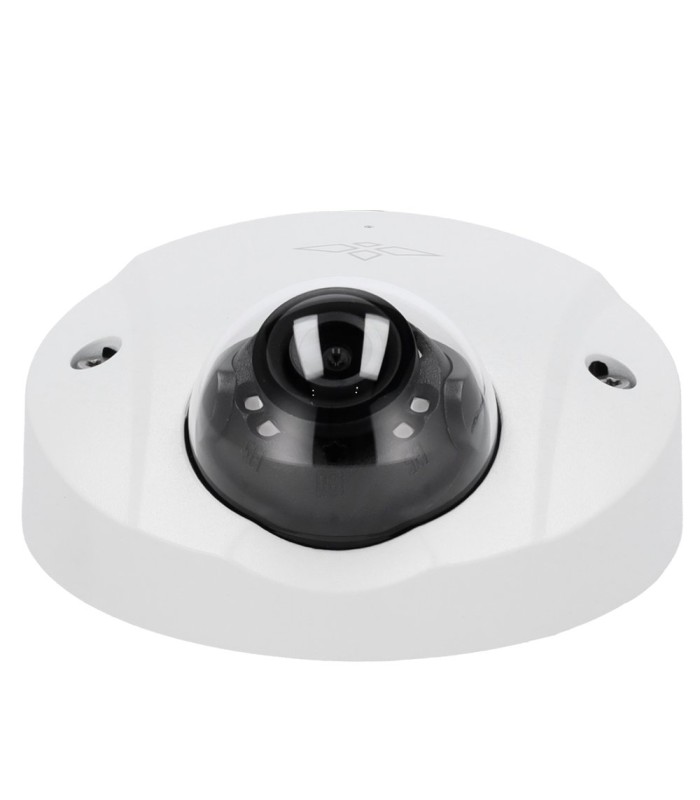

X-Security XS-D909A-2U HDCVI Dome Camera
Brand: X-SECURITY
- X-Security HDCVI Dome Camera
- 1/2.7" Progressive CMOS 2 Megapixel
- 2.8mm Lens | Built-in Microphone
- IR LEDs with 20m Range
- IP67 Weatherproof, IK10 Vandal-proof
X-Security HDCVI Dome Camera XS-D909A-2U
- X-Security
- HDCVI Dome Camera
- Micro-sized Range
- 1/2.7" 2 Mpx CMOS
- 2 Mpx (1920x1080)
- 4 in 1 Output
- 2.8 mm Lens
- Color 0.02 Lux
- B/W 0 Lux
- IR Array Range 20 m
- IR CUT
- Integrated Microphone
- IP67 Waterproof
- IK10 Vandal-proof
Technical Specifications
| Brand | X-Security |
| Image Sensor | 1/2.7” Progressive CMOS |
| Maximum Resolution | 2 Megapixel (1920x1080) |
| Main Stream Rate | CVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; AHD: 1080p@25/30fps; 720p@25/30fps; TVI: 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps; CVBS: 960H |
| Lens | 2.8 mm |
| Minimum Illumination | 0.02Lux/F1.8 (Color,1/30s,30IRE) |
| Infrared Illumination | 0 Lux / Array IR LEDs (30 m) |
| Image Enhancements | BLC, HLC, DWDR, Smart IR, 2D-NR, Privacy Masking |
| Day/Night | Mechanical ICR Filter |
| Alarm | Not available |
| Audio | Integrated Microphone |
| Power Supply | DC 12 V / 2.6 W |
| Protection Grade | IP67 Waterproof, IK10 Vandal-proof |
| Operating Temperature | -40º C ~ +60º C |
| Dimensions | (Ø) 106.0 × 50.3 mm |
| Weight | 0.47 Kg |
Contents
- HDCVI Dome Camera X-SECURITY
- 3 plugs and 3 screws for mounting
- Installation template
- User manual
