- Hikvision
- PRO Series IP Dome Camera
- 4 MP Resolution | PoE | Alarms | ColorVu
- 2.8 mm | Integrated Microphone | Audio
- Hybrid Light 30 m | Motion Detection 2.0
- AcuSense | Facial Recognition | IP67 | IK10

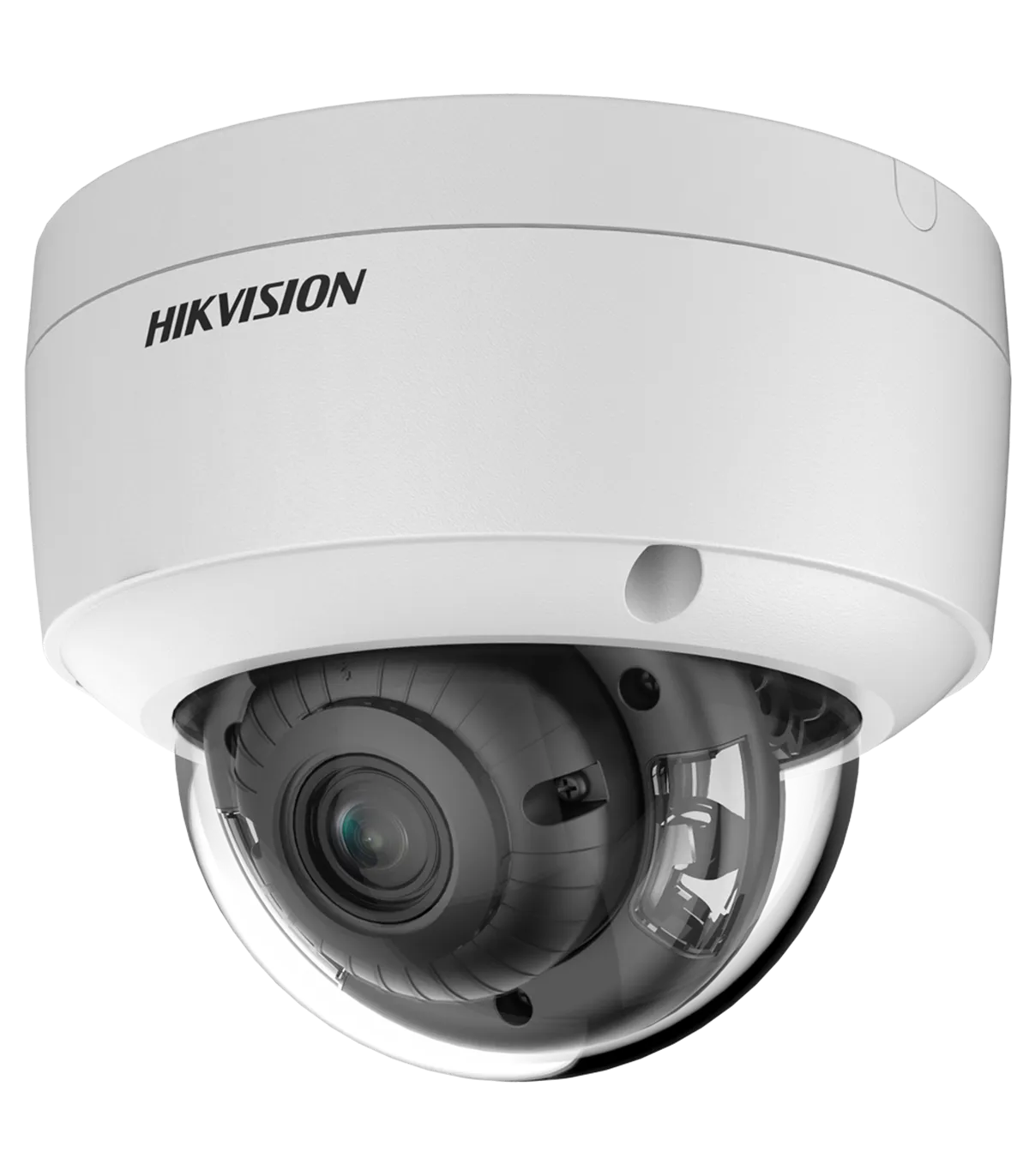

Description & Key Features: DS-2CD2147G2H-LISU(2.8mm)(eF)
The DS-2CD2147G2H-LISU(2.8mm)(eF) is a high-performance IP dome camera designed for comprehensive surveillance solutions. Ideal for both indoor and outdoor environments, this device excels in providing clear, high-definition video with its 4 Megapixel resolution and ColorVu technology, ensuring vibrant color images even in low-light conditions. With features such as motion detection and AcuSense technology, it effectively reduces false alarms while enhancing security monitoring capabilities.
- Hikvision
- PRO Series
- IP Dome Camera
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- Hybrid Light: IR and white light up to 30 m
- ColorVu: 24-hour color imaging
- Compression H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0
- AcuSense, false alarm filter for vehicles and people (Line Crossing, Area Intrusion, Entry Region, Exit Region)
- Face Capture
- WDR (130 dB)
- 3D DNR
- Integrated Microphone
- Alarms
- Audio
- MicroSD card slot up to 512 GB
- RJ-45 10/100M BaseT
- PoE IEEE802.3af
- WEB, CMS, Smartphone, and NVR interface
- ONVIF compatible
- IP67 Waterproof
- IK10 Vandal Resistant
- Eco-Friendly Packaging
Specifications: DS-2CD2147G2H-LISU(2.8mm)(eF)
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 25 fps (2688x1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 25 fps (1280x720, 640×480, 640x360) |
| Third Stream Rate | 10 fps (1920x1080, 1280x720, 640×480, 640x360) |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Lens | 2.8 mm |
| Field of View (FOV) | H: 104°, V: 54.4°, D: 126.7° |
| DORI | 61 m (D), 24 m (O), 12 m (R), 6 m (I) |
| Minimum Illumination | Color: 0.0005 Lux @(F1.0, AGC ON) 0 Lux with white light up to 30 m |
| Supplementary Lighting | Hybrid Light: IR up to 30 m White light up to 30 m |
| Day/Night | ColorVu: 24-hour color imaging |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output Integrated microphone |
| Audio Type | Mono |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Image Enhancements | WDR (130 dB), BLC, HLC, 3D-DNR, AGC, AWB, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied to motion detection. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied to: Line Crossing, Area Intrusion, Entry Area, and Exit Area. * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Face Recognition | Face Capture * Motion Detection 2.0, Face Recognition, and AcuSense cannot be enabled simultaneously. Enabling one function will disable the other two. |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10/100M BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF, ISAPI |
| Power Supply | DC 12 V / 600 mA / 7.2 W max. / PoE IEEE802.3af |
| Protection Rating | IP67 Waterproof, IK10 Vandal Resistant |
| Material | Base: Aluminum Alloy Cover: Aluminum Alloy |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | Ø 121.5 mm x 97.6 mm (H) |

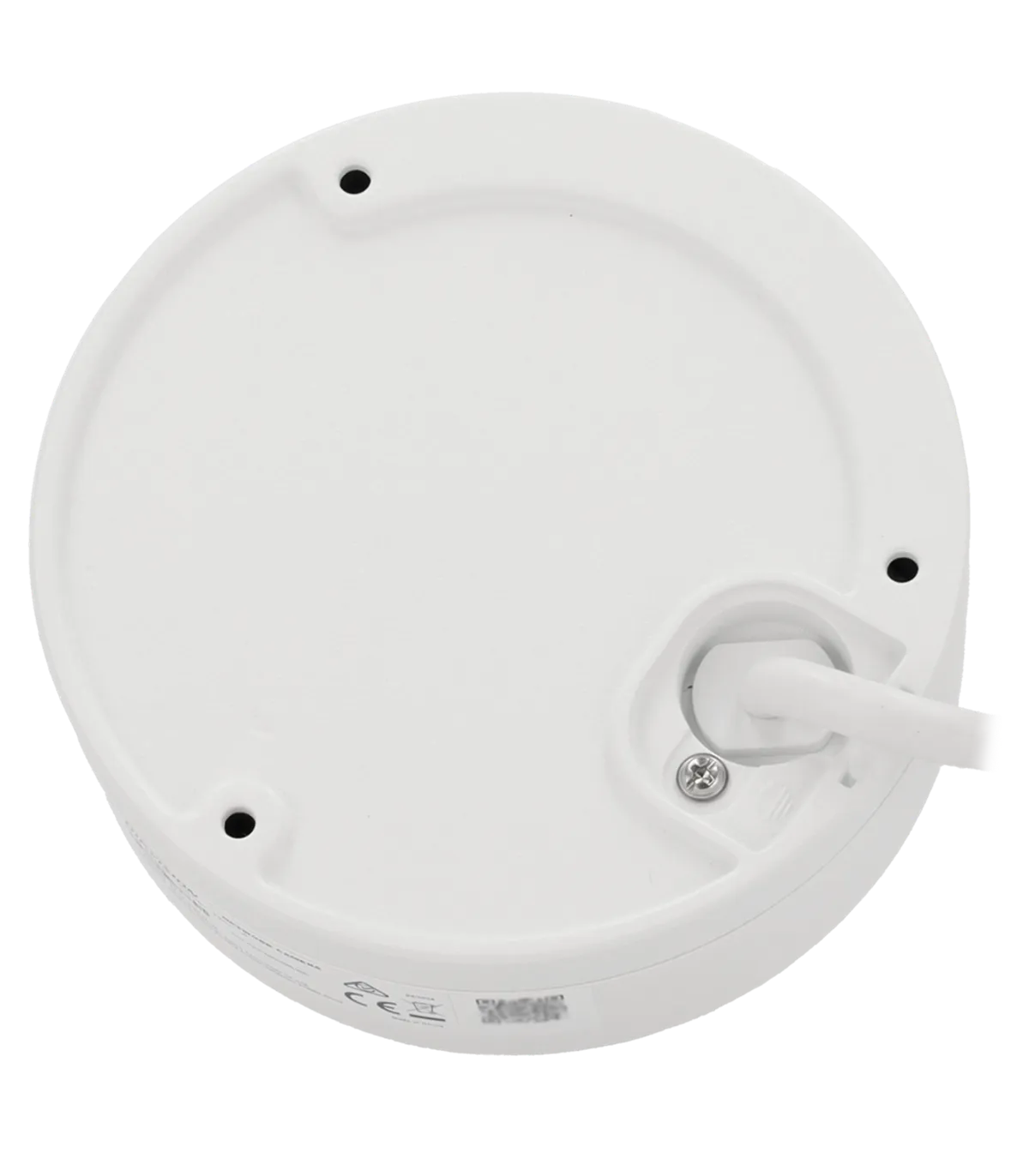

| Base Dimensions | Ø base 121.5 mm / Ø screw hole 104.7 mm / 3 screws |
| Weight | 525 g |
Package Contents
- Hikvision IP Dome Camera
- Installation Material
- User Instructions
Use Case
The DS-2CD2147G2H-LISU(2.8mm)(eF) is perfectly suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to provide 24-hour color imaging with its advanced ColorVu technology. This ensures that even in low-light conditions, the camera captures clear images, enhancing security and deterring potential theft. Additionally, the motion detection capabilities allow for real-time alerts, enabling quick responses to suspicious activities. The integration of AcuSense technology further minimizes false alarms by accurately distinguishing between human and vehicle movements. With its IP67 waterproof rating, the camera is also ideal for outdoor installations, ensuring reliable performance in various weather conditions. Overall, the DS-2CD2147G2H-LISU(2.8mm)(eF) offers a robust solution for comprehensive surveillance needs.
Data sheet
- Brand
- HIKVISION
- Resolution
- 4 Mpx
- Technology
- IP
- WDR
- WDR (130 dB)
- IR Distance
- 30 m
- Audio
- 1 Entrada / 1 Salida / Micrófono
- SD Slot
- Ranura MicroSD hasta 512 GB
- Wi-Fi
- No dispone
- IP Rating
- IP67
- IK Rating
- IK10
- Series
- PRO
- POE
- PoE (IEEE802.3af)
- Lens
- 2.8 mm
- Compatible models
- DS-1280ZJ-DM46,DS-1280ZJ-DM46,DS-1276ZJ-SUS,DS-1276ZJ-SUS,DS-1275ZJ-SUS,DS-1275ZJ-SUS,DS-1272ZJ-120B,DS-1272ZJ-120B,DS-1272ZJ-120,DS-1272ZJ-120,DS-1271ZJ-120,DS-1271ZJ-120
Specific References
- EAN13
- 6942160430508
