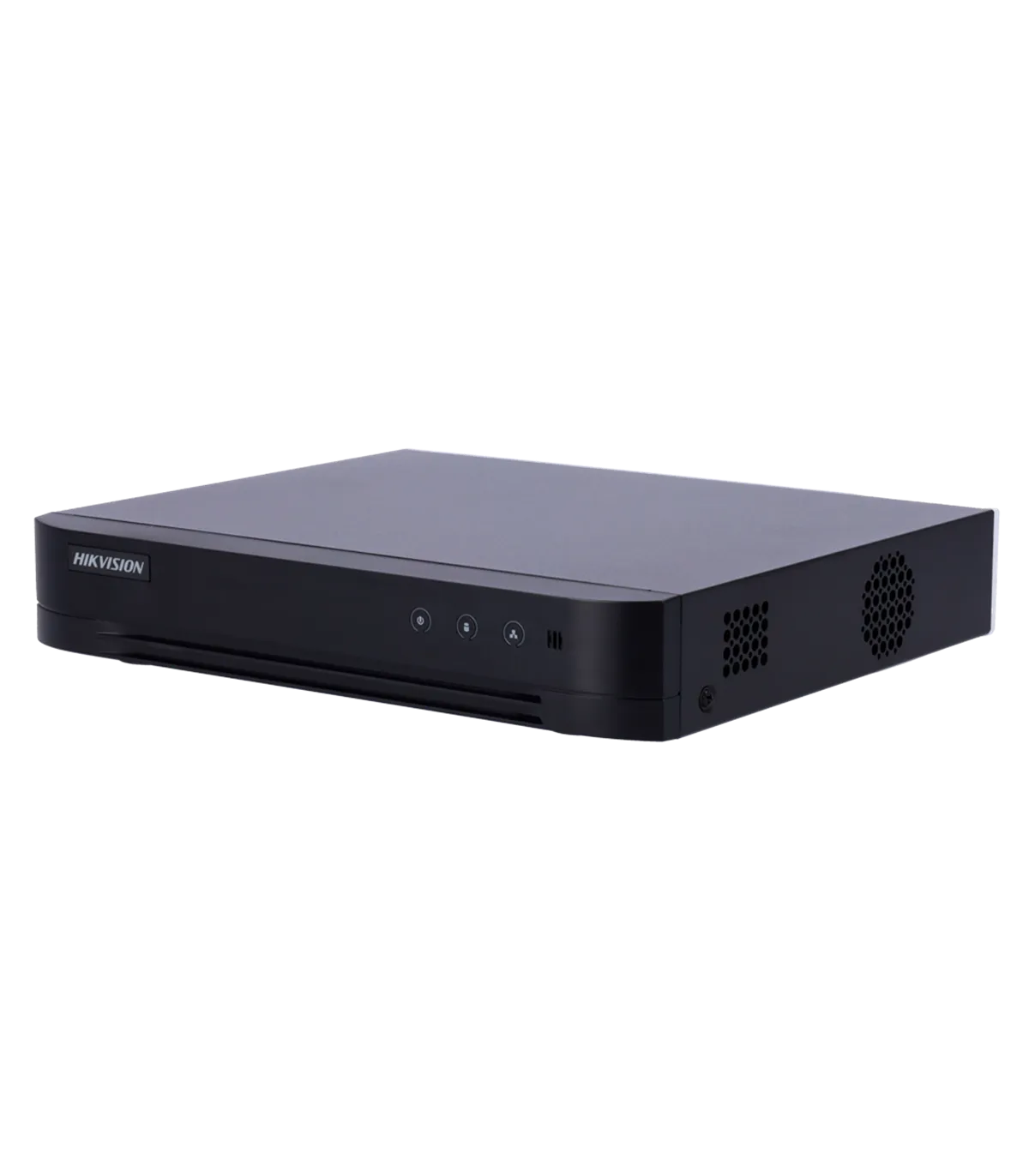

The DS-7204HGHI-M1/T is a versatile 5-in-1 DVR designed for comprehensive video surveillance solutions. It supports multiple video formats including HDTVI, HDCVI, AHD, and CVBS, making it ideal for various installation environments. With a maximum input resolution of 1080p Lite and advanced compression technologies like H.265 Pro+, this device ensures efficient storage and high-quality video playback.
| Brand | HIKVISION |
| Series | VALUE |
| Video Format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video Inputs | 4 BNC Channels (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid Configuration | 1 additional IP CH: Up to 5 IP channels (5 MP), replacing all BNC channels |
| Available Bandwidth | 64 Mbps |
| Video Outputs | 1 HDMI Full HD and 1 VGA, simultaneous; |
| Display Resolution | HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz VGA: 1920x1080, 1280x1024, 1280x720 / 60 Hz |
| Audio Inputs | Audio over coaxial on all channels 1 RCA Channel |
| Audio Outputs | 1 RCA Channel |
| Two-way Audio | Reusing the audio input |
| Audio Bit Rate | 64 Kbps |
| Audio Compression | G.711u |
| Video Compression | Analog channels: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 IP channels: H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 1080p Lite/ 720p Lite/ VGA/ WD1/ 4CIF/ CIF |
| Input Resolution | HDTVI: 1080p (25~30 fps), 720p (25~30 fps) HDCVI: 1080p (25~30 fps), 720p (25~30 fps) AHD: 1080p (25~30 fps), 720p (25~30 fps) CVBS: PAL/NTSC |
| Main Stream Encoding | For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25 fps) For 720p stream: 720p/WD1/4CIF/VGA/CIF (25 fps) For SD stream: WD1/4CIF/VGA/CIF (25 fps (P), 30 fps (N)) |
| Extra Stream Encoding | 4CIF (15 fps); CIF/QVGA (25 fps (P), 30 fps (N)) |
| Video Bit Rate | 32 Kbps to 4 Mbps |
| Simultaneous Multifunction | Pentaplex: Live, Recording, Playback, Backup, and Remote Access |
| Alarms | Not available |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. Available on all analog channels. |
| Recording Method | Manual, scheduled, motion detection |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal Storage | 1 SATA 3.5" HDD up to 4 TB (not included) |
| Communication | 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet) |
| Remote Connections | 32 |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Power Supply | DC 12 V, 1.5 A, ≤ 10 W (without HDD) |
| Operating Temperature | -10° ~ +55° C |
| Dimensions | 48 (H) mm x 263 (W) mm x 220 (D) mm |
| Weight | ≤ 0.8 Kg (without HDD) |
The DS-7204HGHI-M1/T is ideally suited for small to medium-sized businesses looking to enhance their security infrastructure. In a typical deployment, this 5-in-1 DVR can be integrated with existing analog cameras, allowing for a seamless transition to a more advanced surveillance system. Installers can take advantage of its motion detection 2.0 feature, which classifies human and vehicle movements, ensuring that only relevant alerts are generated. The device's remote access capabilities via web browsers and mobile apps enable users to monitor their premises from anywhere, providing peace of mind. Additionally, the HDMI Full HD output allows for high-quality video playback on larger screens, making it easier to review footage during investigations. With a maximum input resolution of 1080p Lite, this DVR ensures that every detail is captured, enhancing overall security effectiveness.
