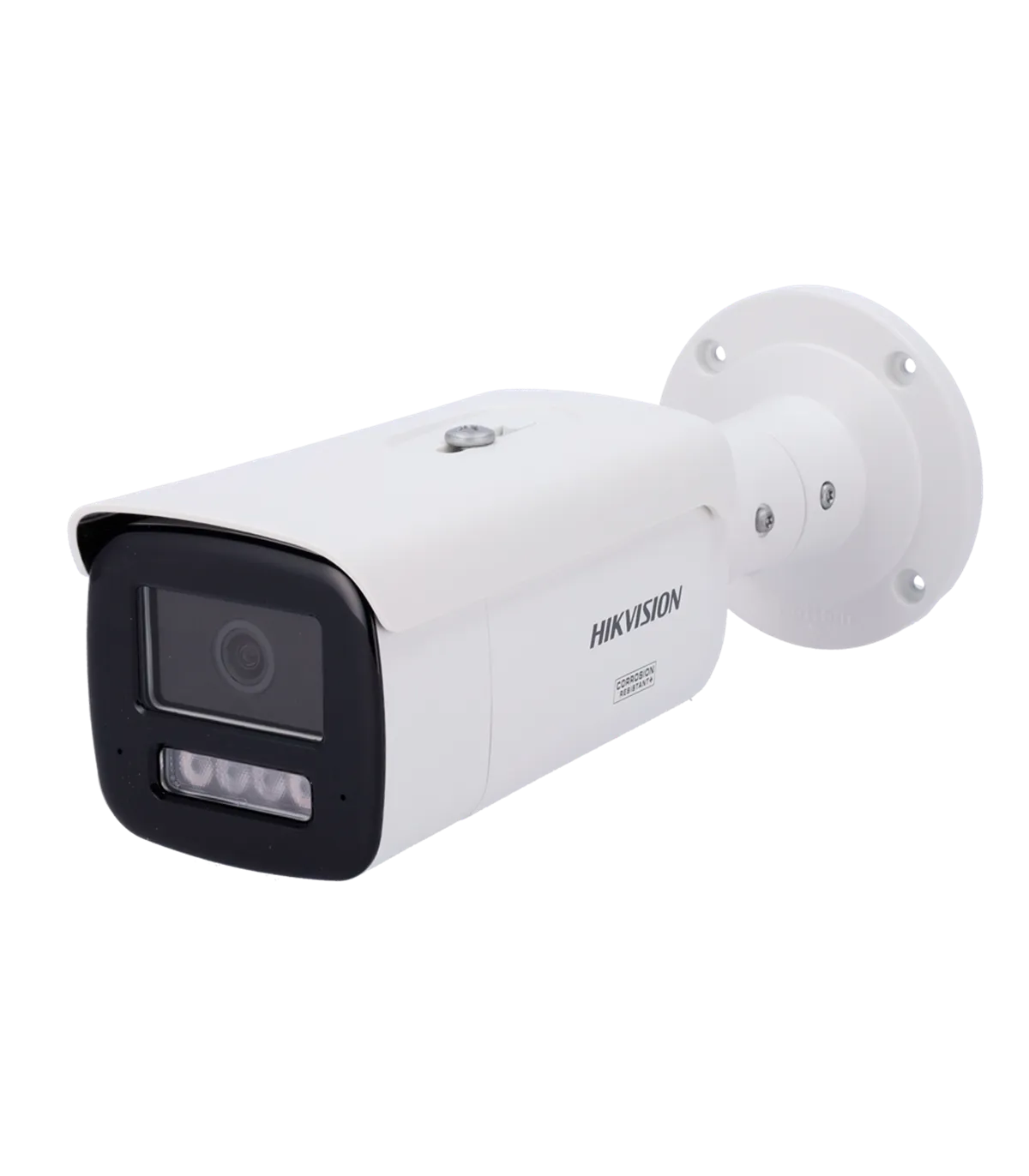

The DS-2CD2T43G2-4LIZ2UY is a high-performance IP Bullet Camera designed for advanced surveillance applications. With its 4 Megapixel resolution and dual lens options of 2.8mm and 4mm, this camera is ideal for both indoor and outdoor environments, providing clear and detailed images. It features H.265+ compression technology, ensuring efficient storage and bandwidth usage while maintaining high-quality video. The camera is equipped with hybrid illumination, allowing for effective monitoring even in low-light conditions, making it suitable for various security needs.
| Brand | HIKVISION |
| Series | PRO |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Maximum Resolution | 4 Megapixel (2688x1520) |
| Main Stream Rate | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps (2688×1520, 1920×1080, 1280×720) |
| Extra Stream Rate | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third Stream Rate | 50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) 60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream supported only under certain conditions |
| Compression | H.265+ / H.264+ / H.265 / H.264 |
| Bitrate | 32 Kbps ~ 8 Mbps |
| Optics | Dual lens options of 2.8/4 mm |
| Field of View (FOV) | 2.8 mm: H: 99.3°, V: 54.8°, D: 120.2° 4 mm: H: 80.0°, V: 44.1°, D: 94.0° |
| DORI | 2.8mm: D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4mm: D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m |
| Electronic Shutter | 1~1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) 0 Lux with IR |
| Supplementary Illumination | Hybrid light: IR range 80 m White light range 80 m |
| Day/Night | Removable ICR mechanical filter |
| Image Enhancements | WDR (120 dB), BLC, HLC, 3D-DNR, ROI, Mirror function, Privacy masking |
| ANR | Yes |
| Motion Detection | Motion Detection 2.0 with human and vehicle classification applied in motion detection. * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Smart Functions | AcuSense Deep Learning-based technology for human and vehicle classification with false alarm reduction applied on: Line Crossing, Area Intrusion * Motion detection and AcuSense cannot be enabled simultaneously on the same device. |
| Face Capture | Yes |
| Internal Storage | MicroSD card slot up to 512 GB |
| Network Interface | Ethernet 10 / 100 BaseT |
| Remote Access | Web Browser, Hik-Connect Smartphone App, PC Software iVMS-4200, and Hik-Central |
| Interoperability | ONVIF (Profile S, G), ISAPI, SDK |
| Power Supply | DC 12 V / 910 mA / 11 W max. PoE IEEE802.3af, class 3, 12.5 W max. |
| Protection Grade | IP67 waterproof NEMA 4X corrosion-resistant |
| Material | Metal |
| Operating Temperature | -30º C ~ +60º C |
| Dimensions | 88.7 mm (W) x 91.2 mm (H) x 287.2 mm (D) |
| Base Dimensions | Ø base 105 mm / Ø between screws 89 mm / 4 screws |
| Weight | 1165 g |
The DS-2CD2T43G2-4LIZ2UY is ideally suited for a variety of surveillance applications, including retail stores, parking lots, and residential areas. For instance, in a retail environment, this camera can be strategically placed at entrances and exits to monitor customer traffic and enhance security measures. With its hybrid illumination capabilities, it ensures clear visibility even in low-light conditions, making it perfect for nighttime monitoring. The motion detection feature, combined with AcuSense technology, allows for precise identification of human and vehicle movements, significantly reducing false alarms. Additionally, the camera's remote access capabilities enable users to monitor live feeds from their smartphones or computers, providing peace of mind. The robust IP67 rating ensures durability against harsh weather conditions, making it a reliable choice for outdoor installations. Overall, the DS-2CD2T43G2-4LIZ2UY offers a comprehensive solution for effective surveillance and security management.
