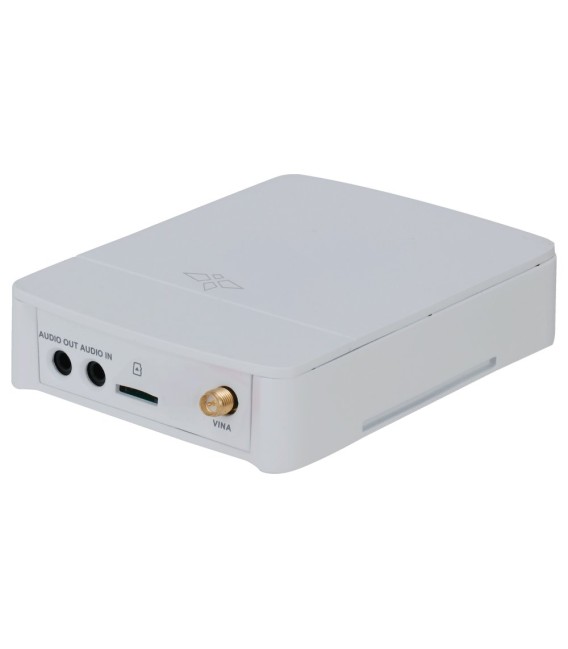

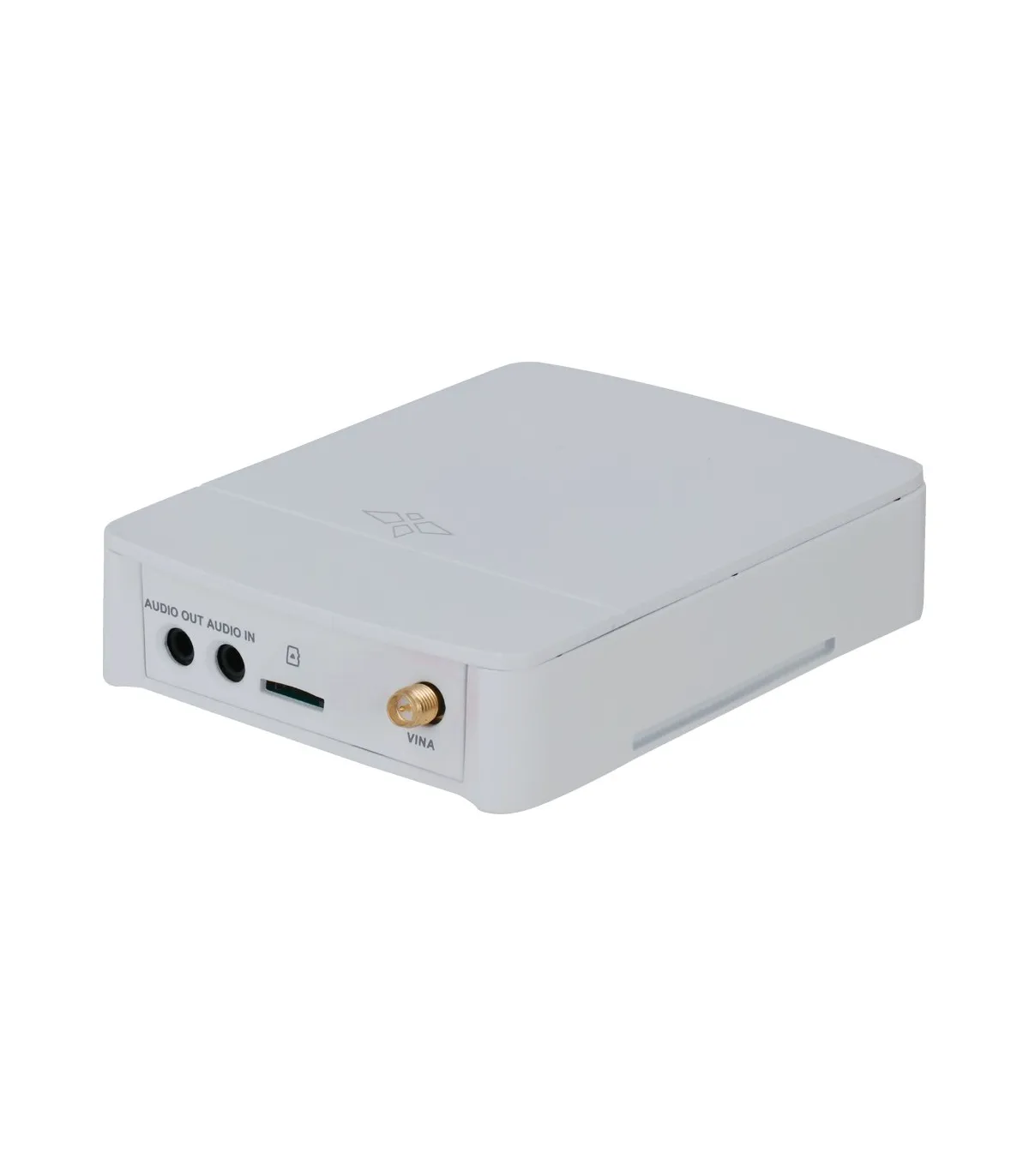

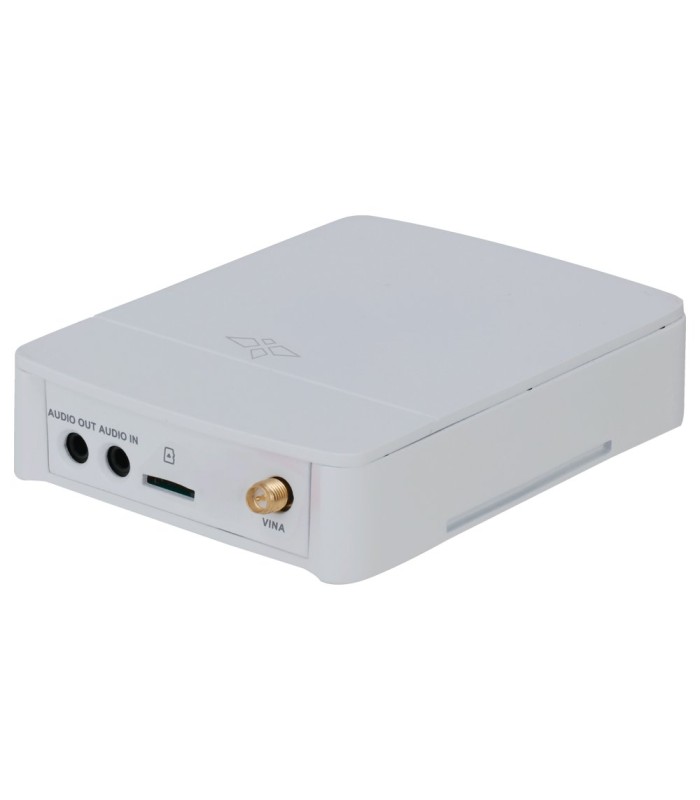

Main Box for X-Security XS-IPMCBOX-4 mini cameras
Brand: X-SECURITY
- Main Box for X-Security mini cameras
- 4 Megapixel (2592x1944)
- Requires lenses to function
- Supports up to 3 streams
- Compression H.265+/H.265/H.264+/H.264
Main Box for X-Security XS-IPMCBOX-4 mini cameras
- X-Security
- Main Box for mini cameras
- 4 Megapixel (2688x1520)
- Capacity for 3 streams
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Perimeter protection, false alarm filter for vehicles and people
- Face Capture: Compatible with facial recognition recorders
- PoE IEEE802.3af
- Audio
- Alarms
- Recording on SD card
- Intelligent detection: faces, line crossing, intrusion, scene changes
- WEB interface, CMS (DSS/PSS), Smartphone and NVR
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Maximum Resolution | 4 Megapixel (2592x1944) |
| Main Stream Rate | 2688×1520 (1–25 fps) |
| Extra Stream Rate | Sub stream: 704×576 (1–25 fps) Third stream: 1920×1080 (1–25 fps) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | Compatible with lenses: XS-IPMC-4U-L1, XS-IPMC-4U-L3, XS-IPMC-4U-L4, XS-IPMC-4U-L5 |
| Image Enhancements | BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking |
| Day/Night | Automatic electronic filter |
| Intelligent Functions | Face detection, line crossing, intrusion, scene changes, and audio detection |
| Network Interface | Ethernet 10/100 BaseT |
| Internal Storage | SD Card Slot, Max 128 GB |
| Alarms | 2 Input / 2 Relay |
| Audio | 1 Input / 1 Output |
| Remote Access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 4.8W mA, PoE IEEE802.3af |
| Operating Temperature | -40º C ~ 60º C |
| Protection Rating | Indoor |
| Unit Dimensions | 110 mm (H) x 83 (W) x 24 (D) mm |
| Weight | 210 g |
Content
- Main Box X-SECURITY
- Installation material
- Instructions for use
