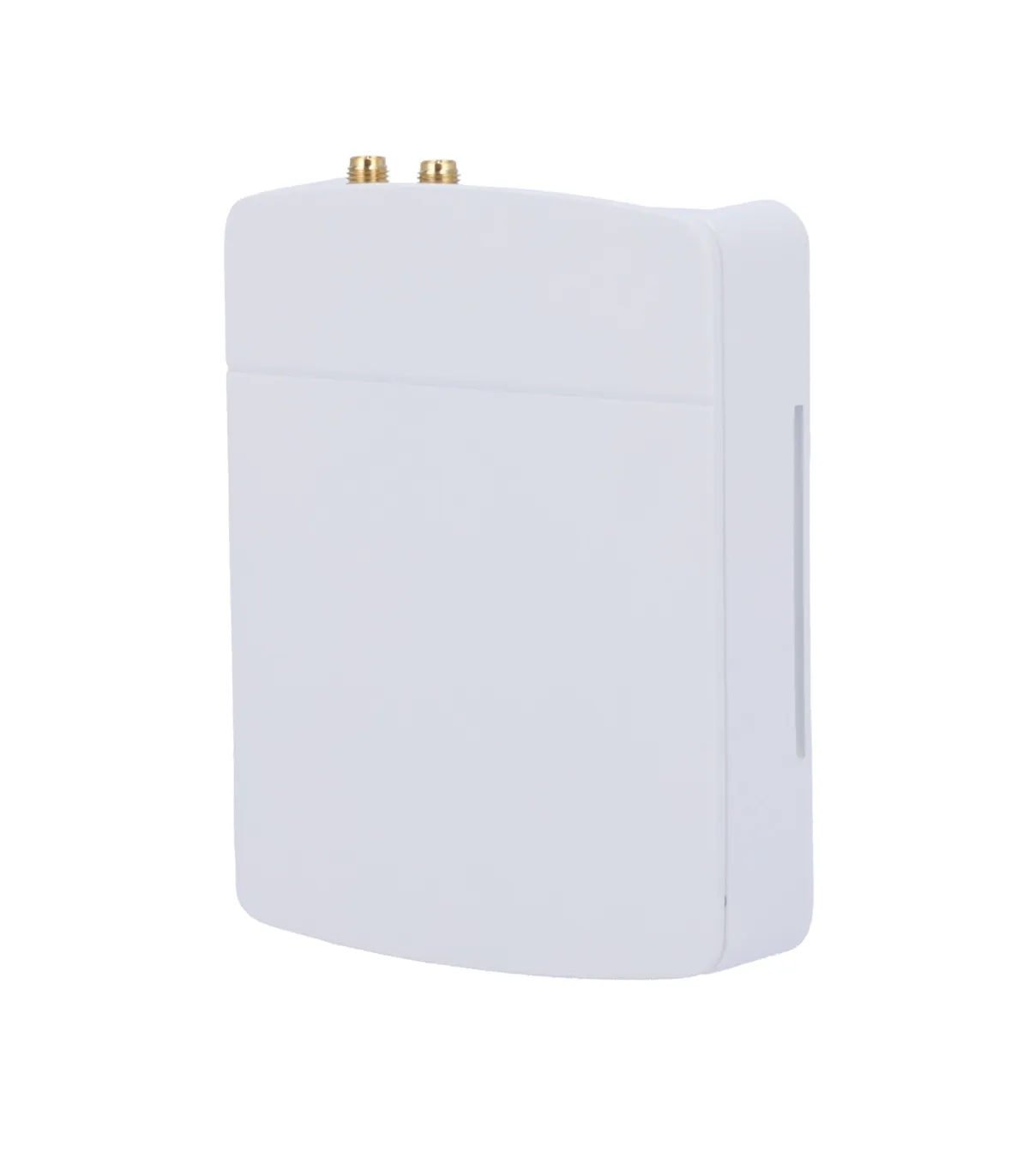

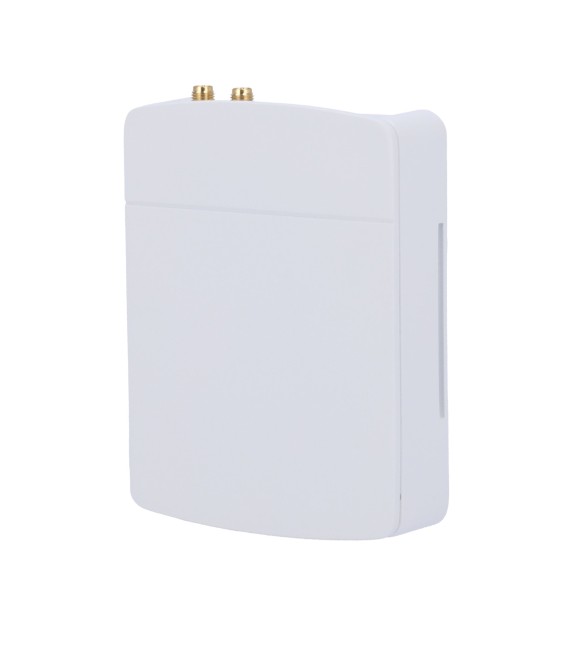

Main Box for X-Security XS-IPMCBOX-5 mini cameras
Brand: X-SECURITY
- Main Box for X-Security mini cameras
- 5 Megapixel (2592x1944)
- Requires lenses to function
- Capable of 2 streams
- Compression H.265+/H.265/H.264+/H.264
Main Box for X-Security XS-IPMCBOX-5 mini cameras
- X-Security
- Main Box for mini cameras
- 5 Megapixel (2592x1944)
- Capacity for 2 streams
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Perimeter protection, false alarm filter for vehicles and people
- Face Capture: Compatible with facial recognition recorders
- PoE IEEE802.3af
- Audio
- Alarms
- Recording on SD card
- Intelligent detection: faces, line crossing, intrusion, scene changes
- WEB interface, CMS (DSS/PSS), Smartphone and NVR
- Compatible with ONVIF
Technical Specifications
| Brand | X-SECURITY |
| Maximum resolution | 5 Megapixel (2592x1944) |
| Main Stream Rate | 2592×1944 (1–20 fps ), 2688×1520 (1–25 fps ) |
| Extra Stream Rate | D1 / 720P (1 ~ 25 FPS) |
| Compression | H.265+/H.265/H.264+/H.264 |
| Lens | Compatible with lenses: XS-IPMC-4U-L1, XS-IPMC-4U-L3, XS-IPMC-4U-L4, XS-IPMC-4U-L5 |
| Image enhancements | BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking |
| Day/Night | Automatic electronic filter |
| Intelligent functions | Face detection, line crossing, intrusion, scene changes, and audio detection |
| Network interface | Ethernet 10/100 BaseT |
| Internal storage | SD Card Slot, Max 128 GB |
| Alarms | 2 Input / 2 Relay |
| Audio | 1 Input / 1 Output |
| Remote access | WEB interface, CMS (DSS/PSS), Smartphone and NVR |
| Interoperability | ONVIF |
| Power | DC 12 V / 5.1W mA, PoE IEEE802.3af |
| Operating temperature | -40º C ~ 60º C |
| Protection rating | Indoor |
| Unit dimensions | 110 mm (H) x 83 (W) x 24 (D) mm |
| Weight | 210 g |
Content
- Main Box X-SECURITY
- Installation material
- Instructions for use
