Hikvision DS-KIS605-P(C) video intercom kit
- Hikvision
- Video intercom kit
- IP & WiFi technology

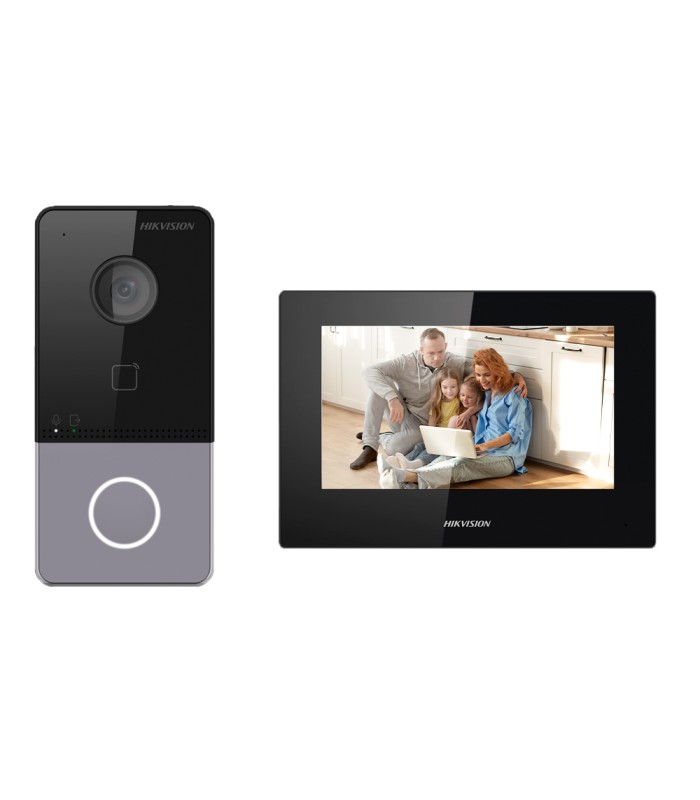

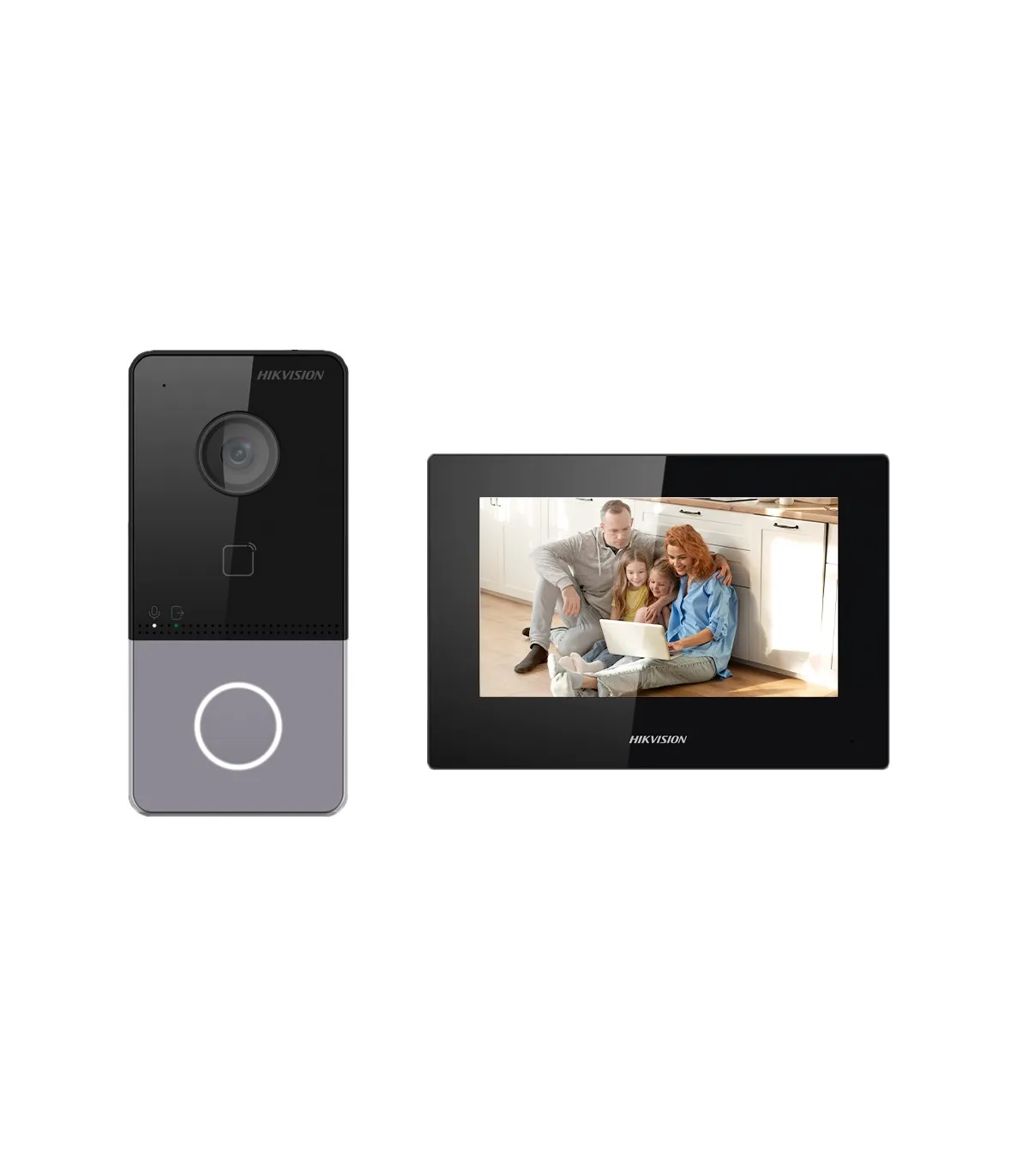

- Kit consisting of: DS-KV6113-WPE1(C) surface-mounted video intercom exterior panel with 2 Mpx HD camera and DS-KH6320-LE1(B) indoor monitor with 7" TFT LCD screen
- MF card reader
- Monitoring via iVMS-4200 software or Hik-Connect mobile app
- Allows you to add up to 16 additional monitors as extensions
Technical specifications
DS-KV6113-WPE1(C) | |
| Brand | Hikvision |
| Model | DS-KV6113-WPE1(C) |
| Operating system | Linux |
| Image Sensor | 1/3" 2 Mpx CMOS wide angle IR |
| Image functions | BLC / WDR / DNR |
| Angle vision | H: 131º, V: 78º |
| Audio | Two-way audio with microphone and speaker |
| Access control | Door opening with 13.56 MHz MF card Up to 2,000 users and 10,000 cards |
| Keyboard | Mechanical call button |
| Outputs | 1 x lock relay, 1 x RS485 |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x tamper |
| Remote Access | Web Browser iVMS-4200 Software Hik-Connect Mobile Application |
| Network Interface | Ethernet 10/100 BaseT / SIP Protocol 2.0 / WiFi (only for app connection via P2P) |
| Power | DC 12 V / 1000 mA max. / PoE IEEE802.3af |
| Protection degree | Suitable for outdoor use IP65 |
| Material | Plastic |
| Temp. operation | -40º C ~ +55º C |
| Dimensions | 138 (H) x 65 (W) x 27 (D) mm |
| Weight | 265 g |
DS-KH6320-LE1(B) | |
| Brand | Hikvision |
| Model | DS-KH6320-LE1(B) |
| Operating system | Linux |
| Screen type | 7" TFT color touchscreen |
| Screen resolution | 1024 x 600 |
| Inputs | 8 x configurable alarm inputs |
| Audio | Two-way audio with integrated microphone and speaker Noise reduction and echo cancellation |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP 2.0 Protocol |
| Remote Access | iVMS-4200 Software |
| Power | DC 12 V / 500 mA max. / PoE IEEE802.3af |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 140 (H) x 200 (W) x 23.6 (D) mm |
| Weight | 325 g |
| Slave monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
Contents
- Video intercom exterior panel for surface installation Hikvision
- Hikvision indoor monitor
- 2 x power supply
