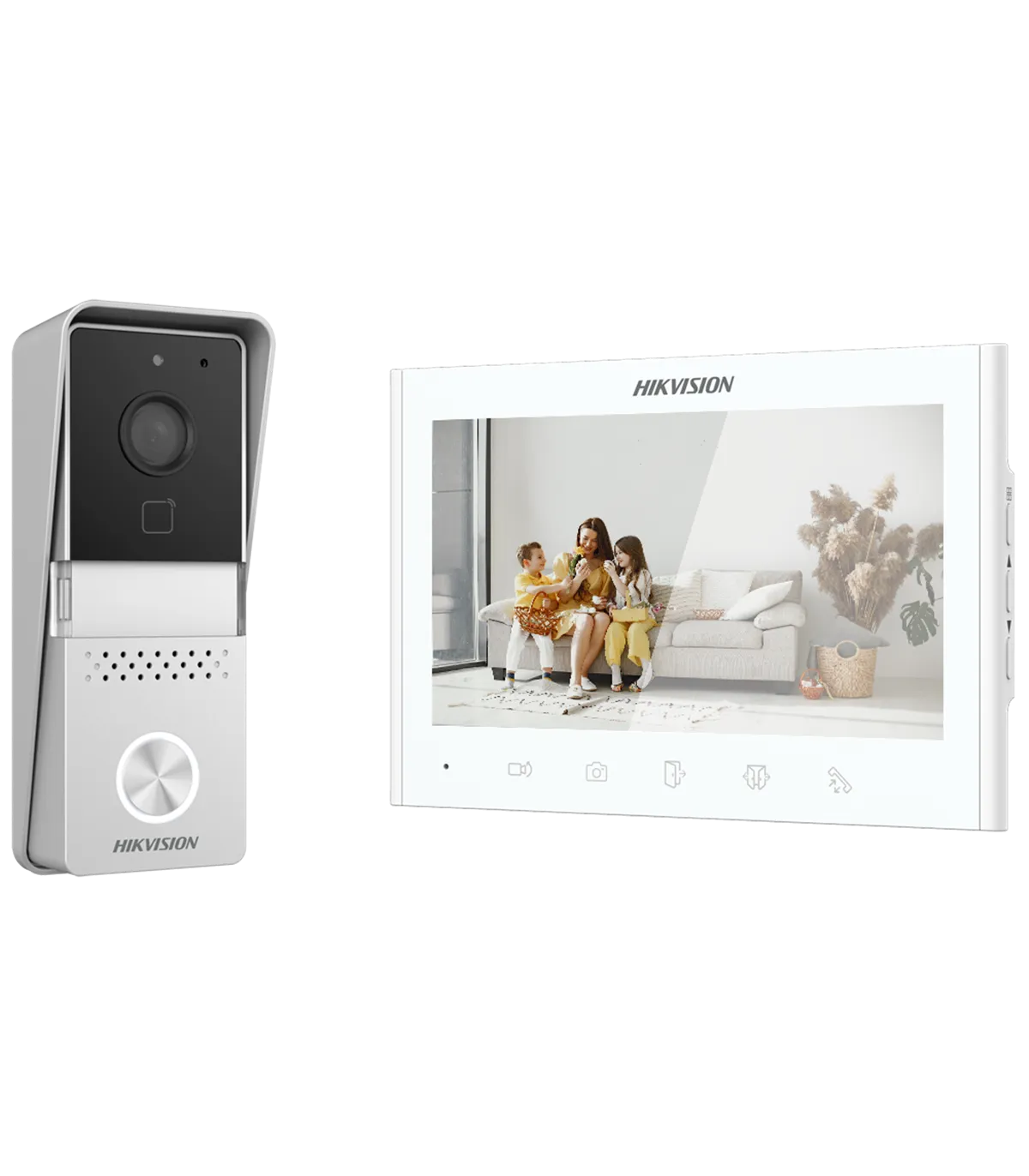

OUTDOOR PANEL | |
| Operating System | Embedded analog operating system |
| Audio | Two-way audio with microphone and speaker |
| Image Sensor | 800 TVL with IR |
| Viewing Angle | H: 110º, V: 65º |
| Keyboard | Mechanical call button with LED customization label |
| Outputs | 2 x relay outputs (1 x powers lock up to 12 V / 400 mA) |
| Inputs | 1 x monitor input, 2 x button inputs, 2 x door sensor inputs |
| Access Control | Door opening with MF 13.56 MHz card Up to 50 cards |
| Communication | 2 wires |
| Power Supply | DC 15 V / 1.2 A max. (via monitor using 2 wires) |
| Protection Rating | Suitable for outdoor use IP55 |
| Material | Aluminum alloy |
| Operating Temperature | -30 ºC ~ +60 ºC |
| Dimensions | 63 (W) x 151 (H) x 41 (D) mm |
MONITOR | |
| Operating System | Embedded analog operating system |
| Screen Type | 7" Color TFT |
| Screen Resolution | 1024 x 600 |
| Operation Mode | 5 touch buttons Physical menu and navigation buttons for configuration |
| Outputs | 2 x 2-wire output for indoor monitor |
| Inputs | 2 x 2-wire input for outdoor panels, 1 x analog camera input |
| Audio | Two-way audio with built-in microphone and speaker |
| Connection | 2-wire analog |
| Power Supply | DC 15 V / 1.2 A max. |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 123 (W) x 184 (H) x 20 (D) mm |
