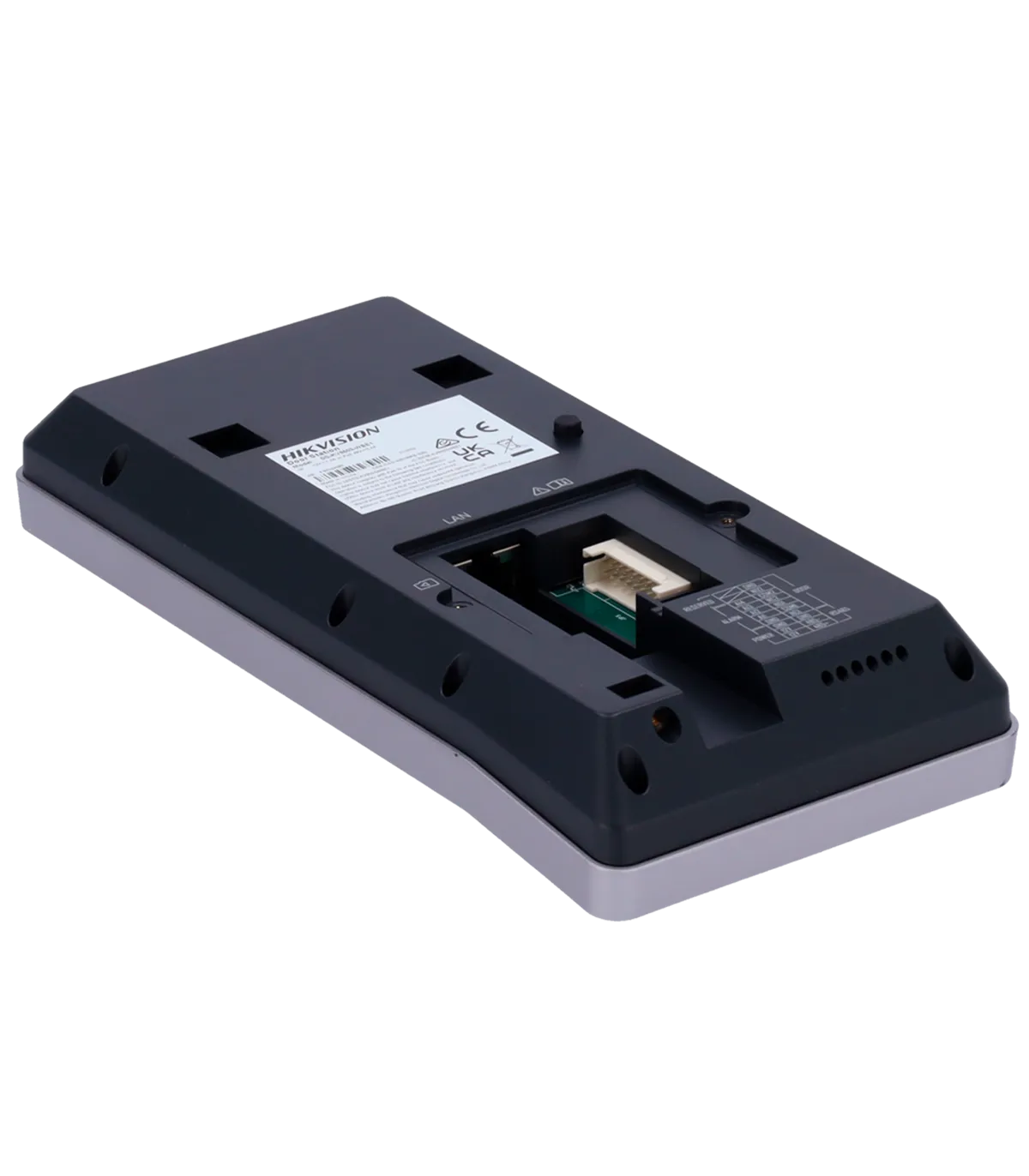

DS-KV9503-WBE1 | |
| Brand | Hikvision |
| Model | DS-KV9503-WBE1 |
| Operating System | Linux |
| Image Sensor | Low Illumination 2 MP IR |
| Image Functions | BLC / WDR / DNR |
| Viewing Angle | H: 88º, V: 44º |
| Audio | Two-way audio with microphone and speaker |
| Access Control | Door opening with MF card 13.56 MHz, facial recognition, password, and QR Up to 20,000 users, 10,000 faces, and 100,000 cards/passwords/QRs Bluetooth (only supported with HikCentral and HikConnect Teams via HikCentral Mobile APP and HikConnect APP) |
| Screen | 4.3" Color Touch LCD IPS |
| Screen Resolution | 480 x 800 |
| Outputs | 2 x relay for lock |
| Inputs | 4 x auxiliary inputs (exit button, feedback, door sensor), 1 x RS485, 1 x tamper |
| Remote Access | Web browser iVMS-4200 software Hik-Connect mobile app |
| Network Interface | Ethernet 10/100 BaseT / WiFi (only for app connection via P2P) |
| Power Supply | DC 12 V / 1.5 A max. / PoE IEEE802.3af |
| Protection Rating | Outdoor suitable IP65 Vandal-proof IK08 |
| Operating Temperature | -40 ºC ~ +60 ºC |
| Dimensions | 182 (H) x 85 (W) x 31 (D) mm |
| Weight | 490 g |
DS-KH6350-WTE1/White | |
| Brand | Hikvision |
| Model | DS-KH6350-WTE1 |
| Operating System | Linux |
| Screen Type | 7" Color Touch TFT |
| Screen Resolution | 1024 x 600 |
| Inputs | 8 x configurable alarms, 1 x RS485 |
| Outputs | 2 x relay |
| Audio | Two-way audio with built-in microphone and speaker Noise reduction and echo cancellation |
| Memory | MicroSD card slot (up to 128 GB) |
| Connection | Ethernet 10/100 BaseT / RTSP / SIP Protocol 2.0 / WiFi 802.11 b/g/n (only for app connection via P2P) |
| Remote Access | iVMS-4200 software Hik-Connect mobile app |
| Power Supply | DC 12 V / 1 A max. / PoE IEEE802.3af |
| Operating Temperature | -10 ºC ~ +50 ºC |
| Dimensions | 113.5 (H) x 175 (W) x 21 (D) mm |
| Weight | 355 g |
| Color | White |
| Slave Monitors | Android monitors DS-KH9310 and DS-KH9510 cannot be used as slaves |
